Fully Automatic 1500L/H Soft Carbonated Beverage Mixer

Product details
Supply capacity:200 sets per monthDriver type:electrical
capacity:1T-10T/hourstrength:3KW
Carbon dioxide purity:>99.9%Applicable industries:Manufacturing plants, food and beverage plants, farms
Core component warranty:1 yearWarranty:1 year
port:ShanghaiMarketing Type:New Products 2022
weight:200 kgbrand:CNC
Voltage:220V/380VVideo shipment inspection:if
Processing type:Carbonated drinkspayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Work pressure:0.05-0.08Mixing range:1:3-1:6
usage:drink mixes, carbonated drink mixesProcessing:mixer
Packaging Details:standard wooden boxPackage preview:
Storage tank working pressure:0.2-0.5Health status:new
application:drinksMixed precision:≤2%
Showroom location:Canada, Philippines, Thailand, KyrgyzstanCore components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Mechanical test report:ifplace of origin; place of origin:China Shanghai
Dimensions (L*W*H):2150*1700*2300Name:carbon dioxide mixer

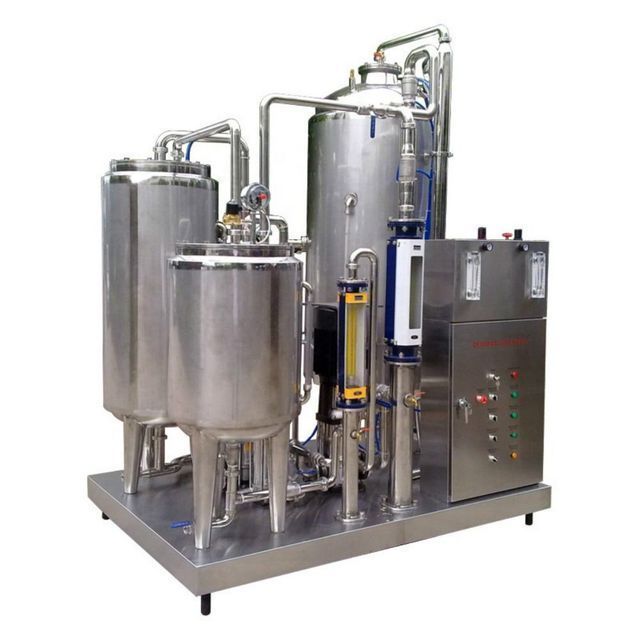

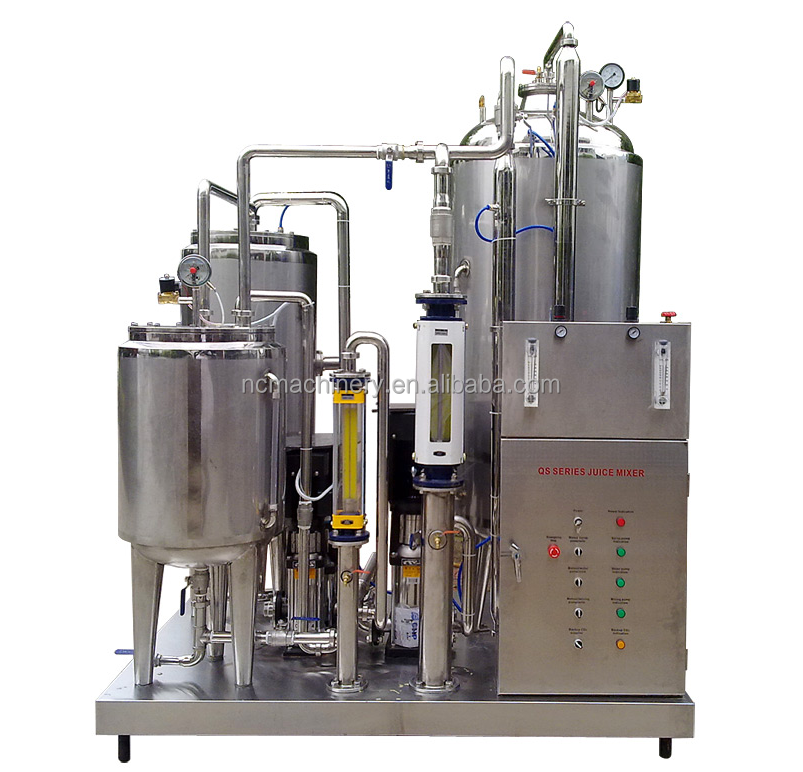

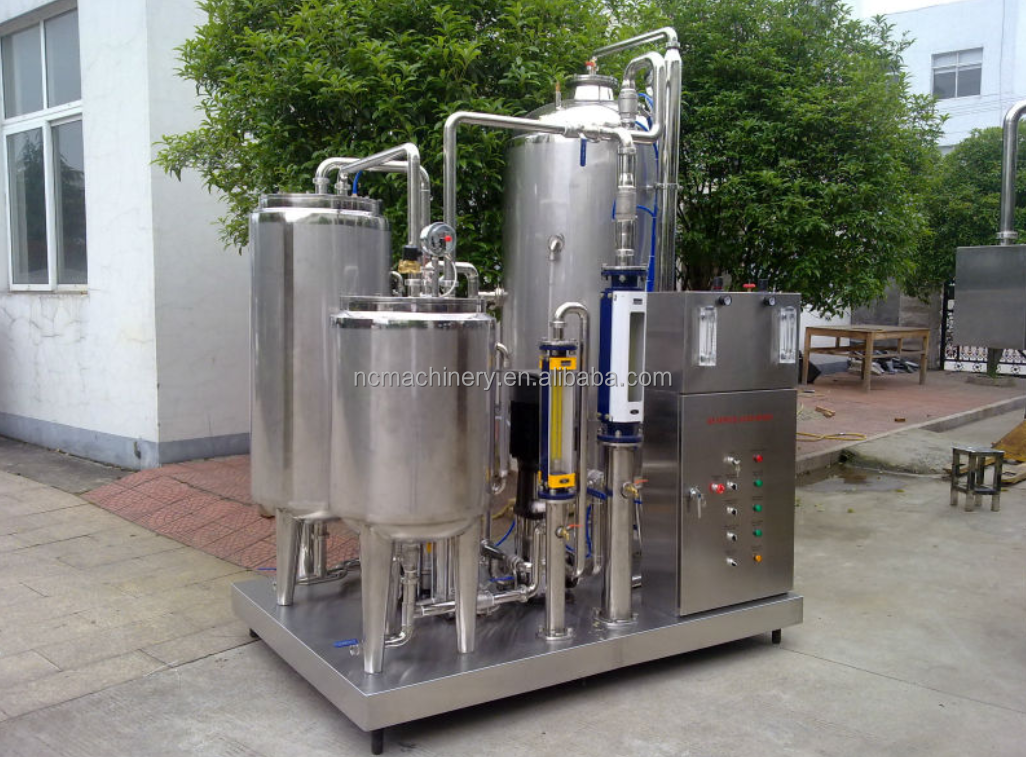

Fully Automatic 1500L/H Soft Carbonated Beverage Mixer

NC series drink mixers are designed and manufactured to increase the ratio of water, syrup and carbon dioxide

The carbonated beverage mixer is made with the latest technology introduced from Japan. Compared with similar domestic products, it is in a leading position. This mixer is mainly suitable for the mixing and processing of various carbonated beverages.

It is also used in the preparation of beverages such as slurry beverages and fermented beverages.



feature:



1. A complete automatic control system is composed of high-quality water pumps and famous brand electrical appliances.

2. The static mixer with foreign advanced technology is used to lighten the water layer, prolong the carbonization, and ensure the mixing effect and deoxidation.

3. Motor coordination, beautiful appearance, easy cleaning, high degree of automation.

4. The QHS series beverage mixer is designed and manufactured to increase the ratio of water, syrup and carbon dioxide.

5. The connecting parts are made of SUS304 stainless steel.

6. It is suitable for mixing various beverages such as soda water, fruit juice, cola, and beverages.



beverage gas mixer



Main technical standards:



Model

NC-1000

NC-2000

NC-3000

NC-5000

Production

1000

2000

3000

5000

Potion transfer rate

1:3-1:10

1:3-1:10

1:3-1:10

1:3-1:10

Gas volume (Co2:Ho2)

>2.5

>2.5

>2.5

>2.5

Mixed precision (%)

<2

<2

<2

<2

Cooling water inlet temperature (0~C)

0-4

0-4

0-4

0-4

Cooling water inlet pressure (Mpa)

0.15-0.25

0.15-0.25

0.15-0.25

0.15-0.25

Syrup inlet temperature (0C)

2-8

2-8

2-8

2-8

Syrup inlet pressure (Mpa)

0.1-0.2

0.1-0.2

0.1-0.25

0.1-0.3

Co2 Carbon dioxide inlet pressure (Mpa)

0.7-0.8

0.7-0.8

0.7-0.82

0.7-0.82

Carbon dioxide purity (%)

99.9

99.9

99.9

99.9

Storage tank working pressure (Mpa)

0.45-0.55

0.45-0.55

0.45-0.55

0.45-0.55

Motor power r(kw)

2.2

3.5

5.9

6.3

Dimensions (mm)

1500*1000*2000

1600*1600*2100

2150*1700*2300

2300*1850*2450

Weight (kg)

1200

1350

1500

1950













For example, our company has rich experience in helping customers build different production lines for different purposes. We can arrange technicians to help customers set up the whole production line of mineral water, purified water, cola, milk, juice and vinegar, oil, which we are professionally manufactured. If anyone who is interested in this field wants to buy a whole set of equipment and machines, please feel free to contact us.



We warmly welcome customers to visit our factory at any time, you will see the working and running status of the machines in our factory!
