MMA-200 IGBT Welding Machine Hot Sale Welder for Carbon Steel Knife

Product details
Supply Ability:1000 Set/Sets per Month;Payment Terms:L/C,T/T;
Port:QINGDAO;Brand Name:TZBELIEVE;
Place of Origin:Shandong China;Weight:5.0kg;
Delivery Detail:20 days;Dimensions:285MM*135MM*195MM;
Usage:Welding;Voltage:220V;
Packaging Detail:Carton;After-sales Service Provided:Engineers available to service machinery overseas;
Power(W):7 KVA;Application:welding machine;
Certification:CE CCC;Condition:New;
Name:MMA-200 IGBT Welding Machine Hot Sale Welder for Carbon Steel Knife;Model Number:MMA-200 IGBT;

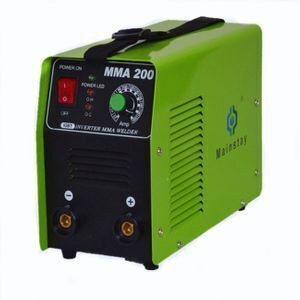

MMA-200 IGBT Welding Machine Hot Sale Welder for Carbon Steel Knife

Specifications:

 IGBT Welder for Carbon Steel Knife

1. HF inverter
2. IGBT type
3. OEM&ODM
4. Warranty:1 year

Features:

1. Limitless adjustment, easy to operate, easy to carry, economical, durable and reliable.



2. Stable electric arc, easy-controlled molten bath, artistic welded joint forming, automatic protection  on overvoltage and overcurrent.



3. Continuous working, stable performance, has the function of automatic compensation on voltage  undulate.



4. No-load loss is less than 10W, saves 50% energy compares to traditional welding machine.



5. Be suitable to stainless steel product, decoration, hardware and so on to make the thin plate  welding.

Applications:
The IGBT MMA200 carbon steel welding machine are widely used in stainless steel,decoration,hardware and so on thin plate welding.

Technical Data:

ModelMMA-200 IGBT
Rated input voltageAC220V±10%,1ph 50/60Hz
Rated Input Power7.1KW
Rated output200A/28V
Range of welding current regulation20-200A
No-load voltage56V
Duty cycle100%@160A/60%@200A
Efficiency85%
Power factor0.93
Outer covering protection rankIP21S
Insulation gradeF
Outlook size285*135*195mm
Weight5KG
Rod diameter2.0-4.0MM



Standard Configuration:

 3M 300A holder,2M 200A earth clamp
