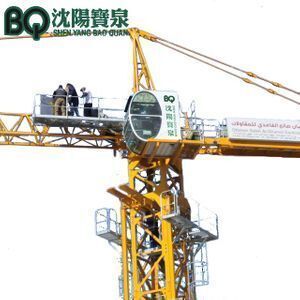

GHT5013-5 good price new 5 ton topkit tower crane

Supplier: Shenyang Baoquan Business Co., Ltd.
Region: Liaoning, China
Contact: Ms. Sophie Song
Price: $49000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging Detail:	standard export package or as your demand.;	Warranty:	1 Year;
Hoisting mechanism:	25PC13A;	Working radius (m):	50m;
After-sales Service Provided:	Engineers available to service machinery overseas;	Place of Origin:	Liaoning China (Mainland);
Tip load:	1.3tons;	Port:	Chinese port;
Application:	Conctruction building;	Main Material:	Q345B;
Supply Ability:	50 Set/Sets per Month tower crane price;	Rated Loading Capacity:	1.3-5 ton;
Condition:	New;	Feature:	Tower Crane;
Payment Terms:	L/C,T/T,Western Union;	Mast Size:	1.2X1.2X 3m;
Max. Lifting Height:	34.5m;	Span:	50m;
Power Supply:	380V/50Hz;	Slewing mechanism:	RCV95;
Trolleying mechanism:	4D3V2;	Rated Lifting Moment:	630KN.m;
After-sales Service Provided:	Field maintenance and repair service,Online support;	Certification:	ISO9001-2008, EAC;
Brand Name:	Shen Yang Bao Quan;

Product Description

Topkit tower crane is the tower crane with tower head. The tower head is the fulcrum of tie-bars chains connected to jib and counter jib. This tower crane design makes good advantage of the prosperity of bending vulnerability and pressing invulnerability and lowers the weight of jib & counter jib (simple transforming beam in mechanical model). This type of tower crane is lower in production cost, but is more demanding on the erecting and dismantling circumstances. Furthermore, the tower crane occupies some vertical space, it turns out bad in anti-interference especially at tower crane concentrated working site.

Available Model: GHT5013-5, GHT5516-6, GHT6011-6, GHT6014-8, GHT5023-10, GHT6015-10, ect.

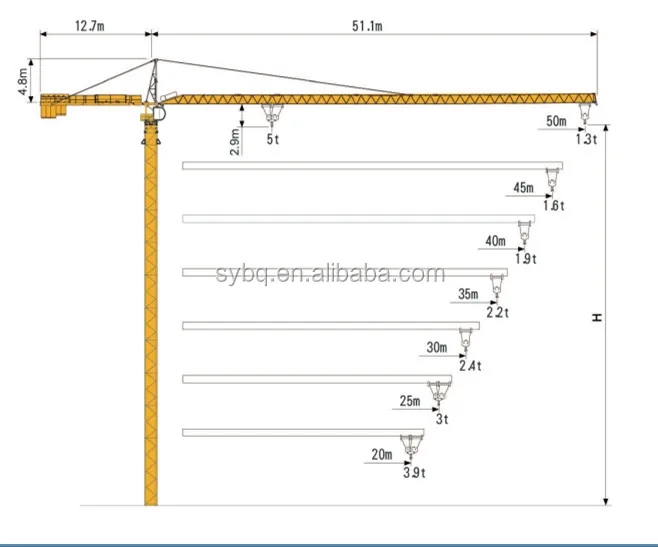

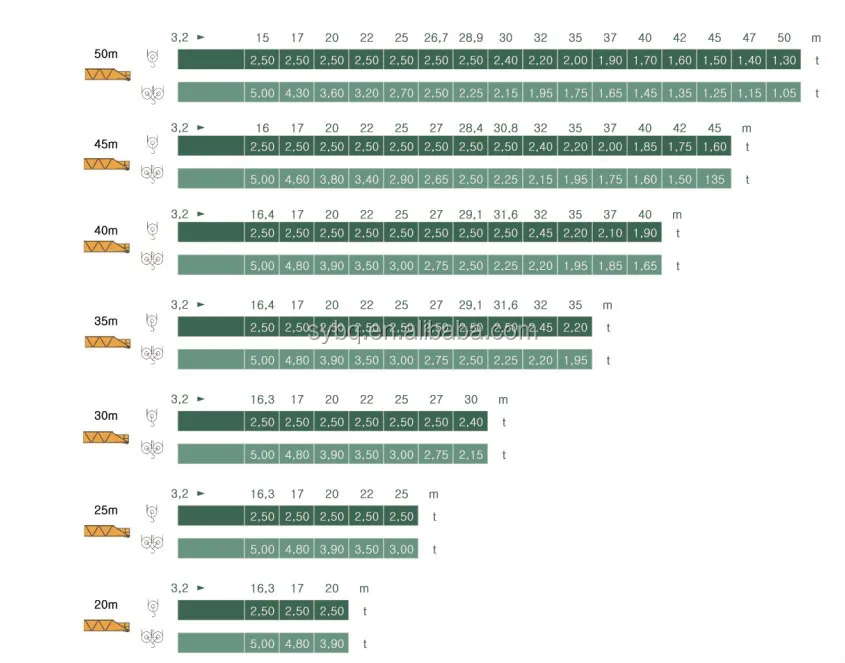

The following technical parameter is GHT5013-5, and it is used as a reference:

Mechanism Specification			II falls			IV falls			Drum capacity	kw
Hoisting	25PC13A	m/min	6.9	34.5	69	3.4	17	34	360m >360m	18.5/18.5 3.3
		t	2.6	2.6	1.3	5.2	5.2	2.6
	25LVF13	m/min	4.5-38-76.5			2.75-19-38.25				18.5
		t	2.6-2.6-o.85			5.2-5.2-1.7
Trolleying	4D3V3	m/min	0-58							3
Slewing	RCV95	r/min	0-0.8							95Nm
Travelling	RT224	m/min	25							*2.92**
Power supply					380V 50Hz
Power					25PC13A: 35Kva

Others:

We manufacture the topless tower crane, luffing crane, and derrick crane as well.

Topless Tower Crane features novel design, scientific structure, high safety and reliability, good anti-fatigue and anti-shock. This crane has no jib tie-bars attached. Compared with topkit and luffing tower crane, Topless tower crane is bigger in jib section, simpler in stress, longer in lifespan of steel structure. The installation and commissioning are made easy at top of crane to align with group working. Jib section takes no-tie-bar design, which simple connection and easy disassembly. The structural members are modularized with high production efficiency and short lead time to meet the customer’s demands to the max.

Available Model: GHP5013-5, GHP5517-8, GHP6016-10, GHP6518-10, GHP6520-12, GHP7524-16, ect.

Luffing tower crane has special climbing system which makes the crane rise with building construction. The hoisting height improves by a large margin. It takes self-contained diesel dragging design and can hoist fast with load. In structure, the luffing tower crane’s wide range of elevation angle greatly improves the equipment capacity and working radius, which is very significant to main structural construction and the stand-out parts hoisting work. The slewing radius of counter jib assembly is small and offer more options in case of group tower cranes work in limited city construction space. It is even the only option in city central area project and skyscraper building construction.

Available Model: GHD4015-5, GHD4522-8, GHD5522-12, GHD6037-16, GHD6050-20, GHD60180-50, ect.
