Single package size: | 16.7X8.8X125.25 cm; | Selling Units: | Single item; |
Package Type: | Packing: packed with thick plastic film+carboard+fumigation free wood pallet. Real dimension(LxWxH): 167x88x125.25CM Real net weight: 243kg Let is discuss freight before delivery!; | Color: | Green or customized; |
Product name: | Self loading forklift; | Operator Type: | Stand-on/walkie; |
Lifting height: | 0.8-1.3m; | Single gross weight: | 20 KG; |
Model: | CDD05Z; | Condition: | New; |
Warranty: | 1 Year; | Certification: | CE ISO9001; |
Fork Length: | 1150mm; | Dimension(L*W*H): | 1600*800*1400mm; |
Driving type: | Manual driving; | Tyre: | Nylon; |
Lifting type: | Electrical driving; | Applicable Industries: | Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Food Shop,Food & Beverage Shops; |
Load capacity: | 500kg; | Brand Name: | NOELIFT; |
Package Preview: | https://sc01.alicdn.com/kf/HTB1_vM1blKw3KVjSZFOq6yrDVXav.jpg_640x640.jpg; | Place of Origin: | Zhejiang China; |
After-sales Service Provided: | Online support; |

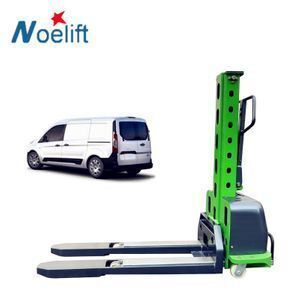

Self elevator stacker/self loading forklift
Advantages:
1. Portable mini machine
2.Tight structure ensure Low overall height, enter van/cargo without problem
3. Lady can operate it freely!
How to works?
The self loader is a Pallet & Freight loader that is designed for vans and other commercial vehicles.
It is the only Electrical lift loader that lifts a wide range of goods to a range of heights and then lifts itself in and out of the delivery vehicle.
load capacity: 500kg, lift height, 800mm, 1m & 1.3m optional.
Suitable for Open-Bottom (European style) pallets in a variety of sizes
- A liftgate and pallet jack in one machine
- Rides with the load protected from weather
- Reduces costs by turning 2 person job into 1
- Prevents delivery accidents & workplace injuries
- Simple operation by anyone, expanding your potential delivery workforce
- Battery powered; charges en route
1 | Model | CDD05Z | ||
2 | Brand | NOELIFT | ||
3 | Operation | Manual Driving, Electrical Lifting | ||
4 | Capacity | 500Kg | 500Kg | 500Kg |
5 | Weight | 193Kg | 200Kg | 219Kg |
6 | Lift Height | 800mm | 1000mm | 1300mm |
7 | Height in Lowerd Position | 1200mm | 1400mm | 1600mm |
8 | Overall length | 1600mm | 1600mm | 1600mm |
9 | Overall width | 786mm | 786mm | 786mm |
10 | Fork Length | 1250mm | 1250mm | 1250mm |
11 | Fork Width | 540mm | 540mm | 540mm |
12 | Material of Wheels | Polyurethane | Polyurethane | Polyurethane |
13 | Steering wheel size | 100x45 | 100x45 | 100x45 |
14 | Loading wheel size | 70x60 | 70x60 | 70x60 |
15 | Motor Power Lifting | 0.7kw | 0.7kw | 0.7kw |
16 | Battery | 12/45V/Ah | 12/45V/Ah | 12/45V/Ah |
17 | Charger Battery | inclusive | inclusive | inclusive |
18 | Brake Type | Mechanical | Mechanical | Mechanical |
19 | Lifting speed | 80Mm/s | 80Mm/s | 80Mm/s |
20 | Descend speed | 90Mm/s | 90Mm/s | 90Mm/s |
21 | Turning radius | 1100Mm | 1200Mm | 1200Mm |
