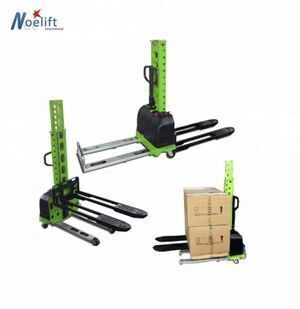

CE approved 500kg innolift stacker type portable stacker, self elevator stacker

Supplier: Hangzhou Noelift Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr noelift forklift
Price: $1500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Tire:	nylon;	Function:	loading&unloading goods for van;
Overall Dimensions:	1600786800mm;	Power Souce:	DC Motor;
Port:	shanghai port or appointed;	After-sales Service Provided:	Overseas third-party support available;
Loading Capacity:	500kg;	Fork Width:	540mm;
Max. Lifting Height:	1300mm;	battery:	12V/45ah;
Turning radius:	1200mm;	Fork Length:	1250mm;
Product Name:	500kg self loading portable stacker;	Weight:	200kg;
Min. Lifting Height:	800mm;	Supply Ability:	500 Unit/Units per Month;
Type:	Powered Pallet Truck;	Packaging Detail:	Packed with thick plastic film.;
Certification:	CE/ISO9001;	Condition:	New;
Warranty:	1 Year;	After-sales Service Provided:	Video technical support;
Brand Name:	NOELIFT;	Place of Origin:	Zhejiang China (Mainland);
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,Paypal;	Power type:	Battery DC Motor;
lifting height:	800mm/1000mm/1300mm;

Product Description

Small Self Loader Stacker/Self Lifting Stacker, hot sale for Euro market, with small overall dimension, designed for loading and unloading cargo/pallet for van.

1.Steering chain auxiliary device.
2.With foot brake,more stable,
3.Sealed batteries free of maintenance safe operation and no pollution.
4.Explosion-proof valve design,down more stable and reliable.

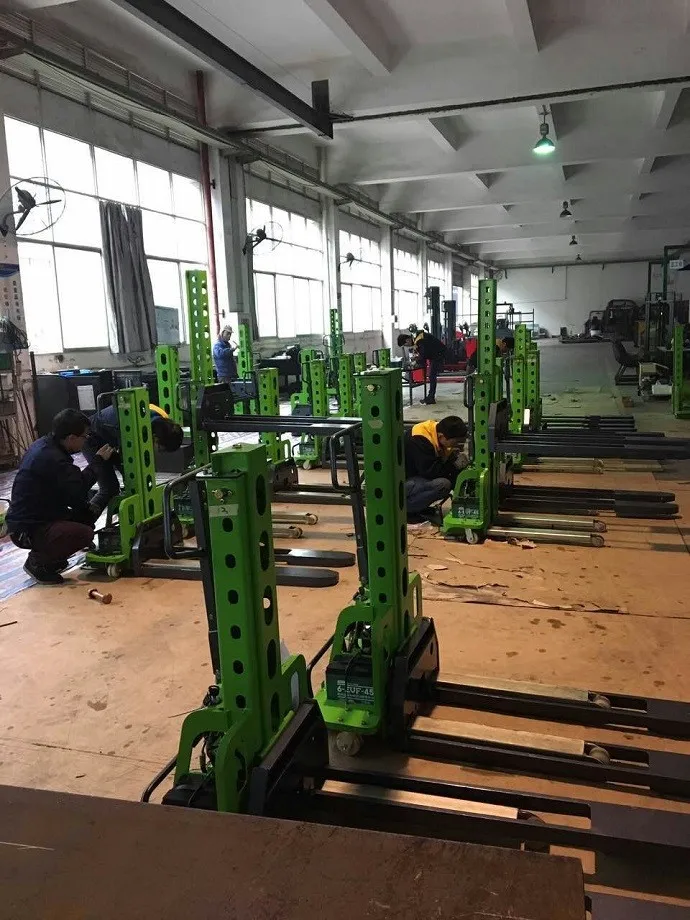

Detailed Images

Specification

Operation	Manual Driving, Electrical Lifting
Capacity	500Kg	500Kg	500Kg
Weight	193Kg	200Kg	219Kg
Lift Height	800mm	1000mm	1300mm
Height in Lowerd Position	1200mm	1400mm	1600mm
Overall length	1600mm	1600mm	1600mm
Overall width	786mm	786mm	786mm
Fork Length	1250mm	1250mm	1250mm
Fork Width	540mm	540mm	540mm
Material of Wheels	Polyurethane	Polyurethane	Polyurethane
Steering wheel size	100x45	100x45	100x45
Loading wheel size	70x60	70x60	70x60
Motor Power Lifting	0.7kw	0.7kw	0.7kw
Battery	12/45V/Ah	12/45V/Ah	12/45V/Ah
Charger Battery	inclusive	inclusive	inclusive
Brake Type	Mechanical	Mechanical	Mechanical
Lifting speed	80Mm/s	80Mm/s	80Mm/s
Descend speed	90Mm/s	90Mm/s	90Mm/s
Turning radius	1100Mm	1200Mm	1200Mm
