Single gross weight: | 24 KG; | Place of Origin: | Shanghai China; |
Measurement Accuracy: | 100%; | Min. Div.: | 2.0mm; |
Brix Range: | 20%-80%; | Brix Min. Div.: | 5mm; |
Brand Name: | TOP VIEW; | Weight: | 22kg; |
Measurement Range: | 2-12mm; | color: | white; |
Size: | 70*69*45; | Selling Units: | Single item; |
corneal curvature: | yes; | Single package size: | 75X70X46 cm; |
Model Number: | KR9600; | Package Type: | strongest export carton, two foams within the inner box and outer box; |

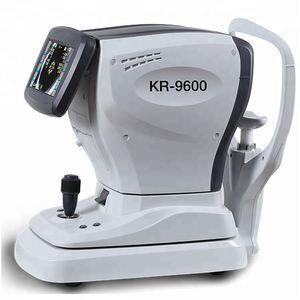

China Hot Selling autorefractometer with keratometer KR9600

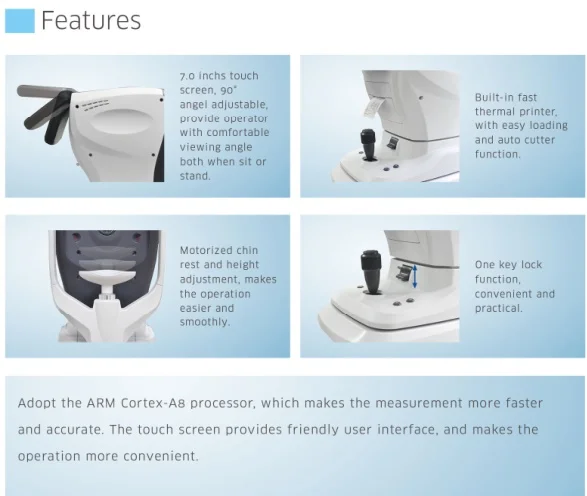

Features:
This model can connect CV7200/ CV7600 Auto phoropter, CM1900C Visual chart and TL6500B /TL6800C Auto lensmeter together by bluebooth.
1.7" tiltable color and touch screen.with keratometer function
2.auto detachment printer

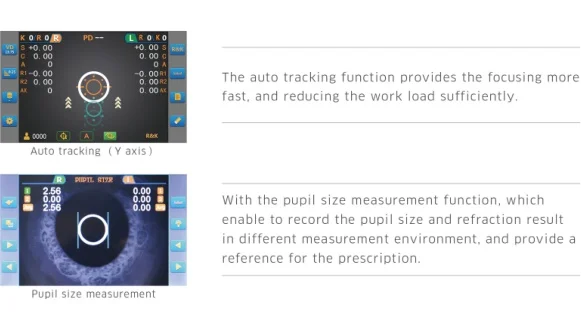

3.auto tracking on Y Axis
4.motorized chinrest
5.Motorized joystick
6. One key lock
7.IOL function, can measure the eye whose eye with cataract or other eye surgical before.
Specifications:
Measurement mode | K/R mode | Refractive and Keratometer measurement. |
REF mode | Refractive measurement | |
KEF mode | Corneal curvature measurement | |
Refractive measurement | Vertex Distance | 0.0,12.0,13.75,15.0 mm |
Sphere | -25.00~+22.00D (0.12/0.25D step)(VD=12mm) | |
Cylinder | 0.00~±10.00D (0.12/0.25D step) | |
Axis | 1°~180°(1° step) | |
Pupil Distance | 10~85 mm | |
Min. pupil diameter measurable | 2.0mm | |
Target | Automatic fogging target | |
Corneal curvature measurement | Radius of curvature | 5~10mm(0.01mmstep) |
Corneal Refraction | 33.75~67.50D(0.12/0.25Dstep) | |
Corneal Astigmatism | 0.00~-15.00D(0.12/0.25Dstep) | |
Angle of corneal | 1°~180°(1°step) | |
Corneal diameter | 2.0~12.00mm | |
Hardware specification | Monitor | 7 inch Color touch LCD |
Printer | Auto detachment printer | |
Power saving function | OFF, 5, 15 mins (selectable) | |
Date output Power supply | RS232/Bluetooth AC110~220 V,50/60HZ | |
Dimensions/weight | 288(W)*500(D)*480(H)mm/14kg |

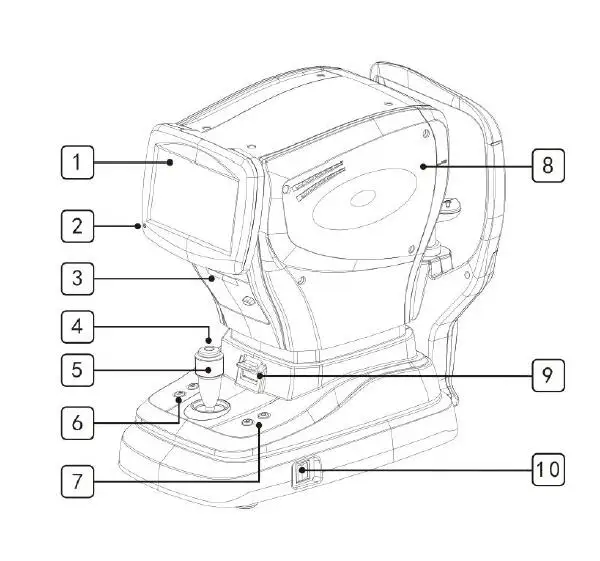

Device configuration:
1.7 inch resistive screen: Display measurement results. The screen can adjust angle.
2.Power pilot lamp: When the instrument is working, the indicator light is bright.
3.Printer: print measurement results.
4.Measurement button: When the measurement button is pressed, measurement starts.
5.Joystick: Adjust the measuring window position forward and backward/ Left and right / up and down.
6.Chinrest up/down button: Realize the function of lifting the chinrest.
7.Reset print key: Reset print function.
8.Measuring unit: It is functional unit.
9.Locking lever: Fixation the main body to the base.
10.Power switch: Turn on or off the instrument power switch.
11.Forehead rest: Here on the forehead.
12.Measuring window: Measurement of retinal imaging
13.Chinrest: Fixed chin.
14.Eye level marker: The height of the chinrest should be adjusted so that the patient’s eye roughly aligns with this line.
15.Adjust the foundation: Support the instrument to adjust the level of equipment.
16.Fixing pins: Fix the model eye and chinrest paper.

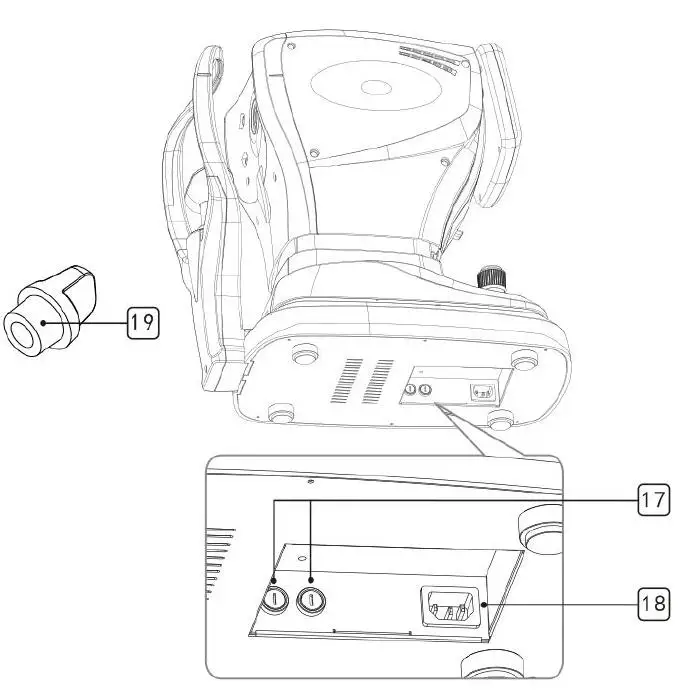

17.Fuse holder: 2 fuses installed inside.
18.Power inlet: Connect ~220V, 50Hz AC.
19.The cover of measuring window

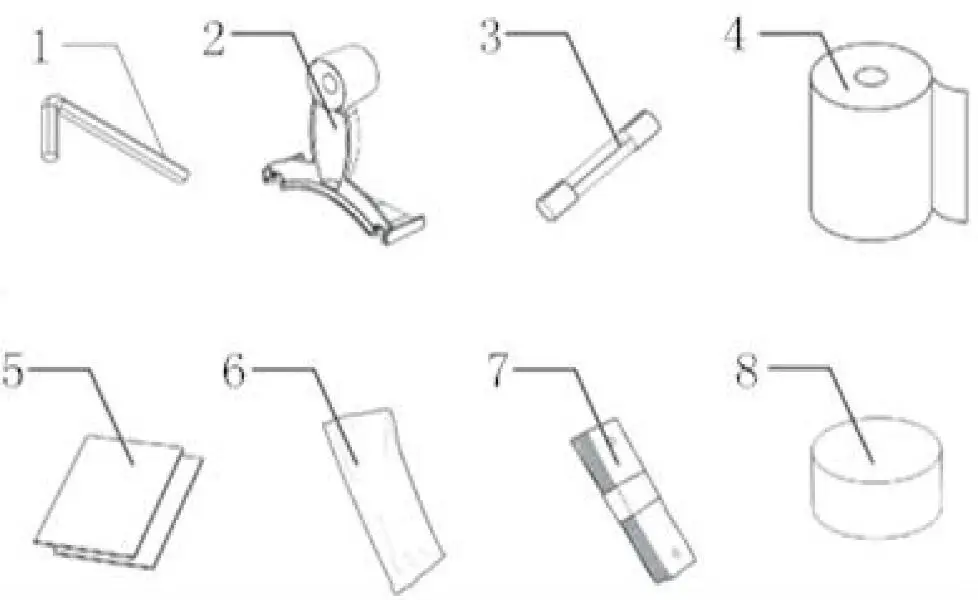

Accessories:
1.Socket head wrench: Unlock plug screw.
2.Model eye: Use to proofreading accuracy.
3.Fuse wire: To prevent short circuit.
4.Printing paper: Measurement of retinal imaging.
5.Operator's manual: Instructions for use of this device.
6.Dust cover: When not using the instrument, dustproof.
7.Chinrest paper: Customer put on the chinrest.
8.Horizontal bubble: Display instrument level.
Detailed pictures:
