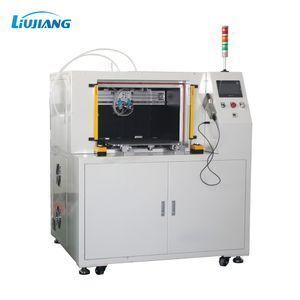

Automatic vacuum filling machine epoxy resin and silicone AB two components glue machine

Vacuum filling machine  accurately meters, mixes and dispenses two-component medium to low-viscosity materials for potting, gasketing,sealing, encapsulation and syringe filling. For variable ratio dispensing, the system handles ratios from 1:1 to 10:1.

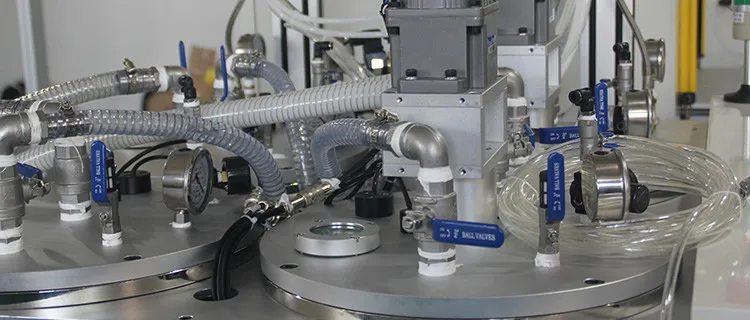

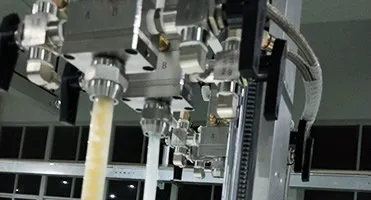

The system is composed of material tank, metering pump, metering motor, material pipe, two component valve, motor for dynamic stirring, mixing tube. Two kinds of glue are separated before they mix in mixing tube, so the glue will not cure in devices. Glue valve is with vacuum function to keep thin fluid from dripping. Other optional functions include:
Tank stirring function;
Tank defoaming function;
Thermostat heating function on Tank, pipe, and valve;.

Product vacuum function,Vacuum environment -0.1MPA.

Function:

1. Automatic metering and mixing, touch screen PLC control system, English operation interface allow easy to set parameters;
2. Gluing speed and time can be set;
3. Mixing ratio 1:1-1:10 and gluing volume can be set and adjusted as per actual need. Dynamic mixing and static mixing optional;
4. Metering mixing and gluing simultaneously;
5. Two tanks keep A glue and B glue separately;
6. Liquid level sensor, warning function;
7. Tank stirring and vacuum defoaming function optional;
8. Auto cleaning; The cleaning mode can be manually or automatically, manual mode just remove the mixing tube then soak into cleaning agent, after 10 min take out and clean with compressed air, Automatic mode only need to operate the cleaning switch on touch screen within 1 minute to complete;
9. Glue tank/metering pump/glue pipe heating function (optional);
10. Vacuum control keeps thin fluids from dripping;
.

Main Features

1) Offline equipment, requiring the workbench to eject equipment outside the product.

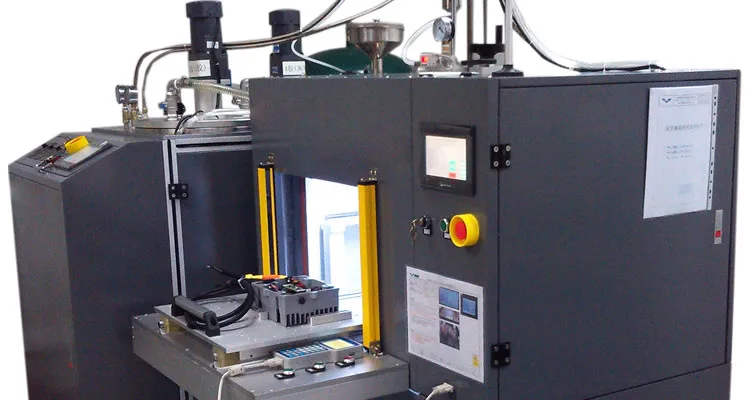

2) Programmable automatic filling glue, requiring automatic vacuum filling after vacuuming, releasing vacuum automatic filling glue

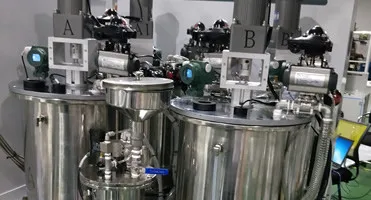

3) A, B tank vacuum defoaming, automatic mixing, tank inventory real-time monitoring automatic alarm

4) utomatic cleaning gun valve

5)Tank capacity: A glue 30L, B glue 30L, A glue stirring, B glue mixing; A / B tank one each
