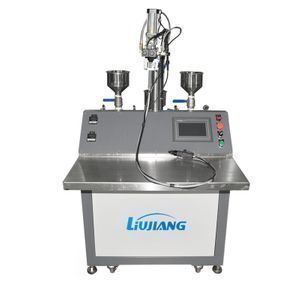

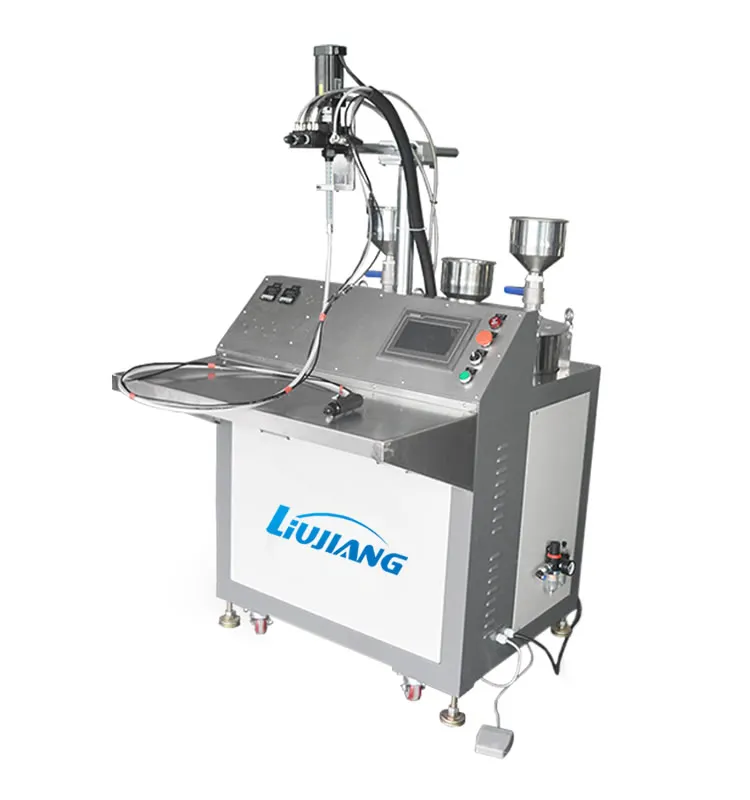

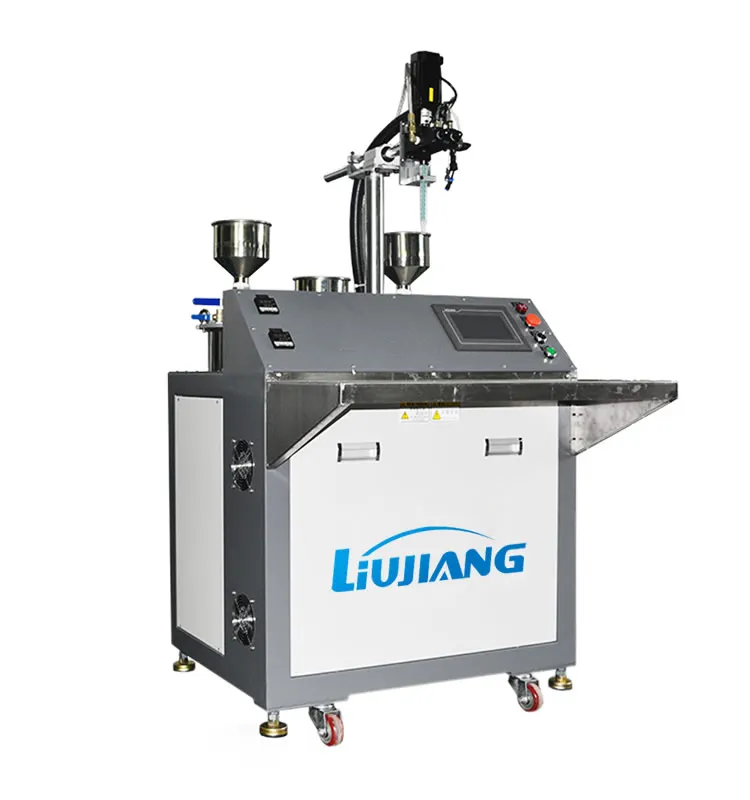

Liujiang 2 Parts Epoxy Resin AB Glue Dispensing Robot Machine for LED transformer

Supplier: Dongguan Liujiang Automation Co., Ltd.
Region: Guangdong, China
Contact: Mr Andy Wang
Price: $4500.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Product name:	Semi-auto AB glue potting machine;	Single gross weight:	68 KG;
Packaging Type:	Cartons;	AB steel tank:	20L;
Type:	Gluing Machine;	Brand Name:	LIUJIANG;
Control:	PLC+LCD;	Clear Tank:	6L;
Warranty:	1 Year;	Auto glue-supplying:	ratio range from 1:1 to 10:1;
Weight:	350KG;	Voltage:	220v;
Delivery Detail:	0 days after payment;	Driven Type:	Electric;
After-sales Service Provided:	Free spare parts,Video technical support,Online support;	A steel tank:	heating and stir;
Glue:	Liquid AB glue;	Package Preview:	https://sc02.alicdn.com/kf/HTB1PAcYSmzqK1RjSZFjq6zlCFXaL.jpg_640x640.jpg;
Application:	Medical,Machinery & Hardware,Apparel;	A Pump:	gear pump 6-12CC;
Dimension(LWH):	10508501500mm;	Air Pressure:	0.5-0.8MPa;
Package Type:	wooden packing;	Selling Units:	Single item;
B Pump:	gear pump 0.6-2.4CC;	Automatic Grade:	Semi-Automatic;
Place of Origin:	Guangdong China (Mainland);	Single package size:	70X70X55 cm;
Condition:	New;	Packaging Material:	Wood;

Liujiang 2 Parts Epoxy Resin Glue Dispensing Robot Machine for LED and transformer

Liujiang ab two parts glue machine with gear pump Or use screw pump

Product Description

Technical Type	Technical Parameter
Glue mixing ratio	1:1~10:1
Moving Path	Point
Potting Speed	10-150g/5s(Adjustable, outputting amount will be different with different glue)
Potting Precise	Amount±1%, Ratio:±1%
Air Pressure	0.5-0.8MPa
Head Sealing pressure	MAX≤2.6Mpa
A B Glue viscosity	<10000CPS
Operation Method	Manual
Flow Counting	Visual
Program Method	Teaching Program
Interface	English
Electronic Control System	Smart control card+PLC+Touch Screen(Program setting, modify, save)
Glue Stop System	A, B Glue independent movement auto resorption system
Mixing Stirring System	High speed dynamic stirring mixing device
Glue ratio control	High precise metering pump
A Pump	High precise gear pump 6-12CC
B Pump	High precise pressure gear pump 0.6-2.4CC
A Glue Bucket Stirring System	Customize
B Glue Bucket Stirring System	Customize
A Glue Heating System	Support
B Glue Heating system	Customize
Vacuum Function	Customize
A Glue Tank Volume	20L
B Glue Tank Volume	20L
Cleaning Tank Volume	6L
Dimension	10508501500mm
Rated power consumption	220V 50Hz About 3500W

Packaging & Shipping

Professional packaging: 1pc with poly bag.
wooden case and canton box are available.
make sure the machine safe.
Shipping :7 working days after order confirmed
