cnc vertical machining center price Factory 3 axis

Supplier: Shandong Chuci Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Michael L
Price: $13000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T,Western Union;	Warranty:	2 Years;
Condition:	New;	Port:	Qingdao Port/Shanghai Port/Tianjin Port;
Table size:	1250*360mm;	Key Selling Points:	Automatic;
Guideways:	Taiwan Linear Guideways;	Tool Changer:	Armless/Arm Type;
Certification:	CE;	Material:	Cast Iron;
Spindle taper:	BT40;	Supply Ability:	100 Set/Sets per Month;
Applicable Industries:	Manufacturing Plant;	X/Y/Z axis travel:	960400500mm;
Spindle speed:	8000 Rpm;	Place of Origin:	China;
Type:	Vertical;	Spindle motor:	5.5KW;
Control system:	SIEMENS FANUC (optional);	Brand Name:	CHUCI;
After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training;	Dimension(LWH):	222018602280;
Machine Type:	CNC Vertical Machining Center;	Packaging Detail:	The Package of our cnc vertical machining center is export standard plywood case with iron plate below ,very strong and durable . The cnc vertical machining center will be shipped to customers by land freight or sea freight.;
Weight (T):	2.4;

Product Description

Technical Parameter:

Specification	Unit	XK7136
Table Size	mm	1250*360
Max.Table Load	kg	350
X/Y/Z Axis Travel	mm	960400500
Distance Between Spindle Center and Column Guide Surface	mm	460
Distance Between Spindle End Face and Worktable Surface	mm	100-600
X/Y/Z Max.Feed Speed	mm/min	1-5000
X/Y/Z Max.Rapid Traverse	m/min	8/8/8
Max.Spindle Speed	r/min	8000
Spindle Taper Hole	Type	BT40
Spindle Motor	kw	5.5
X/Y/Z Motor Connection		Direct
X/Y/Z Guide Way Type		Linear Guide Way
Workbench T-Slot	mm	3-14*80
Repeat Positioning Accuracy	mm	±0.005(Standard) ±0.003(Optional)

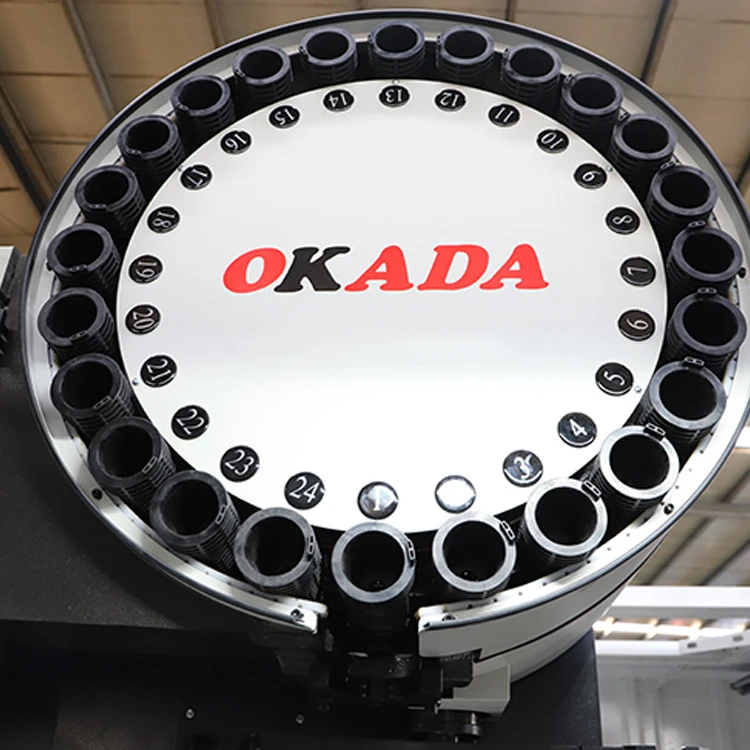

Tool Magazine		Armless/Arm
Dimension (LWH)	mm	220018602280
N.W	kg	2400

Machine Features:
1. High quality resin sand;
2.Taiwan spindle;
3.Taiwan ball screw and locking nut;
4.Taiwan pressure cylinder;
5.Japanese NSK bearing germany R+W coupling;
6.Automatic lubrication system;
7.Chip conveyor at optional.

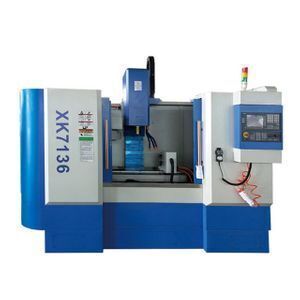

CNC Vertical Machining Center:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

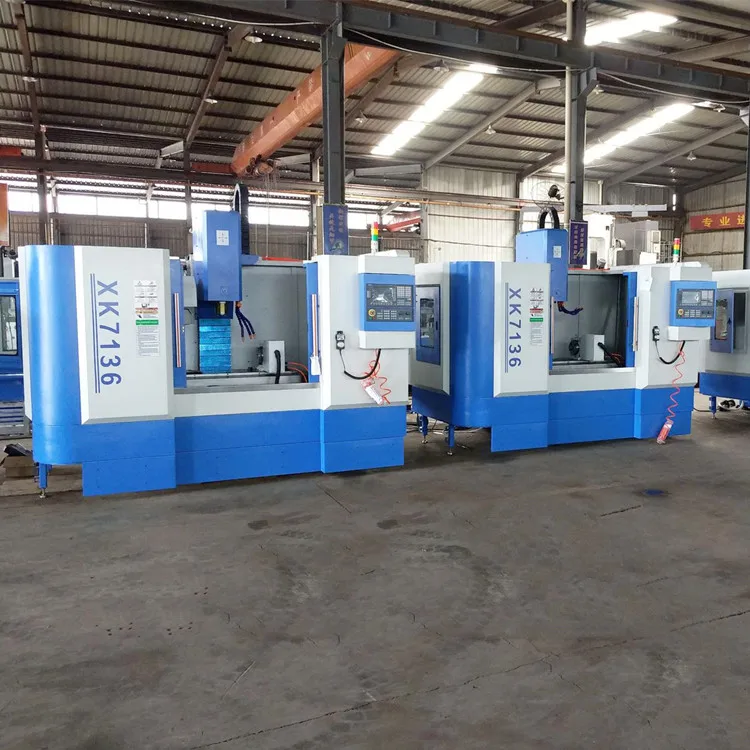

Detailed Images

Company Information

Shandong Chuci Machinery Equipment Co., Ltd. is located in Shandong Tengzhou, We are one of the leading machinery groups specialized in producing heavy duty machines. Our factory mainly producing CNC vertical lathe, CNC lathe, CNC vertical machining center, heavy-duty horizontal lathe and CNC types.
We have a group of professional engineers in charge of technology, manufacture, installation and testing, so we can guarantee that our machines will put on good performance based on high quality. We can provide customers with full services and technical consultation upon different requests in 24 hours. Chuci Machinery Equipment would like to offer the best machines, and build ourselves as the bridge and window for both overseas and domestic enterprises and customers.
Our products have been exported to more than 60 countries such as Canada, the USA, Italy, France, Brazil, Bolivia, Chile, Russia, Romania, Saudi Arabia, Syria, Jordan, the UAE, Indonesia, Singapore, Thailand, India, Pakistan, South Africa, Egypt, Nigeria, Kenya and so on.
We do believe we can create a win-win situation for both sides as long as we have come to a cooperation consensus. "Together we stand still, Divided we fall". This is what we uphold while treating our partners. Clients from all over the world are warmly welcome to build business relations, cooperate and develop together with us. Please feel free to contact us for details.

And welcome to our factory!

FAQ

1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.

2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.

3.When is the delivery time?
We will delivery it within 40 days after received your payments.

4. How to handle the warranty period?
During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.

5.Can your company send the technical personnel to our company and direct our workers for free?
When the machine arrive the buyer’s installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

6.What's the trade assurance?
When you look at our alibaba website, you will see the trade security, its purpose is to let every buyer confidence, it can protect your payment, ensure that the suppliers fulfill their commitment to the date of shipment and the quality of the products (as you stated in the purchase order).
If the supplier finds breach of these contractual obligations, alibaba will indemnify you for 100% of your trade guarantee.
Therefore, I believe that through trade guarantees, you will have greater confidence to cooperate with us.

7.Do your products support trade assurance?
Yes, our products are all supported.
