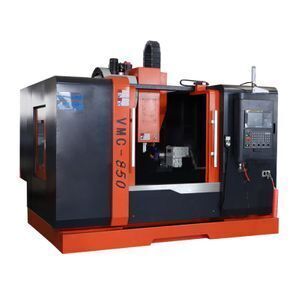

Low Cost CNC Vertical Machining Center VMC850

Supplier: Shandong Chuci Machinery Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Michael L
Price: $15000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Control system:	SIEMENS FANUC (optional);	Brand Name:	CHUCI;
Tool Changer:	Armless/Arm Type;	Certification:	CE;
Spindle speed:	8000 Rpm;	Condition:	New;
Repeat positioning accuracy:	0.004;	Spindle taper:	BT40;
Warranty:	2 Years;	Packaging Detail:	The Package of our cnc vertical machining center is export standard plywood case with iron plate below ,very strong and durable . The cnc vertical machining center will be shipped to customers by land freight or sea freight.;
Payment Terms:	L/C,T/T,Western Union;	X/Y/Z axis travel:	800500600;
Table size:	1050500mm/1000530;	Type:	Vertical;
After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training;	Weight (T):	5.7;
Material:	Cast Iron;	Key Selling Points:	High Productivity;
Applicable Industries:	Manufacturing Plant;	Spindle motor:	7.5/11KW;
Port:	Qingdao Port/Shanghai Port/Tianjin Port;	Place of Origin:	China;
Guideways:	Taiwan Linear Guideways;	Supply Ability:	100 Set/Sets per Month;
Dimension(LWH):	270024002700mm;

Product Description

Technical Parameter:

Specification	Unit	VMC550	VMC650
Table Size	mm	800*350	900*400
Max.Table Load	kg	300	450
X/Y/Z Axis Travel	mm	550350500	650400500
Distance Between Spindle Center and Column Guide Surface	mm	419	476
Distance Between Spindle End Face and Worktable Surface	mm	100-600	100-600
X/Y/Z Max.Feed Speed	mm/min	10000	10000
X/Y/Z Max.Rapid Traverse	m/min	20/20/15	24/24/20
Max.Spindle Speed	r/min	8000	8000
Spindle Taper Hole	Type	BT40	BT40
Spindle Motor	kw	3.7/5.5	5.5/7.5
X/Y/Z Axis Servo Motor	kw	1.0/1.0/1.5	1.0/1.0/1.5
X/Y/Z Motor Connection		Direct	Direct
X/Y/Z Guide Way Type		Linear Guide Way	Linear Guide Way
Workbench T-Slot	mm	3-18*105	3-18*125
Repeat Positioning Accuracy	mm	±0.004	±0.004
Tool Magazine		Armless/Arm	Armless/Arm
Tool Capacity		16/16	16/16
Max.Tool Weight	kg	7	7
Max.Tool Length	mm	250/300	250/300
Electric Capacity	KVA	10	10
Dimension (LWH)	mm	210019502200	230022002400
N.W	kg	3000	4500

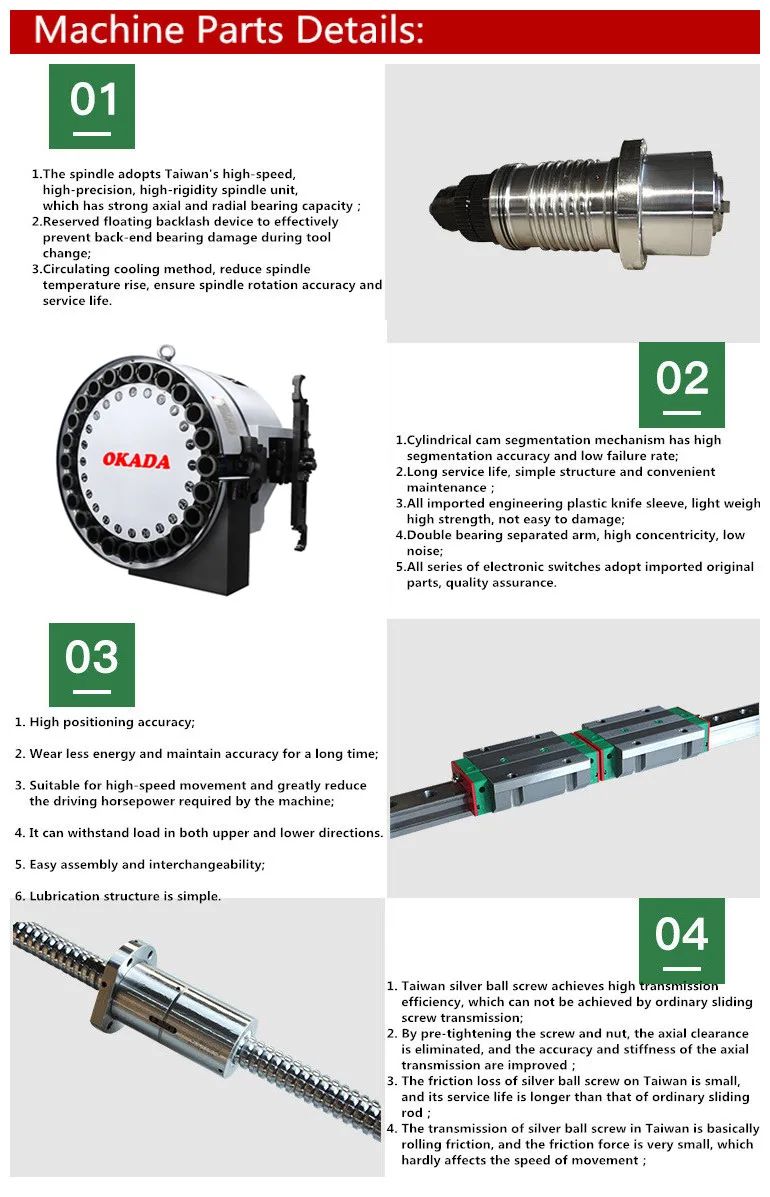

Machine Features:
1. High quality resin sand;
2.Taiwan spindle;
3.Taiwan ball screw and locking nut;
4.Taiwan pressure cylinder;
5.Japanese NSK bearing germany R+W coupling;
6.Automatic lubrication system;
7.Chip conveyor at optional.

CNC Vertical Machining Center:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.

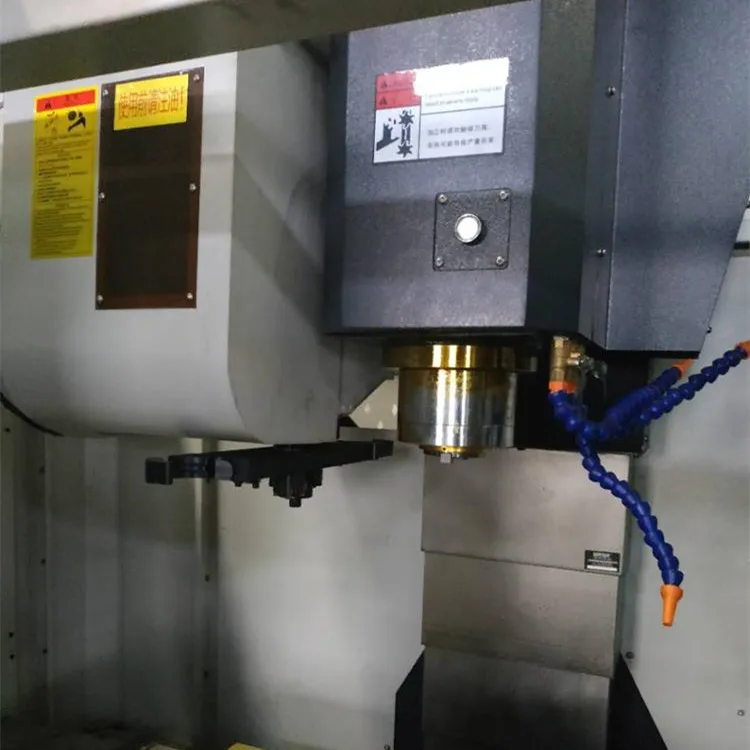

Detailed Images

FAQ

1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.

2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK etc. It depends on your choice.

3.When is the delivery time?
We will delivery it within 40 days after received your payments.

4. How to handle the warranty period?
During the warranty period, because of product quality problems, the company is responsible for free maintenance, if need to change parts, we be responsible for free replacement.
If the machine problem is not belonging to our machine quality problems, when the buyer needs us send engineers to give repairing service, we charge the appropriate cost.

5.Can your company send the technical personnel to our company and direct our workers for free?
When the machine arrive the buyer’s installation site, we timely send mechanical and electrical engineers to install according to the buyer's schedule, the buyer undertakes board and lodging of personnel abroad in the process of installation, and also USD100.00 per day per person. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

6.What's the trade assurance?
When you look at our alibaba website, you will see the trade security, its purpose is to let every buyer confidence, it can protect your payment, ensure that the suppliers fulfill their commitment to the date of shipment and the quality of the products (as you stated in the purchase order).
If the supplier finds breach of these contractual obligations, alibaba will indemnify you for 100% of your trade guarantee.
Therefore, I believe that through trade guarantees, you will have greater confidence to cooperate with us.

7.Do your products support trade assurance?
Yes, our products are all supported.
