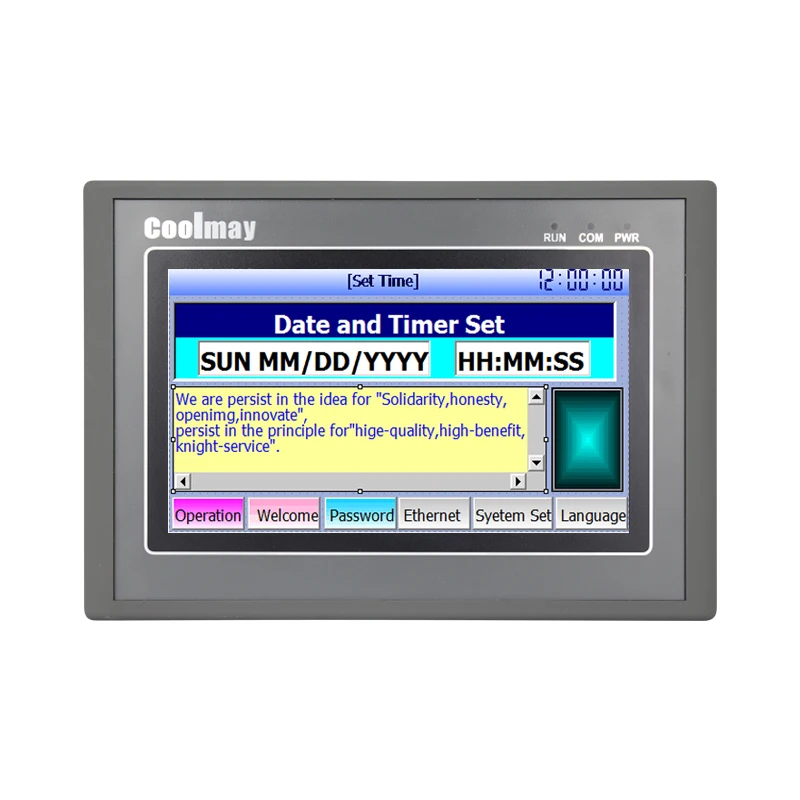

Upgraded cost save PLC and HMI all in one

Product details
Size:134*102*30mm;Model Number:EX3G-70KH;
Analog:0-10V,4-20mA,0-20mA;Digital input/output:12DI/12DO;
Touch size:97*56mm;Digital type:mr/mt;
Software:compatiable mitsubishi GX8.86,WORKS 2;Place of Origin:Guangdong China;
Brand Name:Coolmay;Packaging Detail:Paper box;
Port:Shekou port;Analog points:4AD/2DA at most;
Payment Terms:T/T,Western Union,Paypal, Credit Card, Cash;Pulse:4channels 60khz+2channels 10khz;
Supply Ability:200 Piece/Pieces per Day;Operating system:NULL /WINCE 7.0;
Run memory:32MB,64MB;

Upgraded cost save PLC and HMI all in one



Product Description

*Pluggable terminal, convenient connection and maintenance

*Special encryption to increase  data safety.
*Highly Integrated with touch screen panel and powerful plc

*PLC DI/DO up to 30/30,AI/AO up to 20/8

*Optional high speed pulse input up to 6,high speed pulse output up to 8.

*Touch screen panel from 3.5-10.2 for your choice





Artical

EX3G-43HA/HB

EX3G-43(50)KHA/KHB

EX3G-70KHA/KHB

EX3G-100HA/HB


















Dimension



134*102*30mm

150*93*32mm

226*163*35.6mm

275*194*36mm

Cutout size

119*93mm

143*86mm

218*153mm

261*180mm

Power Consumption

4-6W

4-6W/5-7W

6-7W

6-8W

HMI

Features

60K colors TP

Display size

97*56mm

97*56/108*65mm

154*87mm

222*133mm

Resolution(pixels)

480*272

43KHB:480*272

50KHB:800*480

70KHA:1024*600

70KHB:800*480

100HA:1024*600

100HB:800*480

RAM

HA/KHA:64MB;HB/KHB:32MB

HA/KHA:128MB;HB/KHB:64MB

ROM

128MB

Operation system

HA/KHA:WINCE 7.0; HB/KHB: without system

CPU

HA/KHA:CORTEX A8 720MHz-1GHz;

HB/KHB:ARM9 216MHz

HA/KHA:CORTEX A8 720MHz-1GHz;

HB/KHB:ARM9 288MHz

COM port

1 TP download port,1 USB port

1 RS232 optional

1 RS485 or RS232 optional

Software

CoolMayHMI V5.**(newest vesion pls see Http://coolmay.net)

PLC

Digital I/O

Up to12DI/12DO

 Up to 30DI/30DO(At most 18 relay outputs)

I/O level

MT Output: NPN    MR output: NO contact     Input: Passive NPN, public terminal isolated

Output type

MR/MOS

Maximum load:  MOS is 2A; MR is 5A

MR/MT/MRT

Maximum load: MT is 500mA; MR is 5A

High-speed counting

EX3G-HA/KHA normally 5 single phase 100KHz,1channel 20KHz or 2 AB phase 60KHz,1 channel 10KHz;

EX3G-HB/KHB normally 6 single phase 20KHz or 3 AB phase 10KHz

High-speed pulse

EX3G-HA/KHA normally 8channels,Y0-Y3 is 100KHz,Y4-Y7 is 10KHz;

EX3G-HB/KHB normally 8 channels 10KHz

Analog I/O

AI: 0-10V/4-20mA/0-20mA/PT100/K type thermocouple/NTC10K/50K/100K etc.

AO: 0-10V/0-5V/0-20mA/4-20mA or mixed

At most 4AD/2DA

At most 16AD/8DA

COM port

2 programming ports(1 MiniB type USB port,faster downloading speed;1 Rs232 port)

1 RS485 optional

1 Rs485,1 Rs232 or 2 Rs485, and CANbus optional

Software

Compatible with Mitsubishi GX Developer8.86 and WORKS 2



Regular models: EX3G-43HB/43KHB/50KHB-24MT/MOS(-4AD2DA-485P/232H)

                           EX3G-70HA/100HA-44MT/MR/MRT(-16AD8DA-485P/232H)

                           EX3G-70HA/100HA-60MT/MR/MRT(-4AD2DA-485P/232H)

                485P/232P means 485/232 added in PLC; 485H/232H means 485/232 added in HMI



 *EX3G-70HA/100HA: If with 30DI/30DO,the maximum analogs are 5AD/2DA;

  If with 24DI/20DO,the maximum analogs are 16AD/8DA;

    Detailed info.refer to:



Packaging & Shipping





Advantages

     1) Over 10 years brand,  Specialized in PLC and HMI automation products studying since 2005.

      2) Powerful team,  with experienced professional developing team, have already got many patent certificate

      3) Various products, and support customized service, you can always find your prefer one.

      4) Perfect after-service, support 18 months warranty under right operation, and support lifelong technical introduction.

      5) Free training , Case and software for plc controller and hmi touch panel etc will be kept updated in our official website.

      6) Exported directly, we are not only the developer, but also the manufacurer, you could get high quality products in very good price

Company Information

Shenzhen Coolmay Technology Co., Ltd,the developer and manufacturer of Coolmay brand serial products,including HMI,PLC and HMI/PLC ALL-IN-ONE and other industrial control products. Since its establishment in 2005,the company has been focusing in providing various products with high Quality and low price for industrial control,based on the belief of “Cooperation,Honesty,
Down-to-earth,Innovation”.
