Coolmay integrated PLC and HMI with compatied gx developer software

Supplier: Shenzhen Coolmay Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Joanna Huang
Price: $102.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	Guangdong China;	Analog:	0-10V,4-20mA,0-20mA;
Analog points:	4AD/2DA;	Software:	GX8.86,WORKS 2;
Digital input/output:	12DI/12DO;	Supply Ability:	200 Piece/Pieces per Day;
Operating system:	WINCE 7.0;	Pulse:	4channels 60khz+2channels 10khz;
Dimension:	13410230mm;	Payment Terms:	T/T,Western Union,Paypal, Credit Card, Cash;
Packaging Detail:	Paper box;	Touch size:	97*56mm;
Digital type:	mr/mt;	Run memory:	32MB,64MB;
Port:	Shekou port;

Coolmay integrated PLC and HMI with mitsubishi compatied gx developer software

Product Description

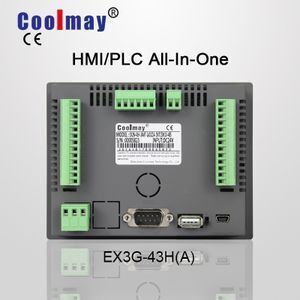

Artical	EX3G-43HA/HB	EX3G-43(50)KHA/KHB		EX3G-70KHA/KHB	EX3G-100HA/HB

Dimension	13410230mm	1509332mm		22616335.6mm	27519436mm
Cutout size	119*93mm	143*86mm		218*153mm	261*180mm
Power Consumption	4-6W	4-6W/5-7W		6-7W	6-8W
HMI
Features	60K colors TP
Display size	97*56mm		9756/10865mm	154*87mm	222*133mm
Resolution(pixels)	480*272		43KHB:480272 50KHB:800480	70KHA:1024600 70KHB:800480	100HA:1024600 100HB:800480
RAM	HA/KHA:64MB;HB/KHB:32MB			HA/KHA:128MB;HB/KHB:64MB
ROM	128MB
Operation system	HA/KHA:WINCE 7.0; HB/KHB: without system
CPU	HA/KHA:CORTEX A8 720MHz-1GHz; HB/KHB:ARM9 216MHz			HA/KHA:CORTEX A8 720MHz-1GHz; HB/KHB:ARM9 288MHz
COM port	1 TP download port,1 USB port
	1 RS232 optional			1 RS485 or RS232 optional
Software	CoolMayHMI V5.**(newest vesion pls see Http://coolmay.net)
PLC
Digital I/O	Up to12DI/12DO			Up to 30DI/30DO(At most 18 relay outputs)
I/O level	MT Output: NPN MR output: NO contact Input: Passive NPN, public terminal isolated
Output type	MR/MOS Maximum load: MOS is 2A; MR is 5A			MR/MT/MRT Maximum load: MT is 500mA; MR is 5A
High-speed counting	EX3G-HA/KHA normally 5 single phase 100KHz,1channel 20KHz or 2 AB phase 60KHz,1 channel 10KHz; EX3G-HB/KHB normally 6 single phase 20KHz or 3 AB phase 10KHz
High-speed pulse	EX3G-HA/KHA normally 8channels,Y0-Y3 is 100KHz,Y4-Y7 is 10KHz; EX3G-HB/KHB normally 8 channels 10KHz
Analog I/O	AI: 0-10V/4-20mA/0-20mA/PT100/K type thermocouple/NTC10K/50K/100K etc.
	AO: 0-10V/0-5V/0-20mA/4-20mA or mixed
	At most 4AD/2DA			At most 16AD/8DA
COM port	2 programming ports(1 MiniB type USB port,faster downloading speed;1 Rs232 port)
	1 RS485 optional			1 Rs485,1 Rs232 or 2 Rs485, and CANbus optional
Software	Compatible with Mitsubishi GX Developer8.86 and WORKS 2
Regular models: EX3G-43HB/43KHB/50KHB-24MT/MOS(-4AD2DA-485P/232H) EX3G-70HA/100HA-44MT/MR/MRT(-16AD8DA-485P/232H) EX3G-70HA/100HA-60MT/MR/MRT(-4AD2DA-485P/232H) 485P/232P means 485/232 added in PLC; 485H/232H means 485/232 added in HMI *EX3G-70HA/100HA: If with 30DI/30DO,the maximum analogs are 5AD/2DA; If with 24DI/20DO,the maximum analogs are 16AD/8DA; Detailed info.refer to:

Packaging & Shipping

Advantages

1) Over 10 years brand, Specialized in PLC and HMI automation products studying since 2005.

2) Powerful team, with experienced professional developing team, have already got many patent certificate

3) Various products, and support customized service, you can always find your prefer one.

4) Perfect after-service, support 18 months warranty under right operation, and support lifelong technical introduction.

5) Free training , Case and software for plc controller and hmi touch panel etc will be kept updated in our official website.

6) Exported directly, we are not only the developer, but also the manufacurer, you could get high quality products in very good price

Features

1) Compatible with PLC programming GX8.52 and Works 2, widely used home and abroad.

2) Easy to learn and operate.

3) Standard DIN35mm installation, fit your normal usage.

4) Analog quantity and type, communication port etc are optional, free your needs.

5) Professional technical workers will be at you always for products use,and maintance.
