Certificate: | ISO9001:2000, CE; | Place of Origin: | Zhejiang China; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Packaging Detail: | ply wooden cases; |
max. working pressure: | 700 bar; | oil capacity: | 7.1-44.2 cm2; |
Structure: | Plunger Cylinder; | Package: | plywood case; |
Supply Ability: | 100 Piece/Pieces per Month; | total stroke: | 54mm; |
Port: | Ningbo, Shanghai; |
Model | Cylinder Capacity @700 bar |
Stroke (mm) | Total stroke (mm) | Effective area (cm²) |
Oil capacity (cm³) |
Closed height A (mm) |
Extended Height B (mm) | Outside Dia. D×L (mm) | Inside Dia. E (mm) | Piston Rod Dia. F (mm) | G.W. (Kg) | Recommended pump | ||
Ton | stage number | KN | ||||||||||||

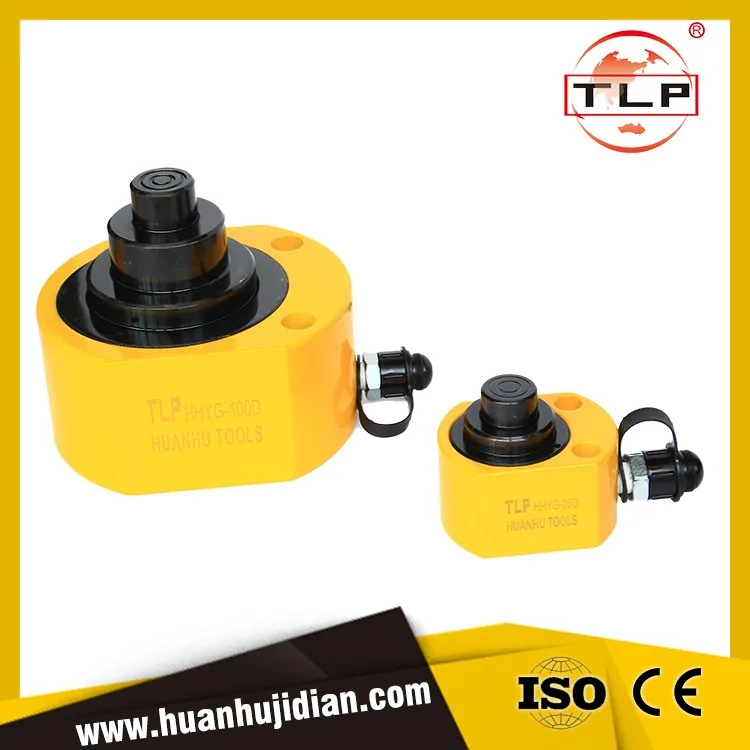

HHYG-10D | 10 | 2 | 49 | 15 | 25 | 7 | 30 | 49 | 74 | 83×60 | 30 | 26 | 1.6 | HHB-700C |
1 | 111 | 10 | 15.9 | 45 | 38 | |||||||||
HHYG-20D | 20 | 2 | 67 | 16 | 27 | 9.6 | 51 | 57 | 84 | 99×76 | 35 | 31 | 2.7 | |
1 | 198 | 11 | 28.3 | 60 | 50 | |||||||||
HHYG-30D | 30 | 3 | 50 | 20 | 54 | 7.1 | 123 | 64 | 118 | 123×98 | 30 | 26 | 4.7 | |
2 | 137 | 22 | 19.6 | 50 | 46 | |||||||||
| 309 | 12 | 44.2 | 75 | 64 | |||||||||
HHYG-50D | 50 | 3 | 50 | 25 | 66 | 7.1 | 188 | 74 | 140 | 148×120 | 30 | 26 | 7.9 | |
2 | 137 | 26 | 19.6 | 50 | 46 | |||||||||
1 | 496 | 15 | 70.8 | 95 | 70 | |||||||||
HHYG-100D | 100 | 3 | 111 | 24 | 69 | 15.9 | 418 | 93 | 162 | 188×160 | 45 | 38 | 16.9 | HHB-700 |
2 | 309 | 30 | 44.2 | 75 | 69 | |||||||||
1 | 1002 | 15 | 143.1 | 135 | 100 |
Features
1. For use in confined spaces: machinery positioning, tool fastening, etc.
2. Single acting, load return.
3. High strength alloy steel for durability.
4. Baked enamel finish for increased corrosion resistance
5. Cylinder bores are roller burnished to harden the surface and make it smoother.
6. Grooved piston rods require no saddle.
7. Mounting holes permit easy fixturing.
8. Each cylinder has an HH-II 3/8”NPT male half coupler and dust cap.
We pack the goods by wooden cases.
Welcome to the world of TLP Hydraulic Tools
Established in 1997, Yuhuan Huanhu Machinery Electric Tools Factory is a professional manufacturer of high pressure hydraulic tools for various sectors, like electrical maintenance , manufacturing, construction, energy, oil & gas, shipbuilding, railroads, and mining, etc. TLP is committed to providing superior quality hydraulic tools for various industries. At TLP, we have the resource, the capabilities to meet your rigorous requirements. The flexibility of our organization. outstanding know-how in hydraulic tools, rigorous quality assurance system, and strong commitment to customer service, has earned us a reputation of dependability. When you require dependable quality of hydraulic tools at very competitive price, just ask for TLP. We will offer you the best only products.
The Reasons to Work with TLP
Very broad product range
Over 18 years manufacturing experience
Guaranteed quality Highly competitive price
Commitent to customer service
Professional sales and technical teams
Able to customize hydraulic tools for your special need
