3 in 1 combination KW EV high voltage on6.6 board charger 1.5KW DC DC converter water cooled can-bus PDU

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Output Power:6.6KW;
Port:Shanghai, Shenzhen;Supply Ability:20000 Piece/Pieces per Month Designed 3.3KW on board charger 1.5KW DC DC converter;
Emission:IEC 1000/IEC 801-2,3,4/IEC 255-4;Dimension:454x291x83mm; 17.9x11.5x3.2'';
Cooling:Liquid-cooling;Place of Origin:Guangdong China;
Weight:8kg; 17.6lbs;Packaging Detail:Carton;
Model Number:CAD662DF400-14202;Environment:IP67, IEC60068, CNS15454;
Output Current:0-20A;Aux Output:13.8Vdc; 100W;
Nominal Voltage Range:200-420Vdc;Brand Name:OVAR;
Operating Input Range:85-265Vac;
Product Description

Designed 6.6KW on board charger 1.5KW DC DC converter+PDU

OBC Output
Nominal Output Power
6.6KW
Nominal Voltage Range
200-420Vdc
Output Current
0-20A
Aux Output
13.8Vdc; 100W
DC/DC Output
Nominal Output Power
1.8KW
Nominal Output Voltage
14Vdc
Output Current
0-143A
OBC Input
Input Voltage
85-265Vac
Nominal Input Voltage
85-265VAC
Max Input Current
32A
AC Input Frequency
50/60Hz
AC Power Factor
0.99
DC/DC Input
Input Voltage
200-420Vdc
Maximum Input Current
7A
Mechanical
Operating Ambient Temperature
- 40~75℃
Storage Temperature
- 40~95℃

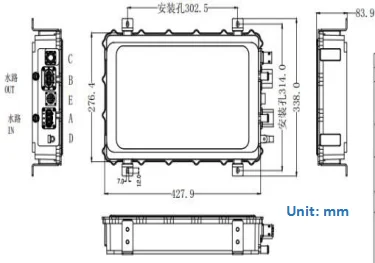

Dimensions
454x291x83mm; 17.9x11.5x3.2''
Weight
8kg; 17.6lbs
Relative Humididty (non-condensing)
≧85%
Attitude
≦2000m
Regulation
Environment
IP67, IEC60068, CNS15454
Communication
SAE J1772, IEC61851
Emission
IEC 1000/IEC 801-2,3,4/IEC 255-4
Protection



Input Protection
Surge protection
Short circuit protection
Over voltage protection
Under voltage protection
Input Fuse over current protection





Output Protection
Short circuit protection
Over load protection
Reverse priority protection
Over voltage protection
Over temperature protection
Current limit protection
Output fuse over current protection
Detailed Images

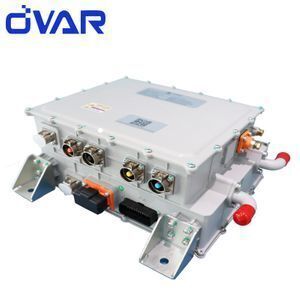

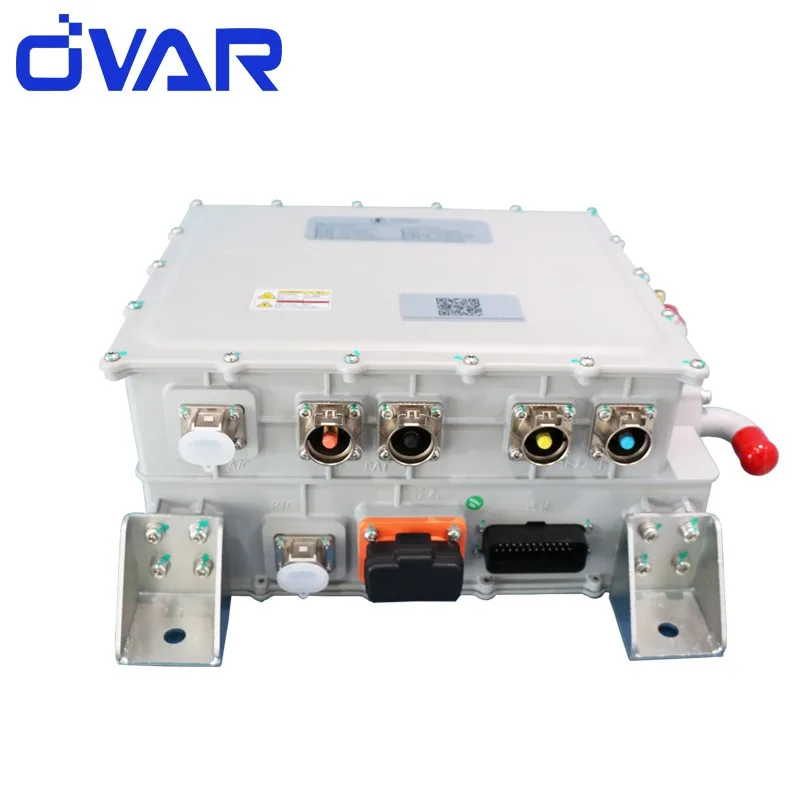

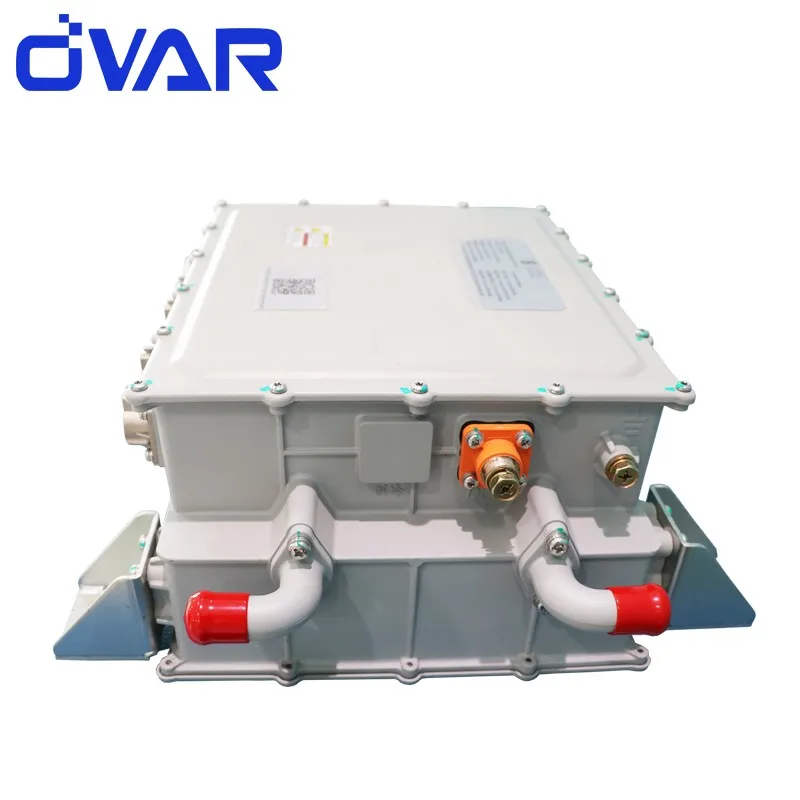

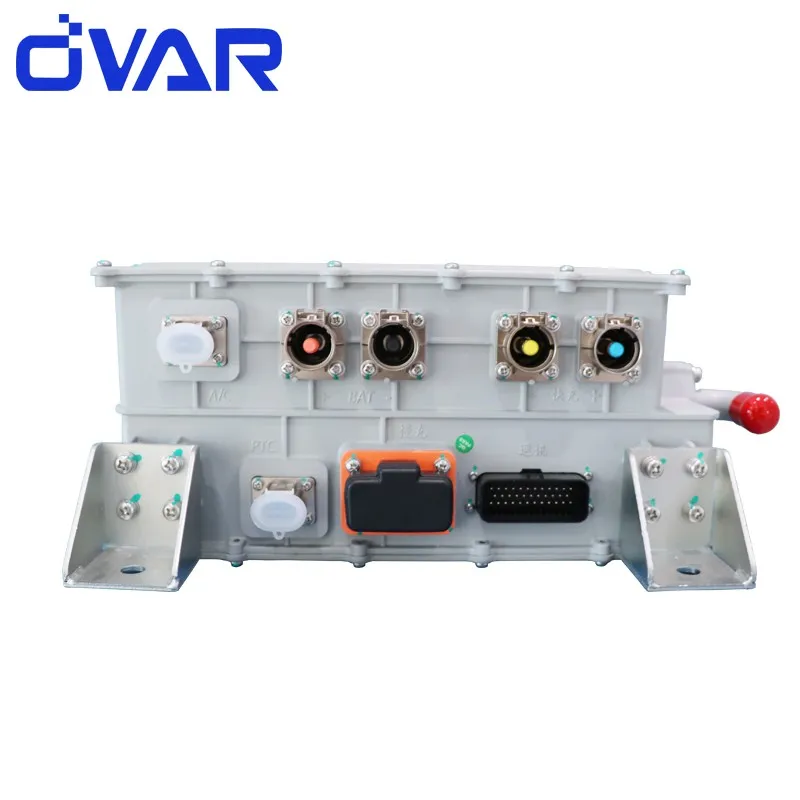

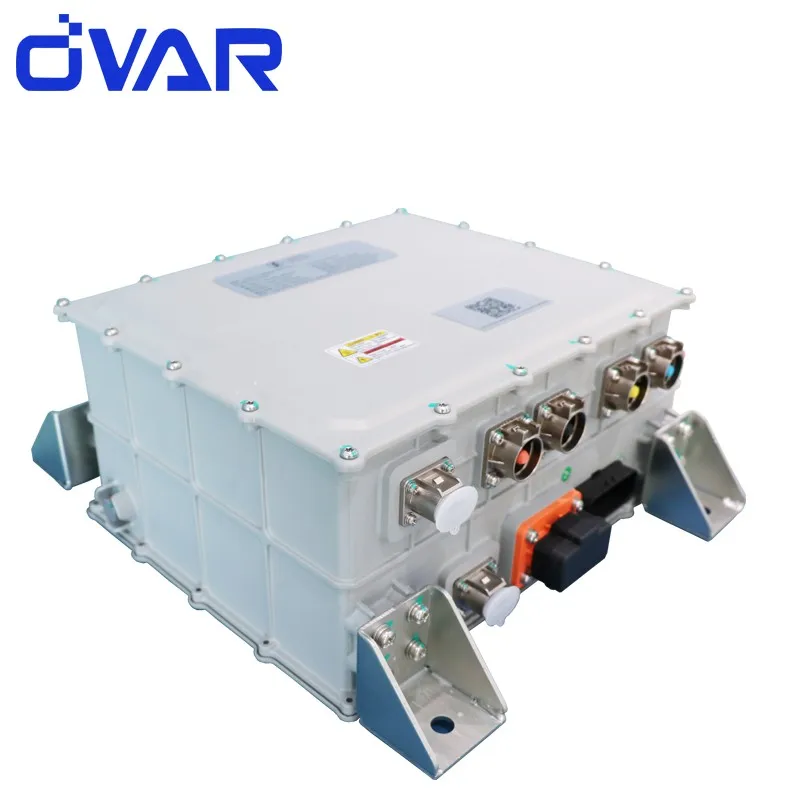

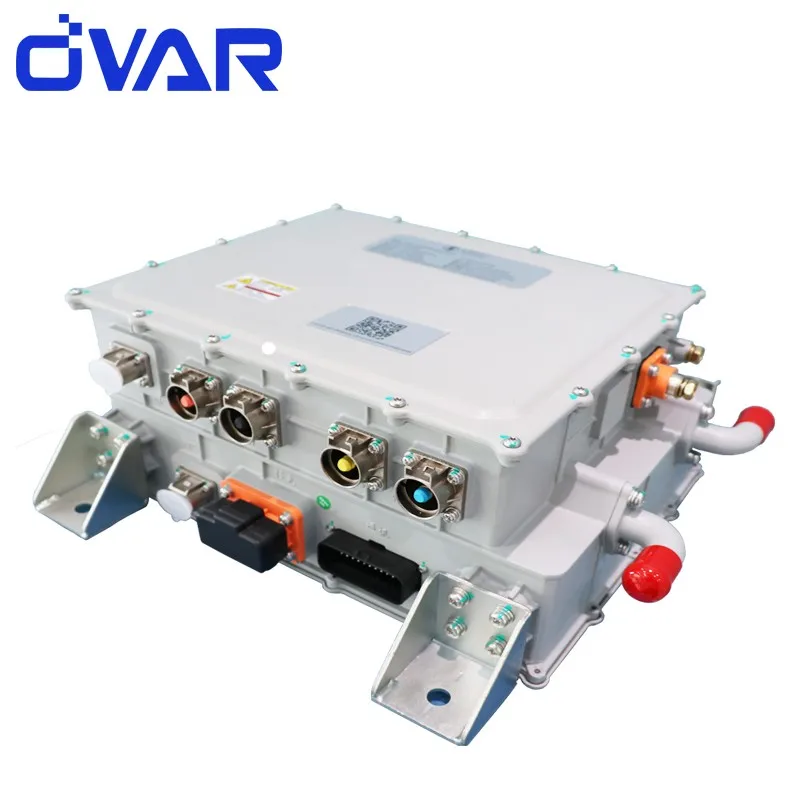

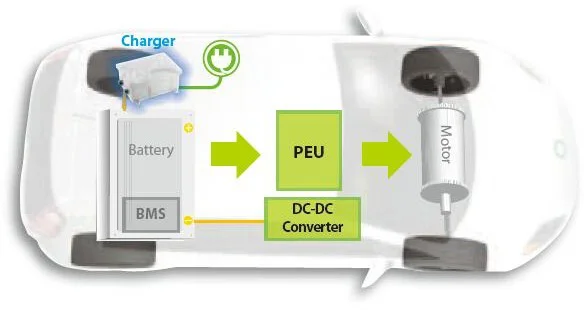

The CAD662DF400-14202 is a combination high-frequency battery charger and DC/DC converter in one package. CAD332DF400A-14102 battery chargers are ideal for use in electric sedan, electric van, electric light truck etc.

Our Company

Shenzhen Ovar Technology Co., Ltd.was established in 2010, after years hard working and striving for excellence, Ovar has become a leading EV power supply solutions provider and manufacturer China. With the cutting-edge technologies and extensive development experiences, Ovar's EV DC/DC converter, on-board battery charger, off-board battery charger, inverter and high power charging products have gained a very good reputation both in domestic and overseas markets because of their excellent performance.

Ovar products are widely used in high speed electric vehicles, Industrial utility electric vehicles, marine, yacht and so on.

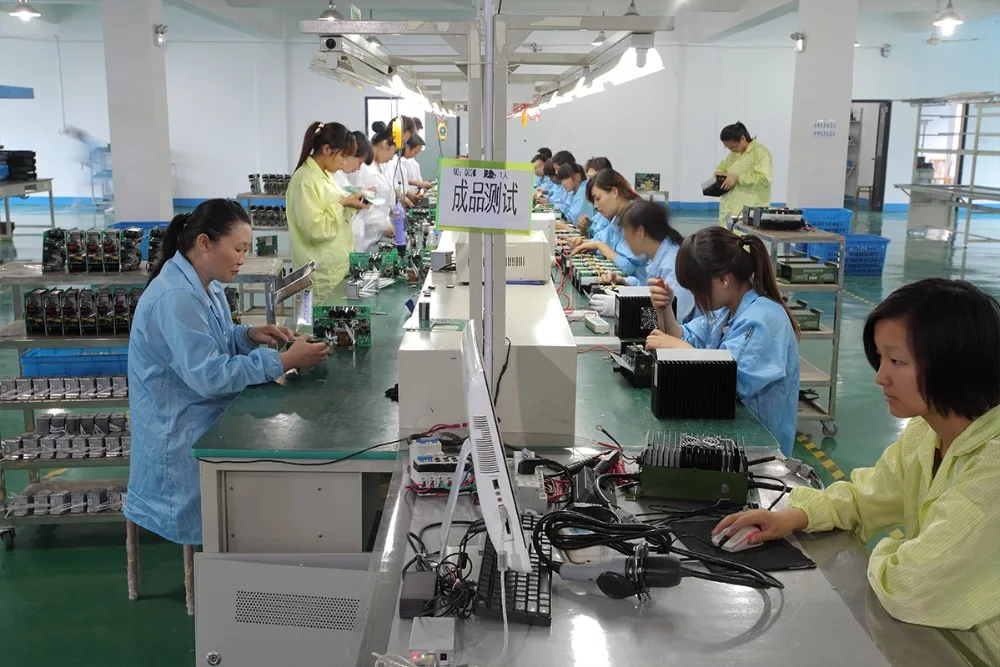

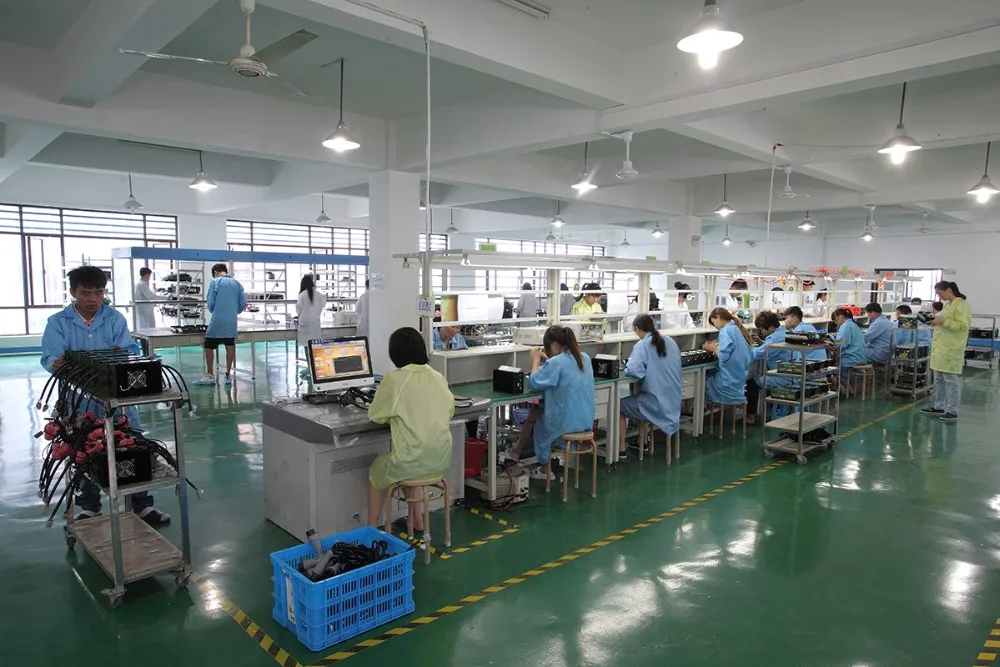

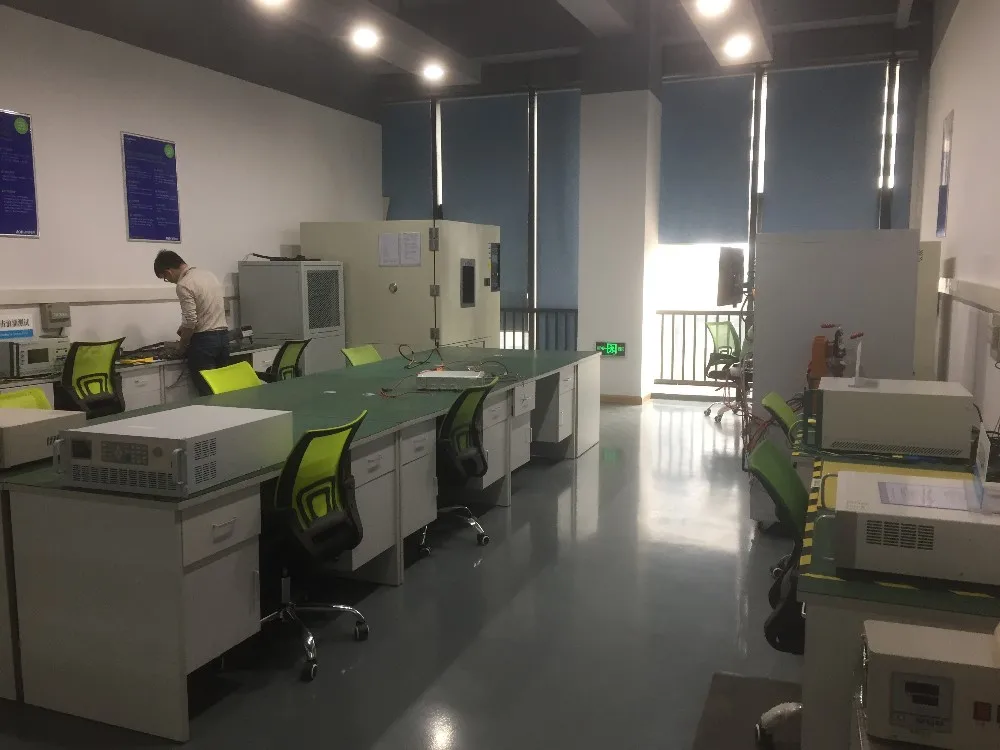

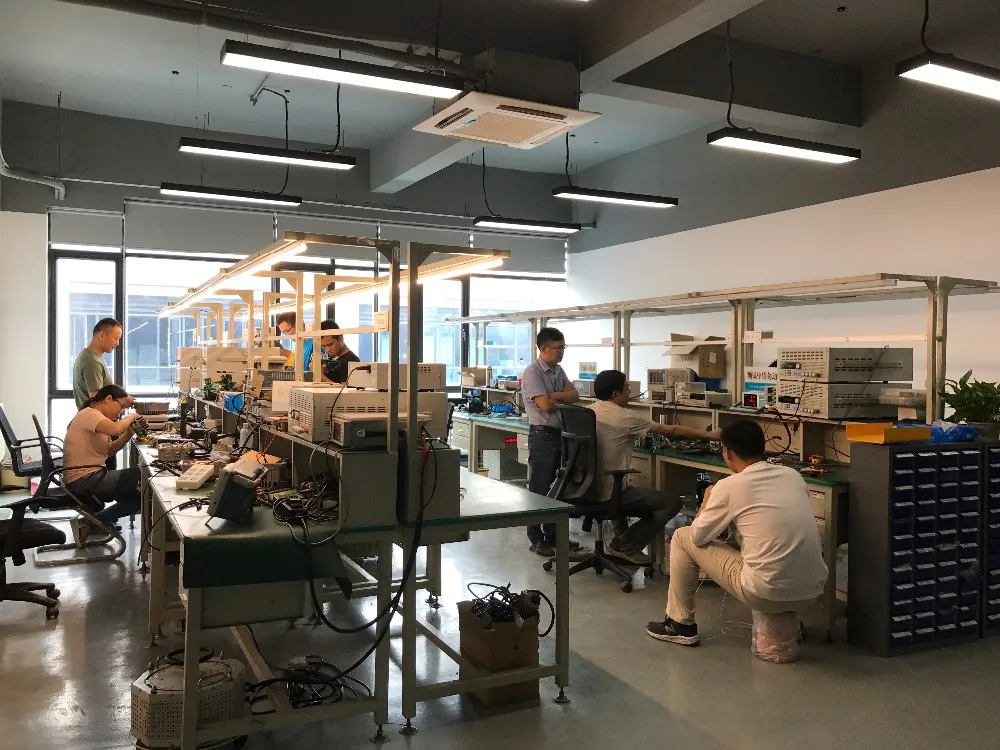

As a fast-growing innovative enterprise, Ovar has 1,000 square meter R&D center, 8,000 square meter manufacturing plant with several automatic production lines. The production capacity is 15,000-20,000 units per month.

To comply with the high quality standard of automotive components, Ovar has been implemented total quality control to enable lifecycle traceability and keep our manufacturing operation in an efficient and reliable way.


Welcome to OVAR for EV Power Supply Solutions and look forward to working together with you!
Certifications

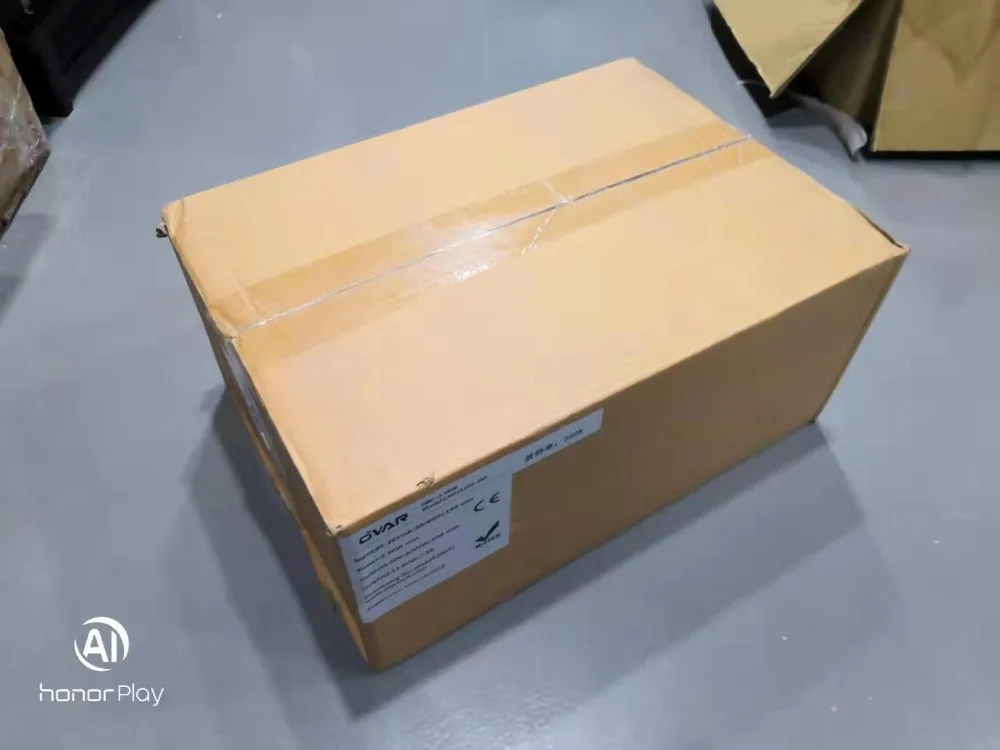

Packing & Delivery
Our most professional packaging

Transport of large trucks to the seaport

And international transport cooperation

Our Service

1. OEM Manufacturing welcome: Product, Package...


2. Sample order


3. We will reply you for your inquiry in 24 hours.


4. after sending, we will track the products for you once every two days, until you get the products.

 When you got the goods, test them, and give me a feedback.

If you have any questions about the problem, contact with us, we will offer he solve way for you.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q8: How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit ;
    2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
