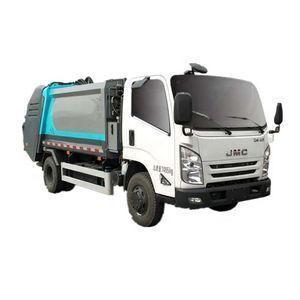

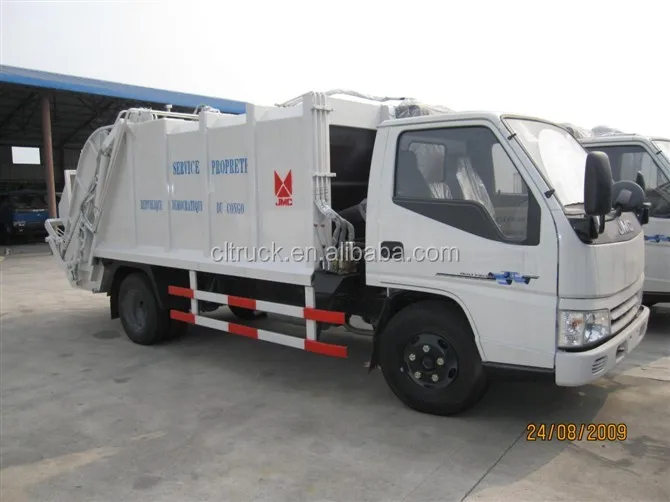

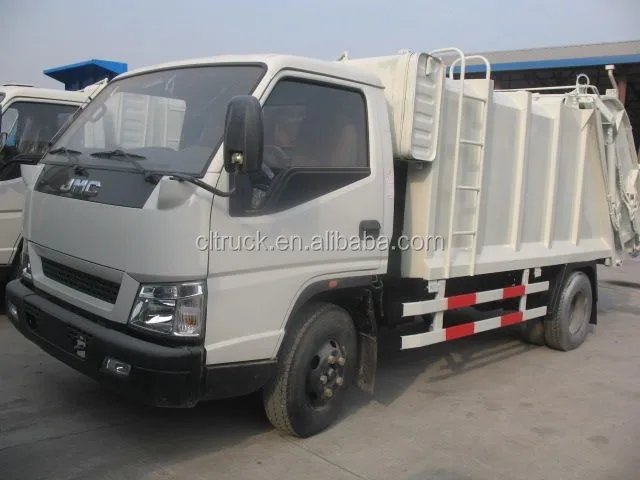

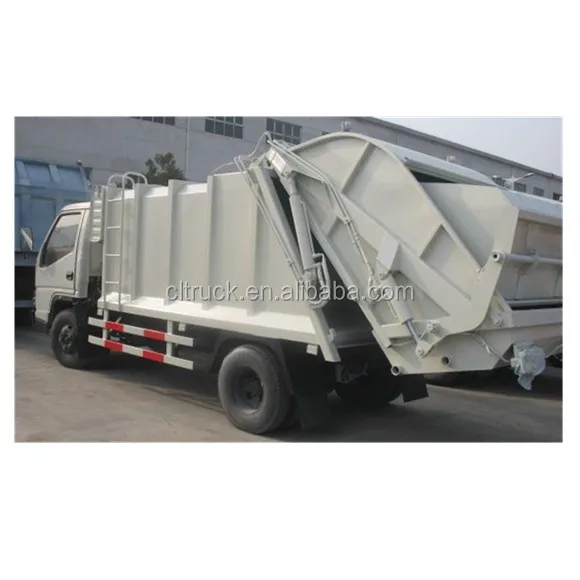

JMC 4x2 refuse wagon truck waste collection truck small garbage truck

Specifications

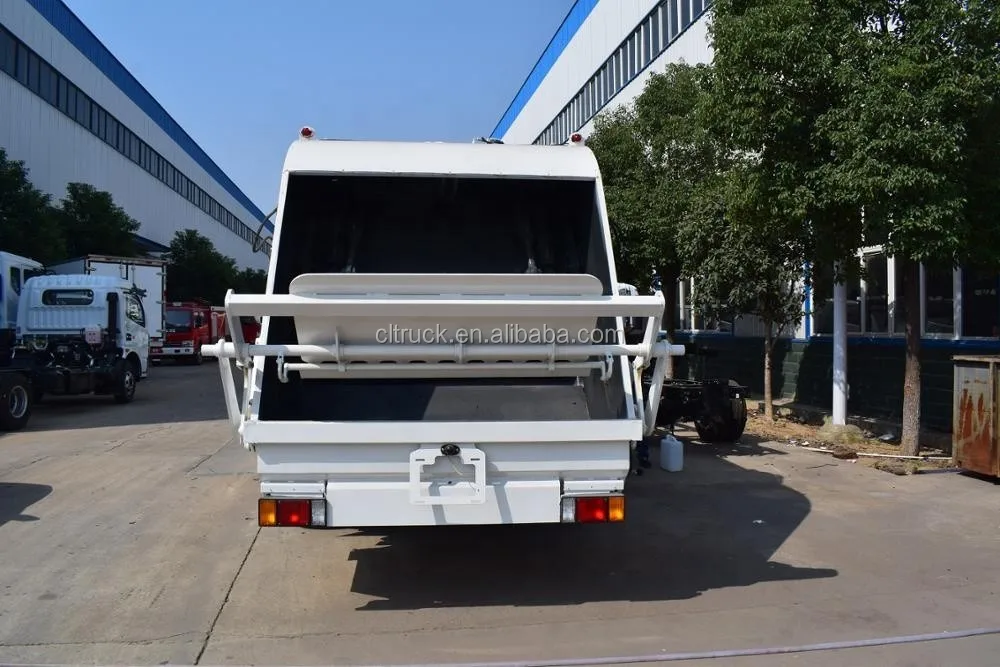

1. The main components such as body, compression blade and tailgate are made of high-quality and high-strength weather-resistant steel plate, which is of firm structure, light weight, high rigidity and good strength.

2. The compression blade is used to squeeze and unload the garbage, so the garbage can be completely unloaded without any residuals.

3. The engine power output is automatically controlled to ensure that the engine of the vehicle can automatically select the acceleration and idle state in various operating conditions, so as to avoid power loss and system heating, and achieve fuel consumption reduction and good economy.

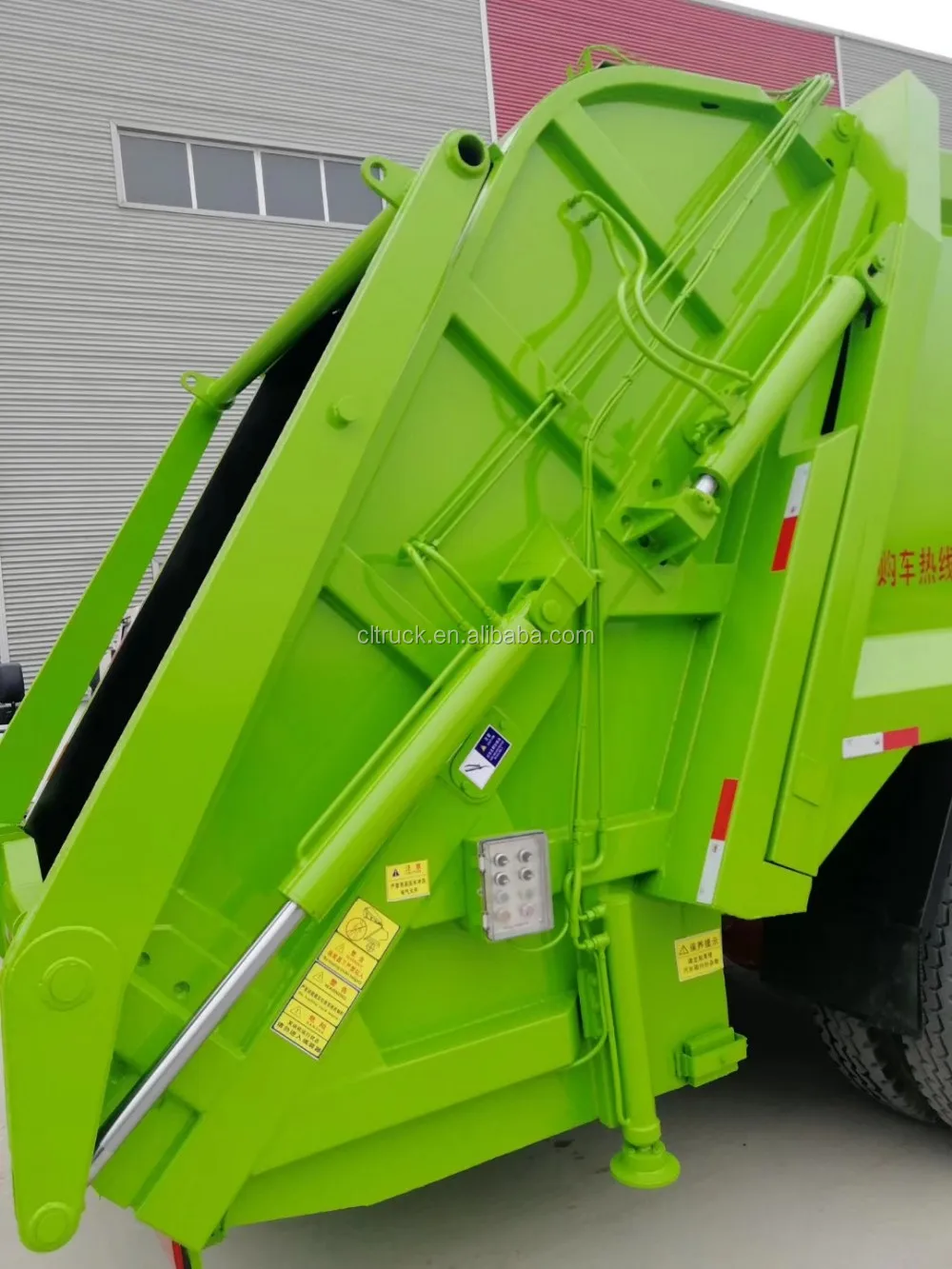

4. Safety and reliability due to the application of advanced hydraulic safety loop. The tailgate lifting cylinder is equipped with an electromagnetic check valve, and the body is fitted with safety struts and other protection device. Even if the oil pipe bursts, the tailgate will not suddenly fall down to prevent a malignant accident, thereby improving the safety of use.

5. Strong loading capacity. Due to the application of dual compression technology, the compression ratio can reach to a level higher than 2.5:1, and the density of household garbage can reach 600-800Kg/m3 after compression.

6.Good sealing property. The special rubber strips are set between the body and the tailgate and the body is sealed with adjustable hydraulic locking method to prevent secondary pollution. In addition, a large-capacity sewage tank is installed at the lower part of tailgate and on the side of chassis beam.

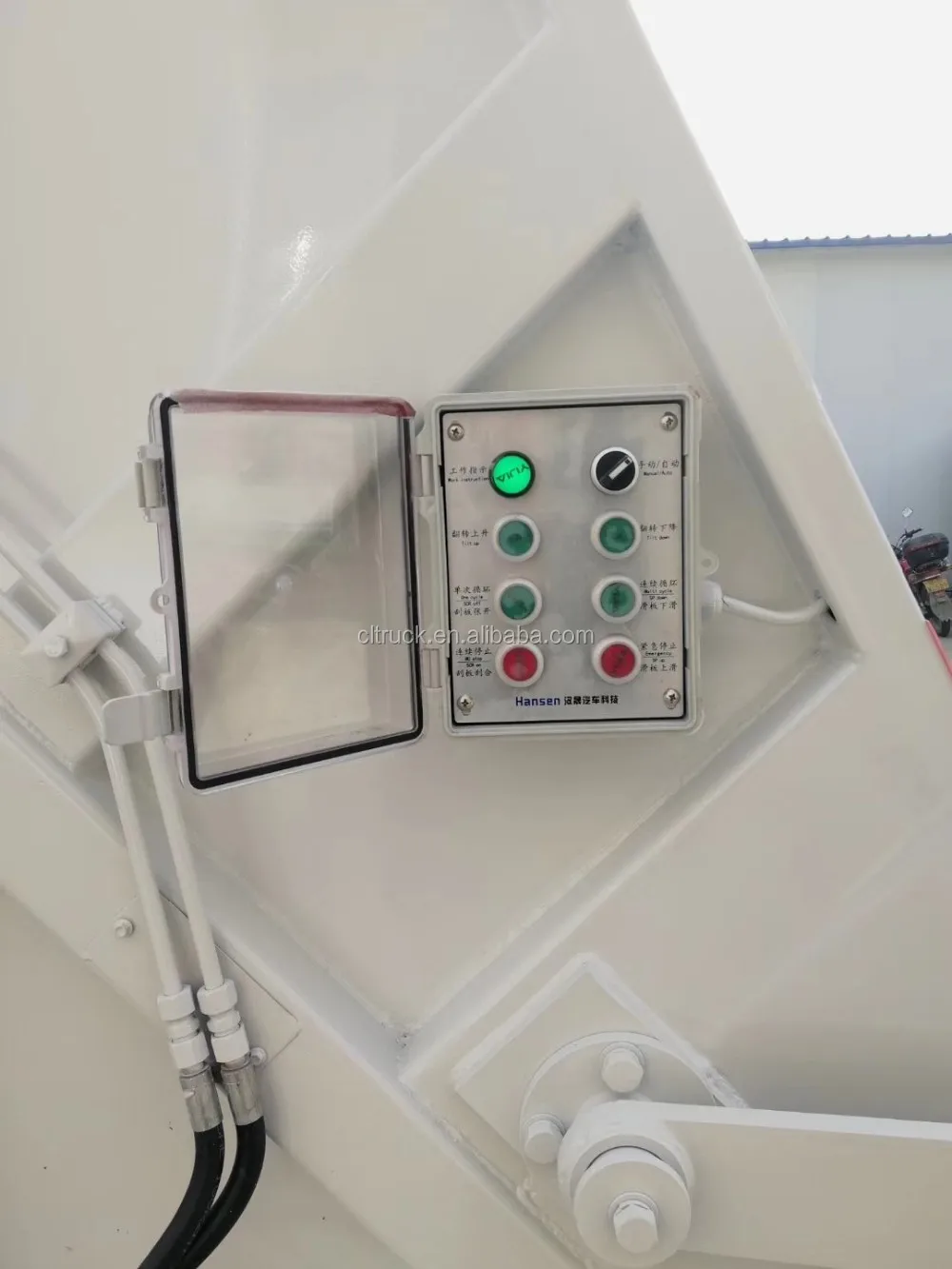

7. High degree of automation and electro-hydraulic combined control. The PLC is used to carry out centralized control with self-locking and interlocking instructions set in the logic loop, and the external only has line connection so as to ensure the sequential execution of each operation instruction, thus avoiding accidents caused by unintentional operation. An emergency brake button is specially set to stop the garbage compressing and filling device in any state or at any position, thus ensuring the safety of operators and equipment.
