Condition: | New; | Working Pressure: | 1.61Mpa; |
Packaging Detail: | packaged in nude, in the RO-RO boat or in bulk boat; | Name: | LPG Filling Station; |
Max Working Pressure(MPa): | 1.61 MPa; | Corrosion allowance: | 1mm; |
Port: | Shanghai or any port of China; | Place of Origin: | Hubei China; |
Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company; | Supply Ability: | 500 Piece/Pieces per Month; |
Material: | Q345R; | Volume (m³): | 20; |
Inner Material: | carbon steel; | Weight: | 8550kg; |
Design Standard: | Chinese; | Warranty: | 1 year; |
Volume: | 20 000L; | Type: | Horizontal LPG Storage Tank; |
Outer Material: | carbon steel; | Key Selling Points: | Long Service Life; |
Filling medium: | LPG; | Dimension(L*W*H): | 8655*2224*3315mm; |
Design pressure(Mpa): | 1.77 MPa; | Showroom Location: | None; |
Loading capacity: | 10T; | Brand Name: | CLW; |
Design Pressure(MPa): | 1.77; | After Warranty Service: | Video technical support; |
Color: | Optional; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Local Service Location: | None; | After-sales Service Provided: | Video technical support; |
Working Temperature(℃): | -20 - 50; | Capacity: | 20cbm; |

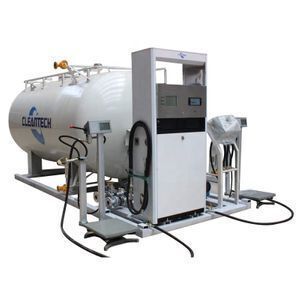

China manufacturer CLW 10tons 20 000L 20cbm lpg gas tanker station
Technical specification | Parameters | Subject | Parameters | |||
Tank | Item Number | 20cbm lpg skid filling station | Liquid Indictor | Model | UZFAL-2.5RF2640-0.50 | |
Overall dimensions(mm) | Approx 6154*2124*2714 | Version | Magnetic | |||
Net weight(Kg) | 5050 | Normal pressure | 2.5Mpa | |||
Vessel type | III | Scope of testing | 50-2300mm | |||
Designing pressure | 1.77Mpa | Precision | 2.5 | |||
Working pressure | 1.61Mpa | Safety Valve | Model | A42F-2.5-80
| ||
Designing temperature | -19~50°C | Version | Built-in | |||
Filling Medium | Propane | Normal pressure | 2.5 Mpa | |||
Corrosion margin | 1.0mm | Normal diameter | DN80 | |||
Volume | 25,000L | Opening pressure | 1.68-1.76 Mpa | |||
Heat treatment | bulk | Re-seating pressure | ≥80% of opening pressure | |||
Filling factor | 420kg/m3 | Handling System | Normal Diameter | Feed pip | DN80 | |
Material | Q345R | Drain pip | DN80 | |||
Hydraulic test pressure | 2.22 Mpa | Admission port | DN50 | |||
Gas tight test pressure | 1.77 Mpa | Sewage outfall port | DN80 | |||
Cylinder thickness | 12mm | Vent nozzle port | DN80 | |||
Head thickness | 12mm | Standard | B150-2011 | |||
Service time | 20 years | Safety regulation of pressure vessels | ||||

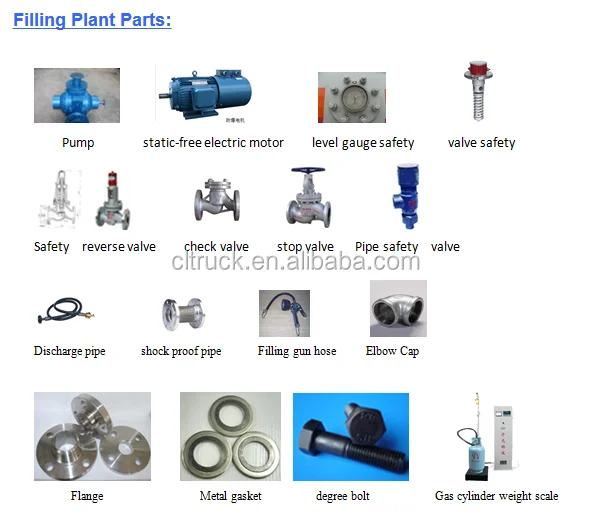

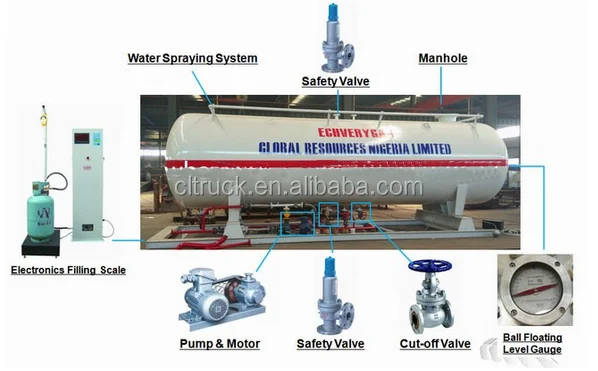

Accessory | Safety valve, magnetic flap liquid level gauge, pressure gauge, thermometer, cut-off valves, etc. Pump, Anti static electric motor, filling gun, Electronic filling scale,pipes etc | |||||
Whole set | Overall size: approx 8655*2224*3315mm Weight: approx 8550kg |
