Electro permanent magnet used for robots capable of demonstrating automated spot and arc welding and material handling

Supplier: Zhuzhou HVR Magnetics Co., Ltd.
Region: Hunan, China
Contact: Mr Davisn Ren
Price: $1000.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

certificate:	CE , ISO9001;	Material:	NdFeB &AlNiCo;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,electro permanent magnet;	Application area:	Robot industrial automation;
Usage:	for spot welding fixture and material handling;	Item:	Electro permanent magnet;
Port:	Shanghai, Guanzhou, HongKong;	product name:	HVR Electro permanent magnet used for robot industrial automation;
Supply Ability:	1000 Set/Sets per Month electro permanent magnet;	Packaging Detail:	electro permanent magnet standard package with wooden case;
keyword:	electro permanent magnet;	OEM:	available;
Delivery Detail:	20 ~ 30days;	PLC:	Support;
Place of Origin:	Hunan China;	Magnetic force:	up to 16kg per cm2;

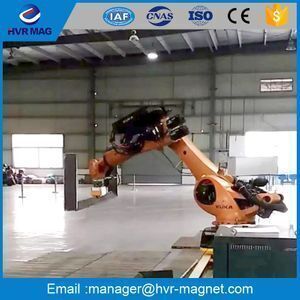

HVR Electro permanent magnet installed on robots capable of demonstrating automated spot and arc welding and material handling

Brief introduction of electro permanent magnet used for robots

It's a electro permanent holding magnet , a type of permanent magnet in which the external magnetic field can be switched on or off by a pulse of electric current in a wire winding around the part of permanent magnet. That is to say, it is only need electric power to control the magnetic force on/off.

HVR MAG with 31 R&D engineers and 22 R&D patents , are able to provide ONE STOP SERVICE for holding magnet for automation of industry application, if below product is not you are looking for , please feel free to contact us for OEM service to full fill your detail requirement.

Main Features of electro permanent magnet used for robots

1.Lightweight to maximize end-of-arm capacity.

2.Customized magnet design to make sure fast transform magnet field with minimum cycle.

3.Special magnetic pole is available for taking care any kinds of steel load.

4.Electro permanent magnet technology providing most security transport method and maintenance free use.

The advantages of electro permanent magnet used for robots

1.Handling the steel work piece quickly, save human source, just need user to press buttons, the lifting and releasing ferrous load could be realized.
2.Without compressing or deforming the load, keep the loads in high quality.
3.High safety , because no electric power is required during the working period , avoid the risk of falling accident when sudden power failure
4.Energy saving : more than 95% energy could be saving compare traditional lifting electromagnet, since it only needs electricity with less than 3 seconds, no energy consuming during the handing period.
5.Maintenance free : There is no moving parts of the lifter, reducing the mechanical trouble, only needs electricity with less than 3 seconds, the inside copper coil no chance to became too hot to have trouble.

Application of electro permanent magnet used for robots

1. The most ideal solution to transport steel load together with robot and automatice device, such as: lifting steel block, Angel steel,steel pipe, vertical lifting, etc..

2. Transport steel load into cutting machine, press machine, shearing machine, welding machine, punching machine,etc..

Overall drawing of electro permanent magnet used for robots

electro permanent magnet used for robots main technical parameters reference :

Model	Holding force(kg)	Overall dimension(mm)					weight(kg)	Remarks
Model	Holding force(kg)	D	d	H	M	n	weight(kg)	Remarks
HEPM1-75TC	90	78	40	46	6	3	1.5	12mm
HEPM1-100TC	150	100	40	55	6	3	3.5	14mm
HEPM1-125TC	250	125	80	65	8	3	6.0	20mm
HEPM1-150TC	320	158	80	70	10	3	9.5	20mm
HEPM1-210TC	900	218	150	80	12	3	20.5	35mm
HEPM1-270TC	1400	272	180	100	16	3	38.5	45mm
HEPM1-320TC	2000	324	250	125	20	3	69.5	55mm
HEPM1-175TC-FB	200	175	80	55	8	3	8.6	7mm
HEPM1-255TC-FB	400	255	80	65	10	3	21.5	10mm

Package of electro permanent magnet used for robots

Generally, our products are packed with free fumigation wooden box. With our packing methods, the product is suitable for delivery by sea or by air. electro permanent magnet used for robots production time is about 30 working days.

Why Choose HVR ?

Strong R&D ability : 31 R&D engineers, 29 R&D patents, participate in the development of < safety operation rules for magnetic lifting equipment > organized by china government.

Over 3000 OEM projects experience, already cooperated with famous company like SUMITOMO, NISSEI, HITACHI, FUJISU, FOXCONN, ABB...etc

Using high quality materials with famous brand

Provide the global quality insurance in free, protect end customer from the service side.

Be able to provide oversea engineers for local service in case needed.

With Supplier Assessment certificate conducted by Bureau Veritas which they have do a onsite assessment for above points, please feel free to contact us for the scan document of this original certificate

Certificates : Global quality insurance & ISO 9001 & CE certificate

HVR pay high attention on quality control , with over 20 years experence QC workers, following ISO9001 and using CE certificated components, all of them support HVR provide the qualified products to worldwide customers.

HVR focus on research and development - patents

HVR is the first batch of patent winners for the invention of the permanent magnet industry in China , and the number of patents obtained is far ahead of the industry. Successively obtained 5 invention patents, 29 utility models patents.
