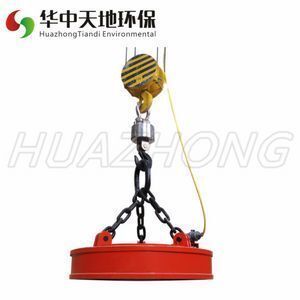

Circular Magnetic Lifter for Steel Scrap Lifting MW5

PART I: WHAT IS LIFTING ELECTROMAGNET

Lifting Electromagnet is a kind of special equipment which utilizes the electric & magnetic physical quantity to lift attached materials, and became an indispensable for lifting and transporting ferromagnetism materials in lines of metallurgy, mine, machinery, shipbuilding and transportation, etc., and it can also be used as electromagnetic manipulator, magnetic force centering, bar length fixing and so on in some fields. As the lifted materials are diverse, the electromagnet structure, magnetic circuit and manufacturing process are also different, so there are many series of strong targeted products.

Circular Lifting Electromagnet for Steel Scrap Lifting

Suitable for Cast Ingot, Steel Ball, Pig Iron, Machine Chip, various kinds of steel scraps, return scraps, baling scraps and etc in foundry factories and for iron powder in coal washer.
During slag disposal process, it can remove large size of iron at initial step. Outlet box has two chambers, an extra-thick fender and an anti-twist setting.
There are three excitation options: rated voltage DC 220V, Strong excitation, Over excitation.

PART II: MODEL INTRODUCTION

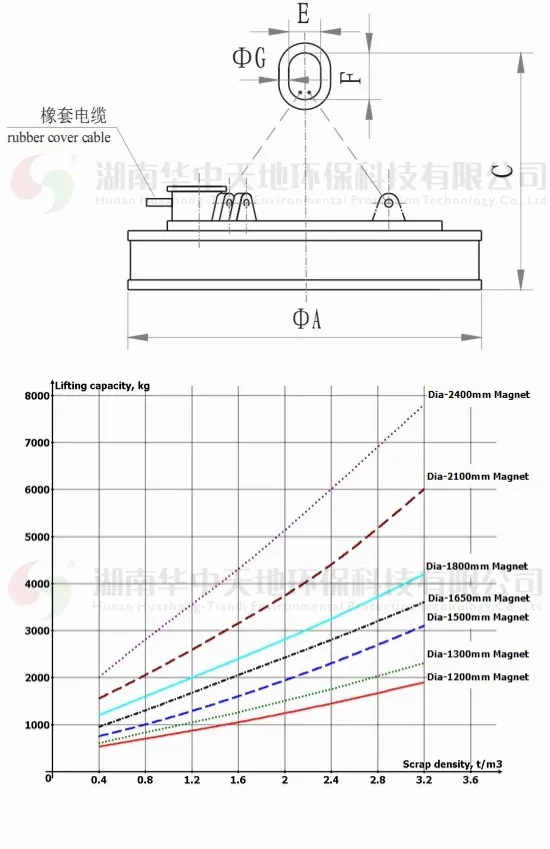

PART III: Technical Information

Of Normal Temperature Type
rated voltage DC-220, duty cycle TD-60%

PART IV: COMPLETE SET OF LIFTING ELECTROMAGNET

-Lifting Electromagnet
-Control Cabinet (Rectifier Cabinet or Battery Back-up Cabinet)
-Cable Reel (with cable)
-Cable Connector
