Manufacturer Supply Worm Gear Speed Reducer

Product details
Color:Green;Ratio:1/10-1/60;
Packaging Detail:14 days after receiving deposit;Power:0.25~7.5HP;
Input Speed:1800RPM;Applicable Industries:Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Retail,Printing Shops,Energy & Mining;
Payment Terms:L/C,T/T,Western Union,Paypal;Port:Shenzhen/Guangzhou/Shanghai/Hong kong;
Place of Origin:Guangdong China;Materia:Cast Iron;
Certificate:ISO9001-2008,CE;Noise:Less Than 70dB;
Supply Ability:10000 Unit/Units per Month;Gearing Arrangement:Worm;
Output Form:Solid shaft,Hollow shaft;Mounting Position:Foot mounted,Flange Mounted;
Output Speed:25~150RPM;Gearing Arrangement:Worm;
Output Torque:4.13~457N.M;Brand Name:TianJI;
weight:8.8~111.6kg;

Manufacturer Supply Worm Gear Speed Reducer

Product description



PRODUCT DETAILS

 Materials:

- Cast iron

- Bearing: NSK bearing & Homemade bearing

- Lubricant: Synthetic & Mineral



 Main features:

- Compact structure and small volume saves mounting space.

- High load capacity and overload functions give stable transmission with reduced vibration and noise.

- No gap structure of gearbox makes this reducer maintenance free and prevents lubricant from leaking.

- Various linking structures for power input and torque output allows for different mounting methods.

- Low noise and stably running, can adapt long term work condition in terrible environments.

- Motor mounting, shaft mounting, and flange mounting.

- Raw materials are imported from Taiwan.

- Easily to install and we have professional engineer to explain for you.



Quality control:

- Quality guarantee: 1 year

- Certificate of quality: ISO9001:2008,CE

- Every product must be checked before sending.



Maintenance:

- After 300-hour operation, please change the oil, and flush the gear uint with suitable detergents.

- Pls do not mix the mineral oil and synthetic oil.

- pls check the oil level in regular time.



Storage:

- Pls do not store in outdoor.

- Pls put cardboard, wood or other material between the products and floor. the gear box cannot directly touch the floor.



General Technical data:

+

Housing material

High-strength cast iron

Housing hardness

HBS190-240

Gear material

Cast iron

Surface hardness of gears

HRC58°~62 °

Gear core hardness

HRC33~40

Input / Output shaft material

42CrMo alloy steel

Input / Output shaft hardness

HRC25~30

Machining precision of gears

Accurate grinding, 6~5 Grade

Lubricating oil

Size 37 up to 87 with oil, size 97 up to 187 without oil.

Heat treatment

Tempering, cementiting, quenching, etc.

Efficiency

94%~96% (depends on the transmission stage)

Noise (MAX)

60~68dB

Temp. rise  (MAX)

40°C

Temp. rise (Oil)(MAX)

50°C

Vibration

≤20µm

Backlash

≤20Arcmin

Brand of bearings

NSK bearing & Homemade bearing

Brand of oil seal

NAK--- Taiwan or other brand


Specifications:





Photos Showing:

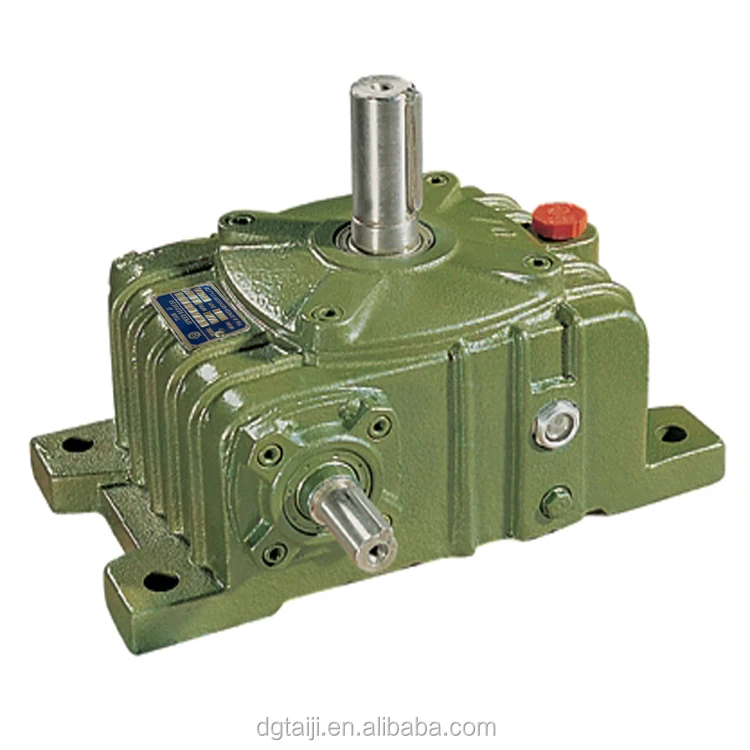

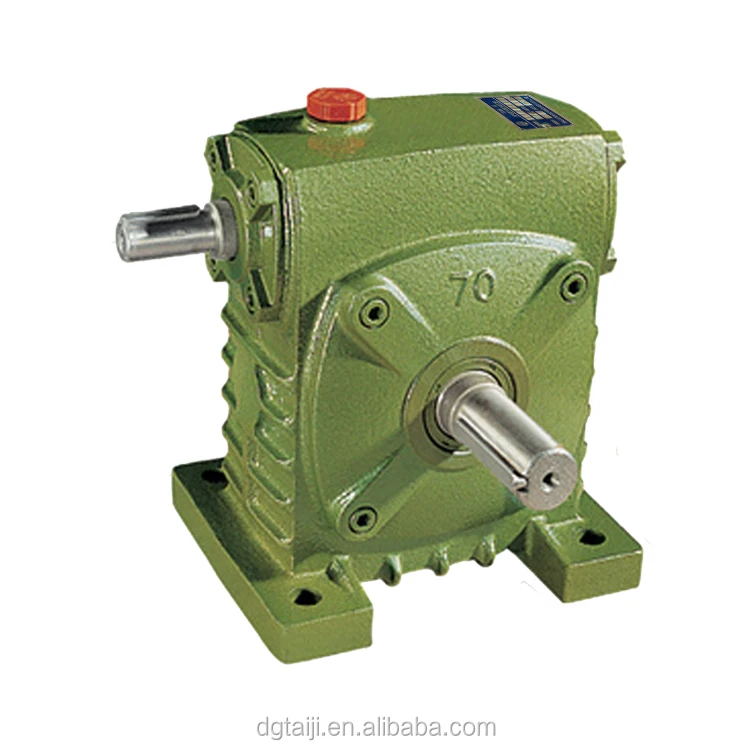

(Single Reduction Worm Reducer)

If this one is not suitable , there are other types of worm speed reducer for your option :

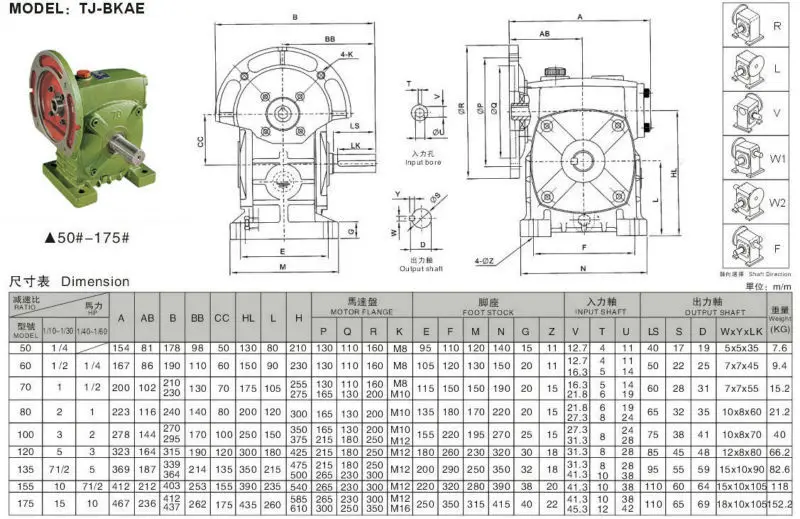

Model: TJ-BKDE 60#~155#

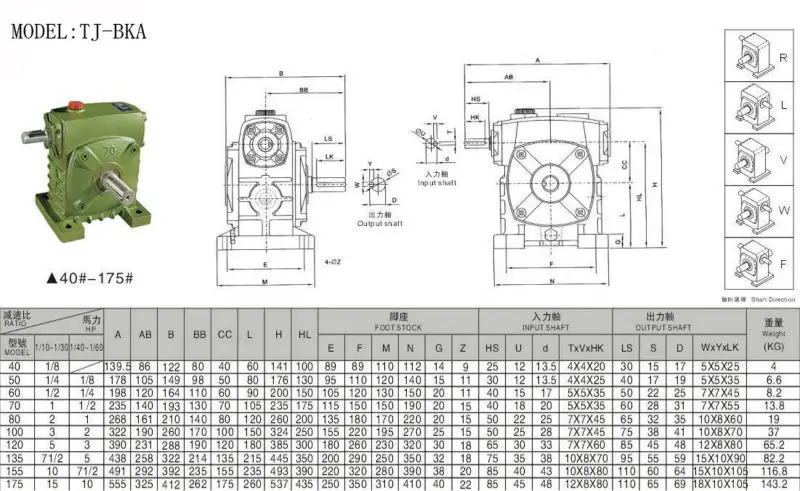

Model: TJ-BKA 40#~175#

Model: TJ-BV 100#~175#

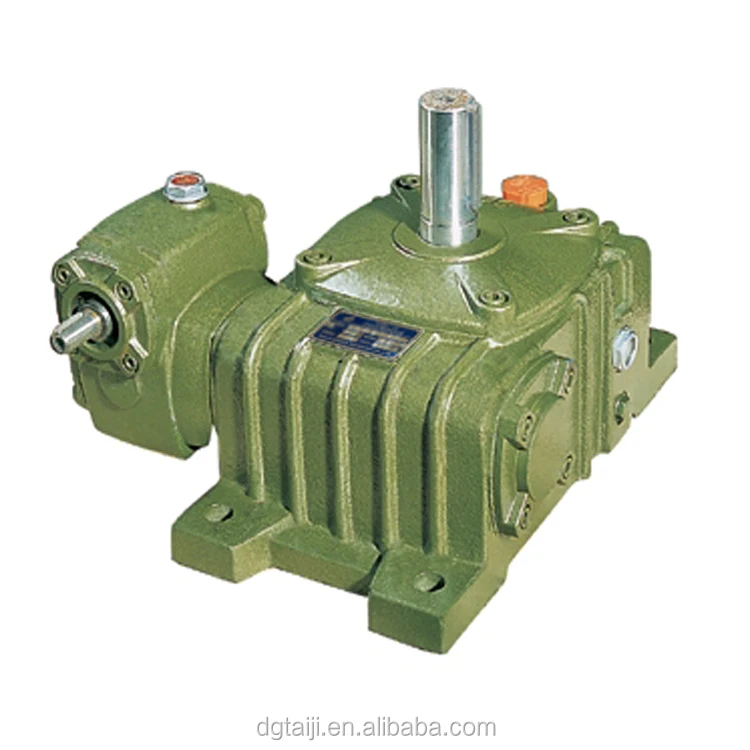

Double Reduction Worm Reducer:

Model: TJ-BKVW 70#~175#
