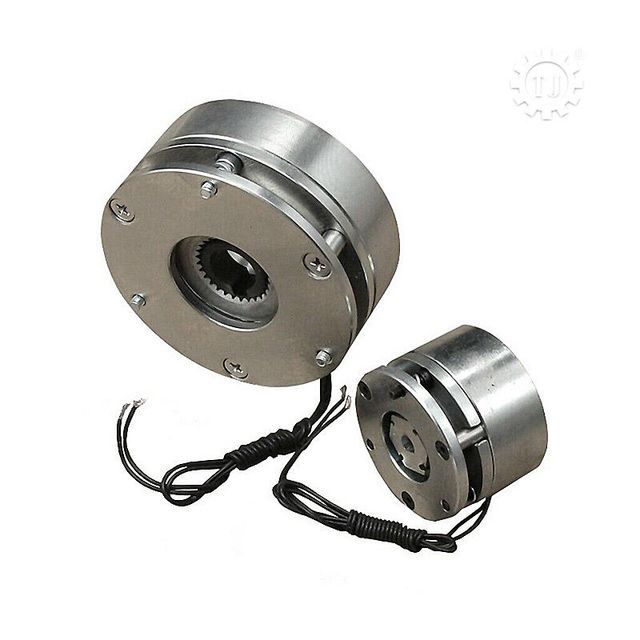

Taijin factory hot sale DC 24V BLDC motor use power off safety brake electromagnetic power off brake

Supplier: Dongguan Taiji Speed Reducer Clutch Co., Ltd.
Region: Guangdong, China
Contact: Ms Emily li
Price: $23.00 / >=2 units
Min. Order: 2 units

Click here to contact

Product details

color:	Silver Black	Health status:	new
delivery time:	3~7 days	Origin:	Guangdong, China
product name:	Electromagnetic power-off brake	Applicable industries:	Building materials stores, manufacturing plants, machinery repair shops, food and beverage plants, retail, print shops, construction, energy and mining
Warranty:	1 year, 1.5 years	Video outbound inspection:	if
brand:	Celestial Pole	Packaging Details:	Carton or according to customer requirements
Static friction moment:	5.5~350Nm	payment terms:	L/C, Western Union, D/P, T/T, MoneyGram
Mechanical test report:	if	Weight (kg):	3
Electromagnetic clutch material:	iron or aluminum	frequency:	60-100 times/min
strength:	11~60W	Core component warranty:	1 year
Marketing Type:	Hot Products of 2023	Voltage:	DC 24v
Showroom location:	U.S.	type:	brake
Core components:	Coil Holder, Automatic Coring

Manufacturers spot small power-off electromagnetic brake power-off brake 24v DC power-off brake

Taiwan brand - Tianji

Reliable quality, reasonable price and considerate service.

Any emails will be responded within 24 hours. thank you for your time!

Product Description

Product Details

brief introductionElectric brake (dry single plate electromagnetic brake):

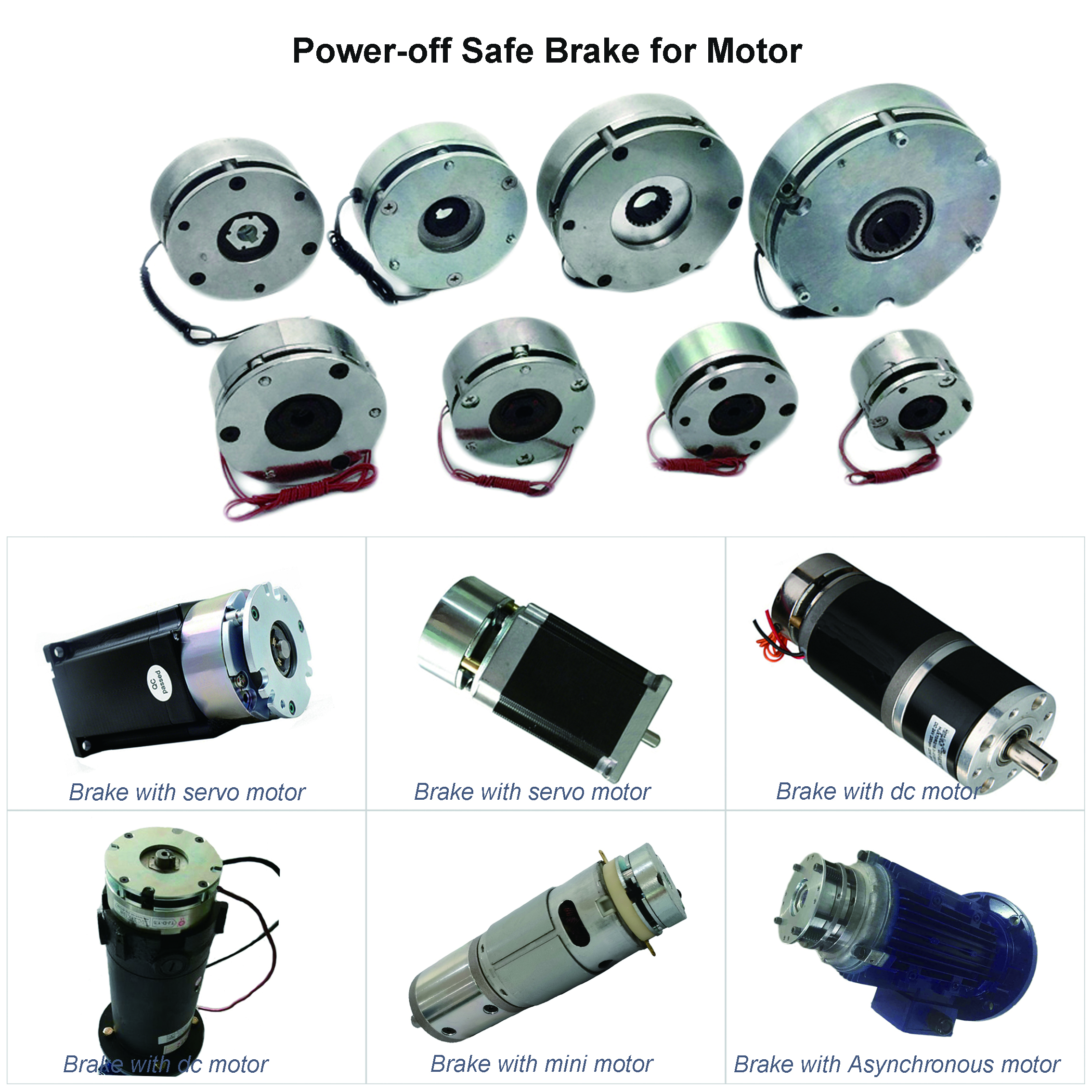

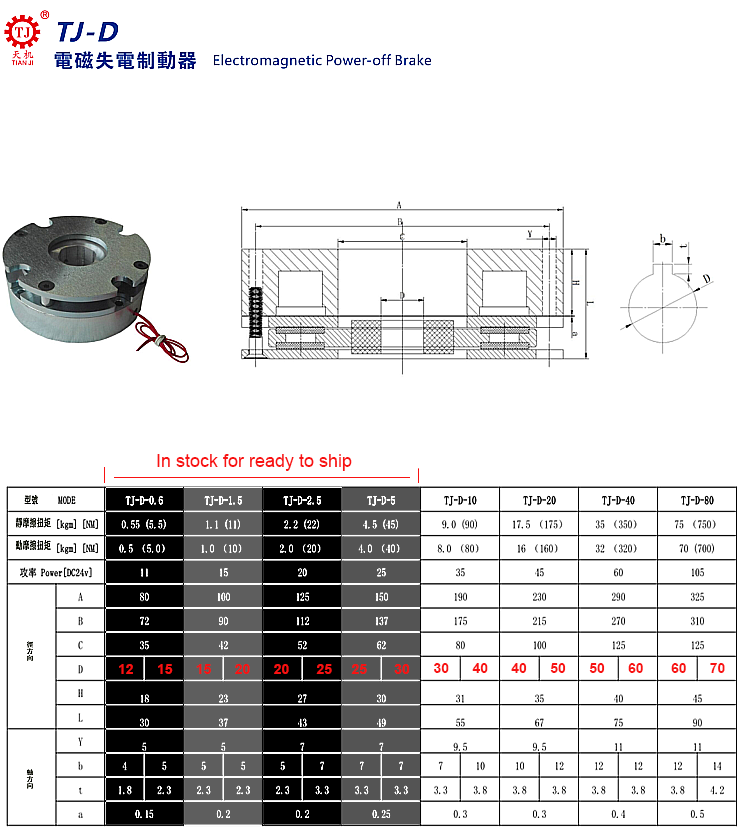

The rapid power loss electromagnetic brake has the advantages of simple structure, low noise and reliable braking. The ideal performance element for industrial modernization. With its excellent characteristics, the power-off brake can meet the needs of different machines such as robots and motors for different purposes. Widely used in intelligent manufacturing and industrial robots, TJ-D ultra-thin over-excitation safety brake, ultra-thin design can not only save installation space, but also can play its superior characteristics of high torque and low power consumption with the over-excitation controller , effectively reduce the brake temperature.

Universal disc clutches for mechanical spare parts.

It is compatible with overall general industrial machinery, and the reasonable design provides good performance.

Power parametersTo turn off the brakes:

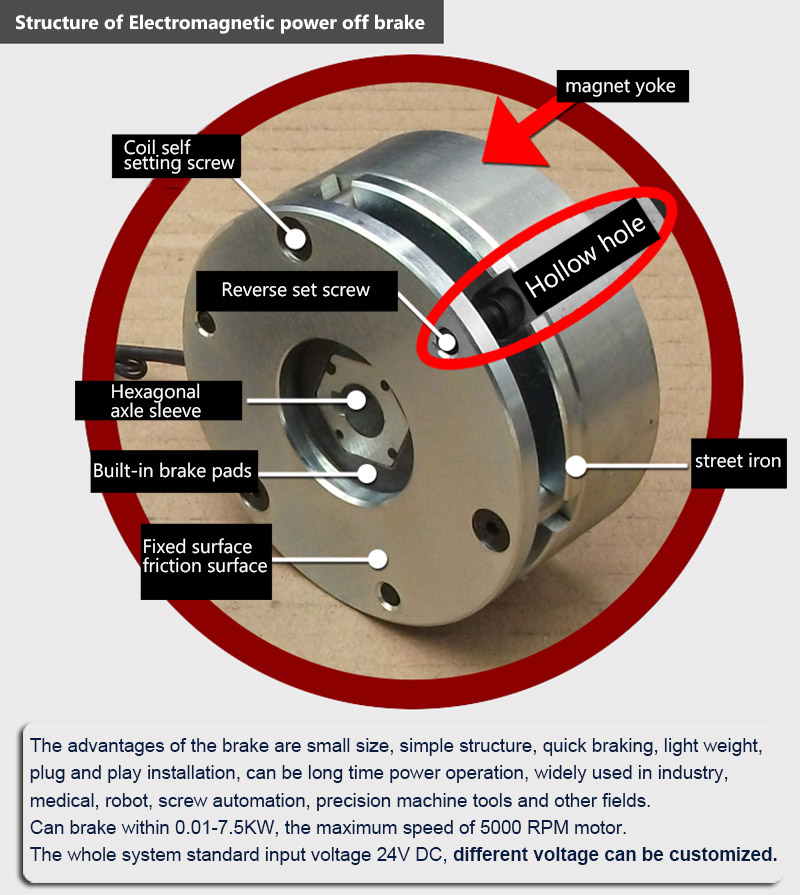

Structural features:

1. Compact structure The electric brake has a small axial dimension, but the braking torque is large enough.

2. Quick response power-off braking is to use the spring device to form the braking torque, and the spring return time is the braking response time

3. Long life consumption The electric brake adopts new friction material, which determines the performance of long life.

shutdown detailsbrake:

special function:

1.fast reaction.Dry design means instant response to commands.

2.durability.Excellent heat dissipation and high-quality materials mean long life even at high frequencies and high performance.

3.Easy to install and maintain.Sealed bearing races eliminate the need to disassemble the center core. With no need for a dusting brush, the operation is simpler and easier.

4.No need to adjust the motor.The design of the motor requires no adjustment of the friction surfaces and only very minor adjustments are required after installation.

5.Exercise of course.Even under the strongest vibrations, the one-piece plate will not slip, resulting in a longer service life.

6.Adjustable torque.The torque level can be increased or decreased by varying the current, making it suitable for various applications.
