Flexible braided non-asbestos brake lining rolls, brake bands, brake linings

Supplier: Cixi Oriental Friction Products Co., Ltd.
Region: Zhejiang, China
Contact: Mr Kobi Ding
Price: $1.00 /roll
Min. Order: 1 roll

Click here to contact

Product details

Warranty:	1.5 years	Video shipment inspection:	if
Local service location:	Türkiye, Mexico, Korea	Supply capacity:	180 rolls of asbestos-free brake pads per day
temperature:	200 degrees	Origin:	Zhejiang, China
brand:	orientation	width:	3/8"
Marketing Type:	New Products 2020	density:	2
color:	yellow	Applicable industries:	Clothing stores, machinery repair shops, energy and mining
Mechanical test report:	if	Package preview:
product name:	Asbestos-free brake pad roll	Core component warranty:	3 years
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram	port:	Port of Ningbo, China
Health status:	new	Showroom location:	Türkiye, Germany, Brazil, South Africa
Core components:	PLC, gearbox, motor, water pump	Packaging Details:	opp bags and woven bags.
length:	25 feet per roll	thickness:	4"
After warranty service:	Spare parts, on-site maintenance and repair services

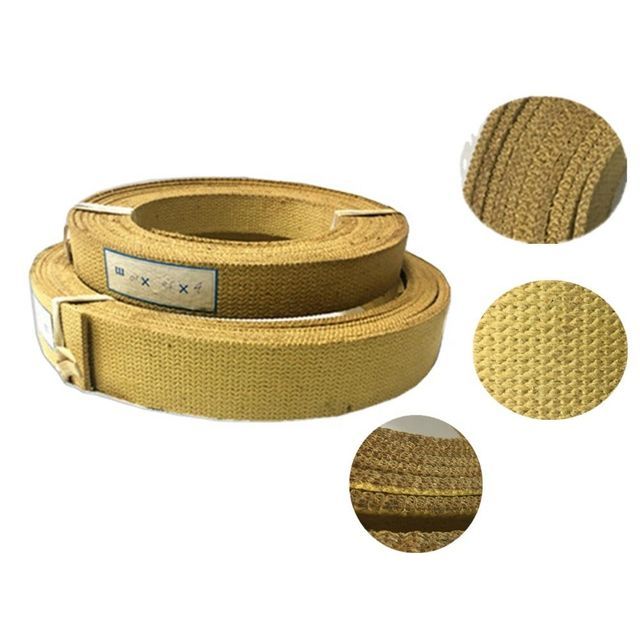

Asbestos-free brake pad roll

Asbestos-free brake pads have good wear resistance, stable friction coefficient, no asbestos material, and no pollution.

Performance of non-asbestos brake pad roll

temperature	Friction coefficient (μ)	Wear rate (v)cm3/Nm
100	0.40--0.65	≤0.7×10-7
150	0.35--0.65	≤0.9×10-7
200	0.32--0.60	≤1.1×10-7

Asbestos-free brake lining roll made of viscose, brass and melamine resin. Dongfang non-asbestos brake pads have high elasticity, good wear resistance, stable friction coefficient, and no environmental pollution.

Asbestos-free brake pads have good wear resistance, stable friction coefficient and no pollution.

39 years experience
ISO9001:2008 certification
Hot Products
High quality and competitive price

This product can be applied to tractors, tractors, hoists, winches, elevators, mine hoists, escalators, excavators, conveyors, ships, cranes, drilling machines, light trucks, motorcycles, forklifts, mixers, turbines, etc.

Asbestos-free brake pad roll size

Thickness (mm)	Width (mm)	Length (m)
5~30	50~400	10

Asbestos-free brake pad roll

Color: brown and yellow or according to customer requirements

Thickness: 5mm~30mm

Width: 50mm~400mm

Length: 10m/roll, or according to customer requirements
Working conditions: 200 degrees, 1.0Mpa pressure.
Application field It is widely used in the braking deceleration and power transmission of high-power machinery such as ship winches, wharf cranes, drilling machinery, hoisting machinery, and construction machinery.
