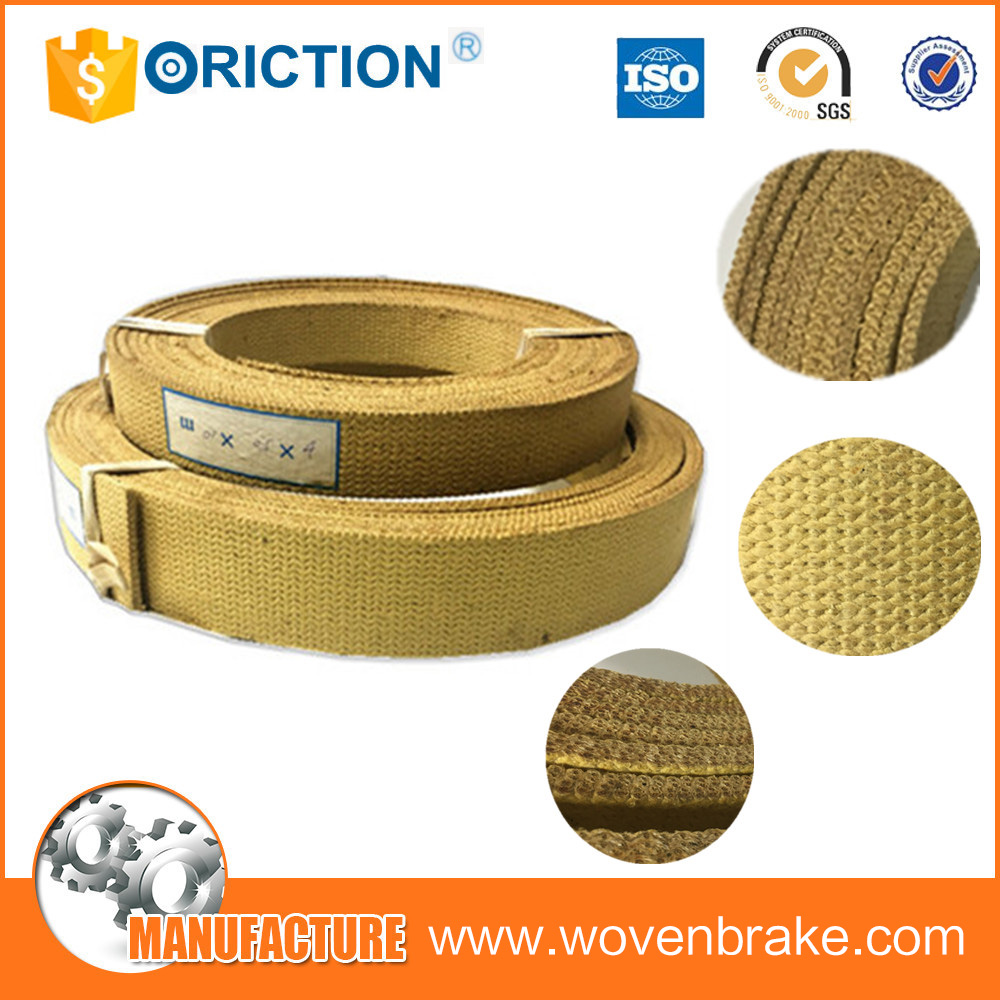

Non-asbestos braided brake linings in roll form

Supplier: Cixi Oriental Friction Products Co., Ltd.
Region: Zhejiang, China
Contact: Mr Kobi Ding
Price: $1.00 /roll
Min. Order: 1 roll

Click here to contact

Product details

Supply capacity:	177 woven brake lining rolls per day	color:	yellow
port:	Port of Ningbo, China	length:	10 meters per roll
temperature:	200 degrees	width:	330mm
Packaging Details:	opp bags and woven bags.	Origin:	Zhejiang, China
Delivery Details:	25 days after order confirmed	thickness:	7.9mm
density:	2	model:	330mm x 7.9mm x 10m
brand:	East	Material:	Asbestos free
payment terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Roll Brake Linings

Braided brake pads in rolls have good wear resistance and stable friction coefficient, non-asbestos material, without any pollution.

Roll Brake Linings

temperature	Friction coefficient (μ)	Wear rate (v)cm3/Nm
100	0.40--0.65	≤0.7×10-7
150	0.35--0.65	≤0.9×10-7
200	0.32--0.60	≤1.1×10-7

Braided roll pads made of viscose, brass and melamine resin. The directional braided brake pads in rolls have high flexibility, good wear resistance, stable friction coefficient, and no environmental pollution.

Braided brake pads in rolls have good wear resistance, stable friction coefficient, and no pollution.

39 years experience
ISO9001:2008 Verification
Hot Products
High quality and competitive price

This product can be applied to tractors, tractors, winches, winches, elevators, mine hoists, escalators, excavators, conveyors, ships, cranes, drilling rigs, light trucks, motorcycles, forklifts, mixers, turbines, etc.

Braided Brake Pad Roll Size

Thickness (mm)	Width (mm)	Length (m)
5~30	50~400	10

Roll resin braided brake pads

Color: brown, yellow or as customer's request

Thickness: 5mm~30mm

Width: 50mm~400mm

Length: 10m/roll, or according to customer requirements
Working conditions: 200 degrees, 1.0Mpa pressure.

Application field It is widely used in the braking deceleration and power transmission of large power machinery such as ship winch, wharf crane, drilling machinery, hoisting machinery and construction machinery.
