Road Grooving Machine Pavement Cutter Grooving Machine

Product details
Blade quantity:6;Certification:QSMS/ ISO9001;
Cutter head slot width:12mm;Fuel Capacity:24L;
After-sales Service Provided:Overseas third-party support available;Brand Name:TongDa;
Product Name:Pavement Cutter Grooving Machine;Packaging Detail:Road Grooving Machine Pavement Cutter Grooving Machine making wax before loading on sea ship;
Safety braking system:Adopt electronic safety control system;Voltage:12V 45Ah;
Power(W):11KW;Supply Ability:50 Set/Sets per Month Pavement Cutter Grooving Machine;
Port:Qingdao/ Shanghai/ Guangzhou;Place of Origin:Henan China;
Working Depth:0-50mm;Working Width:8-50mm;
Dimension(L*W*H):1830X900X1000mm;Cutter head Inner diameter:25mm;
Engine:Honda GX690;Dust suction system:Effective dust absorption can be achieved;
Weight:260KG;Cutter head total width:23mm;
Condition:New;Cutter head external diameter:122mm;
Warranty:1 year;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Alibaba trade assurance;

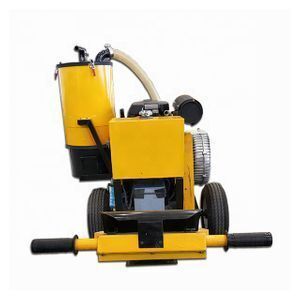

Road Grooving Machine Pavement Cutter Grooving Machine

Product Description



Pavement Cutter Grooving Machine description:

Pavement Cutter Grooving Machine primarily shared with the road sealing machine so as to widen the cracks in concrete pavement or asphalt pavement, in this way, you can repair the road cracks. This device adopted the U.S. Kohler 25 hp gasoline engine, equipped with triple heavy-duty air filter, reliable, stable performance, suitable for harsh environments.



Pavement Cutter Grooving Machine application:

Pavement Cutter Grooving Machine is mainly used for widen crack before amending seam in asphalt surface.



Pavement Cutter Grooving Machine features:

1. Pavement Cutter Grooving Machine adopts 690 double cylinder gasoline engine of Honda, which has strong power and stable performance.

2. The engine adopts triple air filter system, which minimize reduces dust impact on generator life.

3. Road groove cutting machine is equipped with electric regulating lift device, it can be adjusted cutting depth flexibly.

4. User-friendly emergency stop switch, which ensures accidents happening.

5. Reasonable crack pointer avoid working fault.

6. Alloy towing base plate can be adjusted according to workers stature.



Technical parameter



Model

TDK-300

TDC300

Cutting width

8-50mm

12-20mm

Cutting depth

0-50mm

Engine

Honda GX690

Engine power

11KW

18KW

Safety braking system

Adopt electronic safety control system

Dust suction system

Effective dust absorption can be achieved

Fuel Capacity

24L

18L

Blade quantity

6

Machine weight

260KG

Boundary dimension

1830X900X1000mm

900X780X1480mm

Accumulator

12V   45Ah

Cutterhead

External diameter

122mm

Inner diameter

25mm

Slot width

12mm

Total width

23mm





Related products:





Company Information



Xinxiang TongDa Road New Technology Co., Ltd. is a highly innovative science and technology enterprises engaged in making highway maintenance materials, road maintenance mechanical equipment and researching maintenance of new technology. TongDa is a R&D and export enterprise combined with sales and service, integrating road construction and equipment production. It mainly covers special-purpose vehicles (fiber micro-surface-slurry sealer paver series, asphalt distributor series, fiber synthetic chip sealer series) and pavement maintenance equipment (asphalt emulsification equipment, road sweeping equipment and potting smidahk construction equipment) and other equipments’ R&D, production, sales and technical services.

Certificate:

FAQ



1. Are you manufacturer or trading company?

     We are direct manufacturer with the experience of 17 years.

2. Do you have oversea service?

     When you have some problems which you can't solve, we will arrange our engineers to your country to help you.

3. How about your product quality?

     All our spare parts are from the original manufacturers, the quality is 100% guaranteed.

4. Payment terms?

     TT, LC.
