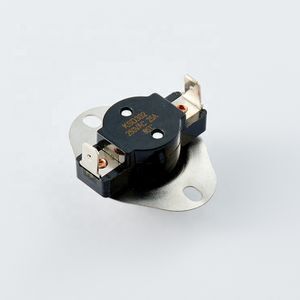

Temperature bimetal cut off switch thermostat

Product details
Product name:3/4" disc adjustable thermostat;Packaging Detail:1000PCS/CARTON CARTON SIZE:44.5X42X38.5CM,G.W/N.W:20KG/19KG;
Model:KSD302-242;Certification:CE .ROHS;
Application:household appliance;Supply Ability:5000000 Piece/Pieces per Month;
Model Number:KSD302-242;Temperature Controller:High Voltage;
Current:25A;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Brand Name:ZG;Place of Origin:China;
Open temperature:40-240℃;Contact style:NC or NO;
Port:Shanghai or NingBO;Voltage:250VAC;

Temperature bimetal cut off switch thermostat



Product Description



1,electrical parameters: 25A/250V (resistance loaded),

2,temperature range: 45 ~ 150C

3,service life: 10/250V 10000 cycle,

4,contact resistance than 50m Ω;

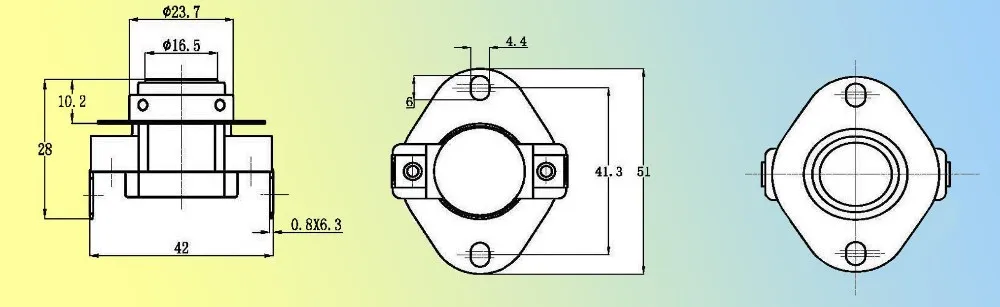

product drawing







Performance data





ModelVoltage/currentOpen temperatureContact style
KSD302-242250V/25A40-240℃

NC or NO

S.P.S.T



NC: normally closed,contact open when temperature rises to set point



NO:normally open,contact closed when temperature rises to set point
