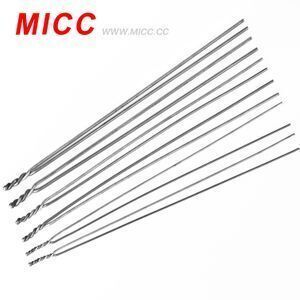

bright chromel alumel thermocouple Element K 3.2 for assembled thermocouple

  • Supplier: MICC TECH. LIMITED
  • Region: Jiangsu, China
  • Contact: Mr Jackie Chan
  • Price: $25.00 /kilogram
  • Min. Order: 1 kilogram
Product details
Place of Origin:Jiangsu China;name:thermocouple Element K 3.2;
package:roll or on spool;Port:SHANGHAI;
moq:1kg;application:temperature sensor;
sample:available;Packaging Detail:carton or wooden case for thermocouple Element K 3.2;
test report:available;brand name:MICC thermocouple Element K 3.2;
Payment Terms:L/C,T/T,Western Union,PAYPAL;type:all types available;
Supply Ability:10000 Kilogram/Kilograms per Month thermocouple Element K 3.2;Model Number:K, J, T, E, R, N, B, S, etc..;
color:bright or dark;diameter:all sizes available;
Brand Name:MICC thermocouple Element K 3.2;



Quick detail

thermocouple Element K 3.2

  • Type: K, E, J, T, N, etc
  • Style: bright or oxidized
  • Application: forming two hot electrodes of thermocouple or compensating cable
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Thermocouple wire
  • Product Size: 0.05mm to 10.0mm
  • Delivery time: 7-20days which is according to quantity
  • Eco-friendly: Yes
  • MOQ: 1kgs
  • Trade term: FOB, EXW, CIF, CFR
  • Payment term: T/T, Western Union, L/C
  • Certificate: ISO,CQC ROHS
  • Making sample time: all type in stock
  • Advantage: high quality with high measuring accuracy, fast thermal response, high mechanical strength, long service lifetime, wide temp measuring range of -200-1300centigrade

Classification for thermocouple Element K 3.2

  1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
  2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.

Thermocouple variety and index for thermocouple Element K 3.2

Thermocouple Variety and Index

Variety

Type

Measurement Range(°C)

NiCr-NiSi

K

–200–1300

NiCr-CuNi

E

–200–900

Fe-CuNi

J

–40–750

Cu-CuNi

T

–200–350

NiCrSi-NiSi

N

–200–1300

NiCr-AuFe0.07

NiCr-AuFe0.07

–270–0



Thermocouple type and grade for thermocouple Element K 3.2

Thermocouple Type

Grade

Temperature Range(°C)

Allowable Deviation

type K and type N

I

–40–1100

±1.5°C or±0.4%t

II

–40–1300

±2.5°C or ±0.75%t

III

–200–40

±2.5°C or ±1.5%t

type E

I

–40–1100

±1.5°C or ±0.4%t

II

–40–1300

±2.5°C or ±0.75%t

III

–200–40

±2.5°C or±1.5%t

type J

I

–40–750

±1.5°C or ±0.4%t

II

–40–750

±2.5°C or ±0.75%t

type T

I

–40–350

±0.5°C or± 0.4%t

II

–40–350

±1.0°C or± 0.75%t

III

–200–40

±1.0°C or± 1.5%t

NiCr-AuFe0.07

I

–270–0

±0.5°C

II

±1.0°C



Specification of alloy wires for thermocouple Element K 3.2



Anode

Cathode

Diameter(mm)

Maximum Temperature(°C)

name

code

name

code

long-time using

short-time using

NiCr10(Chromel)

KP

NiSi3(Alumel)

KN

Φ0.3

700

800

Φ0.5

800

900

Φ0.8 Φ1.0

900

1000

Φ1.2 Φ1.6

1000

1100

Φ2.0 Φ2.5

1100

1200

NiCr14.2Si

NP

NiSi4

NN

Φ3.2

1200

1300

NiCr10(Chromel)

EP

CuNi45(Copel)

EN

Φ0.3 Φ0.5

350

450

Φ0.8 Φ1.0 Φ1.2

450

550

Φ1.6 Φ2.0

550

650

Φ2.5

650

750

Φ3.2

750

900

Fe(Iron)

JP

CuNi45(Copel)

JN

Φ0.3 Φ0.5

300

400

Φ0.8 Φ1.0 Φ1.2

400

500

Φ1.6 Φ2.0

500

600

Φ2.5 Φ3.2

600

750

Cu(Copper)

TP

CuNi45(Copel)

TN

Φ0.2 Φ0.3

150

200

Φ0.5 Φ0.8

200

250

Φ1.0 Φ1.2

250

300

Φ1.6 Φ2.0

300

350

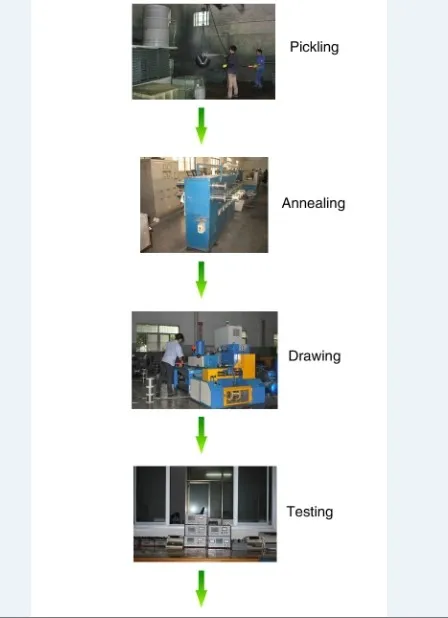

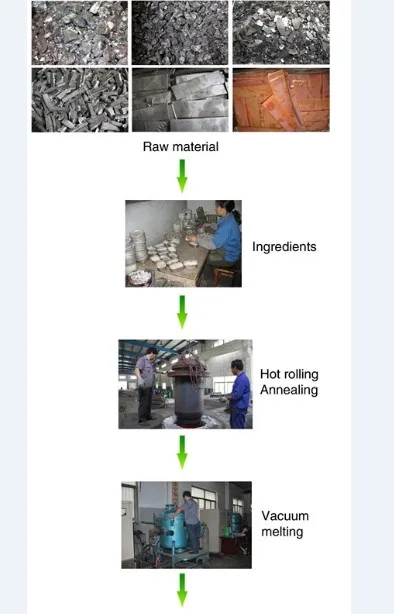

 Production process for thermocouple Element K 3.2

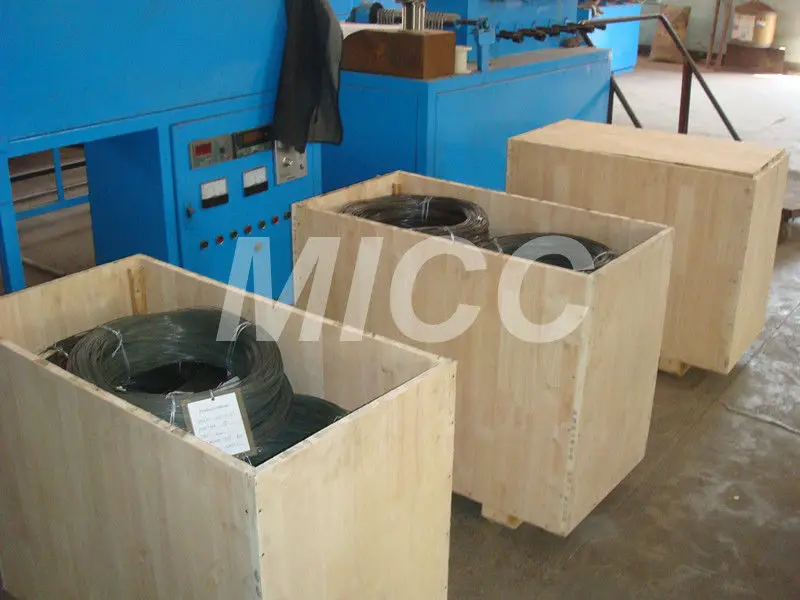

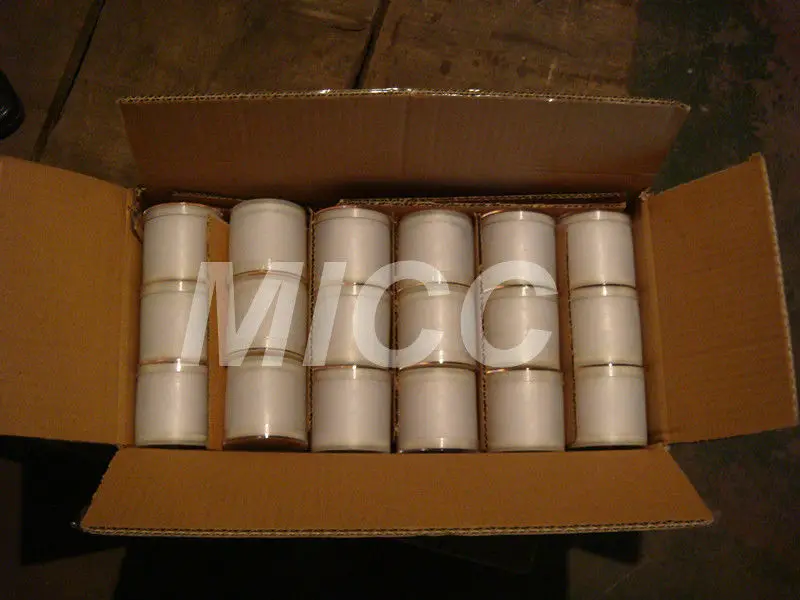

Packaging for thermocouple Element K 3.2







 Delivery for thermocouple Element K 3.2

International express for sample or small orders. Air transportation and sea transportation for big orders.
