Brand Name: | MICC; | Place of Origin: | China; |
Model Number: | K/J/L/T/N; | Port: | ShangHai,NingBo; |
Type: | K/T/J/E; | Package: | Carton; |
Color: | Customer's Request; | Supply Ability: | 100000 Meter/Meters per Month thermocouple bare wire; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,paypal; | MOQ: | 500m; |
Insulations: | FEP/SSB/FG and so on; | Application: | Temperature Sensor Wire; |
Wire size: | 20AWG, 2*7/0.30mm; | Packaging Detail: | Roll or on spool; |
Conductor: | Copprer; | Product name: | K Type Surface Thermocouple Temperature Sensor Wire 0-400c; |

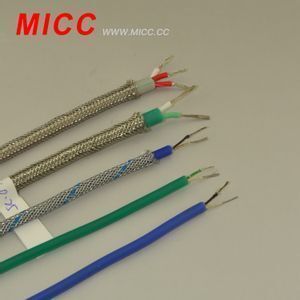

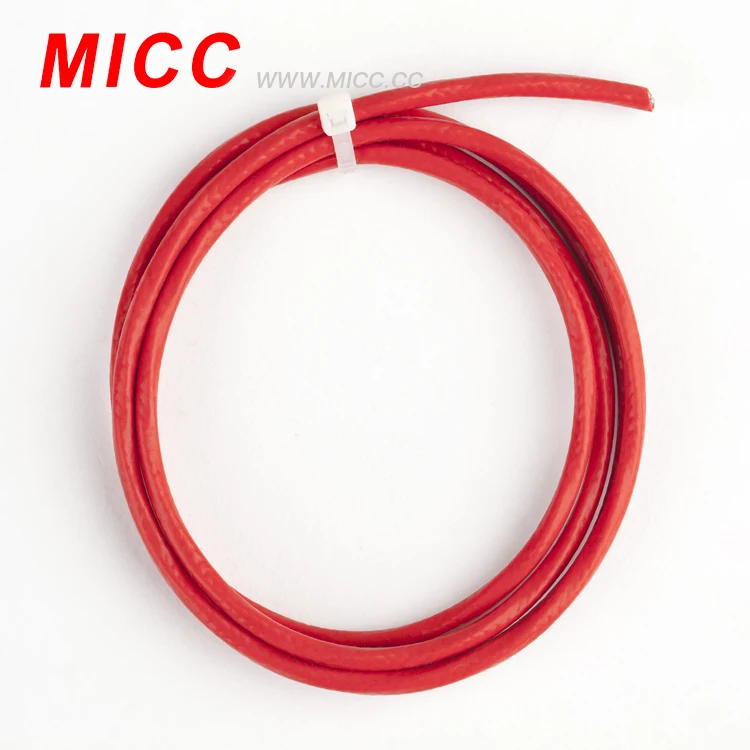

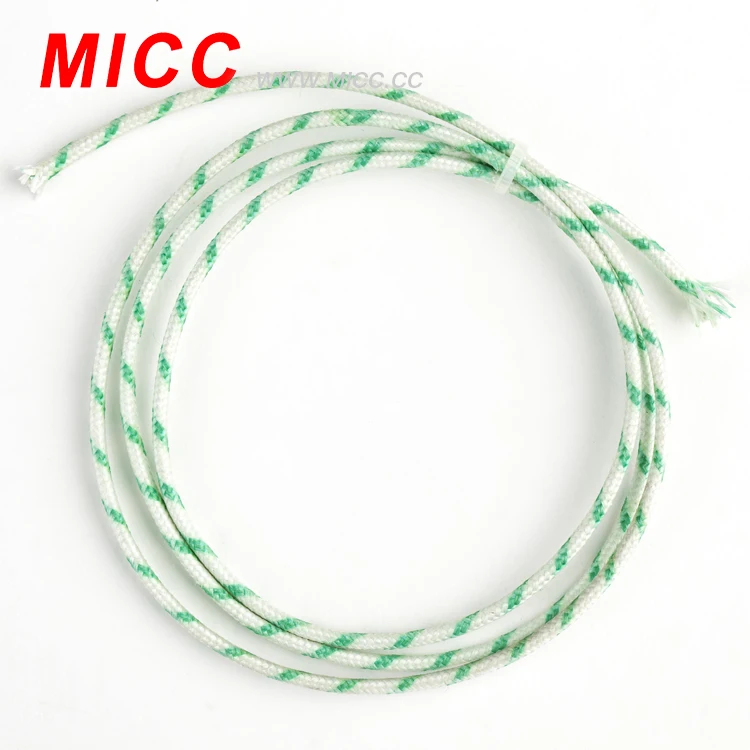

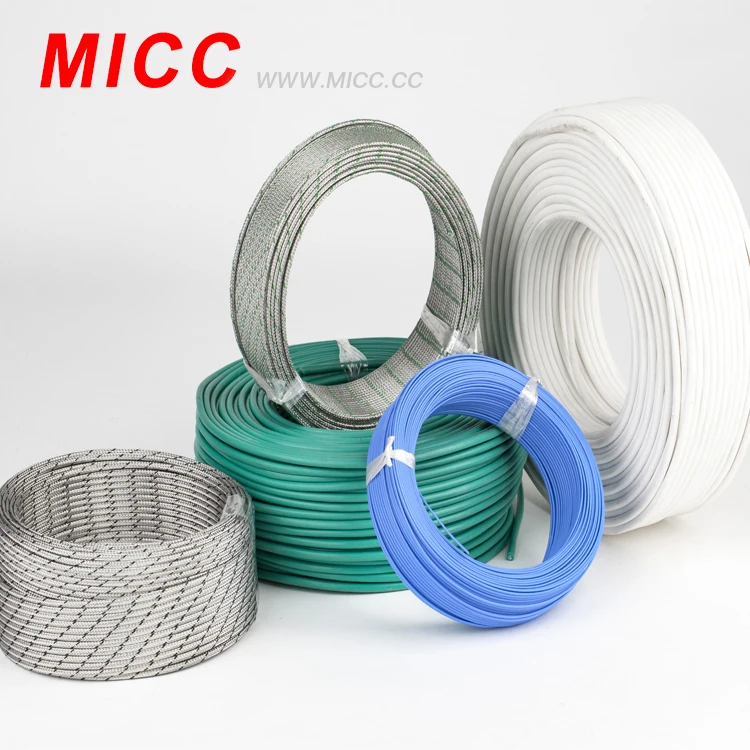

MICC K Type Surface Thermocouple Temperature Sensor Wire 0-400c
Grade: | Extension Grade or Thermocuple Grade |
temperature range, deg. c | -50... +400 |
type of coductor: | K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX |
number of conductors: | 1,2,3,4,6 |
Conductor type | Strand or Solid |
section area of each core, mm2 (Conductor Size AWG) | 20, 24, 30, 32,36,40 |
material of insulation: | fiberglass, FEP, PTFE, PVC, silicone, kapton, etc |
material of jacket: | fiberglass, FEP, PTFE, PVC, silicone, kapton, etc |
shielding material: | SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid) |
color: |
ANSI, IEC, etc |
quantity and lenght of coil, m(ft) | 10*100m, 5*200m, 2*500m, 1*1000m, 3*1000ft, 1*2000ft, |
