4D Green Self-Leveling 360 degree Horizontal&Vertical 16 lines laser level 4d/Fukuda 4D laser level

Supplier: Huipu Opto-Electronic Instrument (Zhenjiang) Co., Ltd.
Region: Jiangsu, China
Contact: Ms LiLy xu
Price: $95.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Port:	any port of China;	Brand Name:	Huipoo/Fukuda/OEM;
Pulse Function:	yes.Have;	Laser level:	8 H and 8 V;
Tripod thread:	1/4, 5/8;	Supply Ability:	1000 Piece/Pieces per Quarter;
Wavelength:	515-520nm;	Model Number:	MW-94DG;
Place of Origin:	Jiangsu China;	Size:	15 x 8.5 x 13cm;
Leveling time:	<=2s;	Measuring Range (Diameter):	0- 15m without receiver;
Auto-self-leveling range:	±4°;	Packaging Detail:	Selling Units:Single item Single package size: 34X28X13 cm Single gross weight:2.0 kg;
Shockproof Design:	Patent cross bearing;	IP:	54;
Slash locking function:	yes;	Product Name:	4D green Laser Level;
Precision:	±1.5mm/7m;

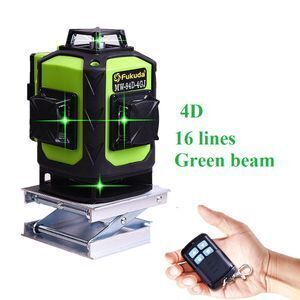

360 Self-leveling 4D 16 line green light Rotary cross line laser level

Features:
The laser level has three laser windows, each window can launch 4 laser lines, totally 12 laser lines(4 laser lines combine to a plane). Attention: There are at least 4 laser lines, it can not keep 1 or 2 laser lines

1. The 4D laser is a cross line laser level. This unit is self-leveling with accuracy range of within ± 3.5°. The working range of this laser is up to 20m, depending on the work area's illumination.

2. Design: The Fukuda 4D laser level is a compact, practical option for basic cross line leveling work. Measuring at 1/4 ", the laser can fit comfortably in the palm of your hand.

3. Mounting Options: It has a hard plastic housing to protect the laser beams and pendulum leveling system within. The housing has a ribbed rubber casing that protects it from scratches while giving extra friction to make it slip resistant.

4. Leveling function: Once the pendulum is in unlocked condition, the instrument will be self-leveling within 3.5 degrees, when the unit is using out of the leveling range, laser lines and main indicator will keep flashing.

5. Pendulum Lock: The Fukuda 3D laser level is a precision instrument and should be treated with care. When not in use, the pendulum should always be in the Off position (OFF mode). Locking the pendulum allows the Cross Line Laser to better withstand vibration and Trauma incurred during transportation or if the units is dropped.

Product specification:

Laser:	Green Laser
Type:	4D
Expanded Angle:	4 * 360 °
Laser Class:	Class II
Laser Wavelenght	Green beam: 532nm
H/V Accuracy:	3/10m
Self-leveling range:	within ± 3.5°
Orthotroipc Accurancy:	90° ± 30"

Huipu Opto-Electronic Instrument (Zhenjiang) Co., Ltd

Huipu Opto-Electronic Instrument (Zhenjiang) Co., Ltd is located in Zhenjiang. Zhenjiang, the core location of the Yangtze River Delta economic development zone. East to Shanghai and west to Nanjing are all within one hour's drive, with convenient traffic and high degree of modernization.
The company has specialized in opto-electronic laser measurements &surveying Instruments and has a strong R & D, production, sales, management team and perfect after-sales service system. The company has 5 production shops and 2 R & D centers. Our main products: Multiline laser level, 3D laser level, Rotary laser level, Auto level, Total Station, electronic theodolite, distance meter and other Opto-Electronic instrument components and accessories.
Since the establishment of the company, the performance of sustained and rapid growth, has established a good relationship with the customers throughout the country, has been the majority of users of the trust and support, and establish a good reputation. In the excellent quality of the instrument, preferential prices, good and efficient after-sales service, professional technical support, has become the most sincere instrument cooperation suppliers. The company in a rigorous, pragmatic and efficient concept, and constantly improve, and continuously forge ahead, hoping to provide customers with satisfactory service in the field of measuring instruments.

Delivery and Payment:

About shipping way, if it is air shipping, this unit doesn't include batteries. Because the international air shipping forbid us to ship liquid, powder and batteries, so we can not put them in the package. Hope you can understand & buy the batteries in your local store or supermarket. Thanks for your support!

Q&A:

1.Are your company a trading one or a factory?

Factory (We produce, we sell).

2.Delivery time?

It depends on whether the products you buy have inventory. If we have inventory, generally we can arrange shipment after 2 to 3 days. If not, it will be decide by the factory production.

3.Is your company accept customization?

Yes.

4.Do your products have warranty?

Yes, We offer 1 year warranty.

Our Policy: If there is some quality problem, send the defective to us. we will bear the freight and resend back new one to you with new order.

5.Easy targeting with bright laser pointer?

YES

6.Large LCD with backlight and multi-line display (4 lines)?

YES

7.Auto correction and error report technology?

YES

8.Buzzer indication?
