size: | 180mm175mm355mm; | model: | DTM152; |
Packaging Detail: | Standar package including carrying case and cartonwhich can suit for the long DISTANCE. 53cm*35cm*45cm .gross weight 10.2kg; | brand Name: | huipoo; |
magnification: | 30; | Place of Origin: | china; |
Model Number: | DTM152; | Payment Terms: | T/T,Western Union; |
place of Origin: | jiangsu, China (Mainland); | Port: | Shanghai and others port; |
Supply Ability: | 1000 Piece/Pieces per Month; | Brand Name: | huipoo; |
weight: | 6.5kg; |

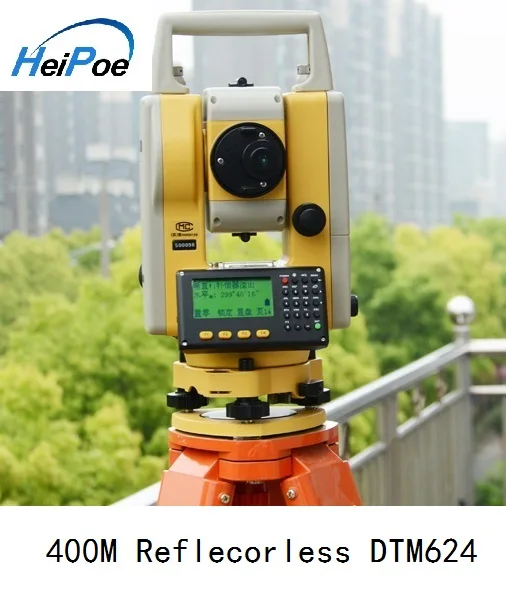

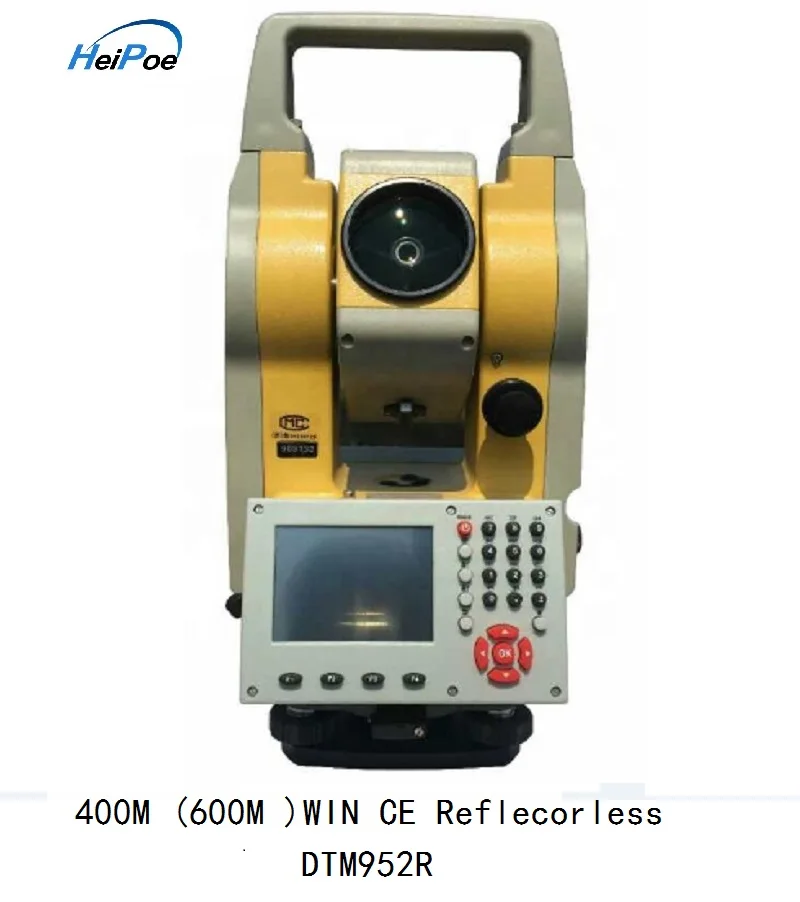

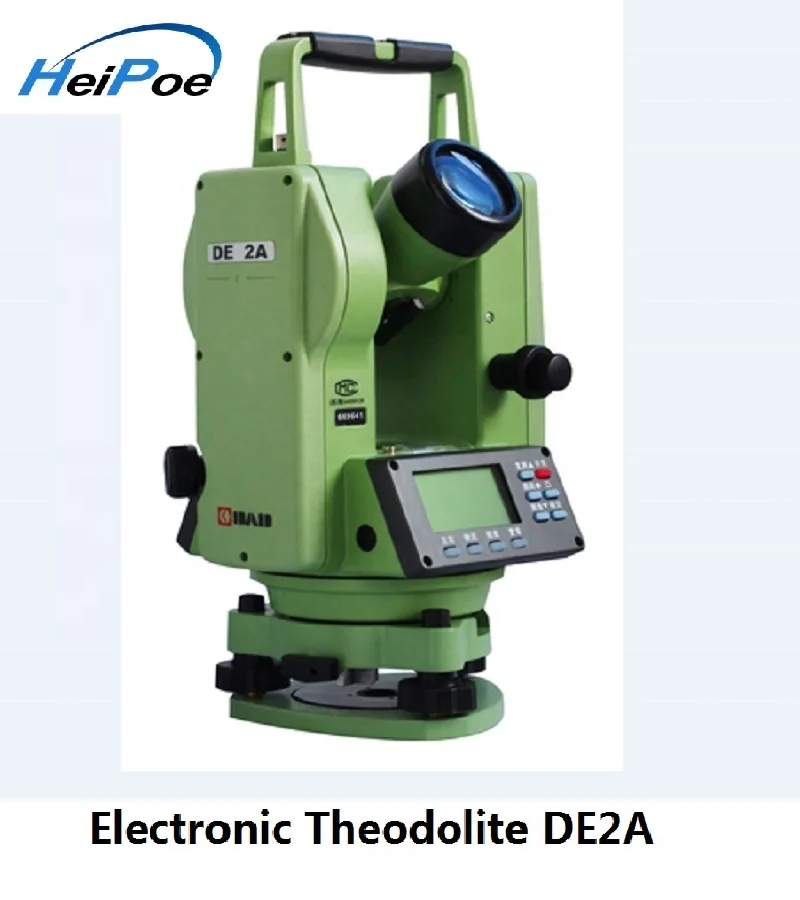

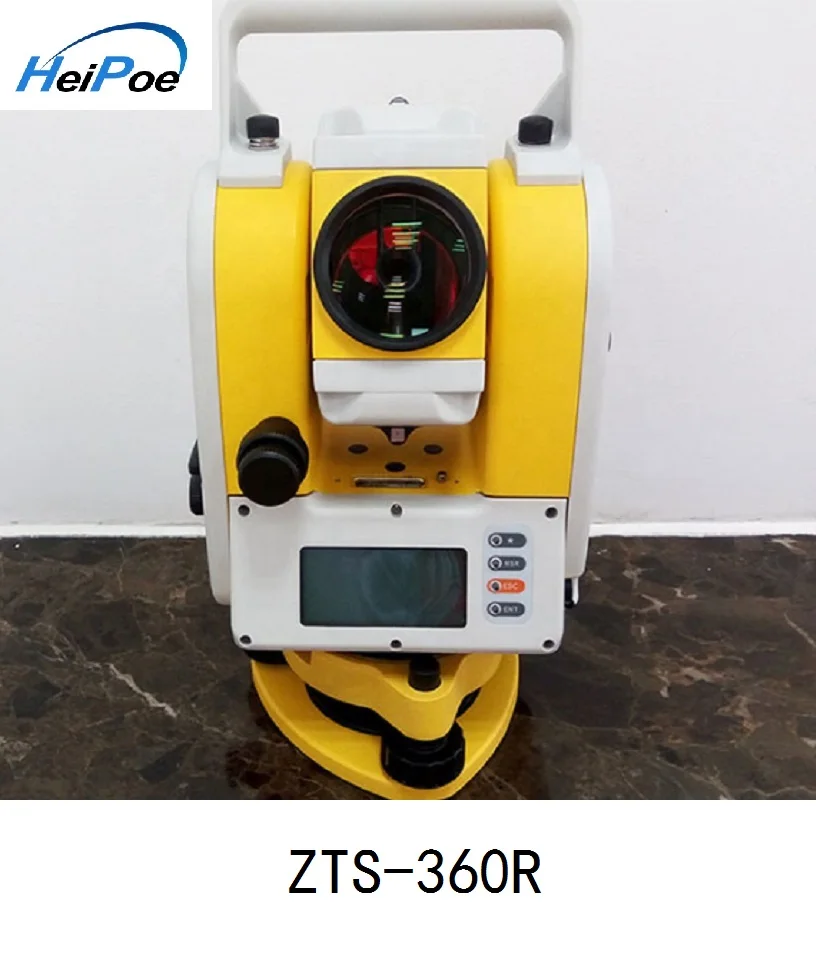

Related products you can click picture to Check details and buy it |
Technology Parameters

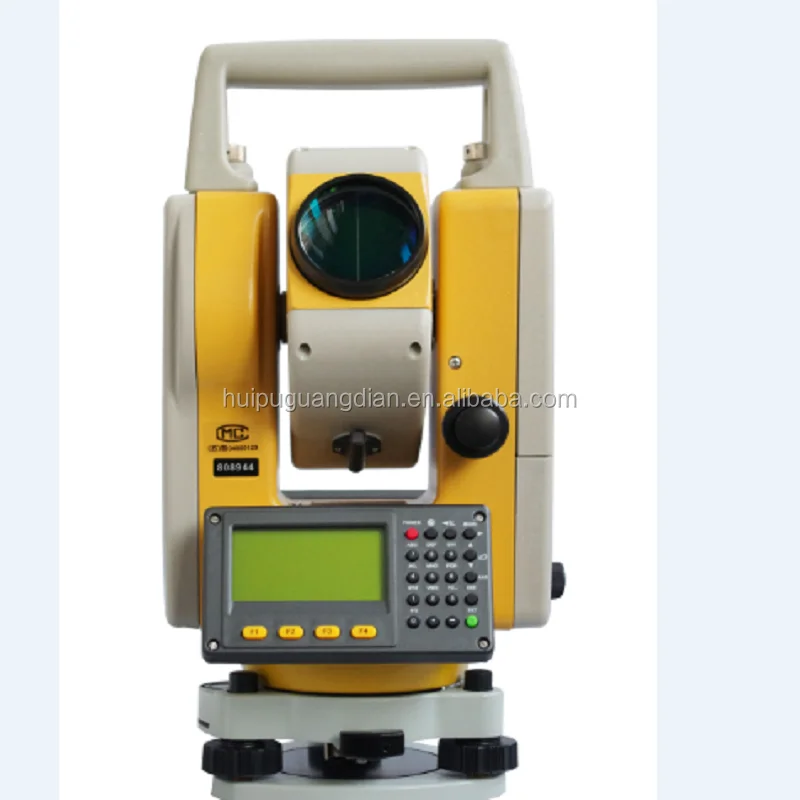

DTM152 Laser Ranging Total Station | ||
Distance Measurement Section | ||
Range | Single prism | 3000m |
Three prism | 5000m | |
Accuracy | ±(2mm+2ppm·D), ±(3mm+2ppm·D) | |
Unit | m/ft | |
Display | Maximum | 99999999.9999m |
Minimum | 0.1mm | |
Measuring time | Precise model:1S, Track model:0.8S | |
Number of time Set | 1 ~ 99 | |
Meteorologiccorrection | Input the value and correct automatic | |
Prismconstant | Input the value and correct automatic | |
Angle Measurement Section | ||
Method | Absolute coding | |
Grating diameter | 79mm | |
Minimum reading | 1″ | |
Detection | Horizontal | Diametrical detection |
Vertical | Diametrical detection | |
Accuracy | 2″ | |
Telescope Section | ||
Imaging | Positive | |
Length | 170mm | |
Effectiveaperture | 48mm | |
Magnification | 30× | |
Angle of vision | 1.5° | |
Distinguishability | 3.5″ | |
Minimum focus distance | 1.5m | |
Compensator | ||
System | Double axis photoelectric tilt sensor or Single axis liquid tilt sensor | |
Working range | ±3′ | |
Distinguishability | 1″ | |
Display Section | ||
Type | Double sides,160×80 LCD Display | |
Data Transmission | ||
Port | USB,RS-232C | |
Capacity | 40,000 data at least | |
Others | ||
Plummet | Optical or Laser plummet | |
Power | Rechargeable lithium battery,DC7.2V,3000mAh | |
Continuous working time | 8 hours at least | |
Size | 168×165×348mm | |
Weight | 6.8Kg | |
Working temperature | -20℃ ~ 50℃ |
