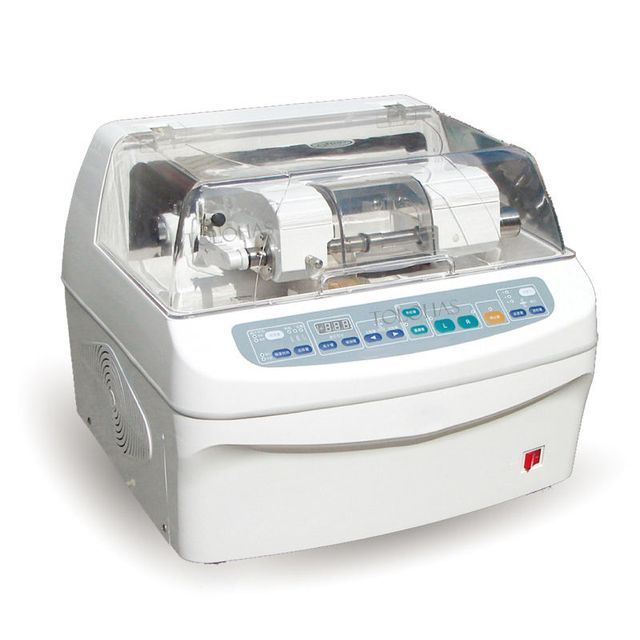

LHV5000 Optical Instrument Automatic Lens Edger Machine Optical Patternless Automatic Lens Edger Machine

Product details
Input voltage:110 VAC, 60 Hz 220 VAC, 50 Hzstrength:420 watts
payment terms:Western Union, T/T, MoneyGramEdging diameter:18 - 80cm
feature:advancedCustomization support:OEM production
Supply capacity:500 sets per monthGrinding wheel diameter:100 mm
brand:Tolojasworking environment:5°C - 40°C
port:Shenzhenmodel:LHV5000
Packaging Details:Lens edging machine standard export packagingOrigin:Guangdong, China
application:Ophthalmic OpticsName:Lens edger
Edge grinding clamping force:0.45 - 1.10 MPaWarranty:1 year
weight:51 kg

LHV5000 Optical Instrument Automatic Lens Edger Machine Optical Patternless Automatic Lens Edger Machine

Product Description
1. The main technical indicators have reached the level of similar imported products. Whether it is edge banding precision or processing fineness, it is in a leading position in China's edge banding machines.
2. The grinding wheel is made of imported materials, which has good performance in glass lens, CR lens and PC lens edging process
Finished with an edger.
3. The non-grain edging machine and the edging machine are two bodies, which is convenient for maintenance.
4. The optical centering method makes the installation of the suction cup very easy.
5. The display screen shows the actual size and shape of the processed lens. This is especially helpful for beginners.
6. Automatic initialization and setup.
7. The sophisticated computer control system ensures the reliability and accuracy of the edge banding.
8. Lens material: PC, glass and plastic.
9. Frame type: framed, without eaves and half eaves.
If you are interested in this product, please contact us immediately
Product parameters
Edging diameter
18 - 80cm
Edge grinding force
0.45 - 1.10 MPa
Wheel diameter
100mm
Grinding line speed
16.7 m/s
Input voltage
110 VAC, 60 Hz
220 VAC, 50 Hz
strength
420 watts
working environment
5°C - 40°C
weight
51 kg
