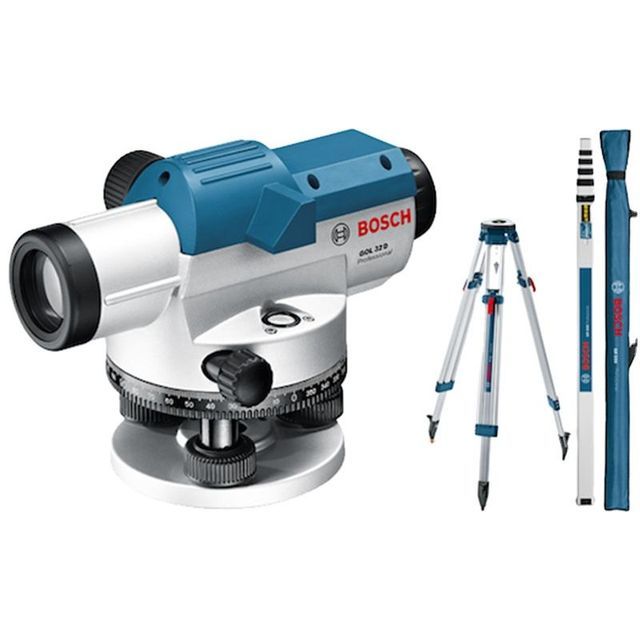

BOSCH GOL32D automatic precision level at the best price

Product details
Dust and splash protection:Protection class 54Compensator Type:Magnetic damping
payment terms:Western Union, T/T, MoneyGram, PayPalLeveling accuracy:1mm at 30m
Customization support:OEM productionWarranty:one year
Model:Bosch GOL32Denlarge:32x
model:Bosch GOL32DOrigin:Jiangsu, China
Minimum focus:1 ft (0.3 m)brand:Bosch
aspect:L 215mm x W 135mm x H 145mmPackaging Details:Standard export packaging
port:ShanghaiUnits of measurement:360°
The scope of work:120 metersSupply capacity:100 pieces per month
Product Description
feature
* Rugged and reliable - ideal for outdoor use
* Ideal for outdoor use due to robust housing with dust and splash protection (IP54)
* Fast aperture for clear target images
* Compensator lock for safe transport
* Objective straightener for coarse alignment
* Penta prism for easy reading of round vials
* positive image
* Large focus knob for easy alignment
* Fast aperture for a clear image of the target (measuring rod)
* Infinite angle/angle setting using knob with friction brake rotation

* Measurement unit: 360°
* Magnification: 32x
* Leveling accuracy: 1mm at 30m
* Working range: 120m
* Dust and splash proof IP 54
* Working temperature: -10 - 50 °C
* Storage temperature: -20 - 70 °C
* Dimensions: L 215mm x W 135mm x H 145mm


Specification
Technical data
GOL32D Professional Edition
Part Number
0601068500
enlarge
32X
Minimum focusing distance
0.3m
The scope of work
Up to 120m
1 km double run leveling deviation
1 mm
Angular accuracy
1 degree
Leveling accuracy
1.0mm at 30m
Compensator Leveling Range
±15'
tripod
5/8"
Dust and splash protection
IP54
Dimensions (L*W*H)
215*135*145mm
weight
1.7KG
Scope of supply
Lens cap, plumb weight, Allen wrench, adjustment pin, carrying case
