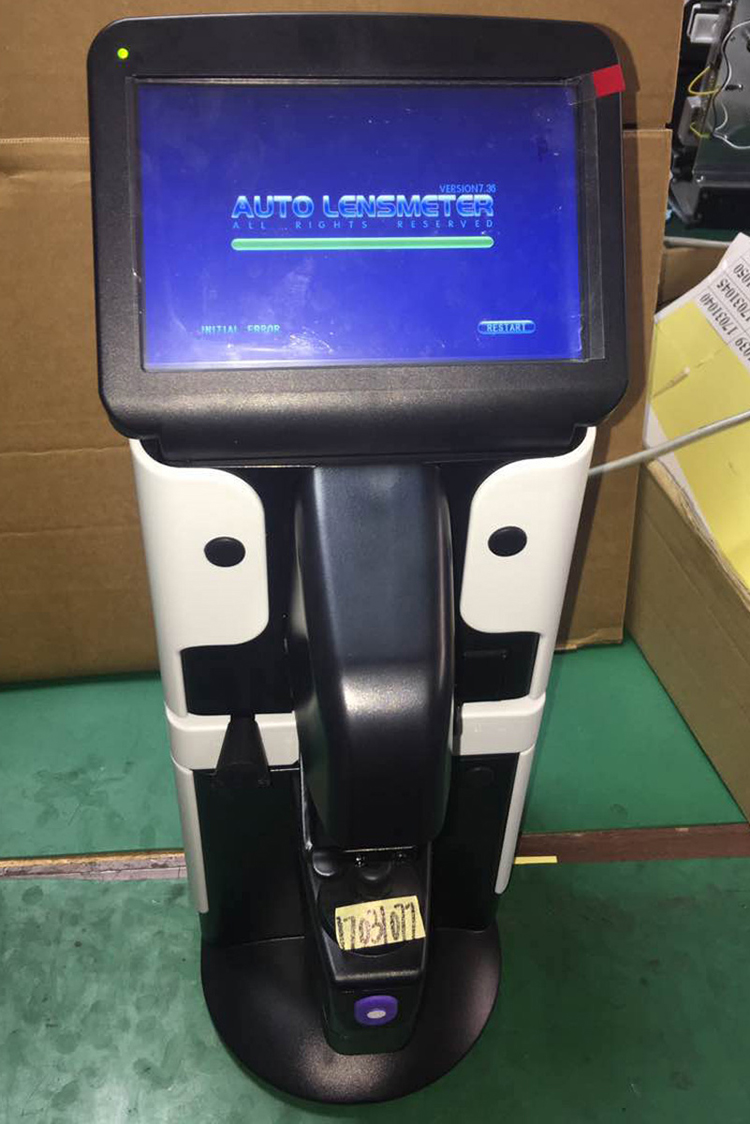

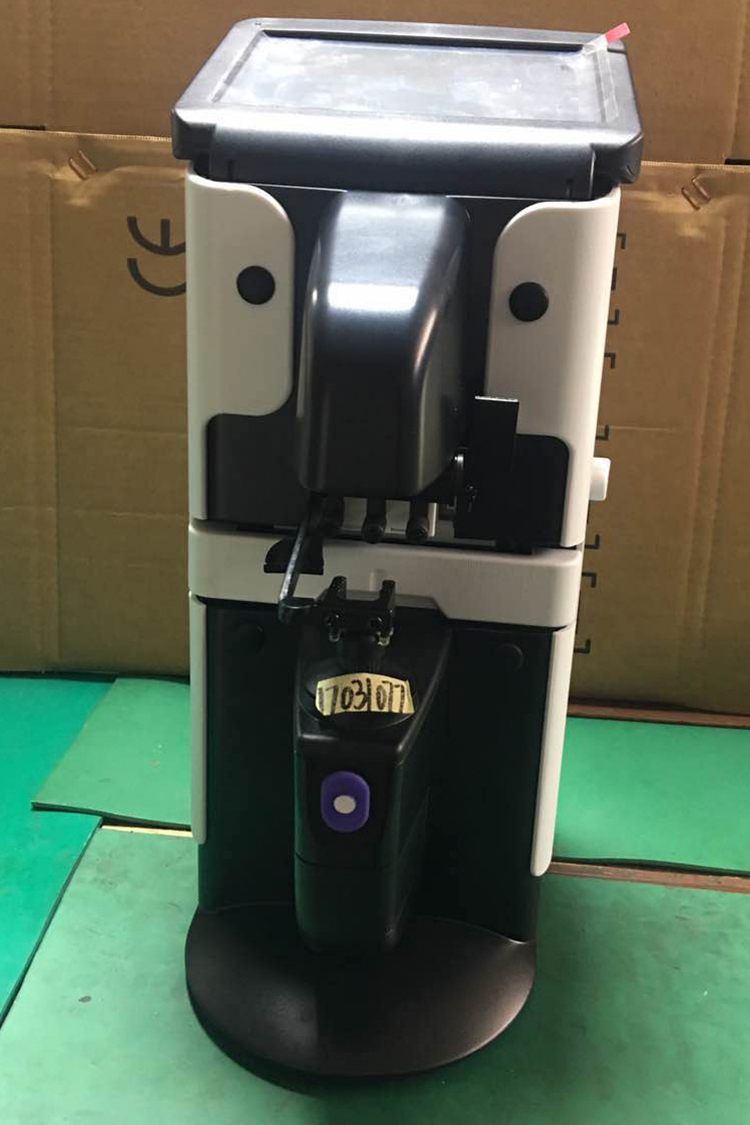

JD-2600A digital focal meter, automatic focal meter lensometro, Focimeter

Click here to contact

Product details

Supply capacity:	5000 pieces per week	exhibit:	7" TFT LCD color touch screen
Warranty:	3 years	Corneal measurements:	Axis 0°~180° (step 1°)
Corneal diameter:	2.00~12.00mm	Customization support:	OEM production
Origin:	Guangdong, China	model:	MSLJD26A
aspect:	280530480	Packaging Details:	Standard export packaging
payment terms:	L/C, Western Union, T/T	brand:	MSL
port:	Guangzhou	power supply:	AC220V; 50Hz
product name:	Focimeter Digital Auto Focimeter	printer:	Includes 57mm printer
Corneal power:	33.00m-1~67.00m-1	Corneal astigmatism:	0.00m-1~15.00m-1
weight:	18 kg

Product Description

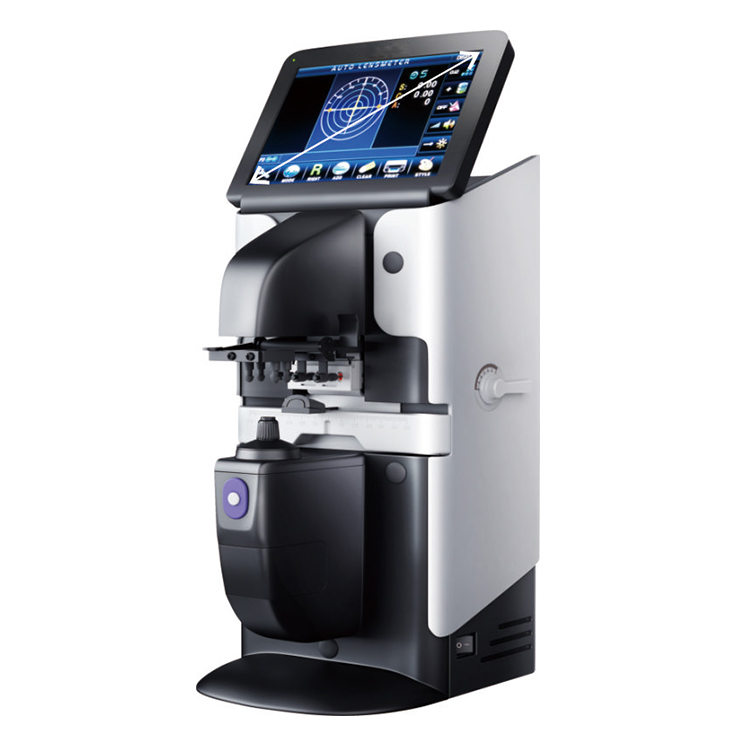

JD-2600A Digital Focimeter, Automatic Focimeter, Focimeter

feature:

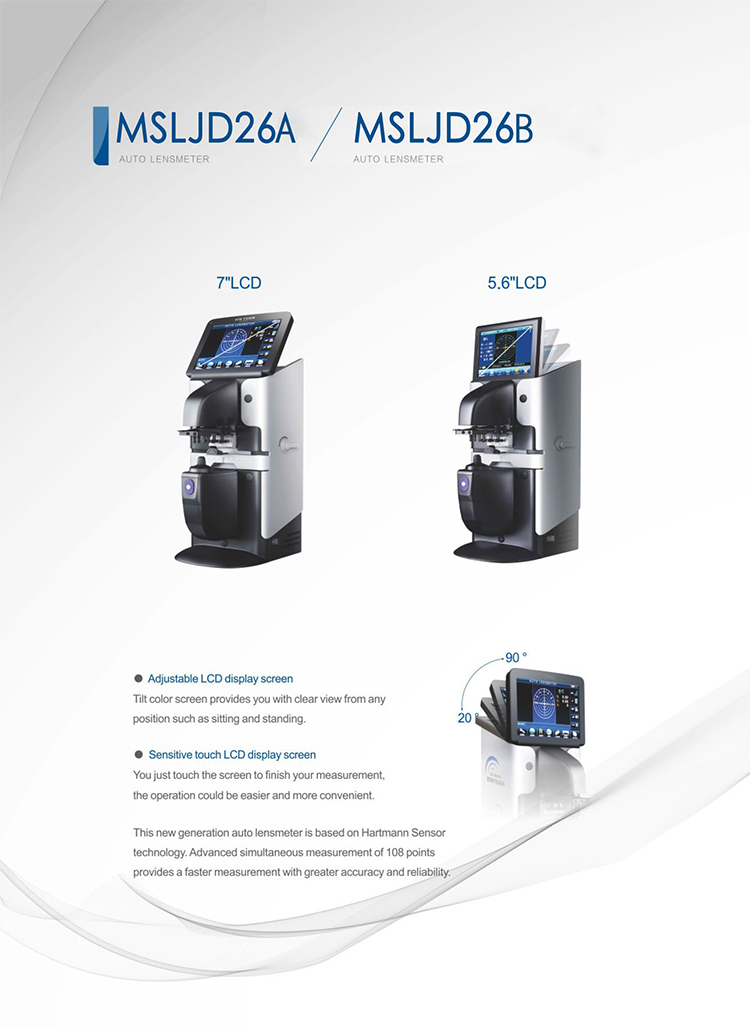

1. Adjustable LCD screen: The tilting color screen allows you to view clearly from any position such as sitting and standing;

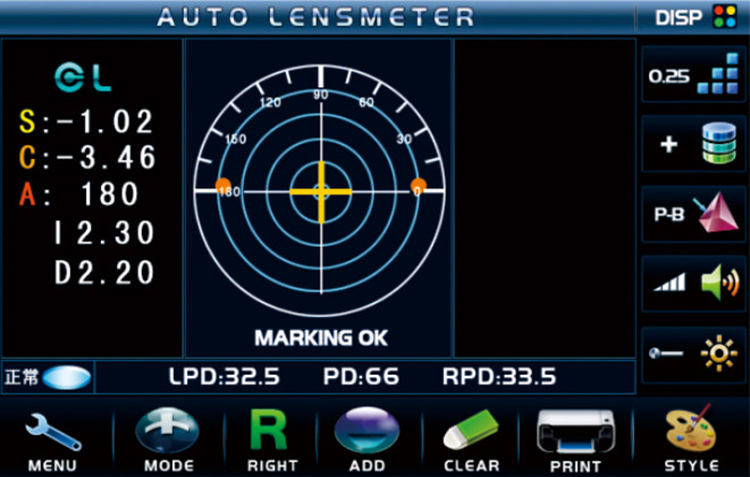

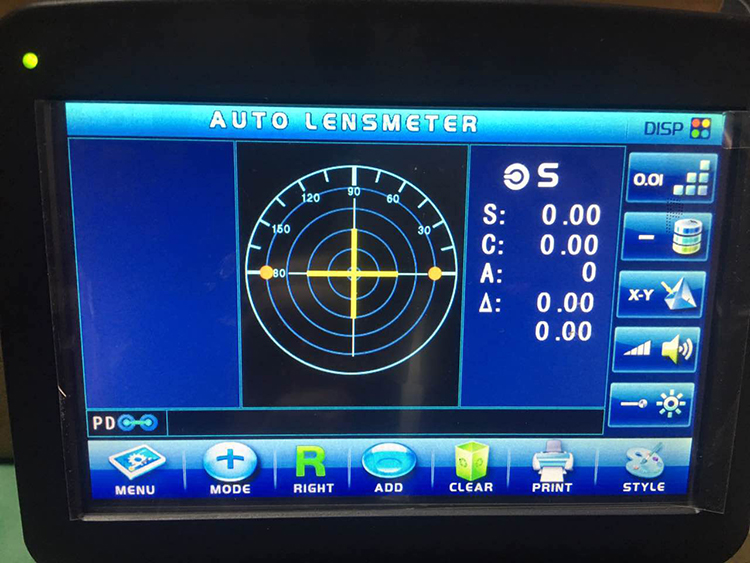

2. Sensitive touch LCD screen: just touch the screen to complete the measurement, and the operation is easier d is more convenient.

3. A new generation of auto-focimeter based on Hartmann sensor technology. Advanced Synchronous Measurements

108 points provide faster measurements with greater accuracy and reliability.

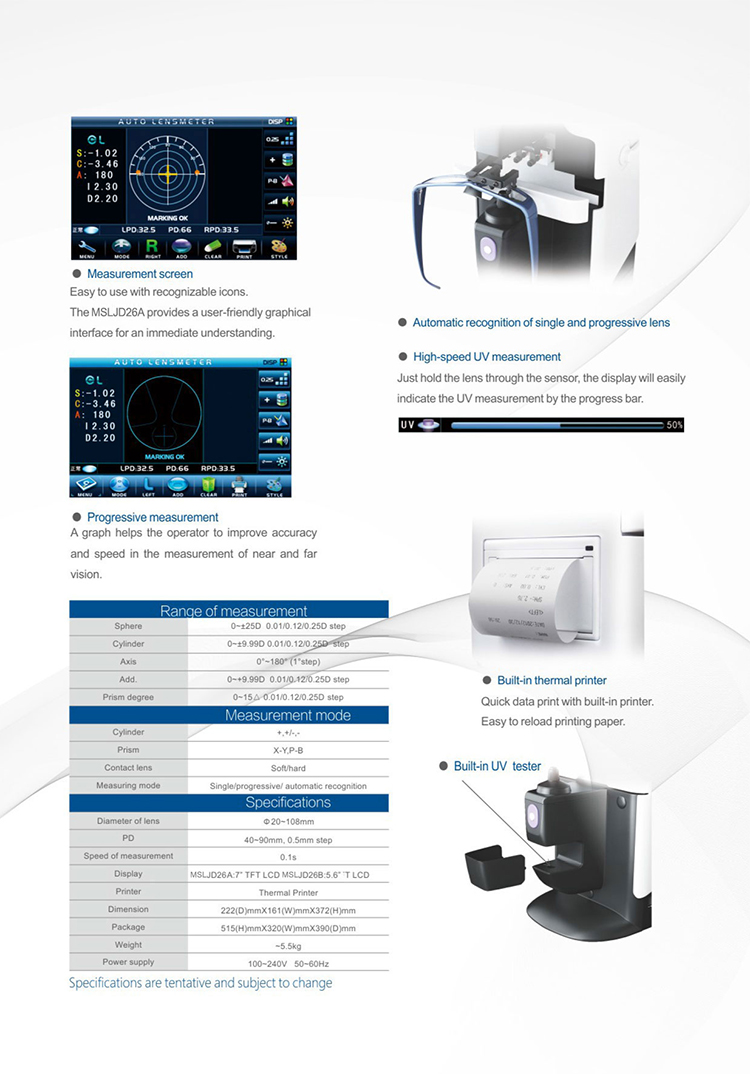

Specification

Measuring range
MSLJD26A/MSLJD26B
field	0~±25D 0.01/0.12/0.25D step
cylinder	0~±9.99D 0.01/0.12/0.25D step
axis	0°~180°(1°step)
Add to	0~±9.99D 0.01/0.12/0.25D step
Prism degree	0~15 0.01/0.12/0.25D step
measurement mode
cylinder	+,+/-,-
prism	XY, PB
contact lenses	Soft and hard
measurement method	Single/progressive/automatic recognition
Specification
Lens diameter	20~108mm
Partial Discharge	40~90mm, 0.5mm step distance
measuring speed	0.1 seconds
exhibit	MSLJD26A:7"LCD display; MSLJD26B: 5.6"LCD Monitor
printer	thermal printer
aspect	222(D)mm×161(W)mm×372(H)mm
pack	515(H)mm×320(W)mm×390(D)mm
weight	~5.5KG
power supply	100~240V 50~60Hz
