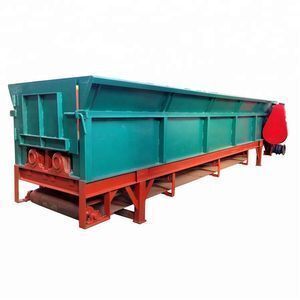

wood log debarking machine

Supplier: Shandong Hongxin Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr shawn geng
Price: $5500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Model Number:	HX-S500,600,700,800;	Brand Name:	HX;
Capacity (TPH):	6-18;	Wood Loss Rate:	2%;
Wood Diameter Range:	50-500mm;	Power(W):	7.5x2-30x2;
Weight:	3.5-8t;	Wood diameter (mm):	50-800;
Wood Length Range:	depends on model;	Place of Origin:	Shandong China;
After-sales Service Provided:	Engineers available to service machinery overseas;	Name:	wood log debarking machine;
Dimension(LWH):	6 x 2.5 x 2;	Debarking rate (%):	Fresh log >95% Dry log > 90%;
Spindle Speed:	166r/min;	Supply Ability:	10 Set/Sets per Month wood log debarking machine;
Port:	Qingdao;	Purpose:	remove bark;
Payment Terms:	T/T,Western Union;	Voltage:	Customized;
Rotation speed (rpm):	180-230;	Wood length (m):	0.5-2;
Power (kw):	7.52-302;	Roller diameter (mm):	275-710;
Packaging Detail:	FCL for wood log debarking machine;	Delivery Detail:	15 days after order confirmed;
Weight (T):	3.5-8;	Peeling Rate:	95%;
Condition:	New;	Certification:	CE ISO;


Application

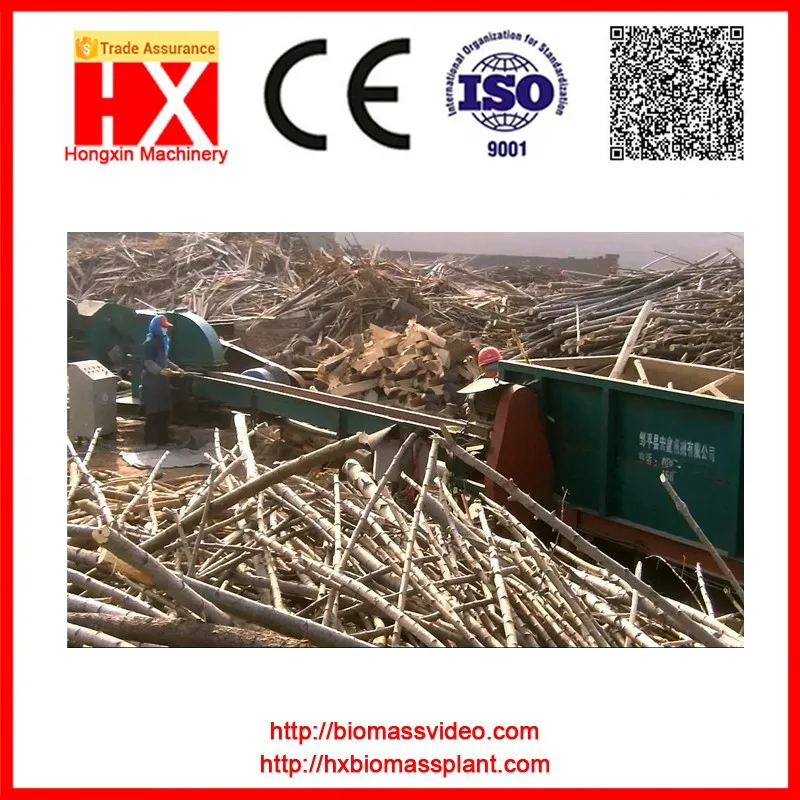

Wood debarking machine and disc chipper assembly line is widely used in paper mill to produce uniform wood chips for making paper pulp. The debarking rate is up to 95% and the output chips is uniform and elegant.

Characteristics

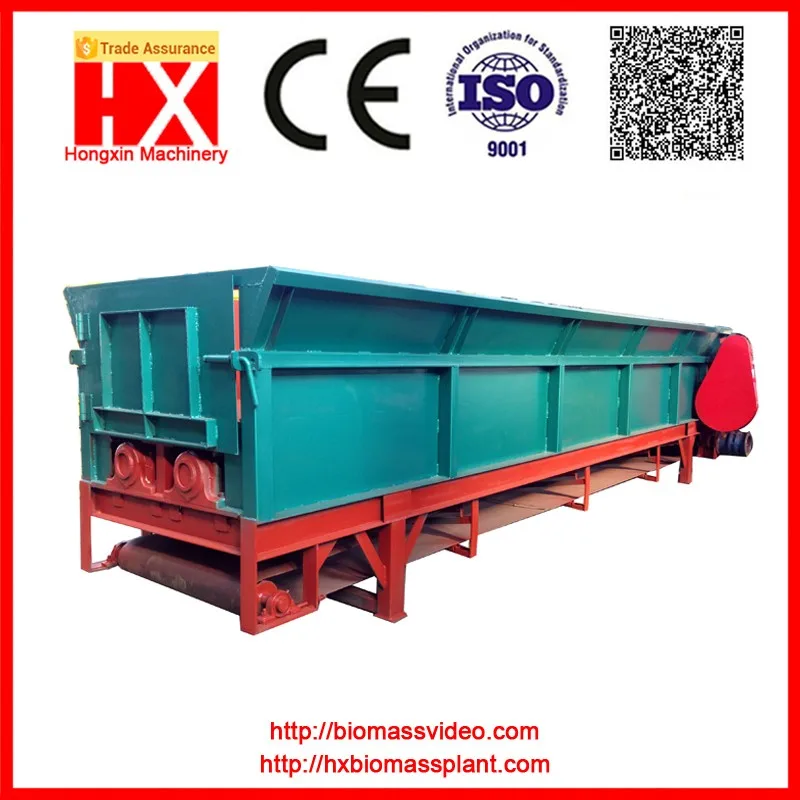

It is a new type of high efficiency log debarking equipment. The rotor has ladder type debarking teeth. Its special acting force makes logs do circulatory motion, rotational motion and irregular bounce in the debarking chamber.
It is featured by the following:
1) Open silo, assembly line work by feeding from one end and discharging from the other end, high work efficiency.
2) Due to strike of teeth, logs do circulatory motion and rotational motion, debarking rate is high.
3) Apply to all kinds of wood with different diameter, length and shape, even bent logs.

4) As the large main frame holds still, so low energy consumption, low failure rate, easy maintenance, low vibration and noise. It is also easy to install and operate, even can do without pedestal mounting.

Specification

Name	wood log debarking machine
Model	HX-S300	HX-S600	HX-S800
Wood diameter (mm)	50-300	200-600	400-800
Wood length (m)	0.5-2	0.5-2	0.5-2
Capacity (TPH)	6-8	10-12	15-18
Debarking rate (%)	Fresh log ＞95% Dry log ＞ 90%	Fresh log ＞95% Dry log ＞ 90%	Fresh log ＞95% Dry log ＞ 90%
Roller diameter (mm)	275	530	710
Roller rotational speed (rpm)	230	200	180
Roller length (mm)	500	500	500
Power (kw)	7.5 x 2	15 x 2	30 x 2
Weight (T)	3.5	5.5	8
Size (L x W x H) (m)	6 x 1.6 x 1.55	6 x 2 x 1.8	6 x 2.5 x 2

Simple drawing

Wood log debarking machine is composed of five parts: debarking roller, feed port, bark discharging port, log discharging port and power drive device. It has separate bark discharging port and log discharging port, so it can work continuously and realizes continuous assembly line work from feeding to debarking and then log discharging.
