Electric wood chipper

Product details
Port:Qingdao;input conveyor (m):4;
Weight:4000-12000kgs;capacity (TPH):10-12;
Cutter Diameter:500-800mm;output conveyor (m):10;
Packaging Detail:1x40GP for electric wood chipper;wood chips size (mm):30-80;
Payment Terms:L/C,T/T,Western Union;material max diamter (mm):300;
Condition:New;Place of Origin:Shandong China;
Brand Name:HX;Name:electric wood chipper;
Number of Cutter:2;After-sales Service Provided:Engineers available to service machinery overseas;
Dimension(L*W*H):Model;Mill Granularity:20-80mm;
Model Number:HX215-428;Length of Cutter:600-700mm;
blade number (pieces):customized;Supply Ability:10 Set/Sets per Month electric wood chipper;
Delivery Detail:Shipped in 20 days after payment;Certification:CE ISO;
Spindle Speed:650r/min;Inlet Diameter:model;
blade diameter (mm):800;Aperture Size:Optional;
power (kw):110;input size (mm):310 X 680;
Application

   Electric wood chipper is a specialized machine for producing wood chips in wood factory, and widely used for preparing raw material in chipboard plant, fiberboard plant and paper-making plant.

   Raw material of Electric wood chipper are mainly undersized log, wood cutting residue (branch, twig) and wood processing residue (slab, batten, wood core, and waste veneer), as well as non-wood material (such as waste of flax, cotton stalk, reed and bamboo.)
   Electric wood chipper is an advanced wood chipper and featured by reasonable structure, easy operation, high capacity, wide usage, qualified output, safe and reliable, easy transporting and convenient maintenance.

      Feedstock

      Output

Specification
Name
electric wood chipper
Model
HX215
HX216
HX217
HX218
HX426
HX428
Blade diameter (mm)
500
650
650
800
650
800
Blade number (piece)
2
2
2
2
20
24
Input size (mm)
180x400
240x540
240x680
310x680
1250x250
1250x310
Blade rotational speed (rpm)
592
590
590
650
600
650
Rate of feeding (m per min)
38
38
38
35-38
38
38
Max material diameter (mm)
160
220
220
300
240
300
Wood chip length (mm)
35
35
35
15-35
30-80
30-80
Capacity (tph)
6-8
8-12
8-15
10-15
8-10
10-15
Main power (kw)
45
55
75
110
90
110
Power (kw)
2.2*2
4+3
4+3
2*4
5.5x2
7.5x2
Weight (t)
2.9
4.07
5.5
7
7
9.5
Delivery
1x40GP
1x40GP
1x40GP
1x40GP
1x40GP
1x40GP
Detailed image

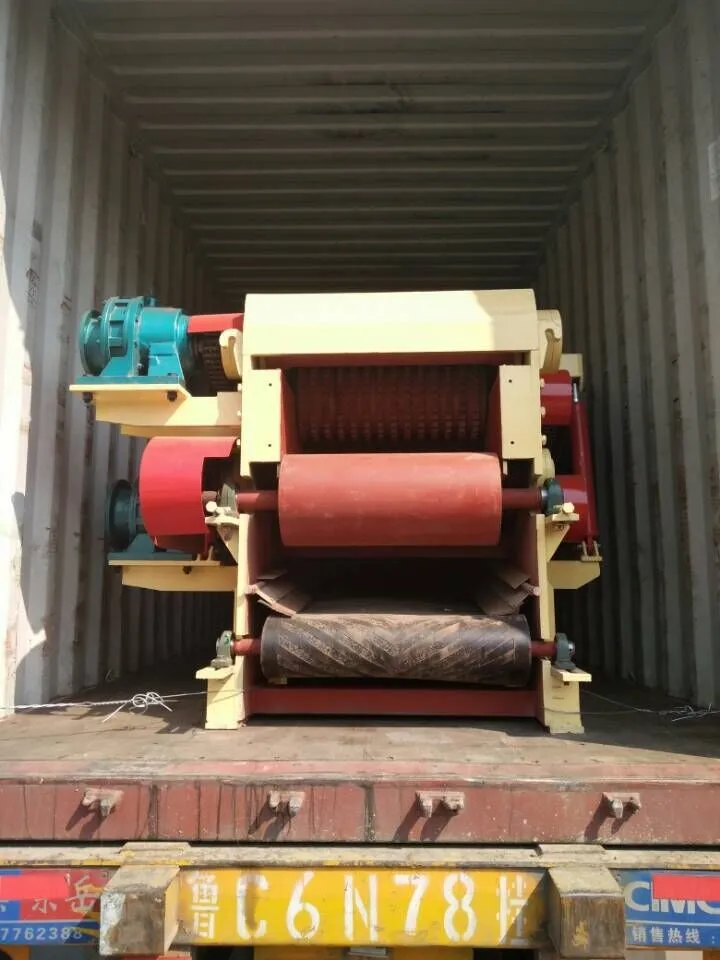

Packling & Delivery
Video Center

   Video Link

      http://biomassvideo.com/

     http://id.tudou.com/snowhappiness

   Working site
