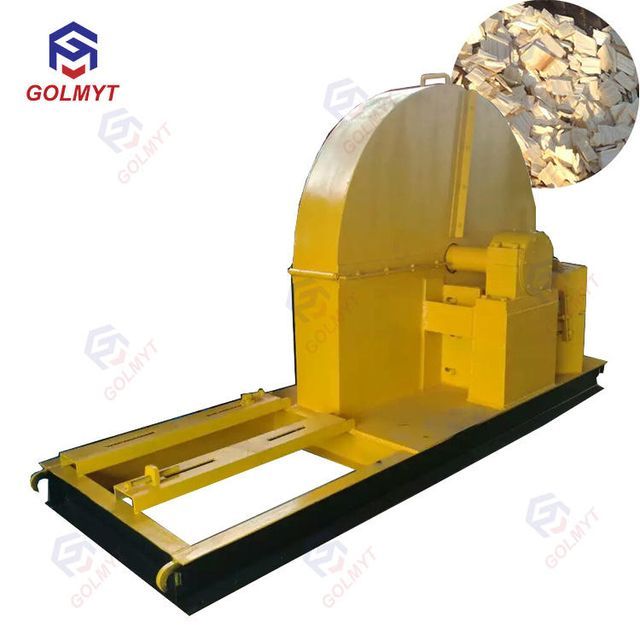

Model 1410 industrial disc wood chipper wood chipper crusher large wood chipper

Supplier: Zhengzhou Golmyt Machinery Co., Ltd.
Region: Henan, China
Contact: Mr Nelbert Guo
Price: $2000.00 / 1 - 1 sets
$1800.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Health status:	new	Name:	wood chipper
Core components:	engine	Warranty:	1 year
Supply capacity:	50 sets per month	Video outbound inspection:	if
Main selling points:	high productivity	port:	any port in China
Package preview:		After-sales service provided:	online support
Showroom location:	not any	Applicable industries:	Building materials store, tree farm
Weight (kg):	160	Core component warranty:	1 year
Packaging Details:	Standard export wooden box	brand:	golmet
Origin:	China	Number of tools:	4
Marketing Type:	2020 New Products	engine:	90 kW
Grinding particle size:	2-4 cm	Mechanical test report:	not available
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	After Warranty Service:	spare parts
Inlet diameter:	400mm	Spindle speed:	500

Model 1410 industrial disc wood chipper wood chipper crusher large wood chipper

Product Description

introduce

It is used to cut wood, logs, and branches into wood chips, and is used as a material for wood-based panels. It is suitable for branches and various waste woods, which can be cut into wood chips with a size of about 30mm. The output size can be changed according to customer requirements.

feature:

1. It can be used to cut smaller wood blocks, wood chips, branches, twigs, planks, etc. with a diameter less than 200mm. The final chip diameter is in the range of 25-35mm.

2. Compact structure, reasonable layout, convenient installation, convenient operation and maintenance. The cutter head is made of wear-resistant chrome plating, which greatly prolongs the service life.

3. High production capacity, the length of wood chips can be adjusted freely within the specified range.

4. The driving device can choose electric motor, diesel engine or gasoline engine. Movable wheels can also be installed, which is not restricted by the work site.

Specification:

Model	capacity	engine	Feed size	Spindle speed	Number of blades	weight
GMTX-400	1 ton/hour	7.5 kW	150*150mm	650	3 pieces	160 kg
GMTX-600	2 tons/hour	15 kW	180*150mm	600	3 pieces	380 kg
GMTX-800	5 tons/hour	30 kW	200*200mm	550	4 pieces	520 kg
GMTX-950	8 tons/hour	37 kW	230*250mm	550	4 pieces	950 kg
GMTX-1150	12 tons/hour	55 kW	330*300mm	500	4 pieces	2000 kg
GMTX-1410	15-16 tons/hour	90 kW	400*400mm	500	4 pieces	2600 kg
