Coating drum diameter (mm): | 600 mm | Coating Type: | heating |
Main selling points: | high productivity | After-sales service provided: | online support |
Mechanical test report: | not available | place of origin; place of origin: | Henan, China |
After warranty service: | spare parts | Showroom location: | not any |
way to heat up: | Electricity | Dimensions (L*W*H): | 700*600*920mm |
Warranty: | 1 year | strength: | 0.75kw |
Voltage: | 220V/110V | weight: | 85 kg |
port: | any port in china | State of health: | new |

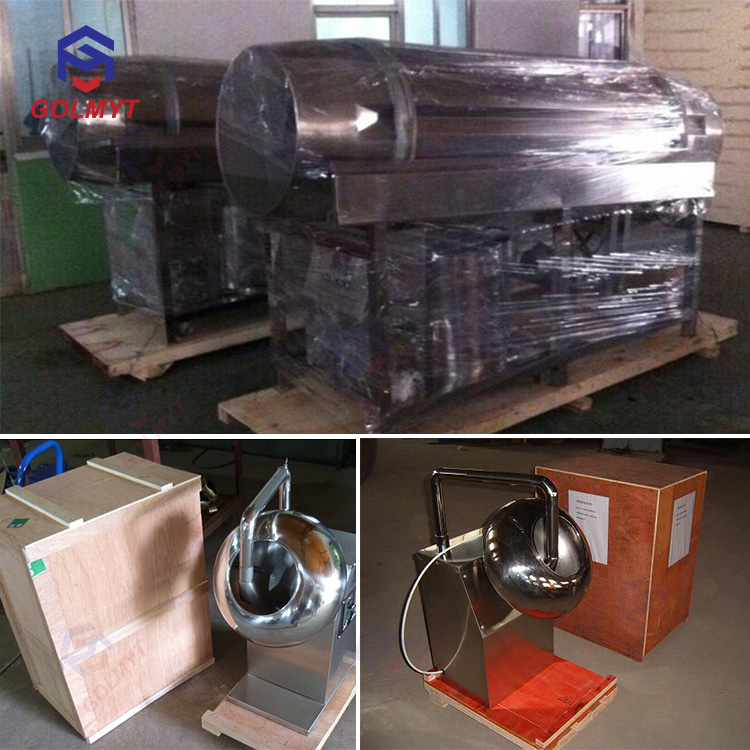

Packaging Details: | Standard export wooden box | Package preview: | |
Weight (kg): | 85 | Coating temperature (°C): | 20 - 50°C |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Power (kW): | 0.75 |
Supply capacity: | 50 sets per month | Name: | sugar coating machine |
Core components: | engine | Core component warranty: | 1 year |
usage: | snacks, medicine | Applicable industries: | Food and Beverage Factory |
Marketing Type: | New Products 2020 | brand: | Gomit |
Video shipment inspection: | if |

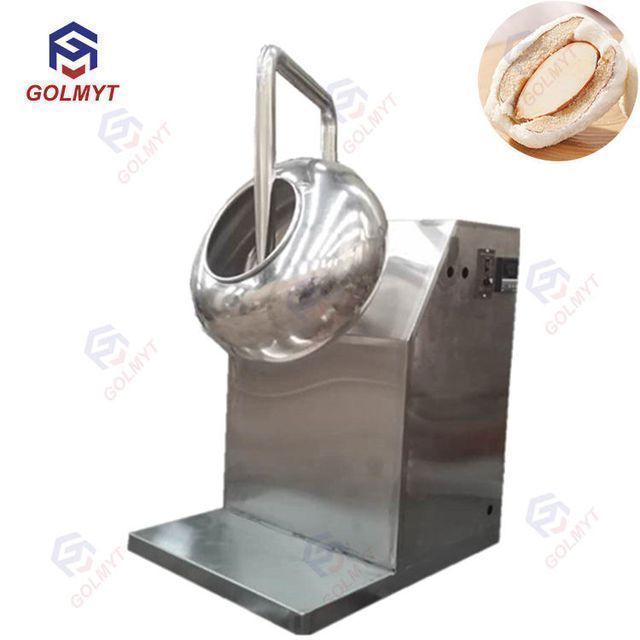

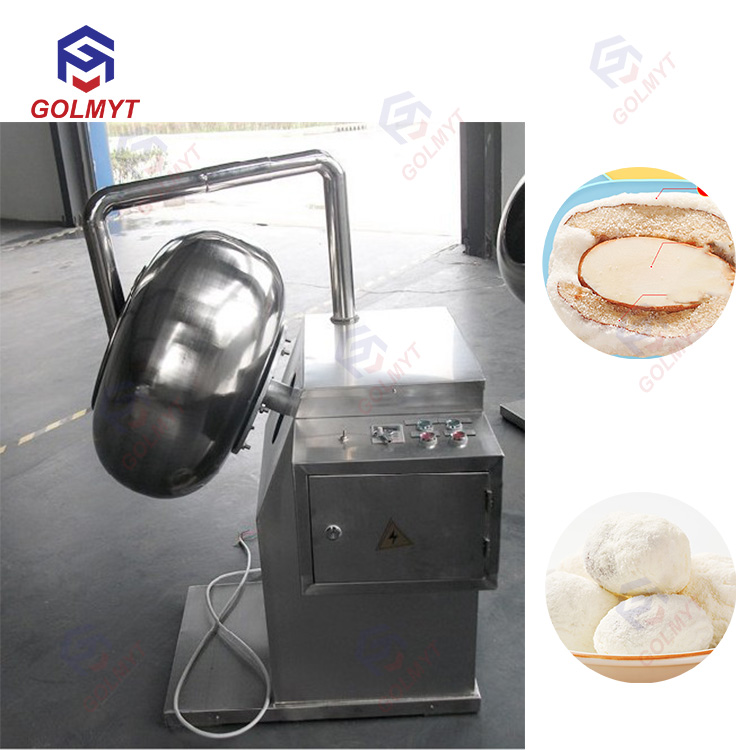

Hot Sale All Stainless Steel Tablet Film Coating Equipment Sugar Coating Machine
introduce
Candy coating machines are used in the pharmaceutical industry to coat and polish formed chips evenly, and also in the food industry for candy pellets or coatings.
The surface of the coated tablet after polishing is bright in color, and the surface is covered with a complete fixed structure produced by rock sugar, which can prevent the tablet chip from being oxidized, damp or volatilized, and can also cover up the unpleasant taste when taking the tablet. Identify and neutralize gastrointestinal effects.
work guidelines.
In order to make the chip evenly coated with crystals on the surface as soon as possible to achieve the purpose of polishing, it must be manually operated, and the compound potion and mixed elements are repeatedly sprayed into the pot. The sugar-coated tablets roll clockwise in the pot, the tablets are evenly distributed in the whole sheet, and then hot air is passed into the pot to remove the surface moisture of the tablets, and finally qualified sugar-coated tablets are obtained.
This machine can provide the best pan for the coating process. It can ensure the best logistics of the tablet curve with a stable line speed, and meet the process requirements of uniform coating thickness, bright color, and no pitting.
feature:
1. The small chocolate coating machine is suitable for the coating of sugar coating, chocolate, vitamins and fruit shells of pills, medicinal materials, nuts, dried fruits, pastries and other products.
2. Continuously variable speed control software and coating roller provide high performance, easy to manage and easy to use.
3. The nut icing bucket is equipped with a special hot air blowing system.
4. The drum has a reliable sealing lubrication system. The roller is made of stainless steel and the body is painted with white enamel. The rollers are equipped with rubber pads to prevent vibrations. Comfortable and easy to maintain and operate.
5. Automatic discharge method can be adopted.
Specification:
Model |
Diameter of coating pan (mm) |
Production capacity(kg/h) |
Inclination angle of coating pan (°) |
Motor power (W) |
Machine size(mm) |
net weight/kg) |
Voltage |
GMT-TY200 |
200 |
0.5 |
0-60 (adjustable) |
25 |
200×300×450 |
6.5 |
110~220(optional) |
GMT-TY300 |
300 |
2-3 |
0-60 (adjustable) |
125 |
550×400×850 |
30 |
110~220(optional) |
GMT-TY400 |
400 |
3-5 |
0-60 (adjustable) |
125 |
550×400×850 |
31 |
110~220(optional) |
GMT-TY600 |
600 |
8-15 |
46(adjustable) |
750 |
700×600×920 |
85 |
110~220(optional) |
