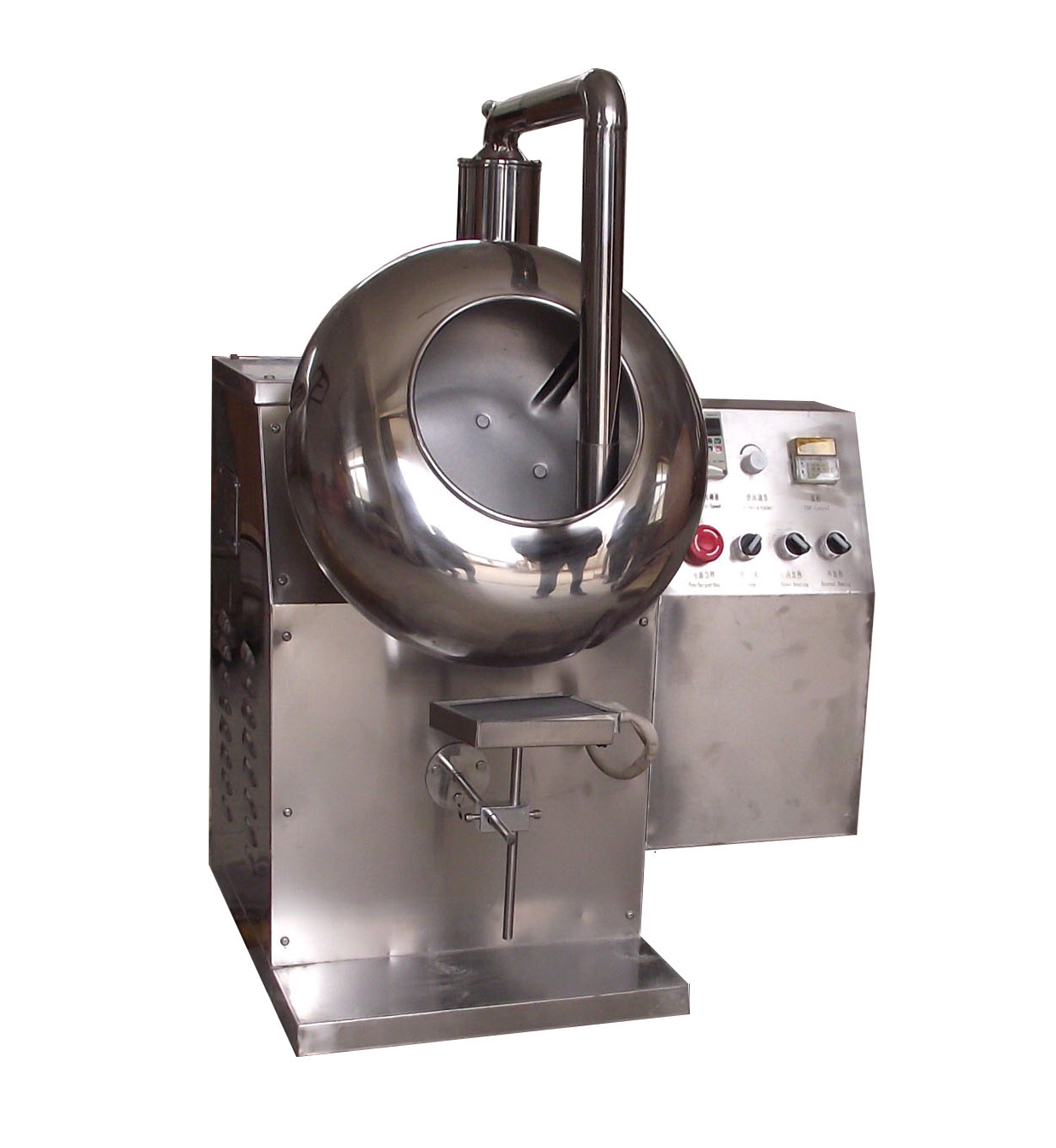

Small candy nut icing pan machine

Supplier: Shanghai Flight Pharmaceutical Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr John Meng
Price: $500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Application 3:	pills in pharmacy	Main selling point:	easy to operate
payment terms:	Western Union, T/T, MoneyGram	Warranty:	1 year
Core Components Warranty:	1 year	Weight (kg):	250
Marketing Type:	Hot Products of 2019	Voltage:	110/220/380V
Packaging Details:	Standard export packing or customized	Mechanical test report:	if
After-sales service provided:	Engineers can repair machinery overseas	place of origin; place of origin:	China Shanghai
Applicable industries:	Food and Beverage Factory, Food and Beverage Store	Coating Type:	Heating and coating
brand:	Minhua	Coating roller diameter (mm):	1250 mm
Application 2:	Coated, Blended and Polished Tablets	port:	Shanghai
Supply capacity:	100 coating pans per month	diameter. Pot (mm):	200-1250
Power (kW):	4.5	product name:	coating pan
diameter. Pot mouth(mm):	105-650	usage:	Food and Pharmaceutical
Application 1:	pot coater	Pot Thickness(mm):	1-1.5
Health status:	new	Certification:	CE ISO9001
Dimensions (LWH):	110010001600mm	Packaging Preview:
Pot depth (mm):	106.5-630	Coating temperature (℃):	10 - 90 ℃
Core components:	Bearings, gearboxes, gears	Showroom location:	not any
Video external inspection:	if

Product Description

———illustrate———

This machine is mainly used for coating, glazing and granulation in the pharmaceutical industry, and can also be used in the molding of spherical objects in the food and chemical industries.

In order to improve the level and performance of coating equipment to meet the needs of users. Our company designs, manufactures and installs coating machines according to GMP requirements on the basis of the original equipment. The inner pot has a deflector and an automatic liquid spray system. Adjustable temperature and speed. The machine has the advantages of no pollution, easy cleaning, easy maintenance and low cost.

The coating pan is made of stainless steel. The whole machine has stable transmission, reliable performance, convenient cleaning and maintenance, and high thermal efficiency. The production process requirements and coating can be adjusted from one pan angle. Short time and easy to use, it is an ideal equipment for medicine, food, chemical industry and other industries.

The machine can increase the stepless speed regulation according to the user's requirements, covering the shell, spraying liquid, hot air, dust removal and other systems.

———technical parameter———

name/model	BY-200	BY-300	BY-400	BY-600
Diameter(mm)	200	300	400	600
Inclination (adjustment)	15-45°	15-45°	15-45°	15-45°
Speed (r/min)	46	46	46	40
air temperature	0-90℃	0-90℃	0-90℃	0-90℃
Main motor power (kw)	0.25	0.55	0.55	0.75
External heating power (kw)	1.4	1.4	1.4	1.4
Fan power (w)	hair dryer	40	40	40
Fan air volume (m³/min)		0.5	0.5	0.5
Working capacity (kg/time)	1	2	5	10-15
Weight (kg)	60	65	65	94
Dimensions (L×W×H)(mm)	350×400×680	400×630×970	400×630×970	660×860×1200

name/model	BY-800	BY-1000	BY-1250
Diameter (min)	800	1000	1250
Inclination (adjustment)	15-45°	15-45°	15-45°
Speed (r/min)	32	32	32
air temperature	0-90℃	0-90℃	0-90℃
Main motor power (kw)	1.1	1.5	2.2
External heating power (kw)	2	2	2
Fan power (w)	40	200	200
Fan air volume (m³/min)	0.5	0.5	0.5
Working capacity (kg/time)	30-50	50-70	90-150
Weight (kg)	240	250	250
Dimensions (L×W×H)(mm)	925×900×1500	1100×1100×1600	1100×1000×1600

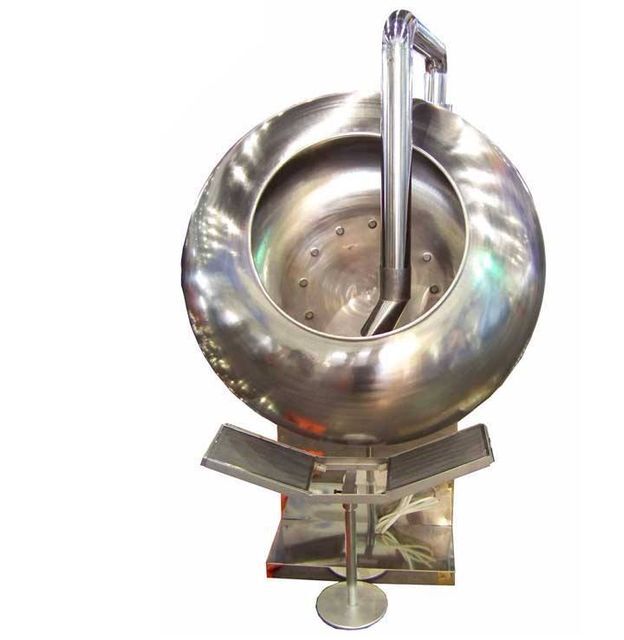

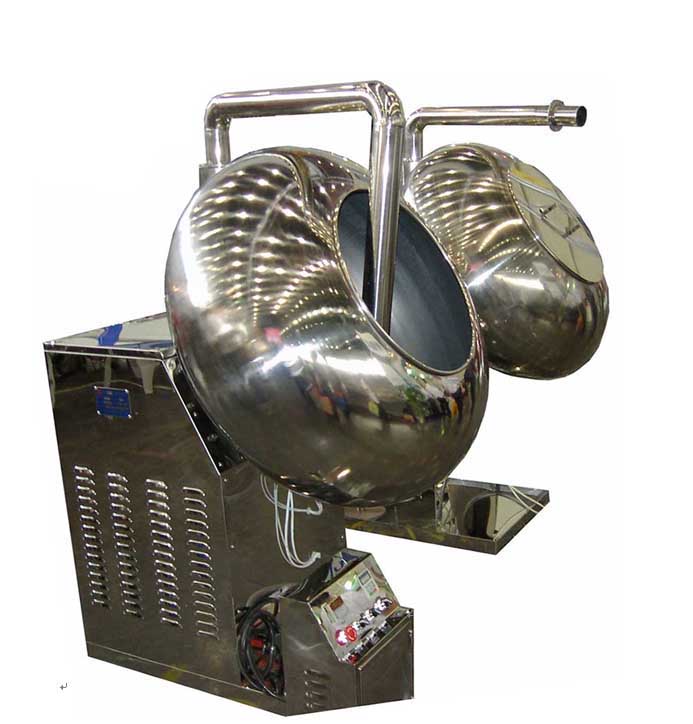

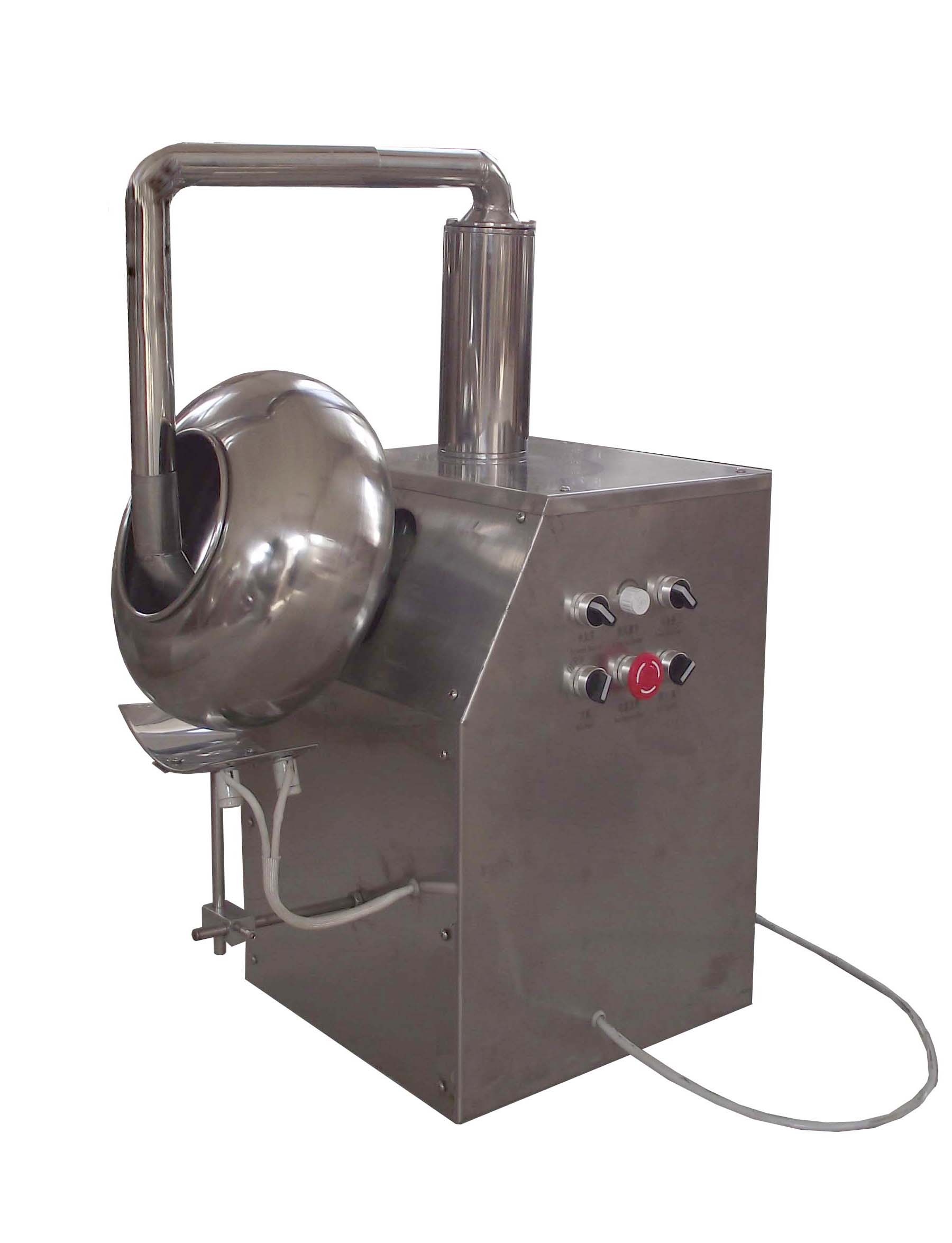

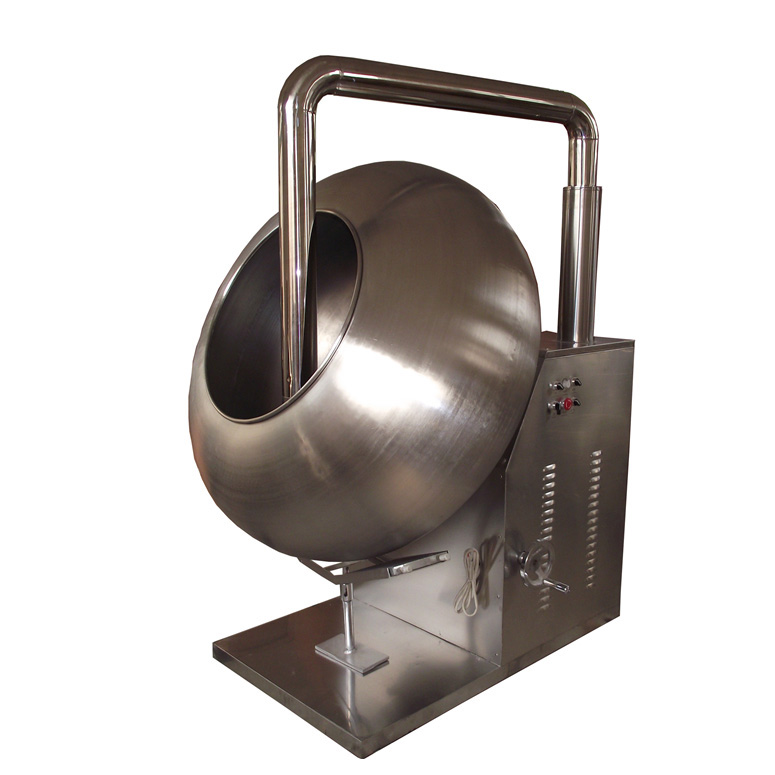

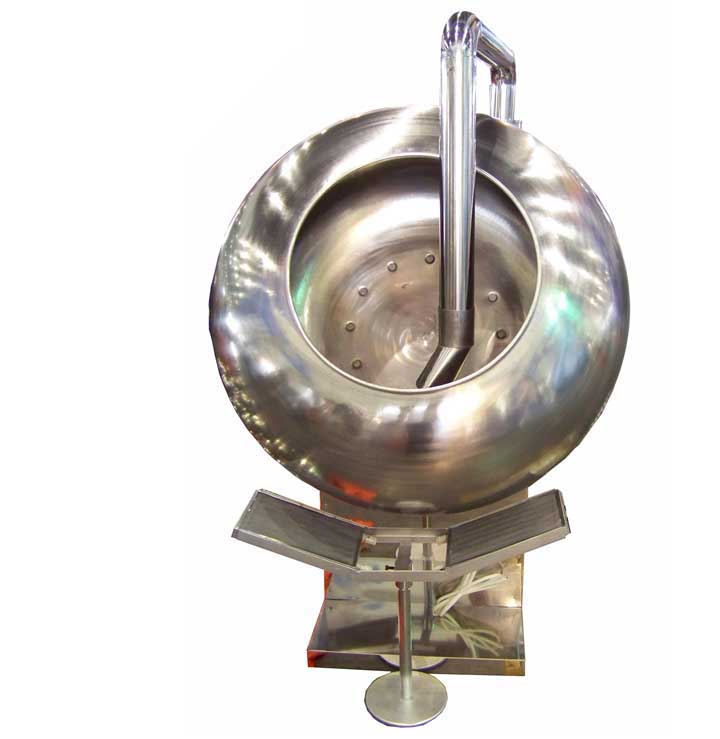

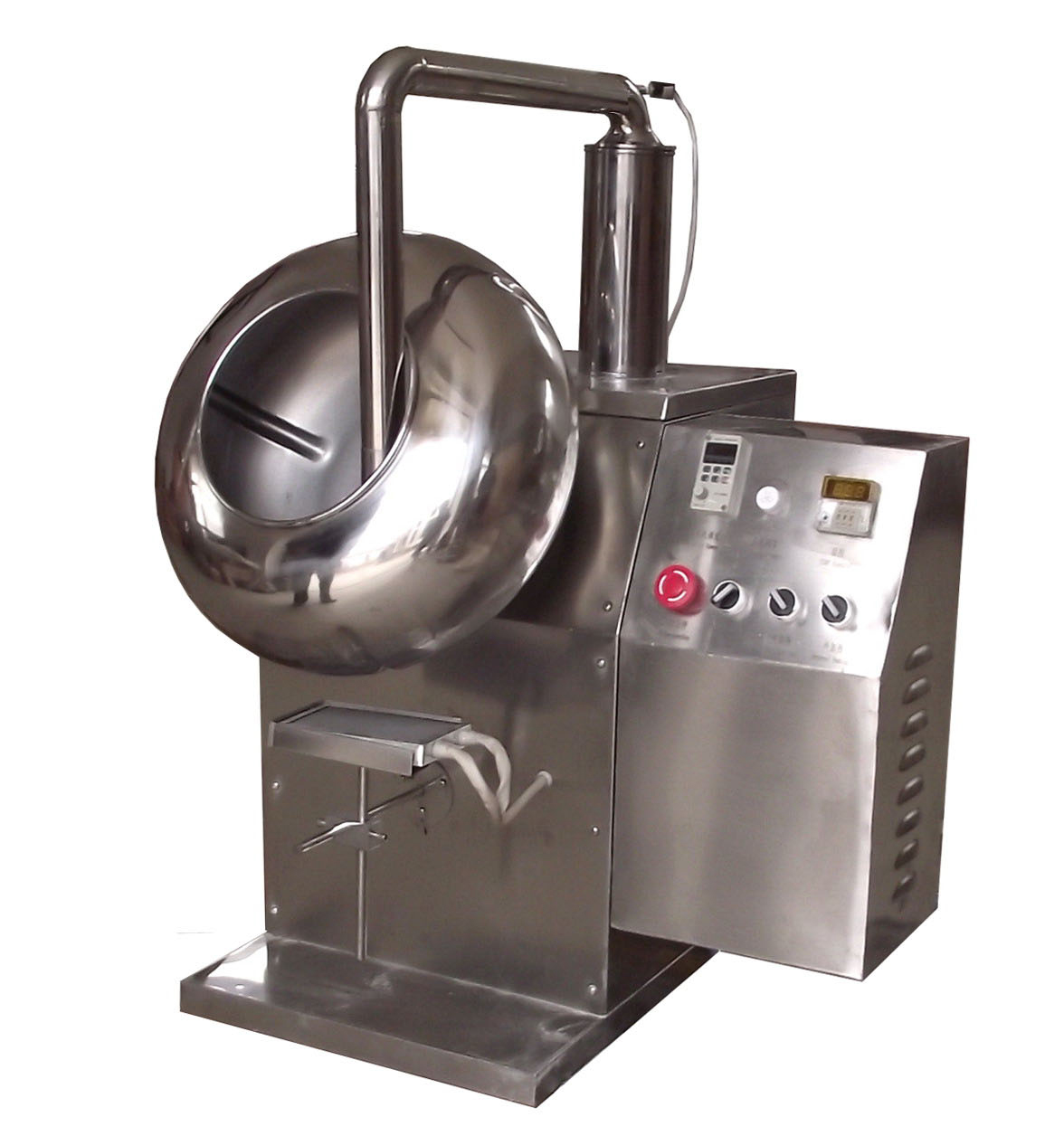

---Product Image---

feature

——feature——

Feature one

The machine has the advantages of simple operation, smooth and delicate tablet surface, bright, spare parts, convenient maintenance and so on. So it is an ideal device

Tablet film coating.

Feature two

The machine consists of a main engine (original sugar coating machine), a controllable normal temperature hot air system, an automatic liquid supply and air supply spray system, and an exhaust device. Controlled speed, coating accessories with high

It is atomized and sprayed onto the surface of the tablet by automatic electronic control, and the tablet performs continuous and complex trajectory movement in the coating pot;

Allow the coating liquid to cover the tablet core evenly.
