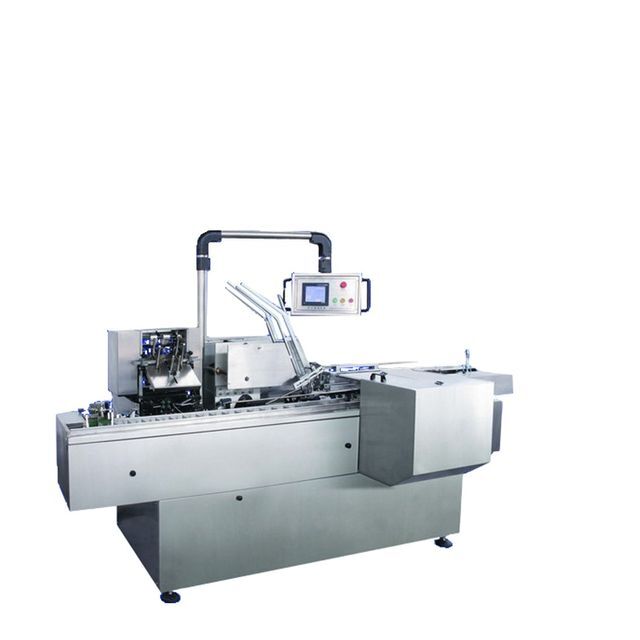

DZH-120 Factory Price Food Electronic Multifunctional Automatic Horizontal Cartoning Machine Cartoning Machine

Supplier: Shanghai Flight Pharmaceutical Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr John Meng
Price: $26820.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

type:	boxing machine	Applicable industries:	Food and beverage factories, pharmaceutical factories
Mechanical test report:	if	Flyer required:	60-70g/m2
Health status:	new	Core Components Warranty:	1 year
noise:	≤80dB	port:	Shanghai
Video external inspection:	if	Voltage:	380/220V 50/60Hz three-phase
Supply capacity:	10 case packers per week	Box size:	(80-200)(35-130)(15-60)mm
MPa:	0.5-0.6MPa	Warranty:	1 year
Required boxes:	250-350g/m3	type of packaging:	carton
Showroom location:	not any	Packaging Details:	Standard export packing or customized
Core components:	Bearings, gearboxes, gears	Air compressor:	120-160L/min
product name:	Boxing Packaging Machine	Flyer Size:	(80-250)*(80-170)mm
speed:	100-120 boxes/min	Drive Type:	electrical
Main selling point:	automatic	Packaging Preview:
Materials used for packaging:	Paper	Marketing Type:	Hot Products of 2019
Dimensions (LWH):	435015001850mm	quality:	high quality
weight:	2000kg	payment terms:	Western Union, T/T, MoneyGram
application:	Food, Beverage, Medical	brand:	Minhua
Auto grade:	automatic	place of origin; place of origin:	China Shanghai

Product Description

———illustrate———

The cartoning machine is a new product developed by our company. It has the advantages of small size, light weight, wide application range, high production efficiency, and one machine for multiple purposes. ideal effect. And can meet the requirements of the national drug production quality management regulations GMP.

Then there is the packaging of goods, food packaging, cosmetic packaging and related industries. Wide range of use, at the same time according to the user's different operational requirements, but regularly

Replacement of products, the mold production cycle is short, the assembly and debugging are simple, suitable for large-scale single-variety production, and can meet the user's small-batch multi-variety production.

———technical parameter———

Packing speed			100-120 cases/min
carton	Quality requirements		250-350g/m²

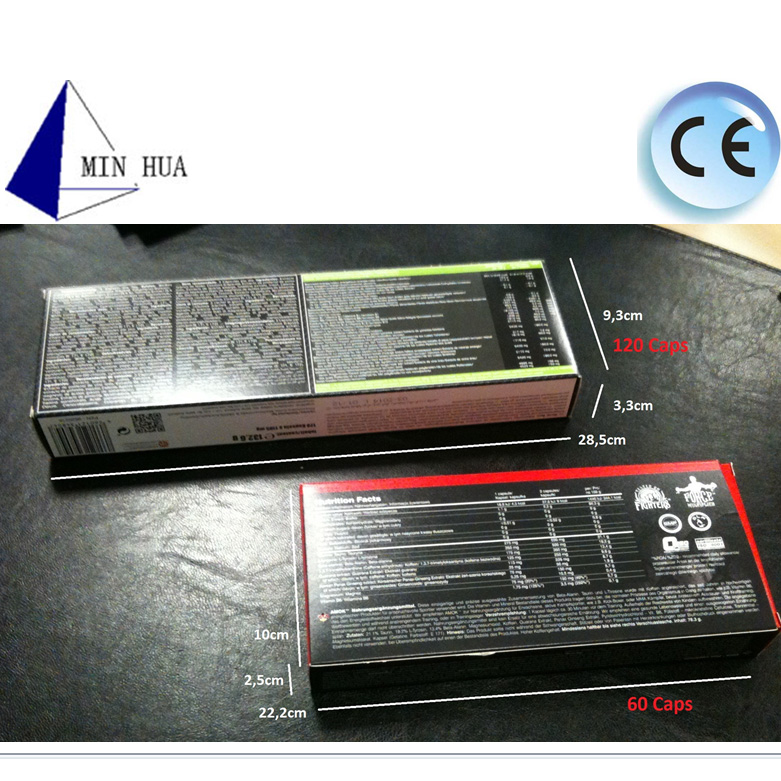

	Size range (LWH)		(80-200)(35-130)(15-60)mm
flyer	Quality requirements		60-70g/m²
	Expandable Leaflet Specification		(80-250)*(80-170)mm
	fold range		1-4% off
compressed air		work pressure	≥0.6Mpa
		Air consumption	120-160L/min
power supply			220V 50Hz or customized
Motor Power			2.5kW
Dimensions:			435015001850(lengthwidthheight)
weight:			2000 kg

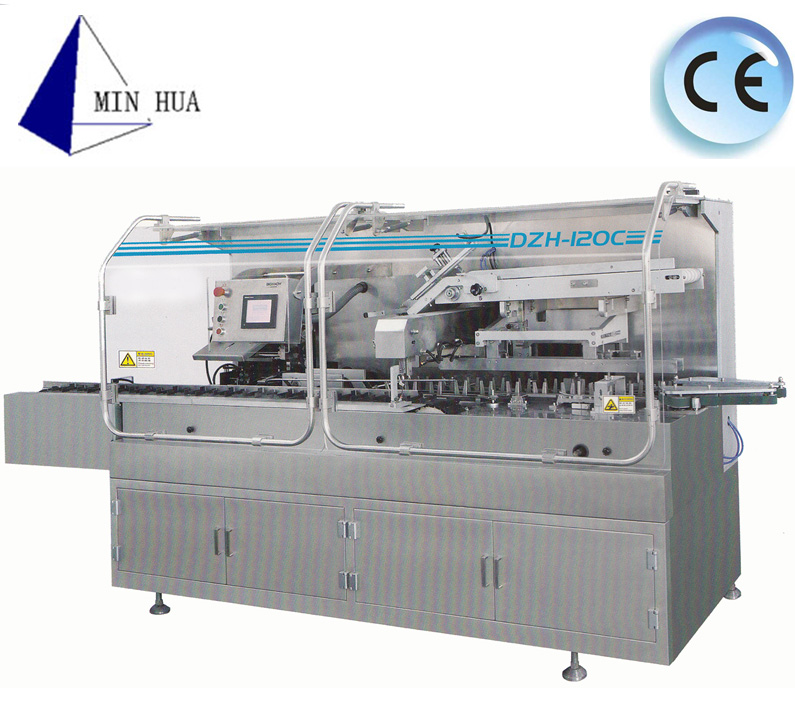

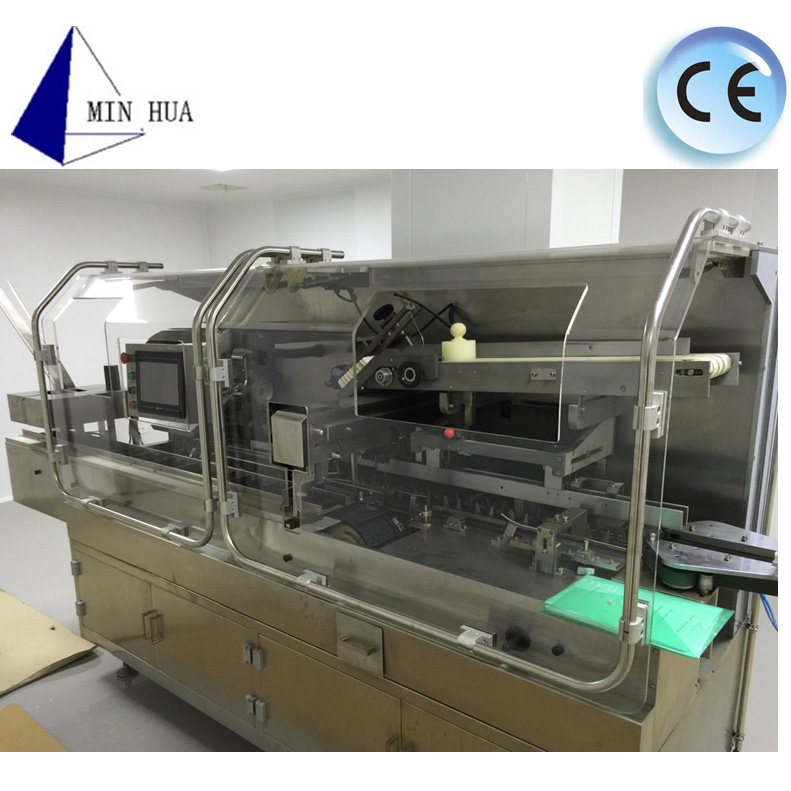

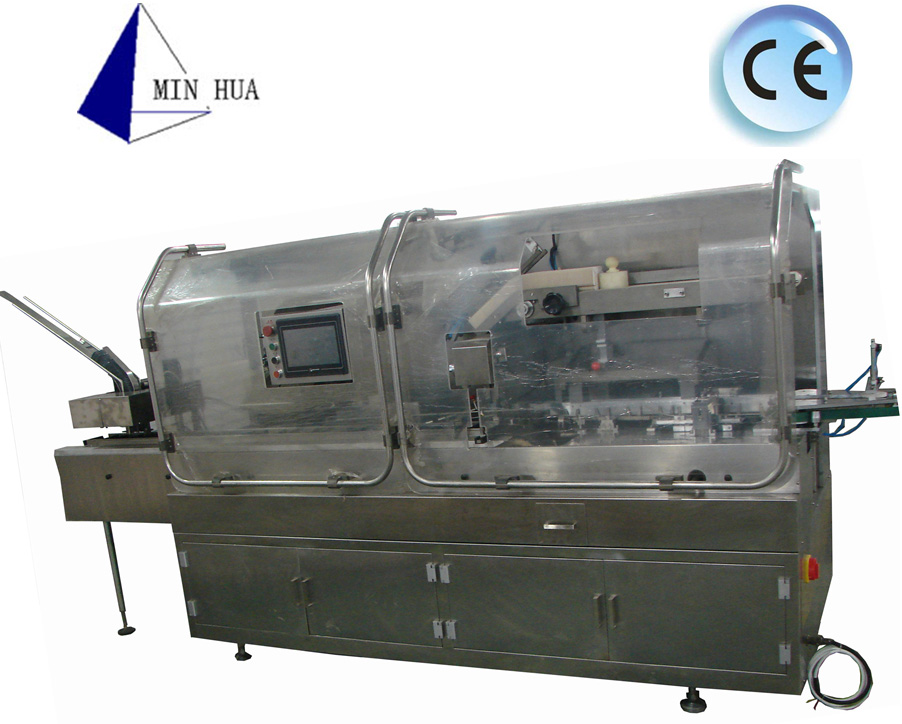

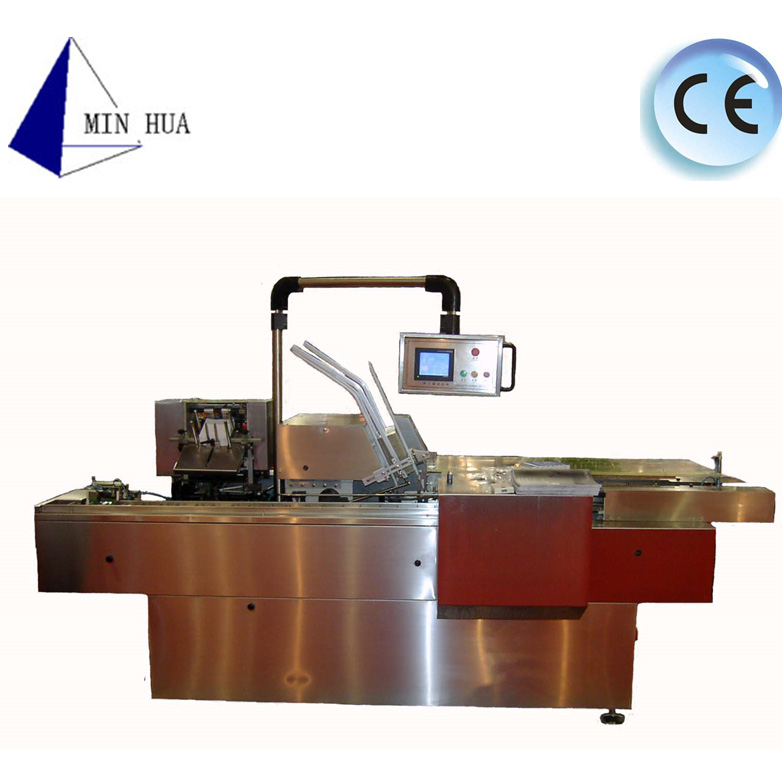

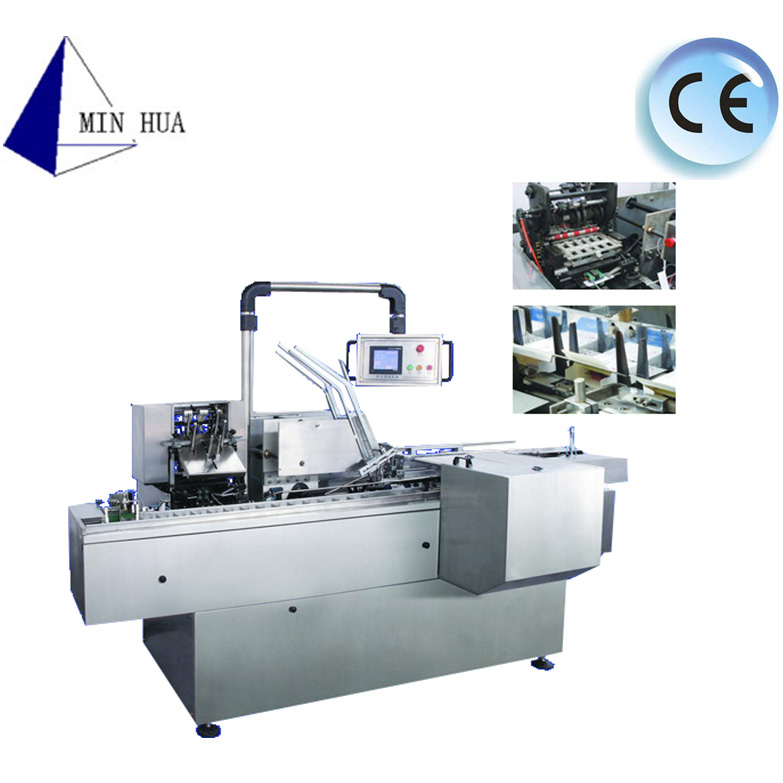

---Product Image---

feature

——feature——

Feature one	The action of the case packer is intermittently designed, controlled by PLC, with simple structure and easy maintenance. The machine adopts a series of composite lower transmissions, imitating human actions to complete the process of moving the box, unpacking, folding the manual, charging (instruction) and sealing the box.
Feature two	The maximum speed of the whole machine can reach 120 times/min (the size of the product determines the running speed of the machine). The operation rate of the filler is low, so that the sensitivity of the filler to the operation rate is reduced, the compatibility of the filler is enhanced, and the mechanical wear of the machine is small. Its characteristics are: high output and low mechanical operation rate.
Feature three	This machine uses vacuum by vacuum pump or with ZL112 vacuum generator (SMC), automatic vacuum pick-up box, wide-angle unpacking. Guaranteed unpacking accuracy.

Please click here to contact us!

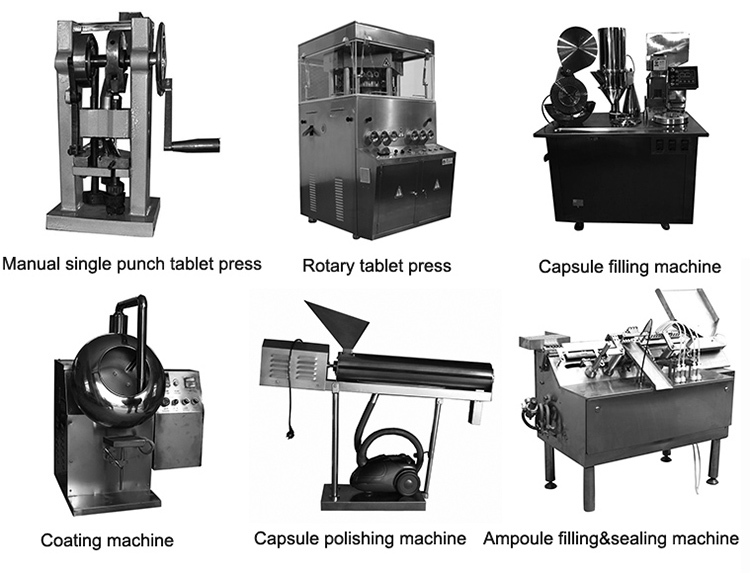

——Hot Products——
