BGc-600 fully-closed water chestnut mode coating machine

Supplier: Shanghai Flight Pharmaceutical Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr John Meng
Price: $3600.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Packaging Detail:	export packing;	Voltage:	Customer's Voltage;
Supply Ability:	10 Unit/Units per Month;	After-sales Service Provided:	Engineers available to service machinery overseas;
Diameter of pan: 400 mm:	Capacity: 2-5 kg/time;	Brand Name:	flight;
Condition:	New;	Certification:	ISO9001;
Payment Terms:	T/T,Western Union,MoneyGram;	Weight:	200kg;
Power(W):	1.1kw;	Usage:	Pharmaceutical;
Port:	Shanghai;	After-sales Service Provided:	Online support;
Place of Origin:	Shanghai China;	Warranty:	1 Year;
Dimension(LWH):	9009001400(mm);

Product Description

———Descriptions———

The machine is used to carry out sugarcoating and film coating the core of Chinese traditional medicine

and western medicine tablets, it integrates strong power, weak power and hydraulic pressure with

pneumatic operation, it is new type equipment improved on the basis of original common type

sugarcoating machine.

The machine is composed of the mainframe (original sugarcoating machine), controllable

normal-temperature hot air system, automatic liquid supply and air supply spraying system, exhaust unit

etc. The speed can be controlled, the coating accessories using high atomization spray to tablets

surface by the method of automatic electrical control, meanwhile, the tablets make continuous and

complex track movement in the coating pan;Let the coating liquid cover the tablet core evenly. The

controllable normal-temperature hot air in the pan will dry the tablets at the same time; let the tablet

surface form a film,fine, complete and smooth surface film rapidly.

Automatic liquid supply vehicle is used for heating the coating solution that requires higher

temperature, and the temperature is adjustable. Barrel lined with rock wool insulation, even the heating

temperature arrives 80-90 ℃, the out wall of barrel still keep normal temperature. The liquid supply

vehicle is equipped with peristaltic pump and three-way magnetic valve, which can make the two spray

gun work at the same time. It is also equipped with pneumatic stirring motor that can continually stir

coating solution, and the speed of stirring is adjustable. There is also wheel installed in the bottom of

vehicle, so that users can remove it.

The machine has advantages of simplified operation, smooth, fine and bright tablet surface, saving

accessories and convenient maintenance. So it is an ideal equipment for tablet film coating.

———Technical Parameters———

Model	BGc-300	BGc-400
Diameter of pan	300 mm	400 mm
Production capacity	1-2 kg/time	2-5 kg/time
Inclination	38 ℃
Motor power	0.37 KW	0.55 KW
Power of blower fan	40 W
Rotary speed	2-46 r/min
Electric thermal power	Inside heating: 900 W Outside heating: 600 W
Weight	200 kg
Overall size	800x800x1200 mm

Model	BGc-500	BGc-600
Diameter of pan	500 mm	600 mm
Production capacity	5-10 kg/time	10-15 kg/time
Inclination	38 ℃

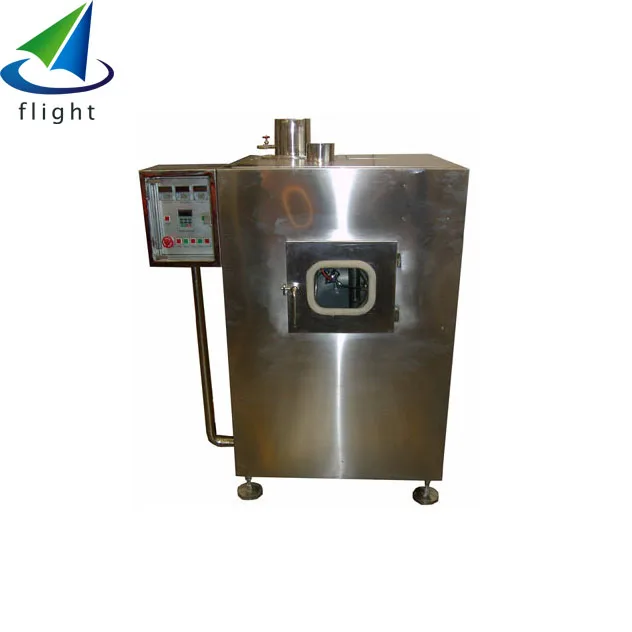

———Product image———

Features

——Features——

Feature 1

The machine has advantages of simplified operation, smooth, fine and bright tablet surface, saving accessories and convenient maintenance. So it is an ideal equipment for

Tablet film coating.

Feature 2

The machine is composed of the mainframe (original sugarcoating machine), controllable normal-temperature hot air system, automatic liquid supply and air supply spraying system, exhaust unit etc. The speed can be controlled, the coating accessories using high

Atomization spray to tablets surface by the method of automatic electrical control, meanwhile, the tablets make continuous and complex track movement in the coating pan;

Let the coating liquid cover the tablet core evenly.

Click here to contact us!

——Hot Sale Products——

Our Advantages

——Our advantages——

Products advantages

1. We always give top priority to quality

2. Strictly guarantee the precision of parts error

3. Reasonable processing technology coupled with advanced processing equipment

Trade advantages

1.Our company is a Gold Supplier on Alibaba. So we can provide Escrow Service on Alibaba.

2.Our company can do Trade Assurance Order for customers on Alibaba.

Custom made advantages

1.The company independent research and development, custom design exclusive for the series of products.

2. Mutual benefit with the best quality and service, and sincerely hope that friends from various circles at home and abroad sincere cooperation and mutual benefit and win-win situation.

Company Introduction

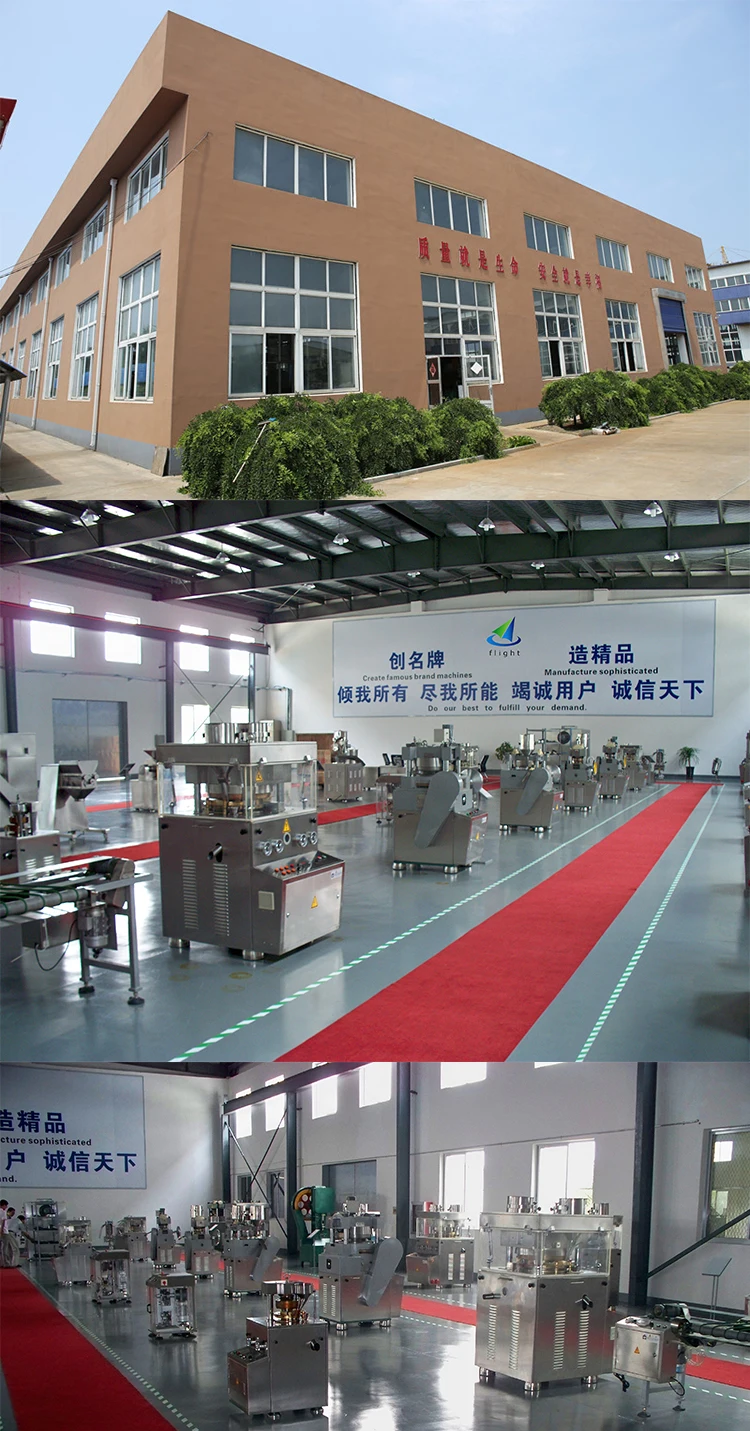

——Our Company——

Flight Pharmaceutical Machinery CO., Ltd is the professional manufacturer and export of

various pharmaceutical machineries in China. Our company has profuse designs with series

quality grade, and expressly, our price is very competitive, because we are manufactory.

Our factory developed about forty types of machines in over ten varieties. By ISO9001:2000

quality system attestation, accord with GMP attestation request. All tasks from casting to

metal machining, and general assembly are accomplished ourselves.

We produce and export various pharmaceutical machineries, relevant medicament detecting

instruments and packing machinery, such as Rotary tablet press, Single punch tablet

press, Pulverizer, Mixer,Coating machine, Granulator, Labeling machine, Liquid filling

machine, Capsule filing machine, Blister packing machine, and so on.

We have professional export office, with an experienced and professional team, they will

service in whole business. By excellent quality, reasonable price and perfect after-service,our

products have been sold in many countries and regions all over the world, Such as United

States, Canada, Australia, United Kingdom, Bulgaria, Russia, Indonesia, Pakistan, Thailand

and Vietnam etc, these products are very popular with the customers there.

Try to do everything, let customer satisfaction, this is our company’s service tenet.

<<Welcome new and old customers come to discuss business>>

——Certificate——

Packaging & Shipping

——Packing & Shipping——

Delivery time	Within 7 days after receiving the payment.
Payment methods	T/T or Western Union payment, and full payment before shipping
Guarantee	One year quality guarantees and free with spare parts for one year.
After sales service	The English user manual Circuit diagram
