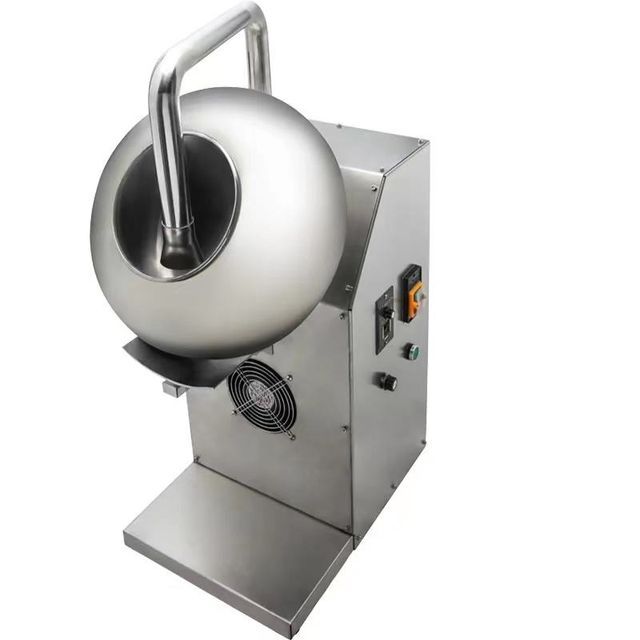

BYC 800 sugar coating machine, tablet and pill coating machine, sugar coating machine
-
Supplier: Dandong Flight Trading Co., Ltd. -
Region: Liaoning, China -
Contact: Mr Richard Meng -
Price: $1200.00 / 1 - 2 units
$1100.00 / 3 - 9 units
$1000.00 / >=10 units -
Min. Order: 1 unit
| Health status: | new | Weight (kg): | 280 |
| weight: | 60 kg. 65 kg. 70kg.120kg | After-sales service provided: | On-site installation, commissioning and training |
| Showroom location: | not any | Applicable industries: | restaurant, food store, food and beverage store, other, advertising agency |
| brand: | flight | Coating temperature (°C): | 30 - 100°C |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Marketing Type: | 2019 Hot Products |
| Core component warranty: | 1 year | Coating drum diameter (mm): | 800mm |
| port: | Shanghai | Pot speed (r/min): | 0-46 |
| Power (kW): | 3.7 | Capacity (kg/time): | 5 |
| Origin: | Liaoning, China | Mechanical test report: | if |
| Main selling points: | long lasting | Voltage: | customer voltage |
| Packaging Details: | Export packing or according to customer's requirement | Core components: | Engines, bearings, pressure vessels |
| Certification: | ISO:9001 | Dimensions (L*W*H): | 70*54*130 |
| usage: | Food and medicine | Coating Type: | heating and coating |
| product name: | Automatic coating machine | feature: | Stable transmission and reliable performance |
| Video shipment inspection: | if | Other heating power(w): | 500 |
| Diameter of icing pan (mm): | 400 | strength: | 1.1-2.2 |
| Warranty: | 1 year | Supply capacity: | 10 units per month |
- Flowchart -

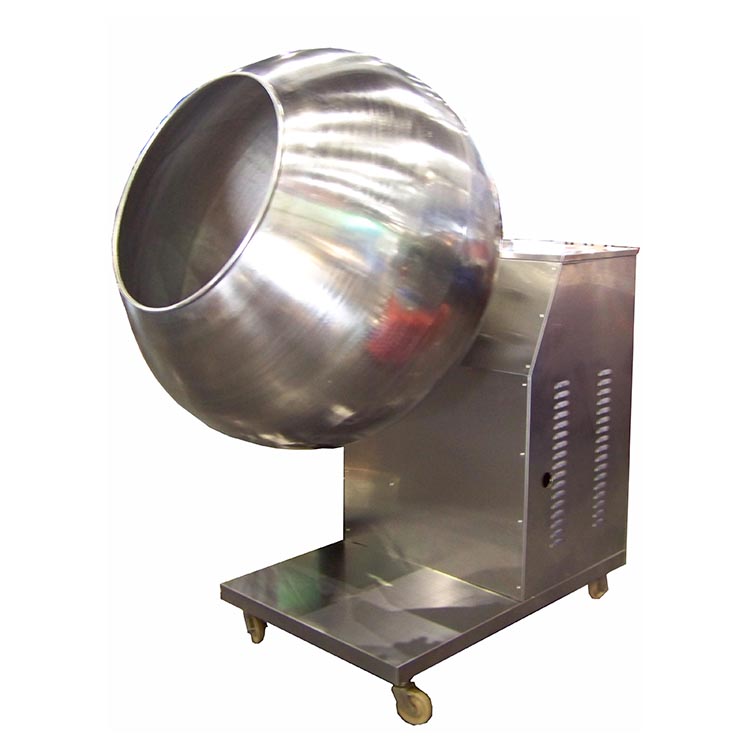

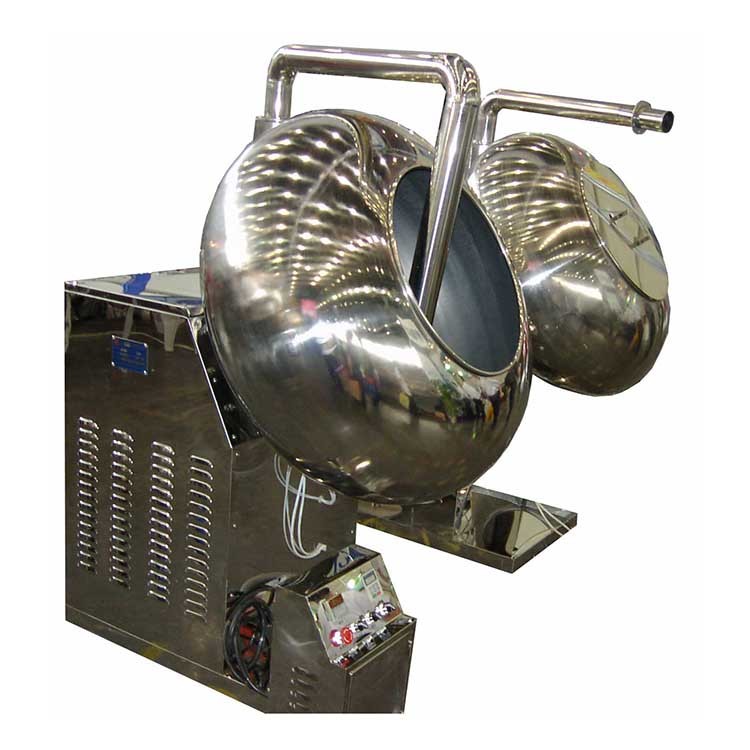

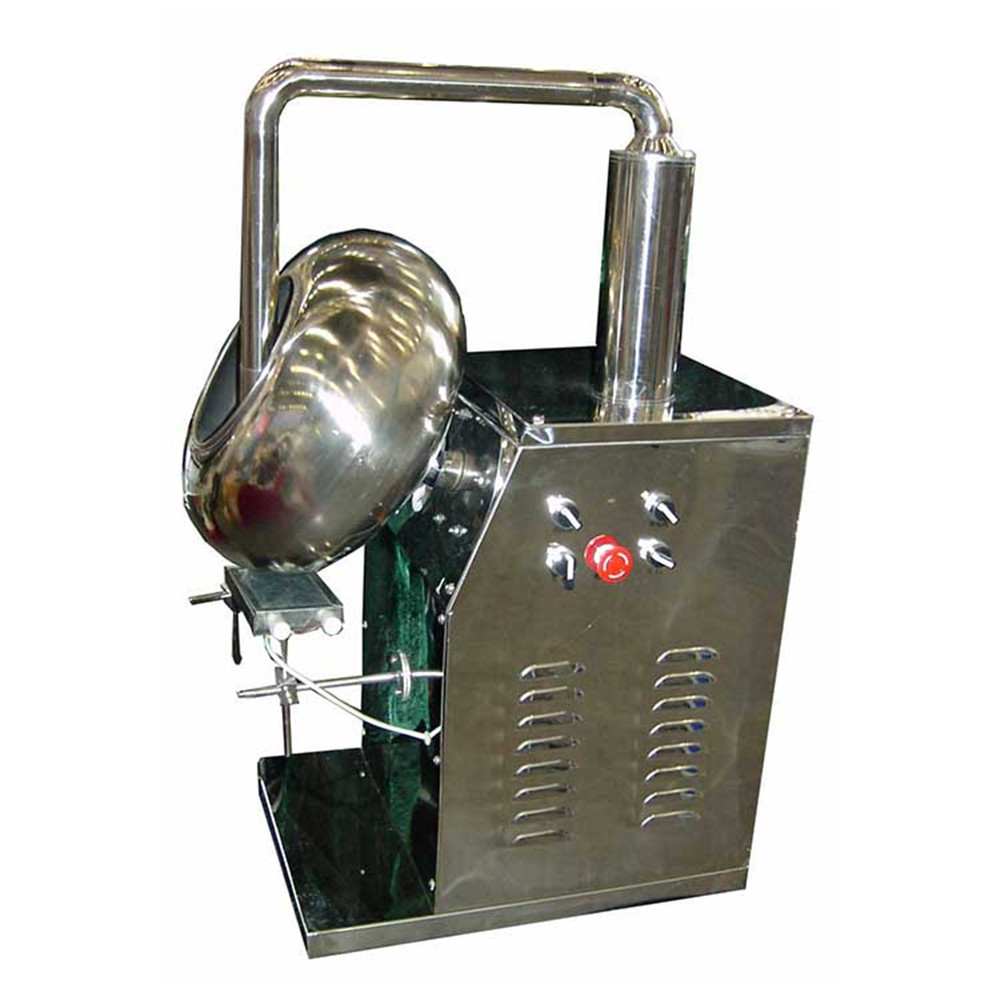

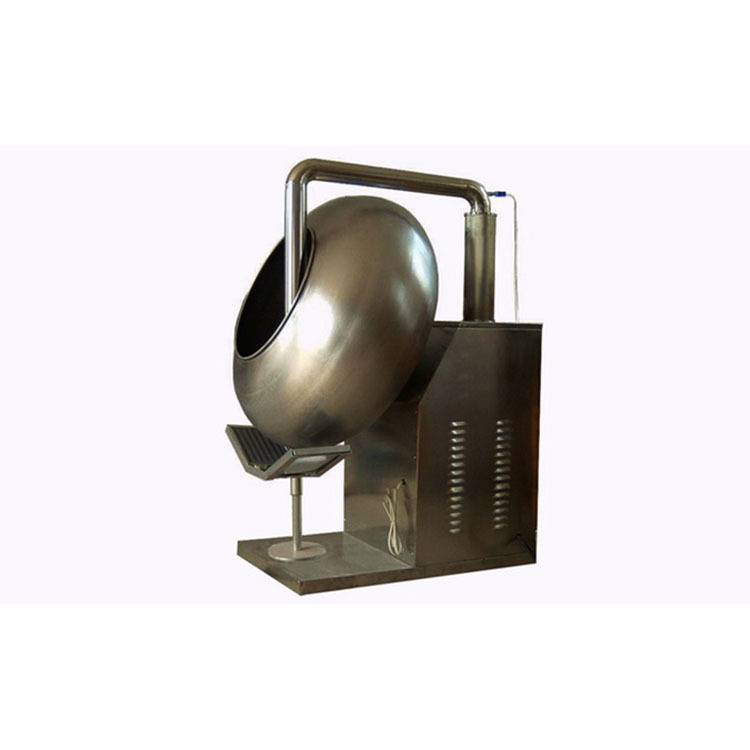

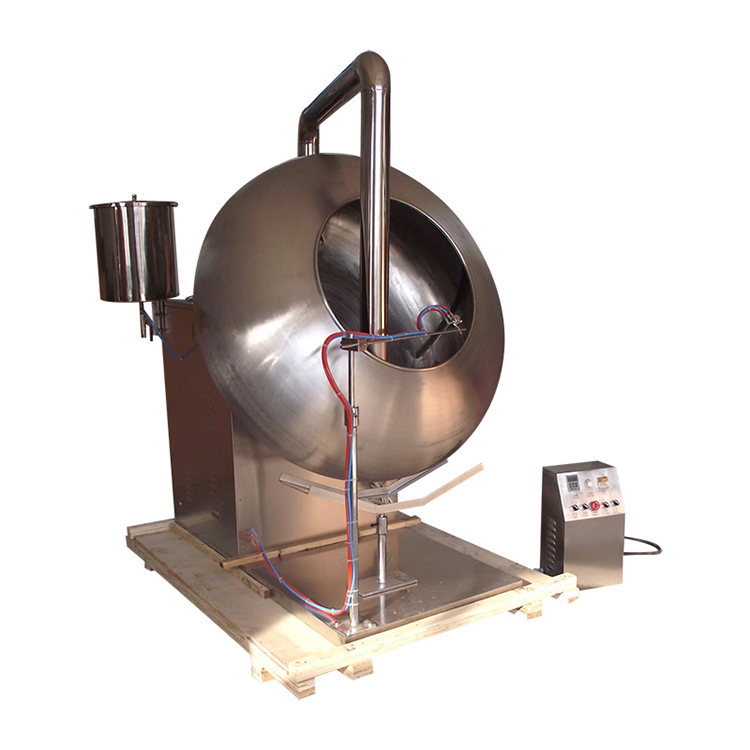

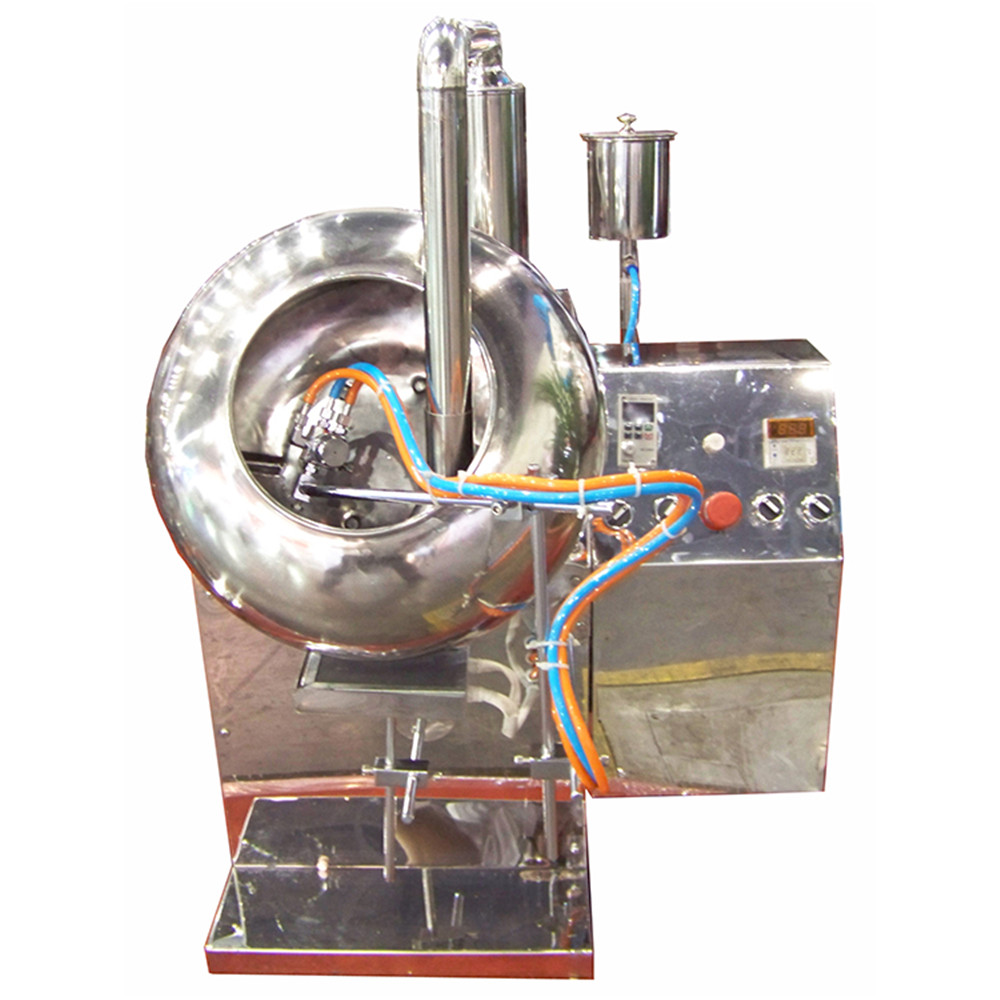

BY series water chestnut mold coating machine
-illustrate-
This machine is widely used in coating, glazing and granulation in the pharmaceutical industry. It can also be used for sphere mold forming in food, chemical and other industries.
-feature-
l The coating pan is made of stainless steel and complies with GMP standards.
l Stable transmission and reliable performance.
l Easy to clean and maintain.
l High thermal efficiency.
l One pot angle can produce process requirements and adjust coating
At the same time, it is easy to use.
-Technical Parameters-
|
Model |
BY200 |
BY300 |
BY400 |
BY600 |
|
Pot diameter(mm) |
200 |
300 |
400 |
600 |
|
Pot speed (r/min) |
0-46 |
0-46 |
0-46 |
0-40 |
|
Motor power (KW) |
0.25 |
0.37 |
0.55 |
0.55 |
|
Heating wire power (W) |
|
500 |
500 |
800 |
|
Blower power (W) |
|
40 |
40 |
60 |
|
Capacity (kg/time) |
1 |
2 |
5 |
15 |
|
Other heating power (W) |
|
500 |
500 |
600 |
|
Weight (kg) |
60 |
65 |
70 |
120 |
|
Overall size (cm) |
35×40×68 |
49×59×77 |
49×59×81 |
70×54×130 |
|
Model |
BY800 |
BY1000 |
BY1250 |
|
Pot diameter(mm) |
800 |
1000 |
1250 |
|
Pot speed (r/min) |
0-32 |
0-32 |
0-28 |
|
Motor power (KW) |
1.1 |
1.5 |
2.2 |
|
Heating wire power (W) |
1000 |
1000 |
1000 |
|
Blower power (W) |
250 |
250 |
250 |
|
Capacity (kg/time) |
30-50 |
50-70 |
80-150 |
|
Other heating power (W) |
1000×2 |
1000×2 |
1000×2 |
|
Weight (kg) |
240 |
280 |
450 |
|
Overall size (cm) |
93×90×150 |
110×110×160 |
142×125×165 |
-
BYC-600 sugar coating machine is used for sugar coating of tablets and pills in the food industry
-
