State of health: | new | Material: | 304 stainless steel |
place of origin; place of origin: | Jiangsu, China | Certification: | SGS certification |
Applicable industries: | Hotels, food and beverage factories, farms, restaurants, home use, food stores, food and beverage outlets | Warranty: | 1 year, 1 year |
Sales unit: | single product | net weight/kg): | 85-450 |
Maximum production capacity: | 500 kg/h | Single package size: | 40X30X45 cm |
Bowl Diameter(mm): | 200-2000 | usage: | Food and pharmaceuticals, for pharmaceuticals and food |
brand: | Jincheng Yaoji | Gross weight per piece: | 35.000 kg |
After-sales service provided: | online support | weight: | 85~450kg |
Dimensions (L*W*H): | Different kinds | delivery time: | within 15 days |
Voltage: | 110V/220V/380V | Types of: | Nut/chocolate coating machine |
Voltage (V): | 220, 380, 410 | Motor power(KW): | 0.75-7.5 |
Packaging Details: | Stainless steel pill machine standard export wooden box packaging | strength: | 750/1100/1500/2200/5500/7500 |
Laboratory Tablet Coating Machine Pharmaceutical Equipment

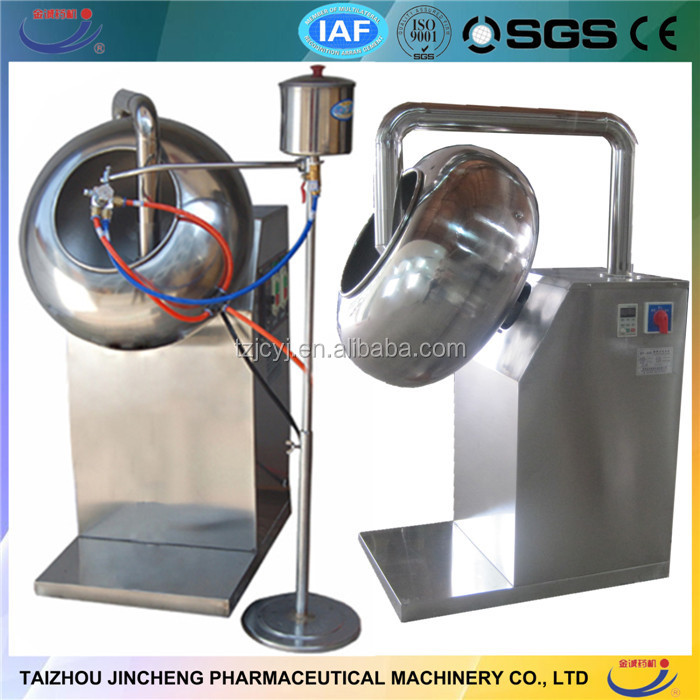

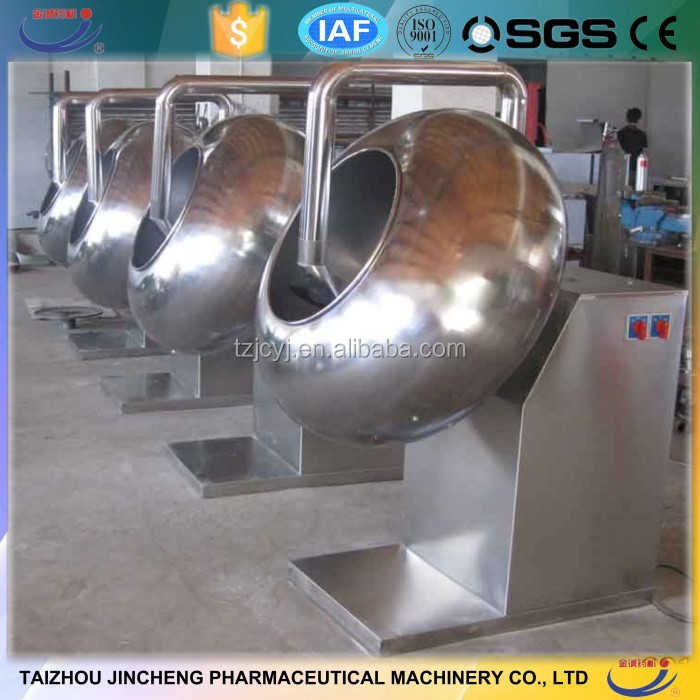

Coater for film and sugar coating. The machine can be equipped with 304 stainless steel coated pan. The machine adopts an assembled structure design, equipped with a stainless steel shell and a motor drive unit and a gearbox. The machine has a variable speed drive from 8 to 60 R/MIN via a variable speed pulley. The machine is mounted on dynamounts avoiding foundation and vibration.
Applications Nut/chocolate icing machine :
1. this Nut/chocolate icing machine Coating of tablets and pills for the pharmaceutical and food industries.
2. Nutella/chocolate coating machineFor rolling and heating beans and edible nuts or seeds.
3. Nutella/chocolate coating machine Can be used for polishingchocolate and nutsVarious shapes, such as cylinders, oblates, so that the surface has good luster and color.
featuressugarchocolatecoating machine / Small chocolate coating machine
1. Small chocolate coating machineIt is suitable for the coating of sugar, chocolate, vitamins, fruit shells and other pills, medicines, nuts, dried fruits, pastries and other products.
2. Continuously variable speed control software and coating roller provide high performance, easy to manage and easy to use.
3. The nut icing bucket is equipped with a special hot air blowing system.
4. The drum has a reliable sealing lubrication system. The roller is made of stainless steel and the body is painted with white enamel. The rollers are equipped with rubber pads to prevent vibrations. Comfortable and easy to maintain and operate.
5. Automatic discharge method can be adopted.

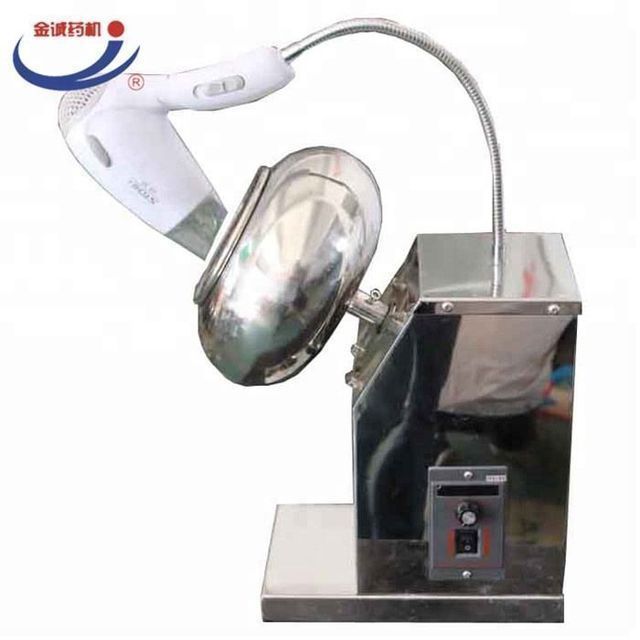

Sugar coating machine laboratory series
laboratory. Series technical parameters
Model | Diameter of coating pan (mm) | Production capacity(kg/h) | Inclination angle of coating pan (°) | Motor power (W) | Machine size(mm) | net weight/kg) | Voltage |
BY200 | 200 | 0.5 | 0-60 (adjustable) | 25 | 200×300×450 | 6.5 | 110~220(optional) |
BY300 | 300 | 2-3 | 0-60 (adjustable) | 125 | 550×400×850 | 30 | 110~220(optional) |
BY400 | 400 | 3-5 | 0-60 (adjustable) | 125 | 550×400×850 | 31 | 110~220(optional) |
BY600 | 600 | 8-15 | 46(adjustable) | 750 | 700×600×920 | 85 | 110~220(optional) |
Technical Parameters
Model | Diameter of coating pan (mm) | Production capacity(kg/h) | Inclination angle of coating pan (°) | Motor power (W) | Machine size(mm) | net weight/kg) | Voltage |
BY600 | 600 | 8-15 | 46 | 0.75 | 700×600×920 | 85 | 220 |
BY800 | 800 | 30-50 | 32 | 1.1 | 900×800×1400 | 205 | 380 |
BY1000 | 1000 | 50-70 | 32 | 1.5 | 900×1000×1500 | 220 | 380 |
BY1250 | 1250 | 70-150 | 32 | 2.2 | 1200×1250×1600 | 300 | 380 |
BY1500 | 1500 | 100-350 | twenty four | 5.5 | 1650×1500×1800 | 350 | 380 |
around 2000 | 2000 | 150-500 | 20 | 7.5 | 1700×2000×1900 | 450 | 380 |

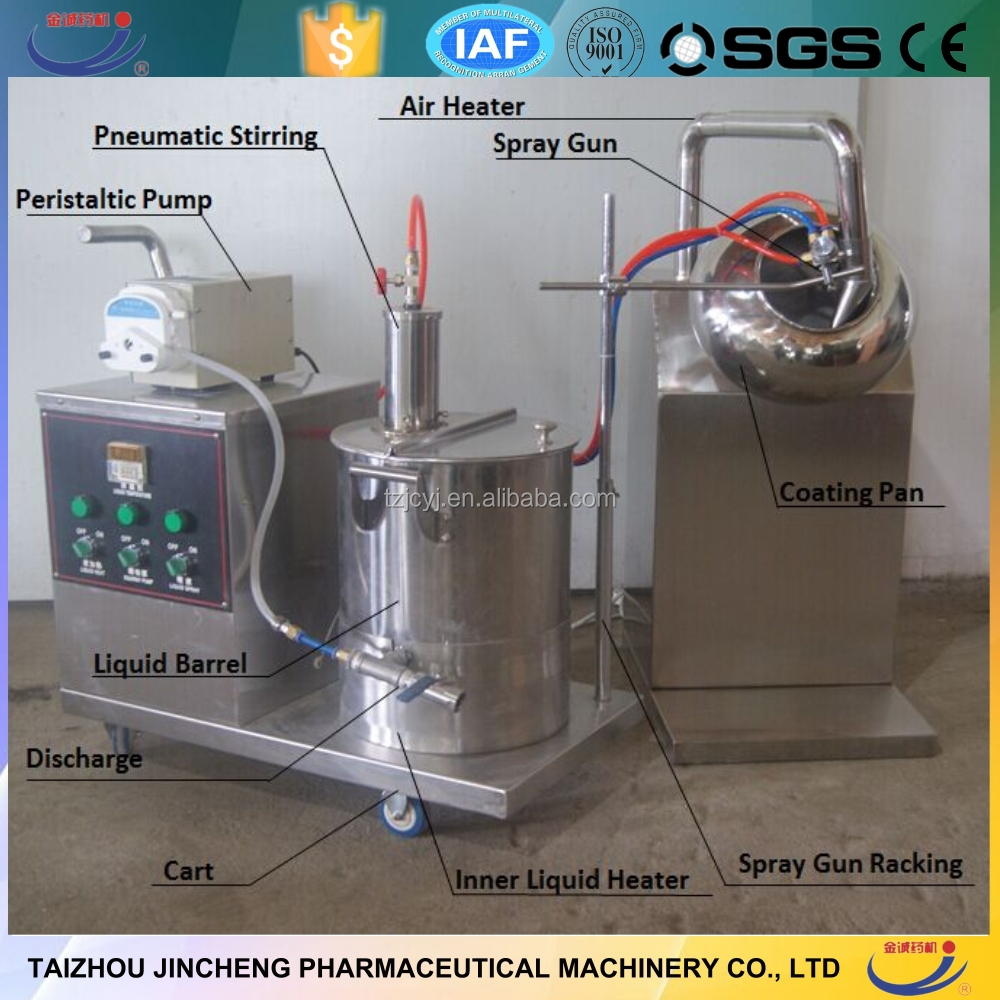

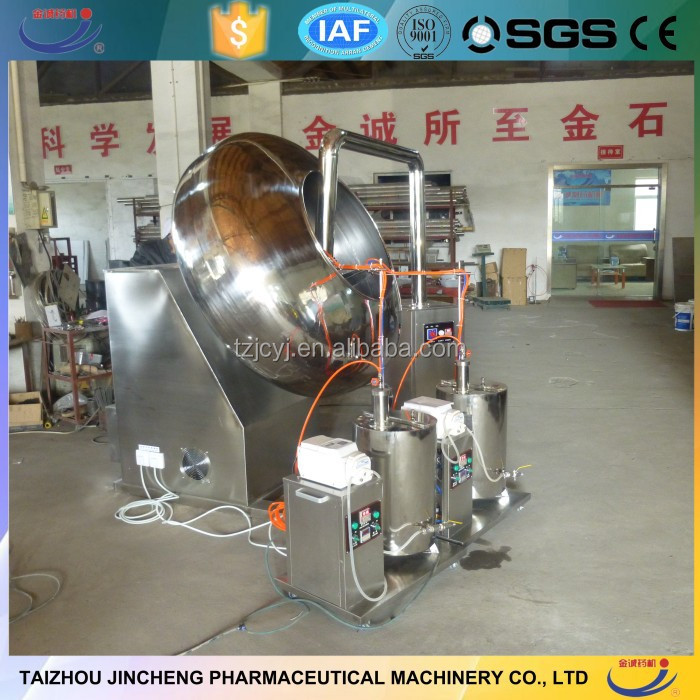

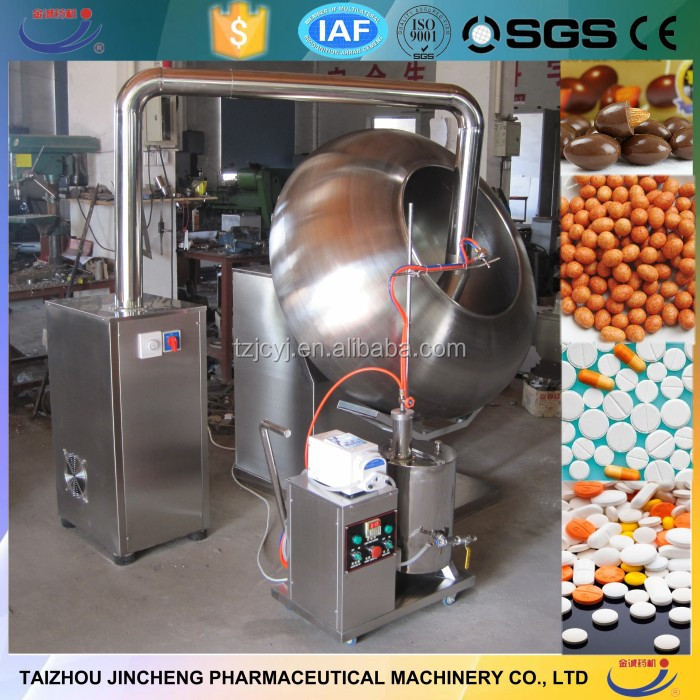

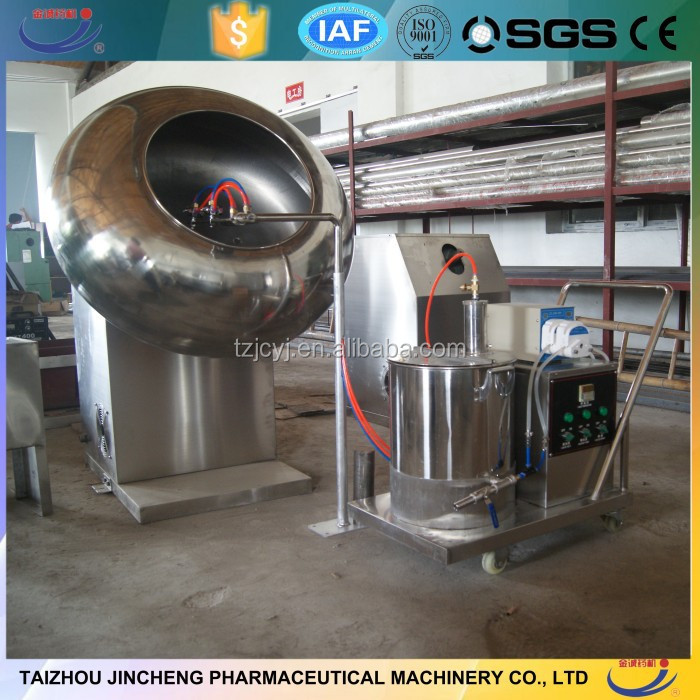

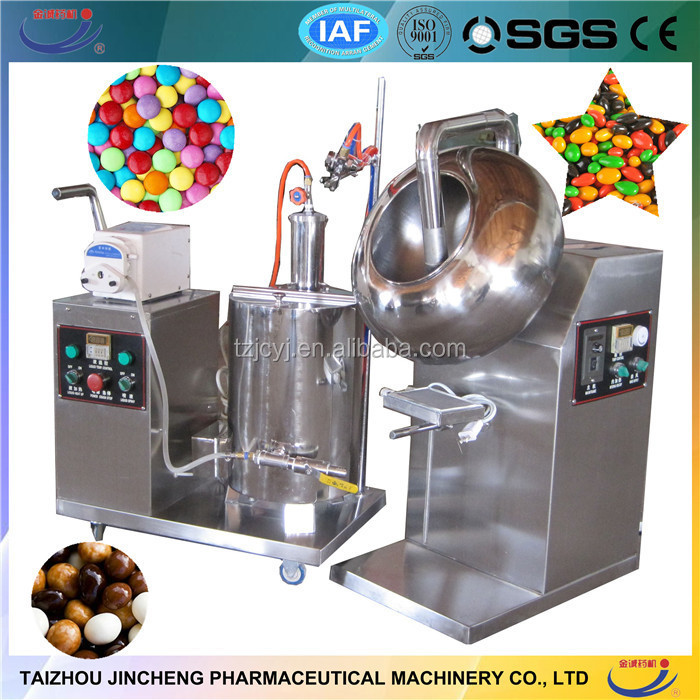

spray system

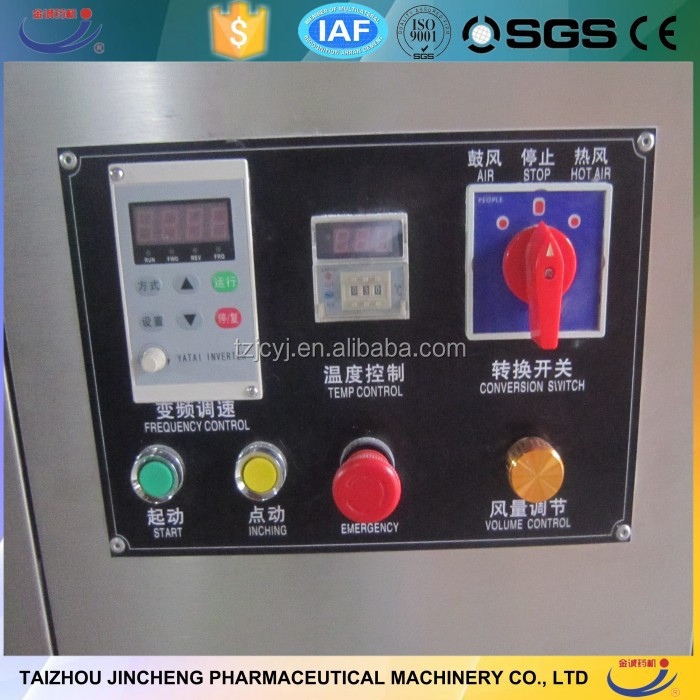

control Panel

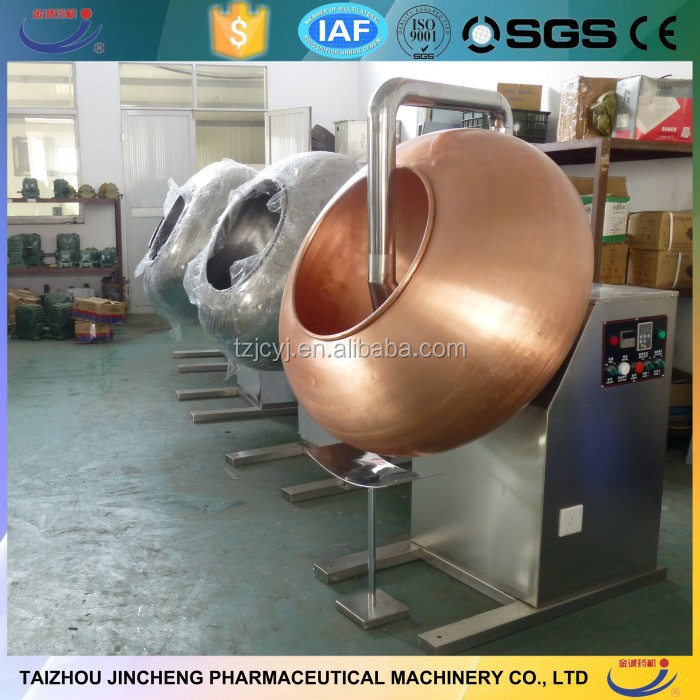

copper pot
