professional automatic commerical industrial sugar salt grinding machine

Supplier: Taizhou Jincheng Pharmaceutical Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jason Xu
Price: $1300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	12 MONTHS;	Port:	shanghai ,ningbo ,qingdao;
video:	available;	type:	salt grinding machine;
Capacity:	2-800g/drum;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,by escrow;
Place of Origin:	Jiangsu China (Mainland);	After-sales Service Provided:	Overseas third-party support available;
Weight:	250kg;	Voltage:	220/380/410;
Supply Ability:	200 Set/Sets per Month salt grinding machine;	Certification:	CE;
Brand Name:	JINCHENG;	english manual:	available;
Size:	590380670mm;	Condition:	New;
Application:	powder making;	material:	SS304/316;
Packaging Detail:	salt grinding machine packed in export standard polywooden box;	Product Type:	salt grinding machine;
Power(W):	1.5-15;	After-sales Service Provided:	Engineers available;
Type:	Grinder;	Dimension(LWH):	1256801680;
processed powder:	20-120mesh;	supplier type:	real manufacture,factory;

Product Description

Salt Grinding Machine

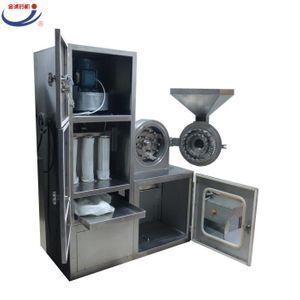

Description of Salt grinding machine :

salt grinding machine consist of universal pulverizer , dust collecting cabinet and dedusting collector, preventing dust flying during powder grinding, suits for pulverizing sugar, herbs, chemical products, food materials and spices etc into the powder of 20-120mesh.

The part of salt grinding machine , ESC collector, and the dust-collector, are all made of stainless steel and in conformity with the GMP grade.There are some kinds of grinding part for choice according to different kinds of raw material to be pulverized,such as

-hammer type for salt grinding machine

-fluted disc type for grinding granules,

-hammer tossing type, for root like stuff, etc.

-Water cooling, and charging impellor can be assembled according user’s requirement.

Specification of salt grinding machine

Model	130B	180B	250B	320B	420B	520B
Capacity(kg/h)	2-5kg/h	10-30kg/h	50-250kg/h	80-300kg/h	160-500kg/h	300-800kg/h
Speed of principal axis(r/min)	4200	4200	4200	4200	3200	3200
Working noise(db)	<85	<85	<85	<85	<85	<85
Finesess of Processed power (mesh)	20-120	20-120	20-120	20-120	20-120	20-120
Power of Motor (kw)	1.5	2.2	5.5	7.5	11	18.5
Power of Fan (kw)	0.18	0.18	0.75	0.75	1.1	1.5
Overall size(mm)	8905001260	8905001260	11006501500	125010701300	135010701700	150010001750
Weight(kg)	100	120	250	300	400	600

Product Overviews

SF Pulverizer:

Model	SF250	SF320	SF420	SF520	SF620
Capacity(kg/h)	50-250	80-300	200-400	300-800	500-1000
Speed of principal axis(r/min)	4200	4200	3200	3200	2800
Working noise(db)	<85	<85	<85	<85	<85
Fineness (mesh)	20-120	20-120	20-120	20-120	20-120
Power(KW)	5.5	7.5	11	18.5	22
Overall size(mm)	6304901160	8105001230	7005001500	11707501800	17008501940
Weight(kg)	155	208	258	500	78
