Mini Alu / PVC blister packing machine

Supplier: Shanghai Flight Pharmaceutical Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr John Meng
Price: $3000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Feature 3:	easy to replace the mould;	Warranty:	1 Year;
Certification:	CE ISO9001;	Punching frequenc:	30 times/min/plate each punching;
Port:	Shanghai;	Power supply:	AC, 220V/50-60 HZ, 1 phase;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Capacity:	20,000-50,000 pcs/hour;
Driven Type:	Electric;	Condition:	New;
Type:	Blister Packaging Machine;	Plate size:	90x80 mm(designed according to customers' requirement);
Automatic Grade:	Automatic;	Feature 5:	needn't to equip Auxiliary unit;
Feature 1:	Synchronization;	Voltage:	Customized;
Feature 4:	low cost;	Weight:	230kg;
Product Name:	blister packing machine;	Place of Origin:	Shanghai China (Mainland);
Supply Ability:	10 Unit/Units per Week blister packing machine;	Brand Name:	flight;
Packaging Detail:	Standard export packing or customized;	Feature 2:	stable cooperation;
After-sales Service Provided:	Online support;	Application:	Chemical,Medical;
Dimension(LWH):	980(L)x480(W)x980(H) mm;

Product Description

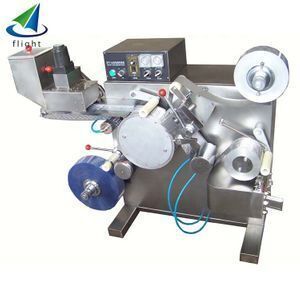

Mini Alu / PVC blister packing machine

———Descriptions———

Mini Alu / PVC blister packing machineDesigned by our company earliest and produced at

largest batch process, DPT-80 mini-type Bubble-cap packing machine is the smallest, lightest,

cheapest and energy consumption Lowest packing equipment among the similar mode both

in domestic and abroad.

This machine is widely suitable for new product preparation room of pharmaceutical section

Of people’s hospital, small pharmaceutical factory, drug rest. It’s also suitable for aluminum

Sculpture packing of capsule, sugarcoating tablet and plain tablet medicine or improvement

packing of special specification.

This machine can continually and automatically complete the packing proceedings, is blister

cap form-taking, medicine-feeding, heat sealing, printing lot no, and cutting into format. It Has

advantage as compact structure, full function, gear wheel working, and accurate

Synchronization, stable cooperation, easy to replace the mould, low cost and needn’t to equip

Auxiliary unit. Turn on power and connect it with cooling water, you can produce in a large scale.

———Technical Parameters———

Item/model	DPT-80
Capacity	20,000-50,000 pcs/hour
Punching frequency	30 times/min/plate each punching
Plate size	90x80 mm(designed according to customers’ requirement)
Packing material	PVC hard piece: width: 65-90 mm, thickness: 0.25-0.30 mm Bore diameter of roll shaft: 60-70 mm PTP aluminum foil: width: 65-70 mm, thickness: 0.02-0.025 mm Bore diameter of roll shaft: 60-70 mm
Power	1.5 KW
Power supply	AC, 220V/50-60 HZ, 1 phase
Overall size	980(L)x480(W)x980(H) mm
Weight	230 kg

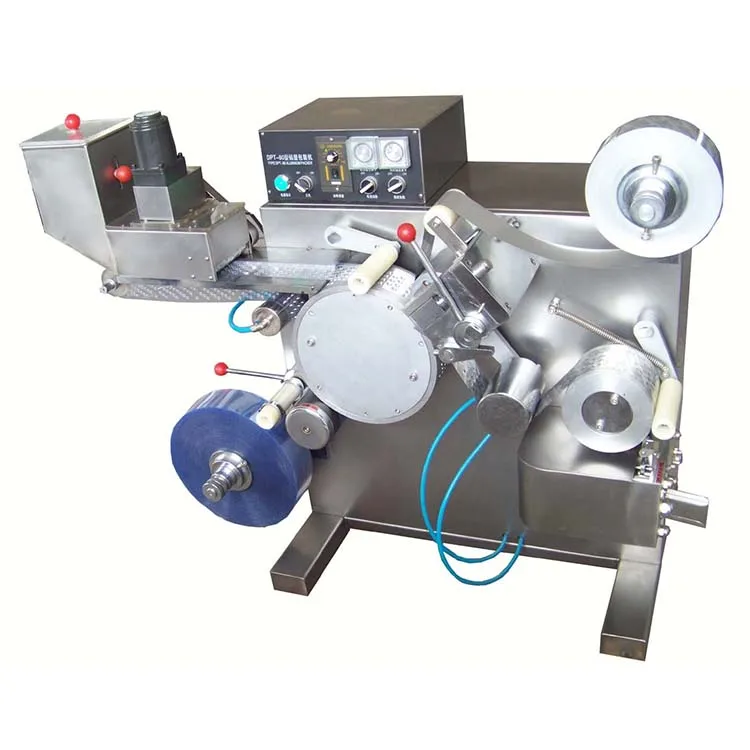

———Product image———

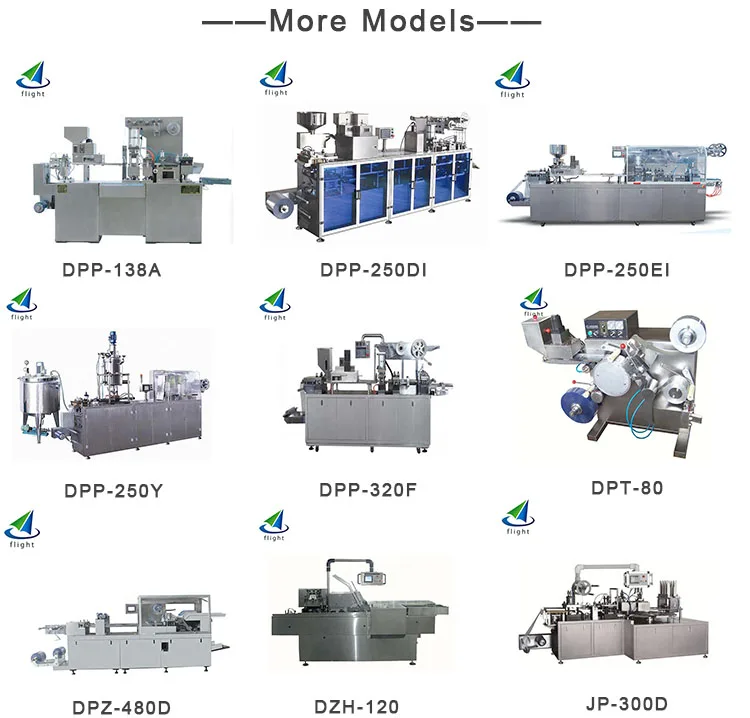

Related products

Our Advantages

——Our advantages——

Products advantages

1. We always give top priority to quality

2. Strictly guarantee the precision of parts error

3. Reasonable processing technology coupled with advanced processing equipment

Trade advantages

1.Our company is a Gold Supplier on Alibaba. So we can provide Escrow Service on Alibaba.

2.Our company can do Trade Assurance Order for customers on Alibaba.

Custom made advantages

1.The company independent research and development, custom design exclusive for the series of products.

2. Mutual benefit with the best quality and service, and sincerely hope that friends from various circles at home and abroad sincere cooperation and mutual benefit and win-win situation.

Company Introduction

——Our Company——

Flight Pharmaceutical Machinery CO., Ltd is the professional manufacturer and export of

various pharmaceutical machineries in China. Our company has profuse designs with series

quality grade, and expressly, our price is very competitive, because we are manufactory.

Our factory developed about forty types of machines in over ten varieties. By ISO9001:2000

quality system attestation, accord with GMP attestation request. All tasks from casting to

metal machining, and general assembly are accomplished ourselves.

We produce and export various pharmaceutical machineries, relevant medicament detecting

instruments and packing machinery, such as Rotary tablet press, Single punch tablet

press, Pulverizer, Mixer,Coating machine, Granulator, Labeling machine, Liquid filling

machine, Capsule filing machine, Blister packing machine, and so on.

We have professional export office, with an experienced and professional team, they will

service in whole business. By excellent quality, reasonable price and perfect after-service,our

products have been sold in many countries and regions all over the world, Such as United

States, Canada, Australia, United Kingdom, Bulgaria, Russia, Indonesia, Pakistan, Thailand

and Vietnam etc, these products are very popular with the customers there.

Try to do everything, let customer satisfaction, this is our company’s service tenet.

<<Welcome new and old customers come to discuss business>>

——Certificate——

Packaging & Shipping

——Packing & Shipping——

Delivery time	Within 7 days after receiving the payment.
Payment methods	T/T or Western Union payment, and full payment before shipping
Guarantee	One year quality guarantees and free with spare parts for one year.
After sales service	The English user manual Circuit diagram
