Supply capacity: | 3000 sets per day | application: | Food, Beverage, Daily Necessities, Medical |
Showroom location: | Egypt, Turkey, United Kingdom, France, Brazil, Peru, Australia | Origin: | Shandong China |
Packaging Details: | Packed in professional wooden case according to your requirements | Health status: | new |
Applicable industries: | Hotel, home furnishing, food store | Core component warranty: | 5 years |
Core components: | engine | Dimensions (L*W*H): | 1400*1800*1500MM |
Main selling points: | easy to operate | Marketing Type: | New Products 2020 |
Driver type: | electrical | Mechanical test report: | if |
Voltage: | 220V | weight: | 330 kg |
type: | Blister Packaging Machine | Video shipment inspection: | if |
Automatic level: | automatic | Warranty: | 3 years |
Free shipping means free shipping in China, because many products are difficult to calculate shipping cost, so we don't add shipping cost, some other companies don't need to pay shipping cost in China. But not include shipping country from my country to your country
Factory sale capsule/tablet blister packaging machine
Capsule/Tablet Blister Packaging Machine
Factory direct blister packaging machine

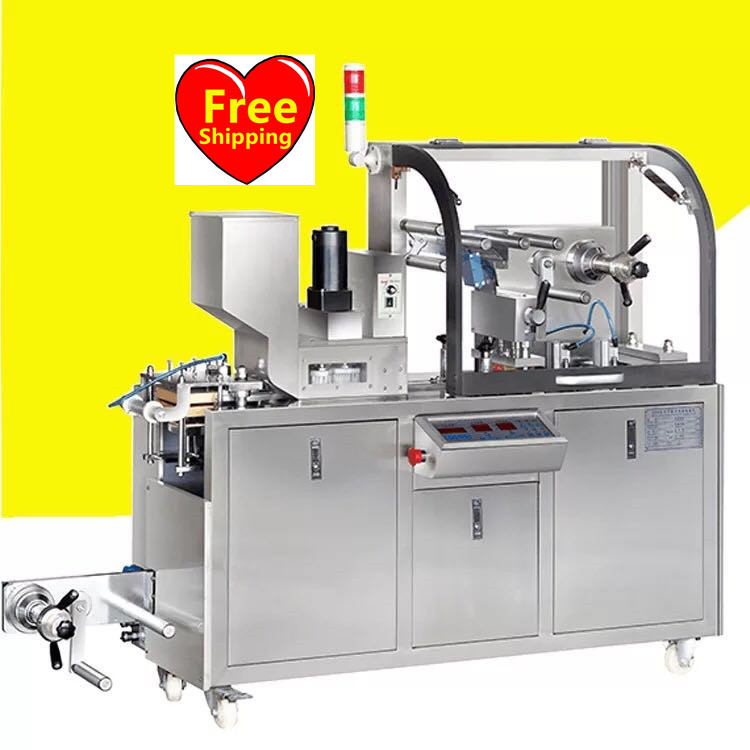

Automatic Flat Blister Packaging Machine

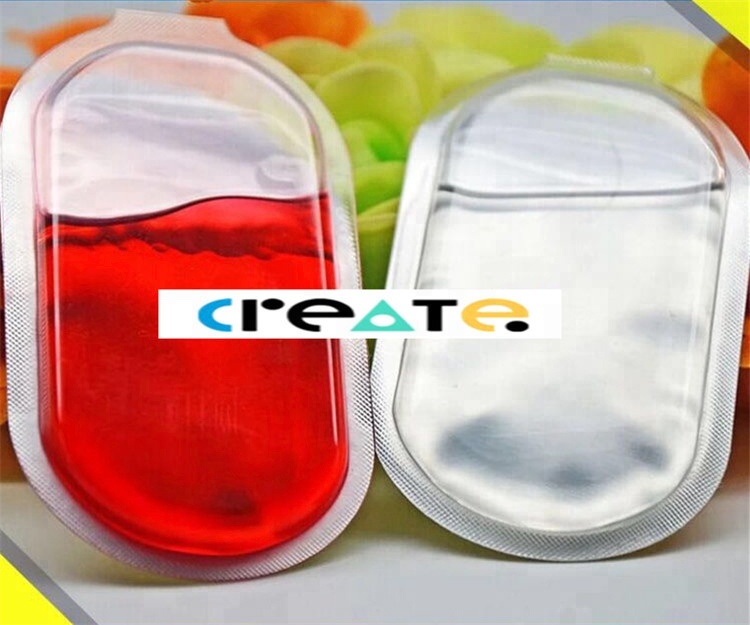

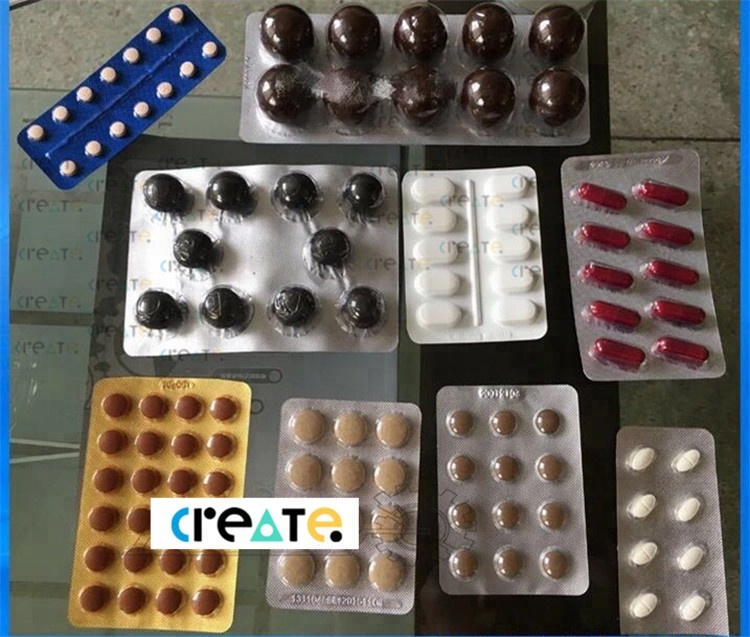

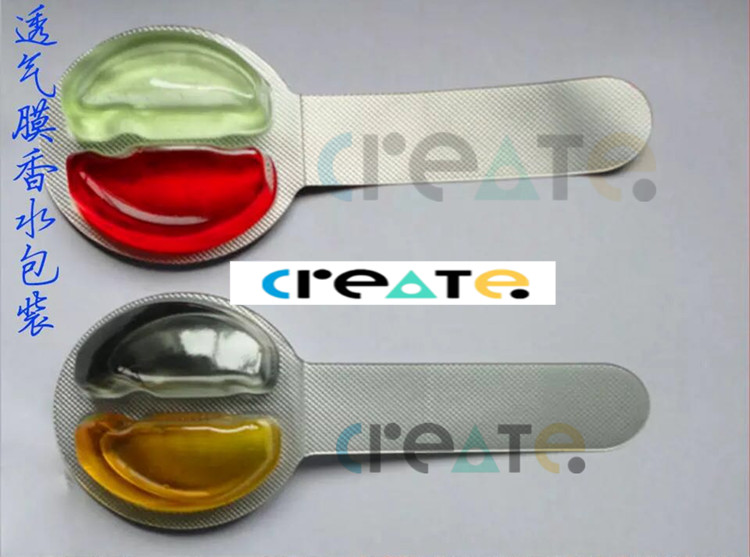

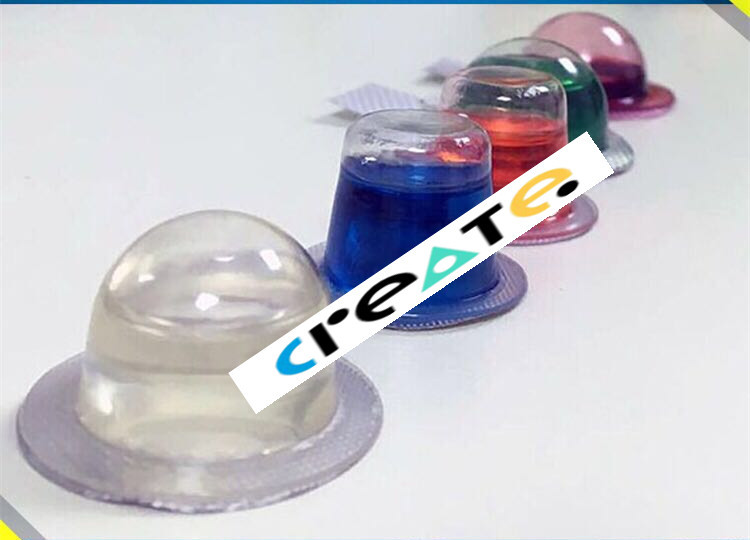

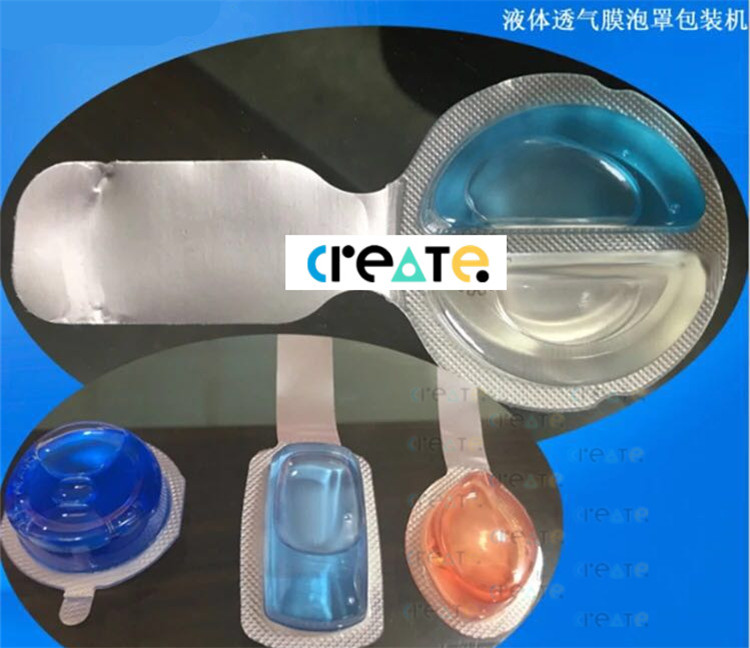

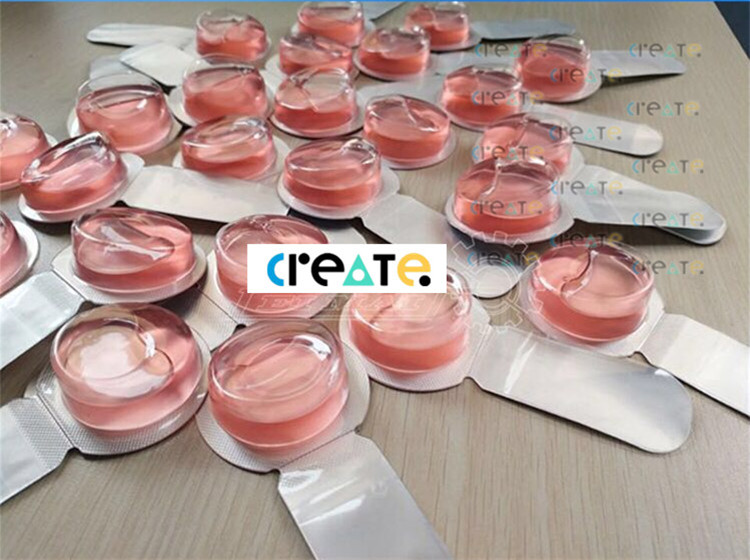

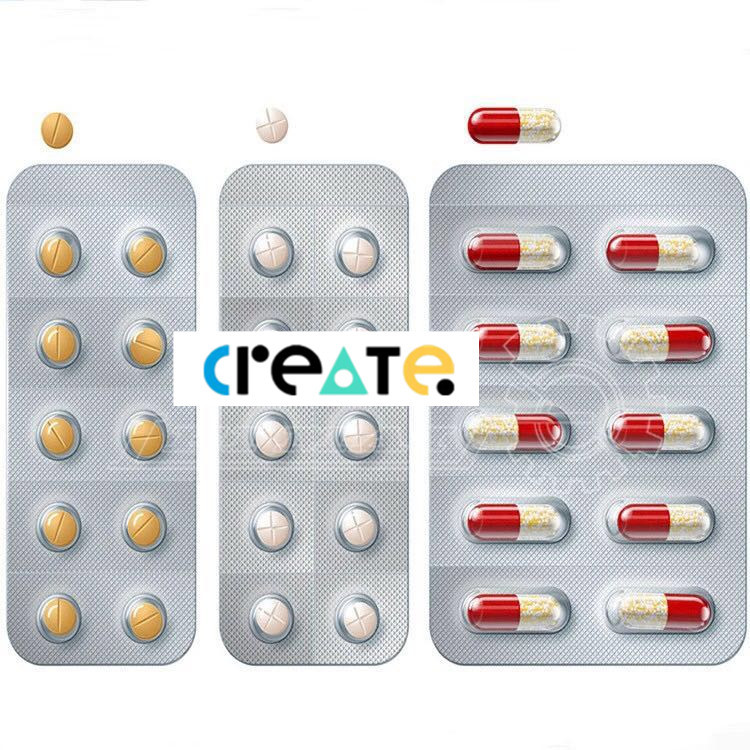

This machine is widely used in the packaging of capsules, tablets, and honeyed pills in the pharmaceutical industry, milk tablets, candy, chewing gum, jam, and liquid chocolate in the food industry, and syringes, syringes, needles, masks, eye pads, etc. in the medical industry. Cosmetics industry, such as various shapes of ALU-ALU, ALU-plastic, paper-plastic composite sealed packaging.
The main technical parameters:
Specifications:
Model |
DPB80 |
Punch frequency |
10-40 times/min |
capacity |
2400 plates/hour |
Maximum Forming Area and Depth |
70x100x27mm |
standard stroke |
20-70mm (adjustable) |
standard edition |
80x57mm (adjustable) |
air pressure |
0.6-0.8Mpa |
total power |
380V/220V 50Hz 1.8kw |
Air motor power |
0.75kw |
PVC hardware |
0.15-0.5x80mm |
PTP aluminum toilet |
0.02-0.035x80mm |
Dialysis paper |
50-100gx80mm |
mold cooling |
Tap water or circulating water |
Dimensions (length x width x height) |
1400x460x950mm |
weight |
600 kg |
noise index |
≤75Dba |
Model |
DPB140 |
Punch frequency |
10-35 times/min |
capacity |
1200-4200 blisters/hour (1 time 2) |
Maximum Forming Area and Depth |
150x100(<=15mm) |
standard stroke |
50-120mm (adjustment) |
standard edition |
80x57mm (adjustment) |
air pressure |
0.4-0.6Mpa |
Air consumption |
>=0.3 cubic meters per minute |
total power |
380V, 50Hz, 3.8kw |
main motor power |
1.5kw |
PVC hardware |
(0.15-0.5)x150mm |
PTP aluminum toilet |
(0.02-0.035)x150mm |
mold cooling |
Tap water or circulating water |
aspect |
2315x635x1405mm |
weight |
950 kg |
noise |
<75ba |
Model |
DPB250 |
Punch frequency |
6-50 times/min |
capacity |
35000-230000pcs/hour |
Maximum Forming Area and Depth |
280x170x27mm |
standard stroke |
40-160mm (length greater than 180mm can be designed according to user requirements) |
standard edition |
80x57mm (adjustment) |
air pressure |
0.4-0.6Mpa |
Air consumption |
>=0.3 cubic meters per minute |
total power |
380V/220V, 50Hz, 6.2kw |
main motor power |
1.5kw |
PVC hardware |
(0.15-0.5)x250mm |
PTP aluminum toilet |
(0.02-0.035)x250mm |
mold cooling |
Tap water or circulating water |
aspect |
3000×730×1600mm |
weight |
1800 kg |
noise |
<75ba |
We are factory we promise to give you agent price and good quality
We can design any type you want! DPB 80 , DPB 115 , DPB 120 ,
DPB 140 , DPB 180 , DPB 200 , DPB 250 , DPB 250 , DPB 300 , DPB 320 , DPB 450 , DPB 500
The model is the maximum length: DPB 80 means the maximum length is 80 MM
DPB 500
You just need to tell me the packing sizewidth, length,thisthickness Liquid or solid?
We can give you a quote within a minute!
Free shipping on all products in China, excluding shipping from my country to yours
