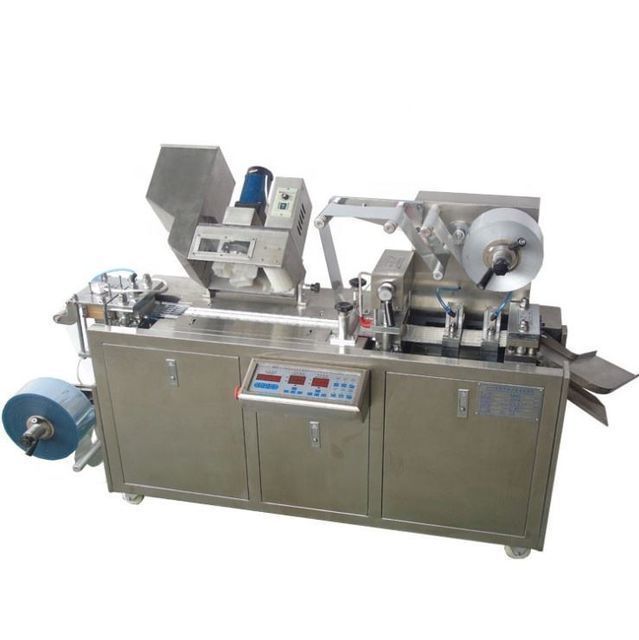

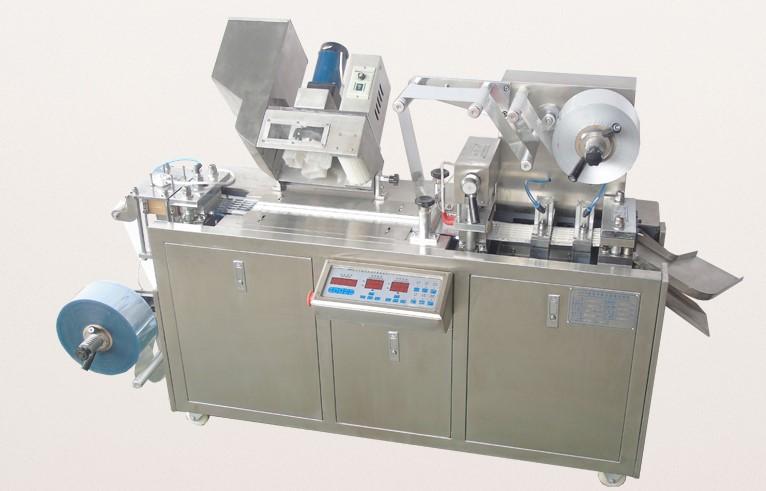

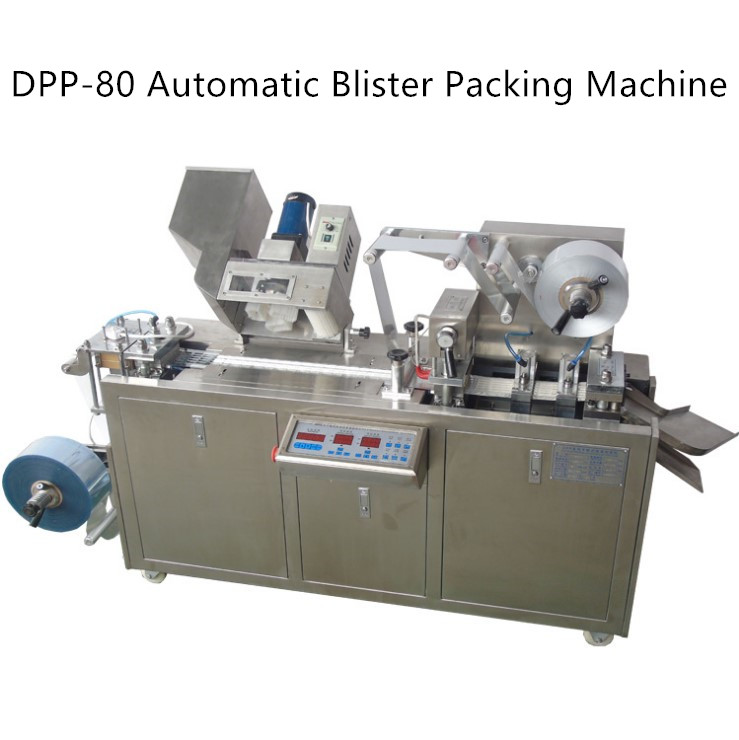

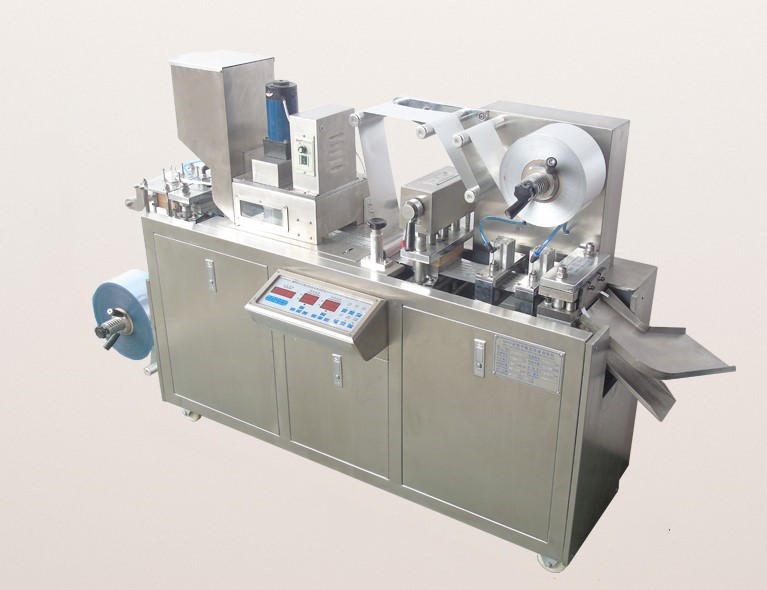

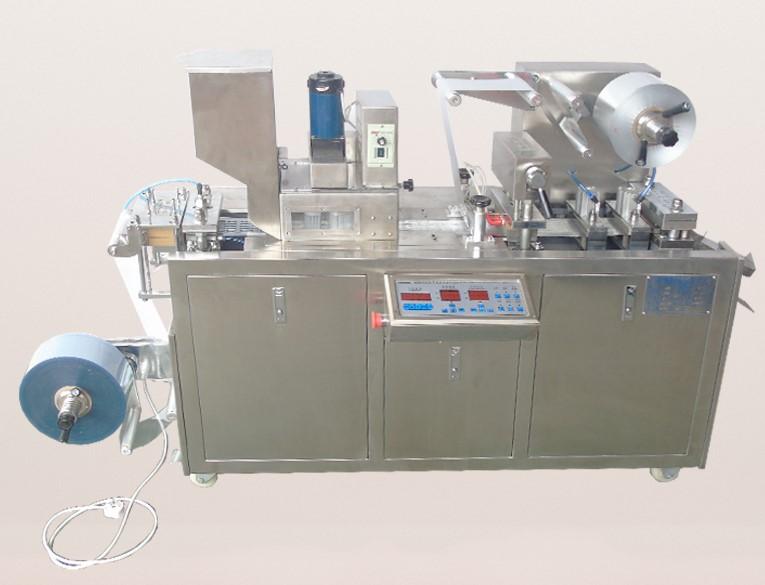

Manufacturer dpp 80 small toothbrush pack automatic blister packaging machine

Supplier: Jining Factop International Trade Co., Ltd.
Region: Shandong, China
Contact: Ms michelle liu
Price: $1500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Voltage:	220/380	Video shipment inspection:	if
payment terms:	Western Union, D/P, T/T, MoneyGram	Core components:	PLC, engine, bearing, gearbox, motor
Supply capacity:	5 sets per week	application:	Food, medicine, chemical industry, machinery and hardware
Types of:	Blister Packaging Machine	Mechanical test report:	if
port:	Shanghai, Ningbo, Guangzhou	Dimensions (LWH):	16006001100mm
Main selling points:	high precision	weight:	450 kg
State of health:	new	place of origin; place of origin:	Shandong China
Automatic level:	automatic	Showroom location:	not any
Marketing Type:	New Products 2020	Applicable industries:	Food and Beverage Stores, Medical, Electronic Components
Core component warranty:	1 year	Warranty:	1 year
Packaging Details:	wood packaging	Driver type:	pneumatic

Product Description

1. The domestic high-power transmission mechanism is adopted, and the main shaft adopts chain transmission, which eliminates the error and noise of other gear transmission;

2. The equipment adopts imported control system, which can be equipped with leaking material leaking device and leaking material detection and rejection device according to customer requirements;

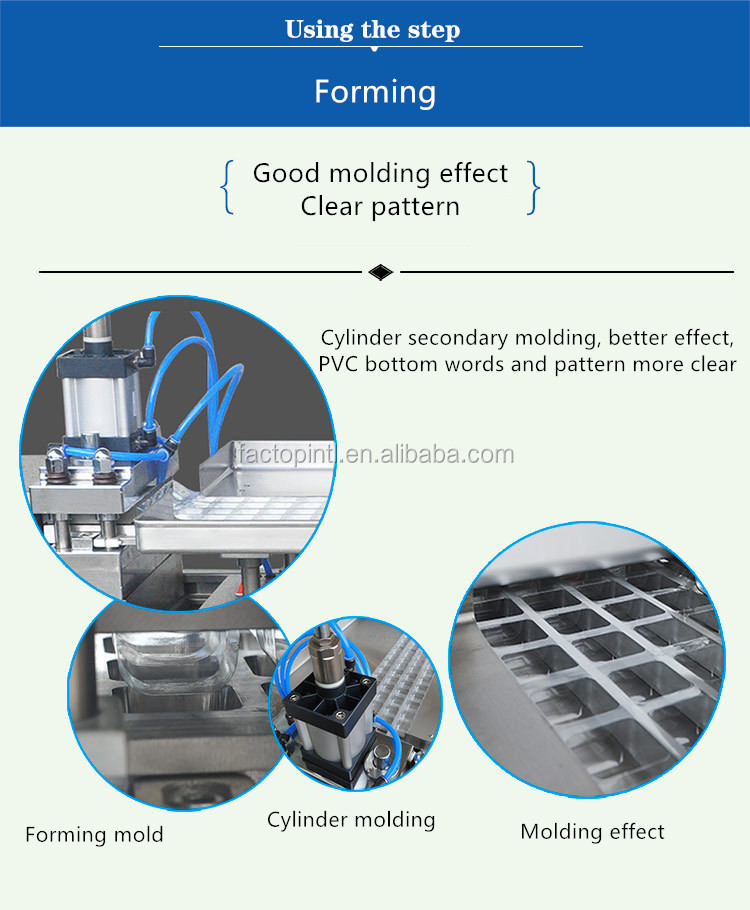

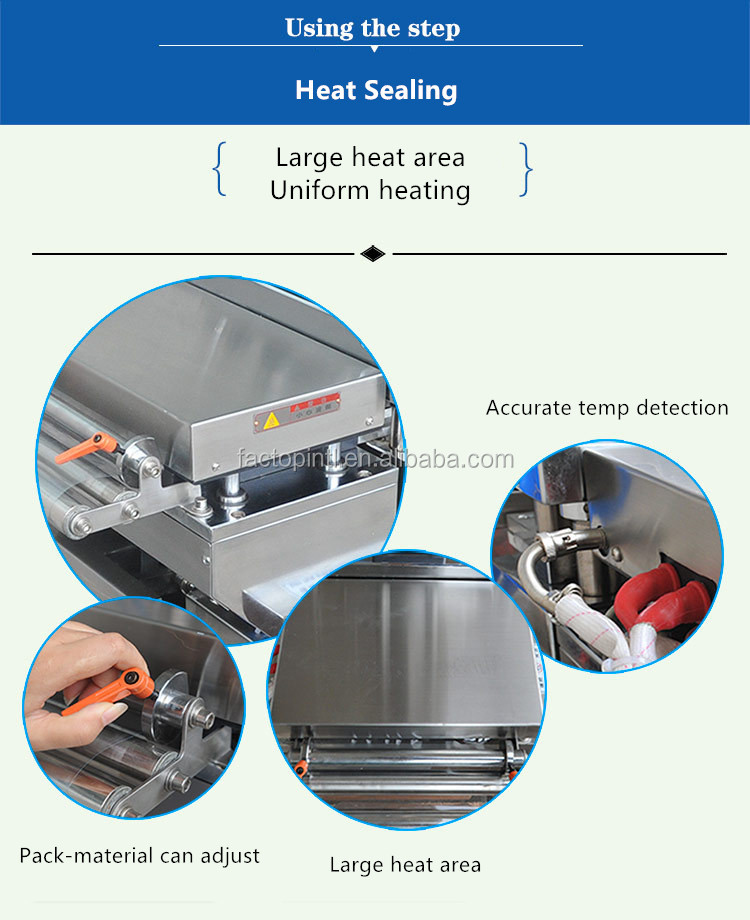

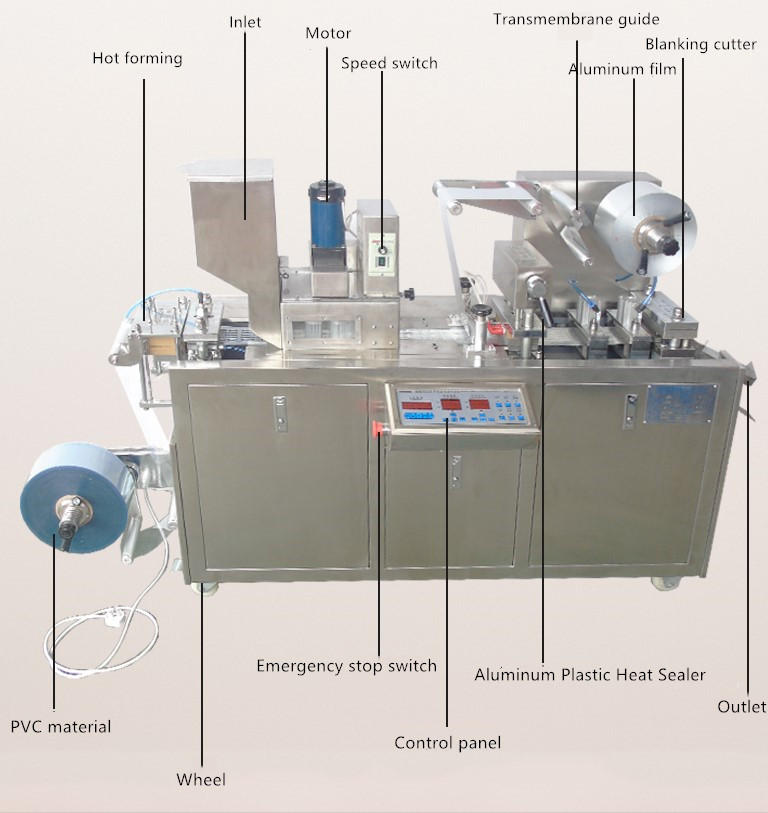

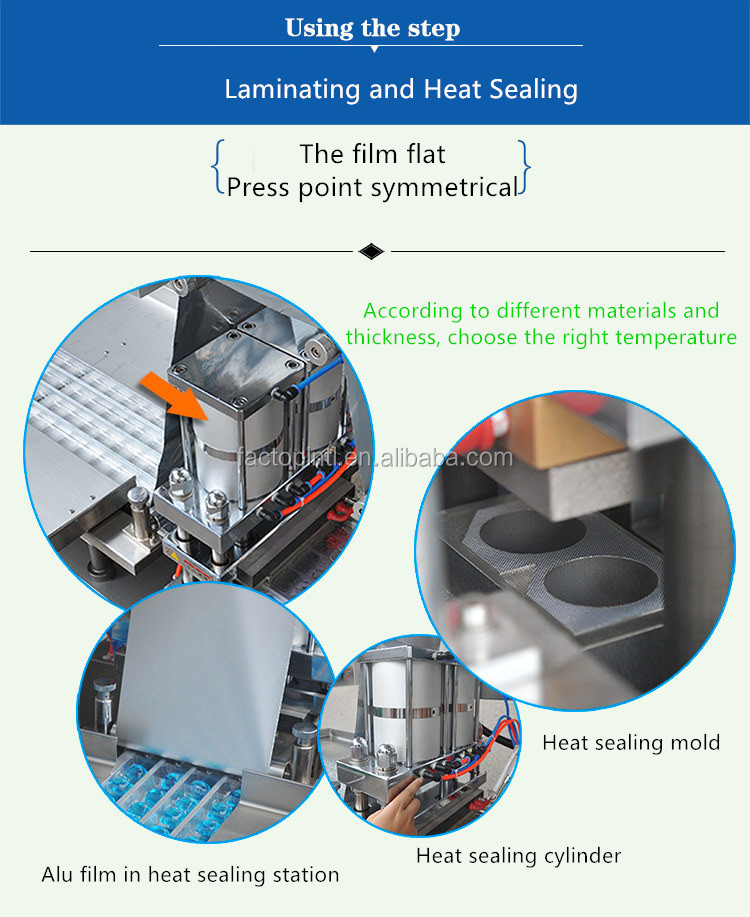

3. The whole machine adopts segmented combination: PVC forming, feeding and heat sealing are one segment, and tropical aluminum cold forming, heat sealing and punching are segmented packaging;

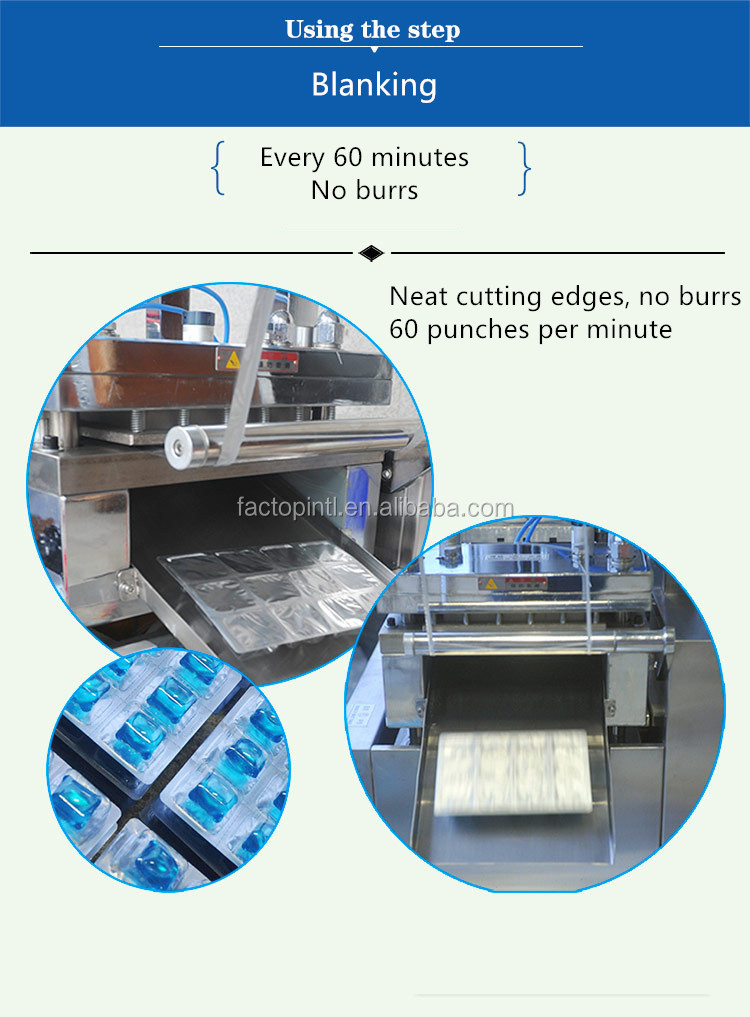

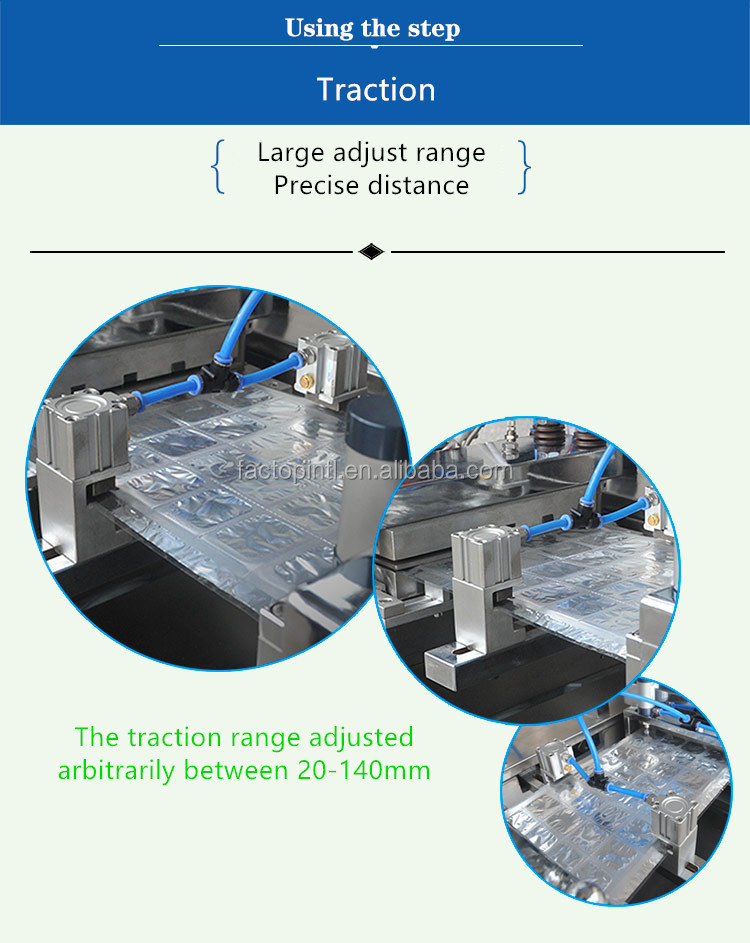

4. Adopt photoelectric control system, automatic feeding of PVC, PTP, duralumin packaging, automatic punching device for waste edge, to ensure long-distance multi-station synchronization and stability;

5. It can be equipped with photoelectric detection and correction device, imported stepping motor traction, graphic printing and packaging to optimize the packaging grade;

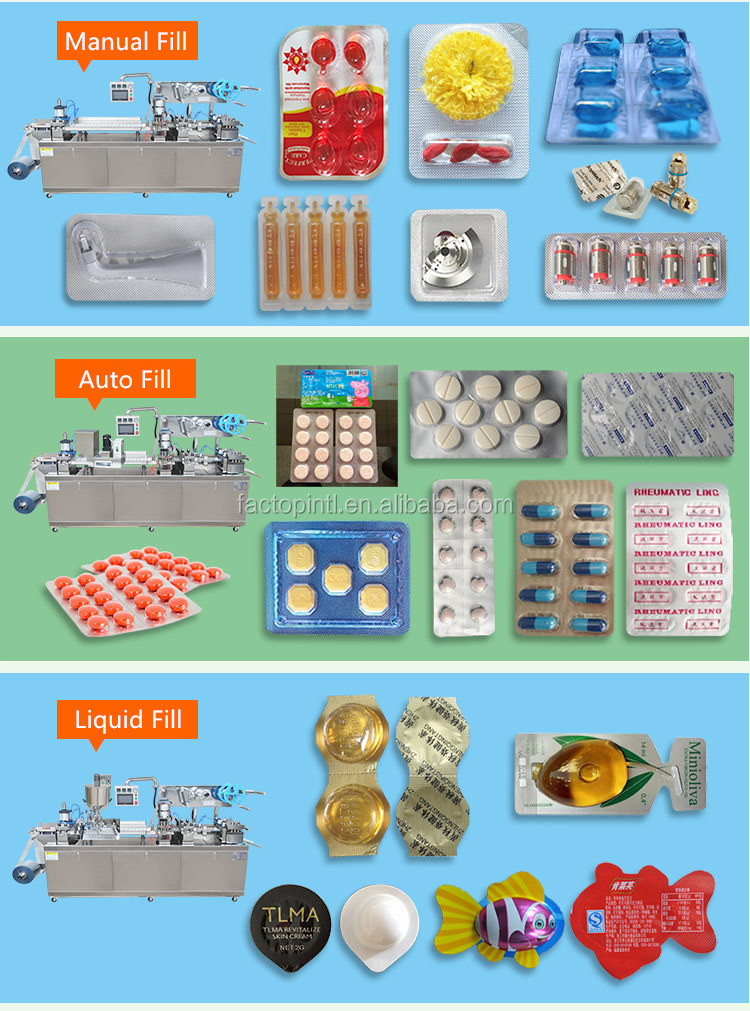

6. This machine is suitable for: blister sealing packaging of capsules, plain tablets, sugar-coated tablets, gel pills, injections, special-shaped, etc., as well as medical equipment, light food, electronic components, etc.

Product parameters

Model	DPP 80/115
punching frequency	10-40 times/min
production capacity	2400pcs/hour
Maximum Forming Area and Depth	8011026mm
Standard travel range	20-70mm, according to customer requirements
Standard	80*57mm, according to customer requirements
air pressure	0.6-0.8MPa
total power	220/380V 50Hz 3.2KW
Main electrode power	0.75kw
PVC hard sheet	0.15-0.5*80mm
PTP aluminum foil	0.02-0.035*80mm
Dialysis paper	50-100g*80mm
mold cooling	Tap water or circulating water
noise index	Less than 75dBA
size	16006001100mm
weight	450 kg
