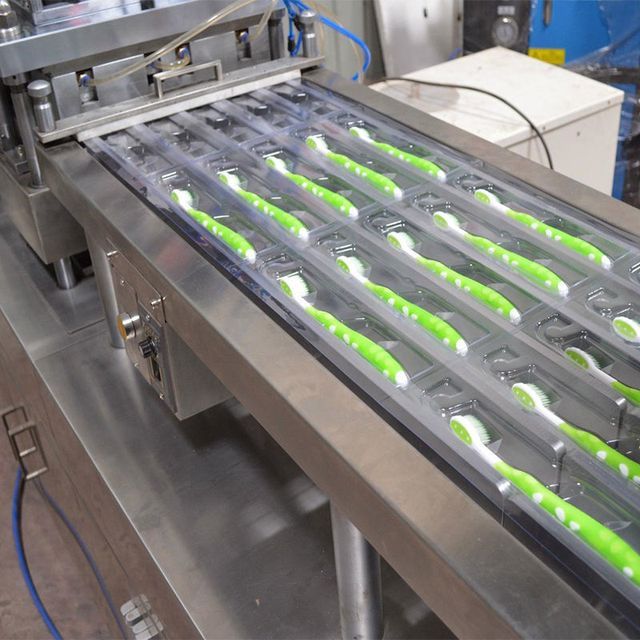

High Speed High Quality Toothbrush Blister Packaging Machine DPP-270A

Supplier: Jiangsu Hanyoo Pharmatech Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jason Shing
Price: $11000.00 /set
Min. Order: 1 set

Click here to contact

Product details

weight:	1600 kg	payment terms:	L/C, Western Union, T/T
Main selling points:	easy to operate	Voltage:	380V 50Hz 8.5kw
Core component warranty:	1 year	Marketing Type:	hot sale blister packaging machine
Automatic level:	automatic	Dimensions (LWH):	39007401700mm
Name:	Aluminum plastic blister packaging machine	type:	Blister Packaging Machine
product name:	Automatic blister packaging machine	brand:	Han You
Mechanical test report:	if	Certification:	CE certification
Applicable industries:	Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Food and Beverage Plants, Farms, Restaurants, Retail Stores, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores	Driver type:	pneumatic
Packaging Details:	Rotary Tablet Press Wooden Box Automatic Rotary Tablet Press Pill Machine	Video shipment inspection:	if
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	After warranty service:	Video technical support, online support
After-sales service provided:	Video technical support, online support	Local service location:	not any
application:	Food, beverage, daily necessities, medical treatment, chemical industry, machinery and hardware, clothing, textiles	Origin:	Jiangsu, China
Showroom location:	not any	Health status:	new
Supply capacity:	200 rotary tablet presses per year Automatic rotary tablet press pill machine	Warranty:	1 year
usage:	Capsule blister sheet packaging	Package preview:
port:	Shanghai

the banner

Product Description

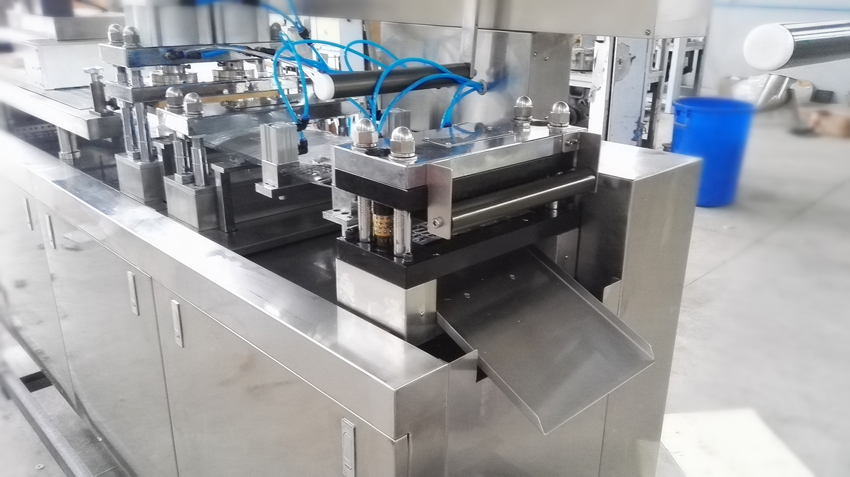

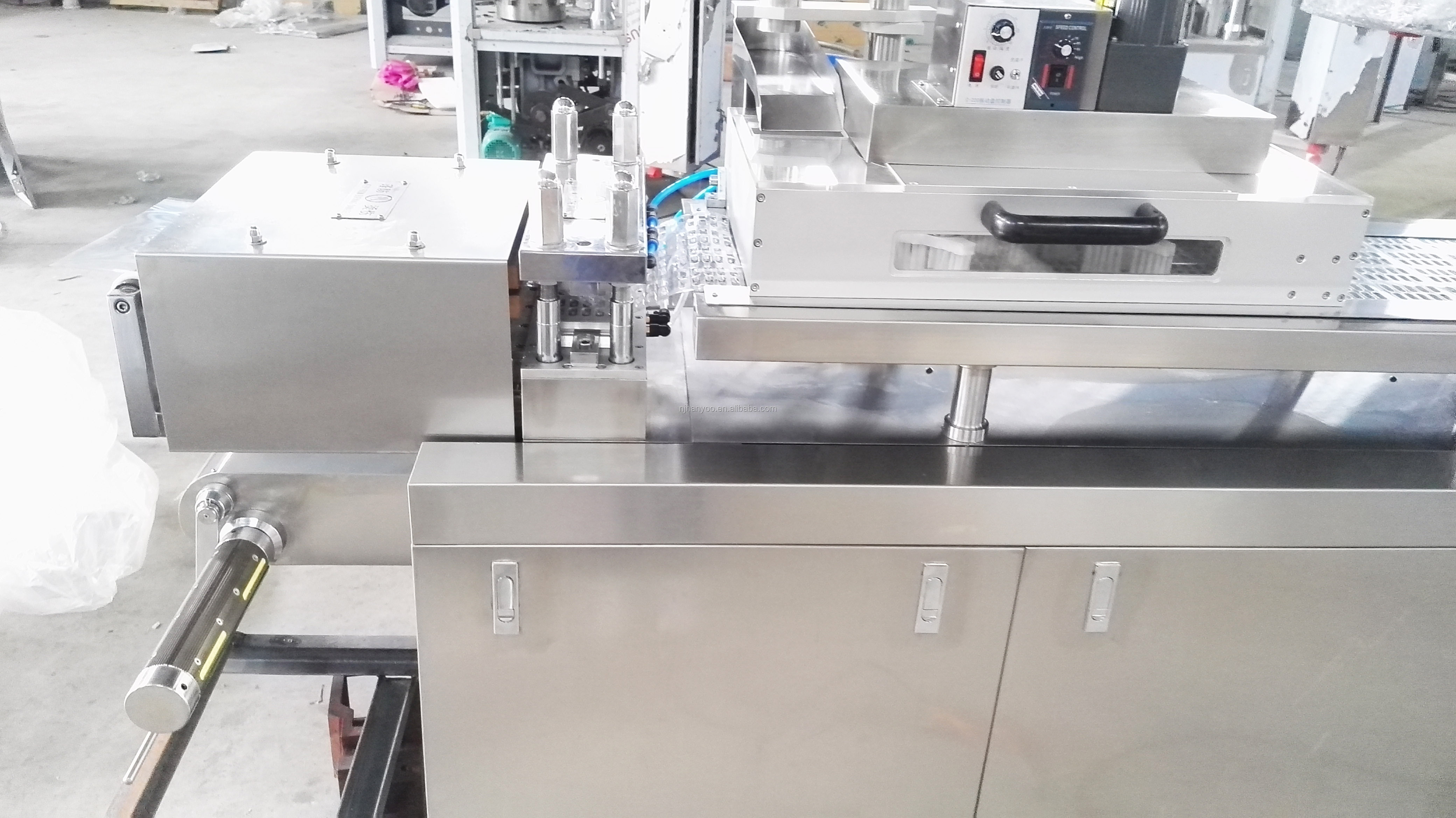

The blister packaging machine is specially used in pharmaceutical, food, chemical and other industries. It has the functions of packaging, detection and rejection. The PLC control system, touch screen interface, and frequency conversion speed regulation system are adopted to make the automatic operation of the machine more stable and improve the service life of the machine. This machine can use ALU PVC, ALU ALU, PVC PAPER and other materials for blister packaging. Comply with GMP standard.

Machine Features

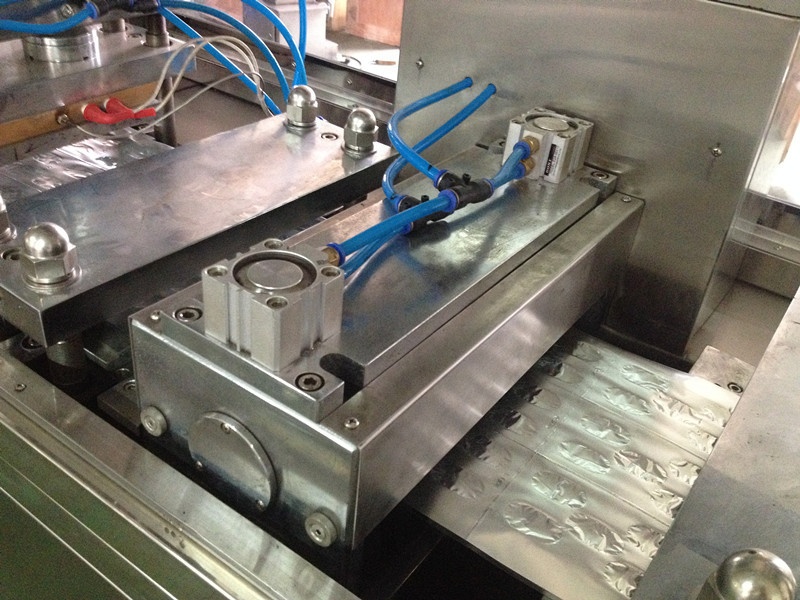

●The stroke range is adjustable, and the mold is located in the groove, which is convenient for mold change. ●Automatic feeding system, molds and feeders can be designed according to different products. ●Easy-tear crimping device, batch printing device, waste collection and eye tracking device can be used. ●Automatically separate the heating mold after shutdown to protect the packaging material and prolong the service life of the machine.

Technical Parameters

Model	DPP-270A			DPP-360A
Cutting frequency (times/min)	ALU-PVC	10-40	ALU-PVC	10-40
		ALU-ALU	10-20	ALU-ALU	10-20
Output (pcs/h)	ALU-PVC	4000-7000	ALU-PVC	6000-9000
		ALU-ALU	2000-3000	ALU-ALU	3000-5000
Stroke range (mm)	30-130(150)			30-150(180)
maximum. Blister size(mm)	270130(150)30(40)			360150(180)30(50)
Air consumption (m3/min)	≥0.38			≥0.42
Voltage	380V 50Hz 8.5kw			380V 50Hz 13kw
Plastic film (mm)	280*(0.15-0.5)			360*(0.15-0.5)
Aluminum foil (mm)	280*(0.02-0.035)			360*(0.02-0.035)
Dimensions (mm)	39007401700			41007401750
Weight (kg)	1600			2400
