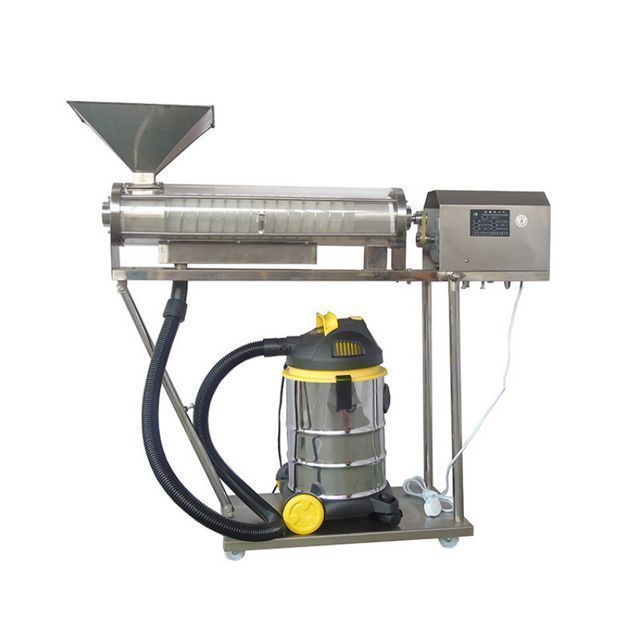

Small Capsule Duster FPP-2 Empty Capsule Polished Metal Detector For Sale

The use of polishing machine

The polishing machine equipment with sorting function is not only used to remove powder attached to the capsule surface
and tablets (sugar-coated, plain) to make them clean and thus improve the surface finish. it can also
Capsules filled with small diameters, empty shells, fragments and detached body caps are automatically rejected. apply to
There is no need to change the mold for various types of capsules. Suitable for personal, pharmacy, clinic, hospital, pharmaceutical
Laboratories, research institutes, schools and other institutions.

Polishing machine features:

The polishing and conveying process of this machine is a closed structure. The part that comes into contact with the drug consists of
Stainless steel and corrosion-resistant material, easy to disassemble and clean. It meets the following requirements
Good Manufacturing Practice (GMP) Implementation Guide in Pharmaceutical Facilities. Speed-adjusting type adopts
Microcomputer control, stepless speed regulation, can meet the polishing speed requirements.
Different medicines such as capsules, sugar-coated tablets, and plain tablets. Spindle tilt angle adjustable
The polishing time of different medicines can be arbitrarily satisfied within a certain range. Non-speed regulating type
Run at a fixed speed. The machine base is equipped with movable casters, which can place the machine in different workplaces.

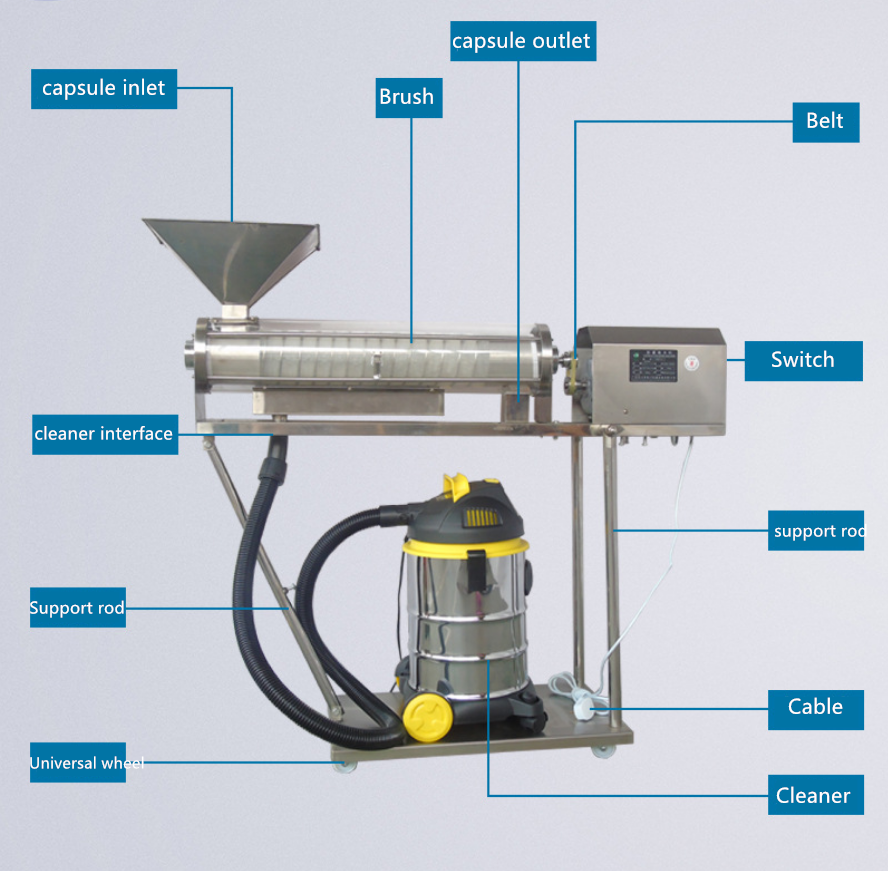

Working principle of polishing machine:

The working principle of this machine is to drive the capsule to make a circular spiral motion along the polished tube wall
The rotating motion of the tube through the brush makes the capsule move along the helical spring, and the surface of the capsule
The shell is polished under constant friction between the brush and the polished tube wall. , polished capsules enter
Enter the waste hopper from the discharge port. In the waste removal device, due to the negative pressure, the light weight is unqualified
The capsule rises under the action of the airflow and enters the vacuum cleaner through the suction tube. heavyweight pass
Capsules are continuously dropped and discharged through the mobile unloading hopper, effectively achieving the polishing effect and eliminating
Purpose. Powder and small chips brushed off during polishing pass through
The small holes on the polished cylinder wall are sucked into the vacuum cleaner for recovery.
