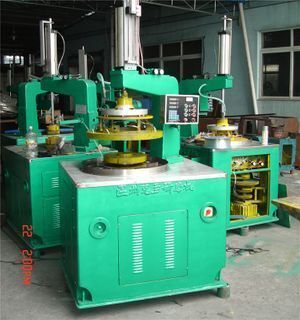

Offer Parts of Grinding Machine and Their Functions
-
Supplier: Wenzhou Rimi Seal Manufacturing Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr edison zhang -
Price: $5500.00 /set -
Min. Order: 1 set
| Certification: | ISO9001; | Delivery Detail: | 30 Days After Issue Date of T/T in Advance; |
| Lower Plate Speed: | 60R/M; | Max. Grinding Length: | Effective Length; |
| Upper Plate Speed: | 32R/M; | Application: | Aluminum,Ceramic,etc...; |
| Cylinder Diameter*Height: | 100mm*450mm; | Dimension(L*W*H): | 1150mm*950mm*2300mm; |
| Place of Origin: | Zhejiang China; | CNC or Not: | CNC; |
| Pressure: | 0.2-0.6mpa; | Flatness: | <0.003mm; |

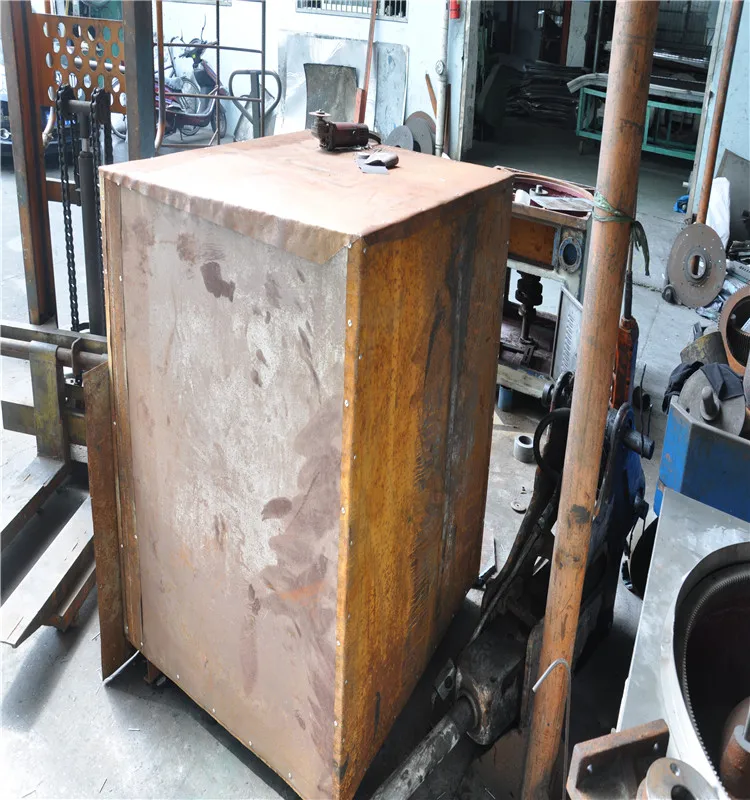

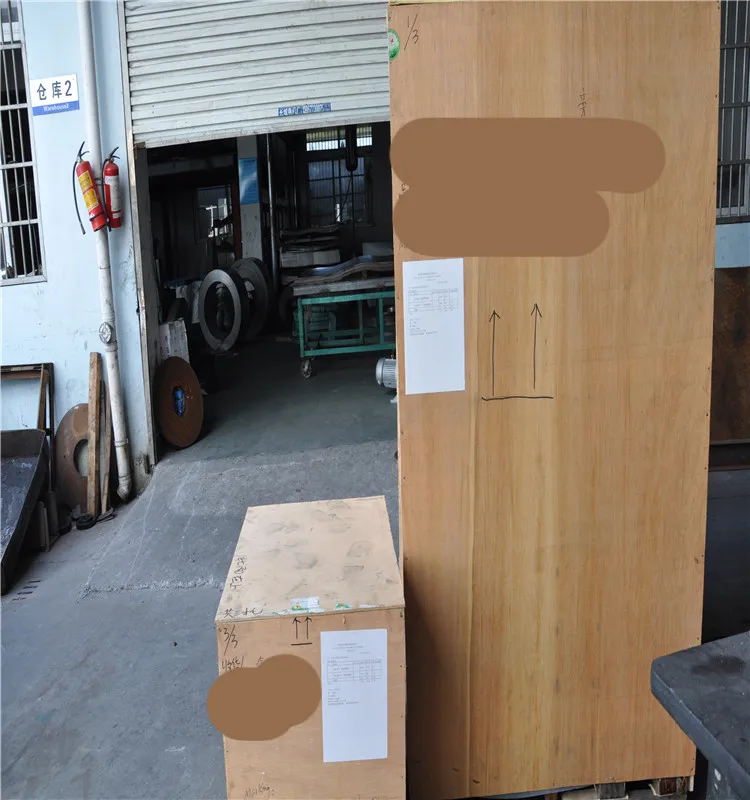

| Packaging Detail: | Packing: Wooden Packing Box Packing: Iron Box Can be packed as per your request.; | Condition: | New; |
| Brand Name: | HM; | Payment Terms: | L/C,T/T,Western Union; |
| Power(W): | 4KW; | After-sales Service Provided: | No overseas service provided; |
| Model Number: | HM-S610; | Workpiece Minimum Thickness: | 0.3mm; |
| Weight: | 1500kg; | Max. Grinding Diameter: | 200mm; |
| Roughness: | 0.1Ra; | Port: | Ningbo or Shanghai; |
| Supply Ability: | 15 Set/Sets per Month; | Type: | Surface Grinding Machine; |
| Key words: | Grinding Machine; | Thickness Tolerance: | ±0.01mm; |
| Voltage: | 380V; |
Digital display window instuction:
Digital display window | Function | Detailed |
Light pressure (data/mm) | The actual thickness between upper plate and lower plate | The actual thickness of product during lapping |
Heavy pressure (data/mm) | The rough thickness of the product
| Higher than light pressure date and stop data |
Stop (data/mm) | Finished thickness of the product | The machine will stop as soon as the product achieve the data. |
Water pump on | Turn on water pump |
|
Water pump off | Turn off water pump |
|
Motor on | Turn on motor |
|
Motor off | Turn off motor |
|
Up | The upper plate go up | When press “Up” |
Down | The upper plate go down | When press“Down” |
Automatic control (light) | Working condition show | The machine will stop automated as soon as it achieve stop data. When press it, the machine will control by itself.Usually press this, the grinding pressure is also from cylinder and plates weight. |
Light pressure (light) | Working condition show | if the light on, it means grinding by pressure from upper plate’s itself weight. |
Heavy pressure (light) | Working condition show | If the light on, it means grinding by cylinder pressure. The machine doesn’t stop automated |
Light pressure pre-set | Amend light pressure data. | Press it and clean , then input the data . then press confirm. |
Heavy preesure pre-set | Amend heavy pressure data. | Press it and clean , then input the data . then press confirm. |
Stop pre-set | Amend stop data | Press it and clean , then input the data . then press confirm. |
Clean | Clean for amend | Clean as zero |
+0.01 compensation | The light pressure data and stop data will increase by0.01mm if press one time | For example, when stop data is 2.00mm. but find that the finished product is 2.03mm. then press 3 times, the machine will continue to grind 0.03mm and then stop. |
-0.01 compensation | The light pressure data and stop data will decrease by 0.01mm if press one time. | for example, stop data is 2.00mm.After the machine stop automated, we find that the finished product is 1.97mm, we press 3 times, next time, the machine will grind less 0.03mm. |
Speed of motor | Adjust the speed of rotary | |
Set confirm | After pre-set the data, confirm it. | |

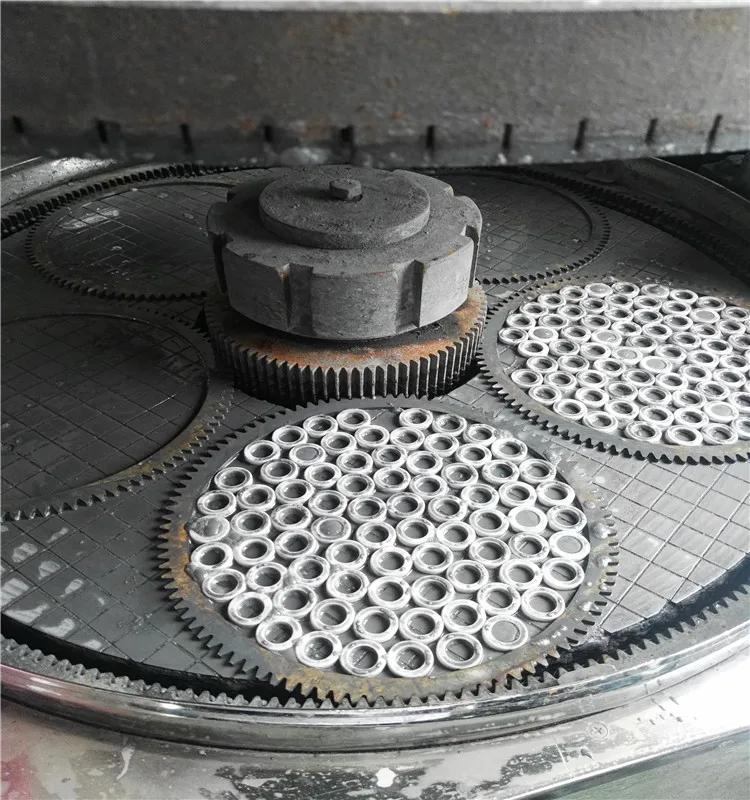

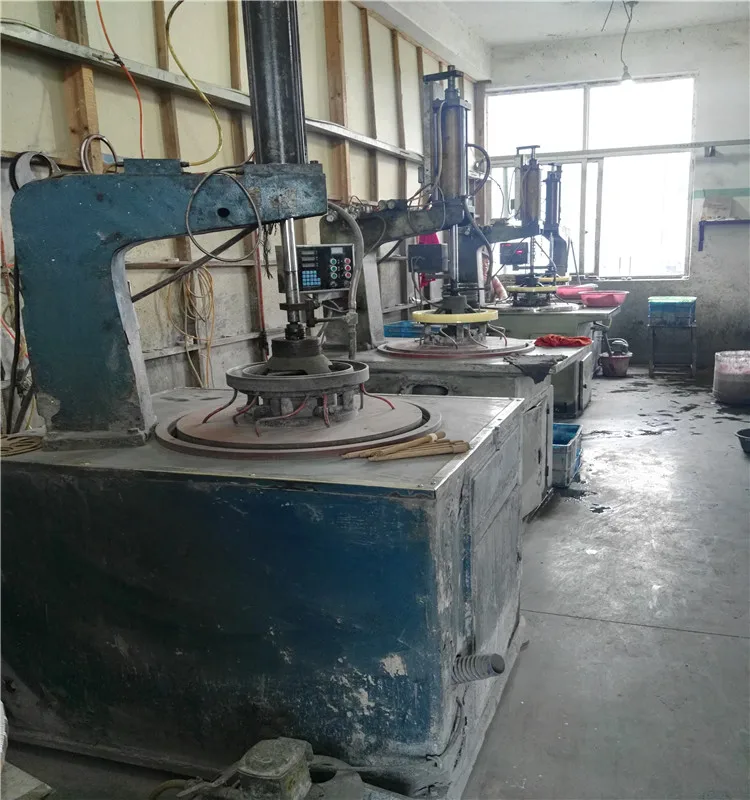

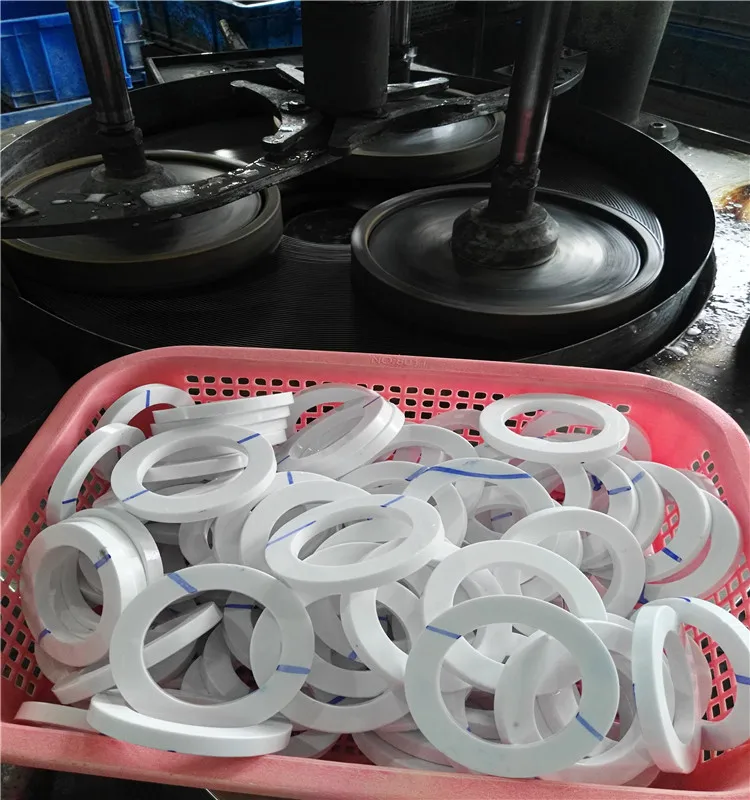

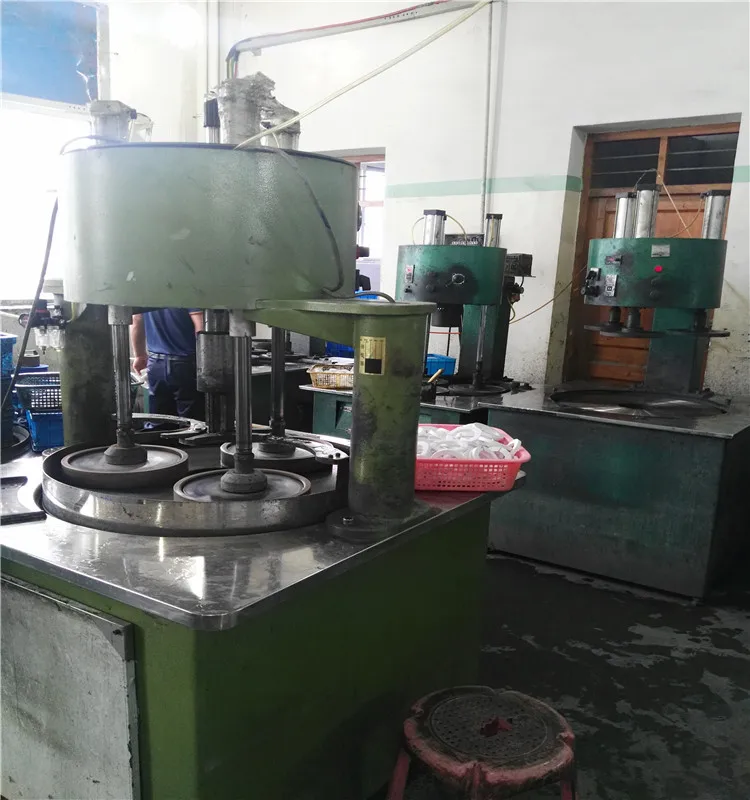

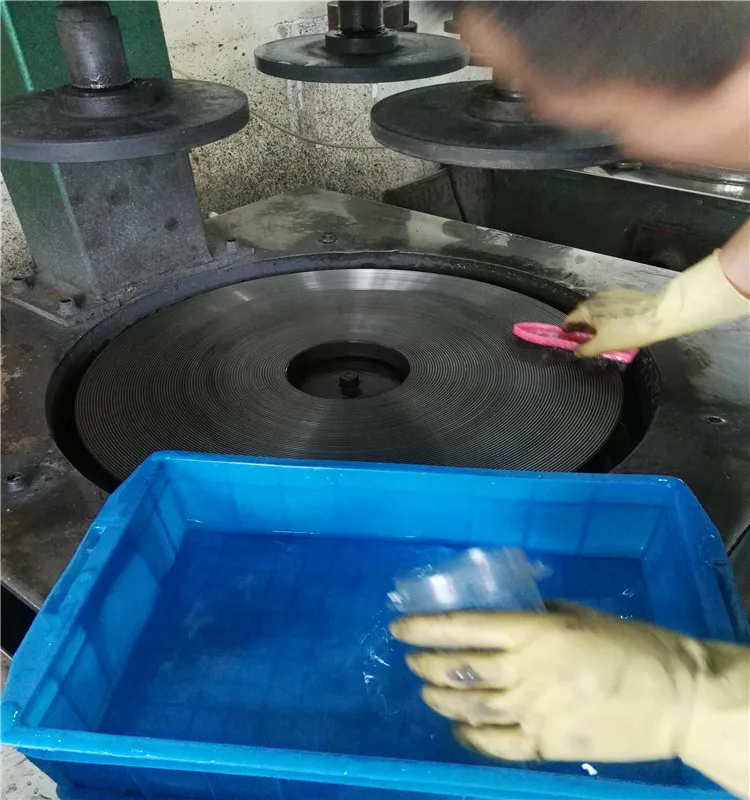

Polishing and Lapping Machine Working on Ceramics
WenZhou HengMei Lapping Machine Manufacturing Co.,Ltd. is a professional manufacturer of lapping machines and polishing machines in China.
We mainly produce CNC double faces lapping machines and single side polishing machines ,diamond lapping machines .
We also offer ultrasonic cleaning machines,flatness measuring instruments and abrasive, pads ,paste, and lapping vehicles ,such as diamond powder, ,silicon carbide , aluminium oxide, boron carbide.cerium oxide powder. Polishing pads, diamond paste, lapping oil, lapping compounds.

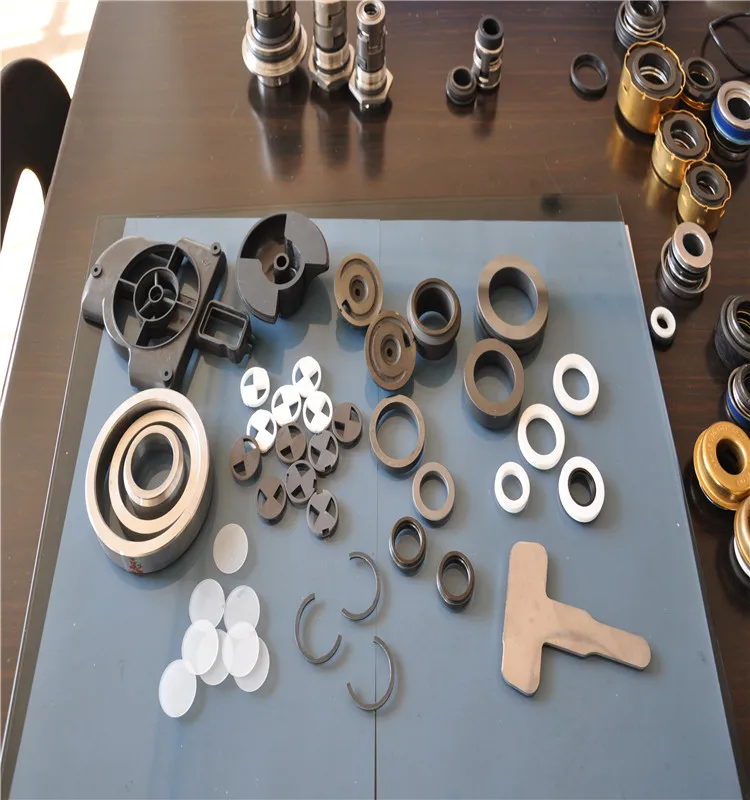

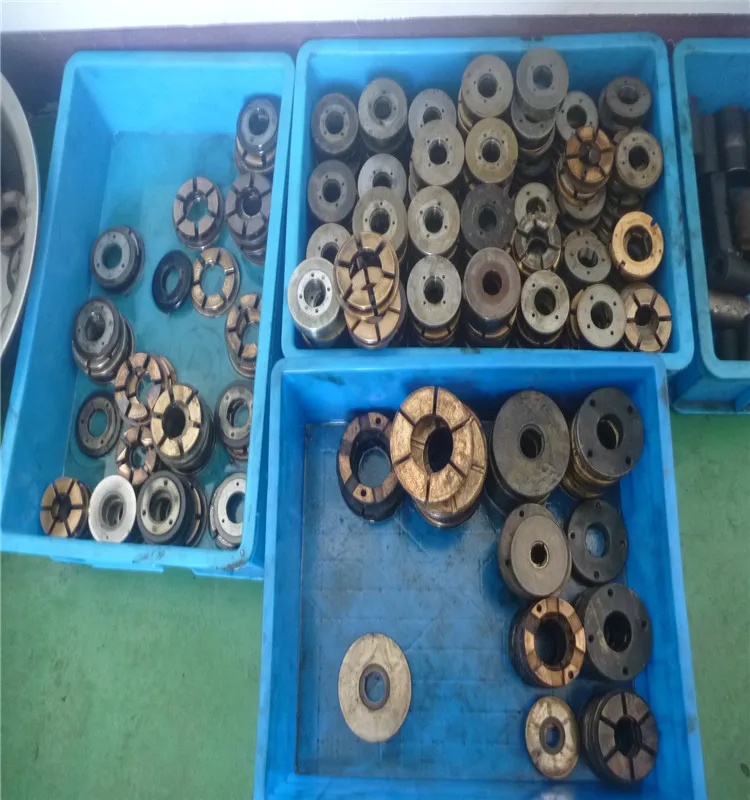

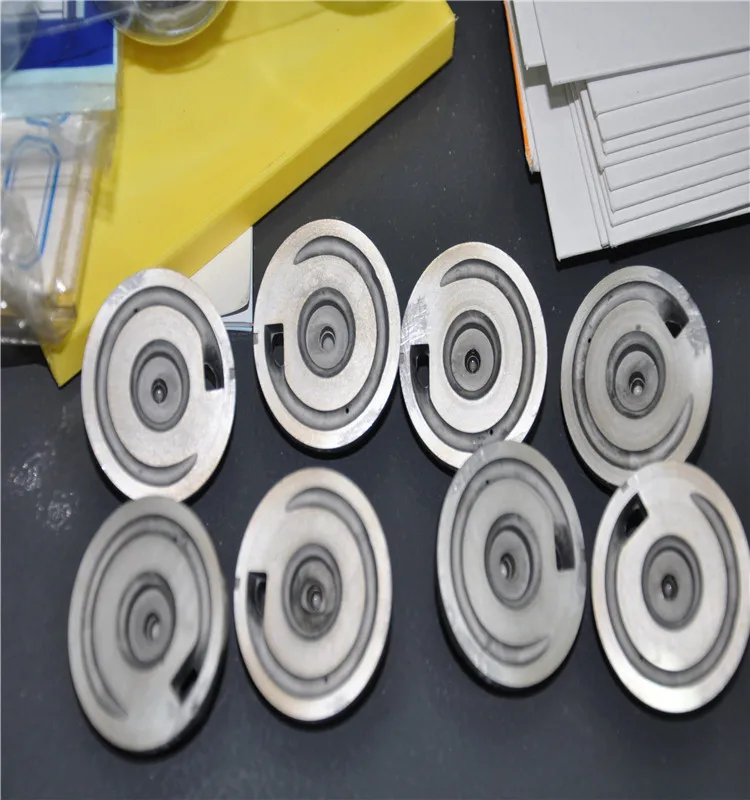

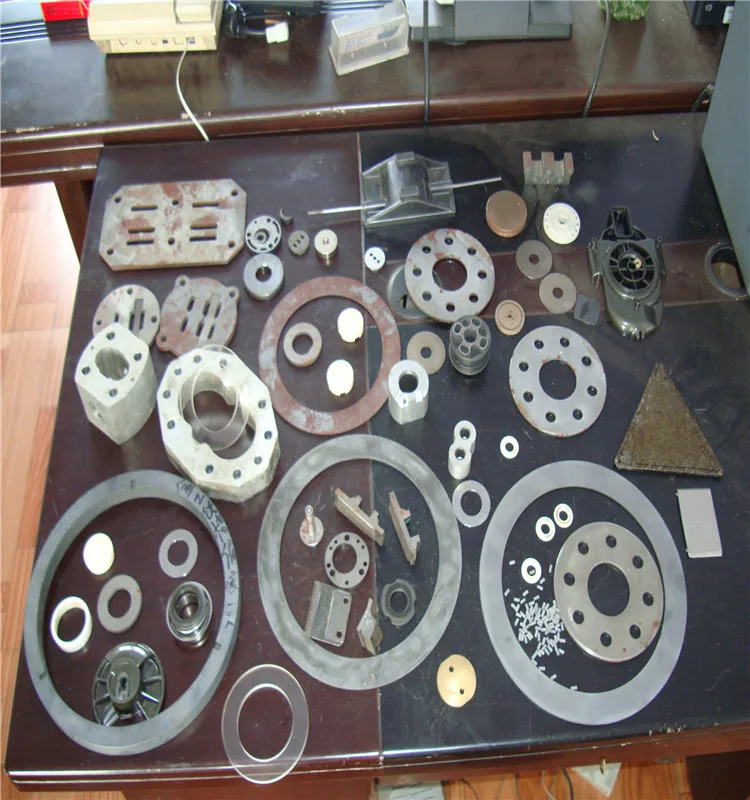

HengMei lapping&polishing machines are widely used in the lapping and polishing of flat surface of high precision workpieces,such as different materials sealing rings,ceramic plates,piston rings of cylinders,blades of oil pumps, silicon,germanium,quartz crystals,graphite sapphire,metal materials,engineering plastic and etc.
We use these machines for lapping & polishing our own ceramic and carbons, easy to operate, quality can be guaranteed( We'll test every machine after we finish the processing), videos can be showed as long as you leave your e-mail address here.
-
