NINGBO LEPIN CUSTOMIZE crush resistance stainless steel wire basket wire mesh tray electrical equipment supplies

Product details
Application:Telecommunications;Max. Working Load:Specification;
Product type:Basket;Product Name:wire mesh cable tray manufacturer supplier;
Raw material:SS304 SS316L Q235;Packaging Detail:Export carton packing with pallet;
Side Rail Height:30-450mm;Material:Steel;
Place of Origin:Zhejiang China;Export Range:Overseas;
Surface Finish:Electro-Galvanized Finish;Payment Terms:T/T;
Thickness:3-6mm;Port:Ningbo, Shanghai, Shenzhen;
Length:3000mm;OEM:available;
Certificates:ISO9001;Model Number:WG;
Supply Ability:500 Meter/Meters per Day wire mesh cable tray manufacturer supplier basket type basket tr;Color:Silver;
Type:Wire Mesh;Brand Name:LEPIN;
Width:Max 1000mm;

SGS steel cable tray sizes manufacturers (CE,SGS,TUV,RoHS,IEC,NEMA)

Product Description
Our AdvantageHigh-quality with most competitive price
 vertically integrated processes, cost saving
 No cheating material
 Own lab keeps the quality reliable
 Superiority of new product research and development
 Easy installation,facilitate moves,adds or changes
Straight Section TypeU, T, G, M, S
Length2000mm , 3000mm or customization
Width50 - 600mm as customers request
Height50 , 100mm or customization
Diameter Of The Steel Wire4mm, 5mm, 6mm
MaterialCarbon steel(Q235B),
 Stainless steel(201,202,304,316,316L)
FinishElectro zinc plating for indoor usage
 Powder coating for indoor usage (the color is optional)
 Hot Dipped Galvanizing for outdoor usage and corrosive environment
 Acid Washing or Electrolytic Polishing for stainless products.
Loading TestOur Wire Mesh Cable Tray meet the standards requirements of IEC61537 and NEMA VE-1
Packing way5 layer double corrugated paper board
 Pallet avaliable if necessary
Delivery40HQ - 15 to 18 Days after received deposit
Products CertificateRoHS
 UL listing application is on progress
 CE
Manufacture System CertificationISO 9001:2008 Quality Management System Certification
 ISO 14001 Environmental Management System
 OHSAS 18001 Occupational Safety And Health Management System Certification

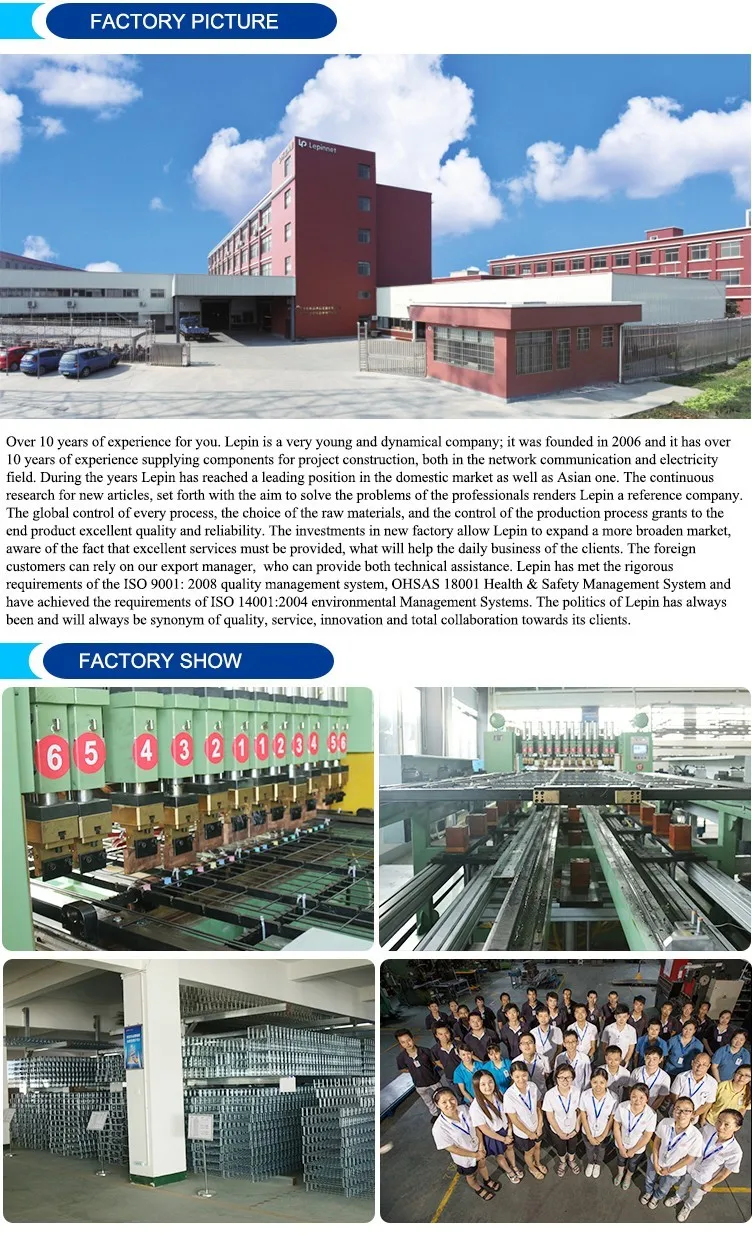

Company Information



FAQ

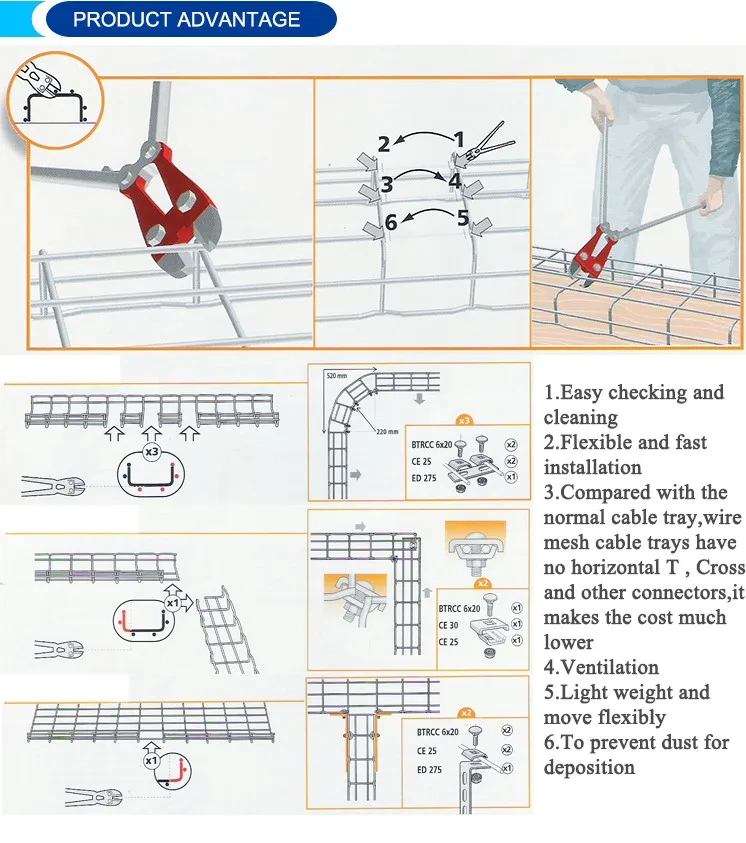

1.Why you choose our wire mesh cable tray?

a. Easy checking and cleaning

b. Flexible and fast installation

c. Ventilation

d. Light weight and move flexibly

e. To prevent dust for deposition

f. Compared with the normal cable tray,wire mesh cable trays have no horizontal T , Cross and other

connectors,it makes the cost much lower



2.What services we can offer?

a.We are manufacturer with a range of electrical and network cabling equipments , you can enjoy the

one-stop shopping service from our company.

b.Quality and cost driving manufacturer with ISO9001 certificated to provide customers reliable products

with most competitive price..



3.What is the payment term?

.FOB, CIF, CFR (Ningbo, Shanghai, Xiamen, Qingdao)



4.What is the delivery time?

We are  manufacturer that have in stock of the normal sizes . We promise delivery 7-12 days after

getting your deposit.



5.Which certification we have got ?

For products : CE, RoSH, UL listing application is on progress

For manufacturer: ISO 9001: 2008, OHSAS 18001, ISO 14001:2004



6.Dou we provide free samples?

.Yes ,you can get the free samples



7.How can we make commitment passing the test:

we have professional  lab to do below test:

a.safe loading test

b.galvanized thickness test

c.salt spray test

d.electrical continuity



8.What is our products advantages:

a.Reduce installation costs and time

b.Easy for changing, adding and moving

c.Bright surface means good material and quality

d.Our electrical and network cabling equipment have the same quality as the international famous

brand.
