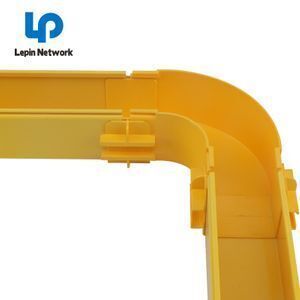

Yellow duct fiber raceway system cable tray

Supplier: Ningbo Lepin Network Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Louis Zheng
Price: $2.00 /meter
Min. Order: 1 meter

Click here to contact

Product details

Test approval:	SGS tested fiber raceway system;	Supply Ability:	10000 Meter/Meters per Month;
Port:	ningbo;	Payment Terms:	L/C,D/P,T/T,Western Union,cash;
Width:	120mm,240mm,360mm;	Length:	2 metor or tailor made;
Delivery Detail:	2-3 weeks;	Brand Name:	Lepin fiber raceway system;
Model Number:	AS01;	Place of Origin:	Zhejiang China (Mainland);
Packaging Detail:	fiber raceway system straight section packed by standard exporting carton.;	European directive:	RoHS;
flame retardant grade:	UL94 V0;	color:	yellow or orange;
Side Rail Height:	100mm;	type:	fiber raceway system;
Max. Working Load:	500N Per meter;	Type:	Solid Through;
Material:	PVC;

Fiber raceway system brief introduction

Fiber raceway system is designed to protect and route fiber optic patch cords, cable assemblies to and from network cabinets, ODF and other terminal devices.

Fiber raceway system support system offers ideal solutions for optical raceway requirements and application with pleasing appearance and easy maintenance.

Flame-retardant materials rated UL94 V0.

Tool-less products boast easy and quick installation including snap-on cover, hinged cover option as well as quick exits.

Materials: PVC for Straight sections

Other parts: ABS

Specification

Item code	Width	Cross section	Length	Capacity for 2mm diameter cable			Capacity for 3mm diameter cable
				Accumulated height 50mm	Accumulated height 75mm	Accumulated height 100mm	Accumulated height 50mm	Accumulated height 75mm	Accumulated height 100mm
LP	120mm	120x100mm	2000mm	816	1224	1632	352	528	704
LP	240mm	240x100mm	2000mm	2040	3060	4080	880	1320	1760
LP	360mm	360x100mm	2000mm	2707	4060	5414	1201	1802	2402

Company Information

Ningbo Lepin network equipment co.,ltd. was established in January 2006, which occupies an area of 20000 square meter and more than 150 staffs. We were devoted to produce high quality network equipment products.

Our mainly products are various cable tray system, various steel cable ladder, wire mesh cable tray, fiber cable support system, fiber optic equipment, fiber optic equipment. With strict quality management, and passed SGS and TUV tests, our products were used by international companies already, such as Huawai. we also provide OEM service according to customers' requirement.

Stick to the idea of dedicate to create value for customers, we keep innovating production process, optimizing product structure, improving customer service, to make our product more competitive in a professional way.

we hereby ensure our customers with reasonable price, considerable service, timely delivery and high quality. we are looking forward to cooperating with you for a win-win situation.

Real project show for fiber raceway system

Lepin fiber raceway system is a great fiber routing system designed to protect and route fiber optic patch cords, cable assemblies between fiber optic devices in the data centers.

This fiber raceway system could be fully closed for providing the best protection for the optical fiber cables.

Light weight & strong body, very easy installation and maintenances.

Minimum bend radius controlled ensures safety of the optical cable.

This fiber raceway system uses flame retardant materials with flame rate of V0, keep the optical cables in the fiber cable support system absolutely safe from fire.

The optic fiber raceway system is RoHS compliance.
