Power Supply: | 220V/50HZ 110V/60HZ; | Dimension(L*W*H): | 124*36*32cm; |
Gross weight: | 50kg; | Supply Ability: | 1000 Set/Sets per Month; |
Laser Source Brand: | EFR; | Laser Power: | 40W/50W; |
Certification: | CE,ISO,FDA; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Payment Terms: | L/C,T/T,Western Union,MoneyGram,Paypel ect.; | Brand Name: | DINKUM; |
Applicable Industries: | Garment Shops,Building Material Shops,Manufacturing Plant,Home Use,Printing Shops,Advertising Company; | Graphic Format Supported: | BMP,DST,DWG,DXF,DXP,LAS,PLT; |
Condition: | New; | After-sales Service Provided: | Field installation, commissioning and training; |
CNC or Not: | No; | Laser Wavelength: | 10640nm; |
Repeated Precision: | 0.01mm; | Application: | Laser Plotter; |
Cooling Mode: | Water Cooling; | Warranty: | 1 Year; |
Packaging Detail: | International Plywood Box; | Applicable Material: | Acrylic,Leather,Paper,plastic,Plexiglax,Plywood; |
Port: | Qingdao, Shanghai, Ningbo ect.; | Control Software: | Artcut; |
Place of Origin: | Shandong China; | Laser Type: | CO2; |

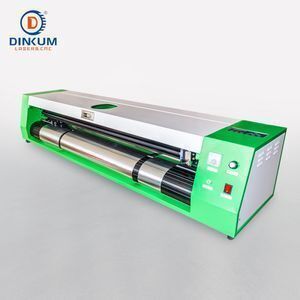

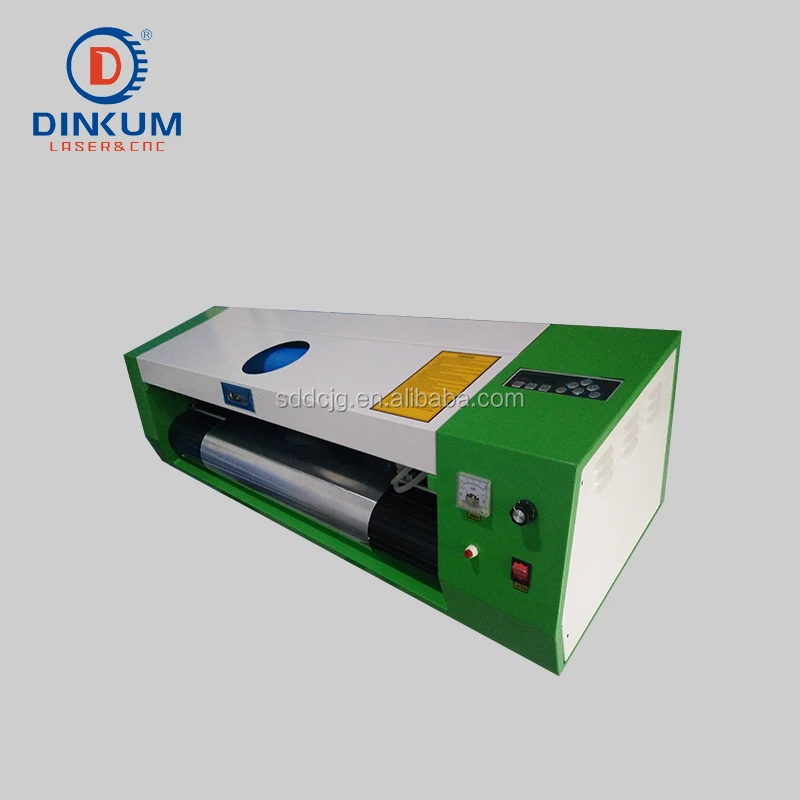

960 mm mini plotter cutter CO2 laser machine for pvc vinyl stickers paper
Note: 1.This small laser cutter plotter is ideal for vinyl stickers, car stickers, vinyl, paper and other soft non-metal materials. This is a very favorable and portable desktop laser cutting plotter machine, many customers buy it for private use or small business.
Please don't worry if you don't know how to use it, we have English user menu, video to show operation way and special technician to support you until you are skilled at it.
Parameters of vinyl/paper/stickers laser cutter plotters
Model | DK-P960 |
Max material inlet width | 960mm |
Max engraving cutting width | 700mm |
Max speed | 500mm/s |
Operating temperature | 5-35degree |

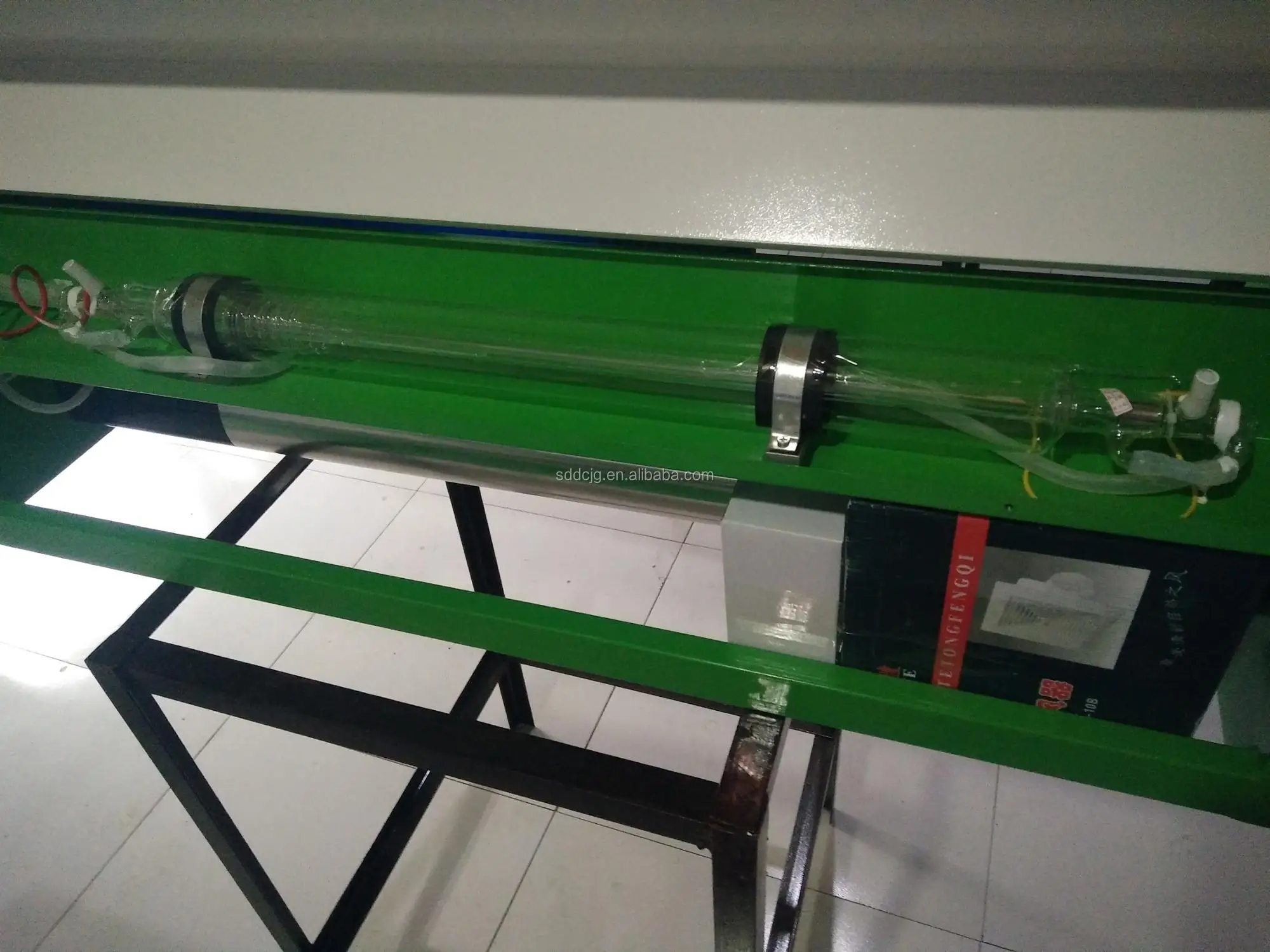

Laser tube power | 40W/50W |
Working table | Roller clamp |
Cooling system | Water cooling |
auto air blowing | yes |
Instruction | English |
Adjust the speed and voltage while working | Yes |
Interface | USB/COM |
Computer system environment | WINDOWS XP / 7 / 8 /10 |
Voltage | AC100-250V/50HZ/60HZ |
Drawing language | HPGL, DMPL |
Re-cutting function | Yes |
Working delicacy | 0.0254mm/step |
Positioning Accuracy | 0.01mm |
Machine frame | Yes |
Paper frame | Singlestick |
Drive | Stepper |
graphics mode | PLT, JPG, BMP, TIF, AI, EPS, WMF, PSD, DWG ect. |
Support software | WenTai Draw,CutterMaster,CORELDRAW,CAD |
Machine size | 124*36*32cm |
Packing | plywood box |
Packing size | 145*50*47cm |
Gross weight | 50kg |
Note: 1.The DK-P960 laser cutting plotter can not work without PC. 2.The DK-P960 laser cutter plotter has one USB port. 3.The machine color maybe different from the color on picture. |
Machine Specifications of Plotter Cutter:
Samples of Plotter Cutter:
Remark
The width of laser cutter plotter is optional and there are two commom types 960mm and 1360mm by width. Which one will meet your cutting need better? For any questions, please leave message to me before placing your order.
